Libec SVF-7 Pro 7“ FHD Studio Viewfinder

Full HD 7" viewfinder for studio cameras with 3G-SDI, HDMI, and analog HD terminals, and a lightweight as well as robust magnesium alloy body. (Connection cable and shoe attachment for cameras not included, please be sure to purchase either the CA-7S, the CA-7I, or the CA-7H). The 1920 × 1080 panel offers a 170° viewing angle and three tally lamps.

The Libec SVF-7Pro is a 7-inch Full HD viewfinder for studio cameras with a 1920 × 1080 panel, 350 cd/m² brightness and a 170° viewing angle. It offers 3G-SDI, HDMI and analog HD component inputs, a return input, scopes, markers and tally lamps. The body is magnesium alloy and the viewfinder weighs 1.2 kg.

A Full HD viewfinder for the studio

A 7-inch 1920 × 1080 viewfinder with 3G-SDI and HDMI and large grip handles for positioning.

7" Full HD170° viewing angle3G-SDI and HDMIWaveform & vectorscopeFront and rear tallyMagnesium body

No color shift at any angle

The 170° wide view angle, horizontal and vertical, offers clear images without color and contrast shift at any angle. The Japan-made viewfinder uses a Full HD panel with high brightness and contrast.

Multi-connectivity

The viewfinder offers 3G-SDI, HDMI and analog HD component inputs, a return input and through outputs. Input signals are recognized automatically without adjusting settings.

Scopes in the viewfinder

A waveform monitor, vectorscope and other scopes are easily displayed on live footage. They let you precisely adjust exposure, white balance and more on site.

Lightweight and robust

The magnesium alloy body is light and robust. Large left and right grip handles and variable tension pivot points make positioning easy, even while the camera is on air.

Framing markers

Center, aspect and safety zone markers plus flexible area markers help frame the shot.

Three tally lamps

Two front (green and red) and one red rear tally, all with adjustable brightness.

Shoe for your camera

Choose the cable and shoe for Sony, Ikegami or Hitachi: CA-7S, CA-7I, CA-7H.

Broad format support

Displays 1080p, 1080i, 1080PsF and 720p, interlaced and progressive.

SVF-7Pro is a high-quality viewfinder with a 1920 x 1080 Full HD TFT LCD panel that enables users to clearly view footage detail with a high brightness & contrast ratio, achieving vivid and excellent color gradation, plus a 170 degree wide view angle for clear images without a color and contrast shift.

Libec viewfinder provides multi-connectivity with 3G-SDI, HDMI, analog HD component and a lot more terminals as well as format compatibility. In addition, it allows return input and through output. The monitor further features large left and right grip handles to make positioning and adjusting its angle a piece of cake, even while cameras are on air, plus a a variety of optional shoe attachments for securely mounting Sony, Ikegami or Hitachi cameras. The Viewfinder comes with three tally indicators, two sets for the Front Tally (Green and Red), and one for the Rear Tally (Red). The brightness is adjustable. A waveform monitor, vector scope and other scopes can be easily displayed to monitor footage. The professional scopes allow to precisely adjust overexposure/underexposure, white balance and more on site. The center marker, the aspect marker, the safety zone marker and flexible area markers are all available. The markers help users frame the perfect video shot.

On-screen markers. Center, aspect and safety zone markers help you frame the perfect shot.

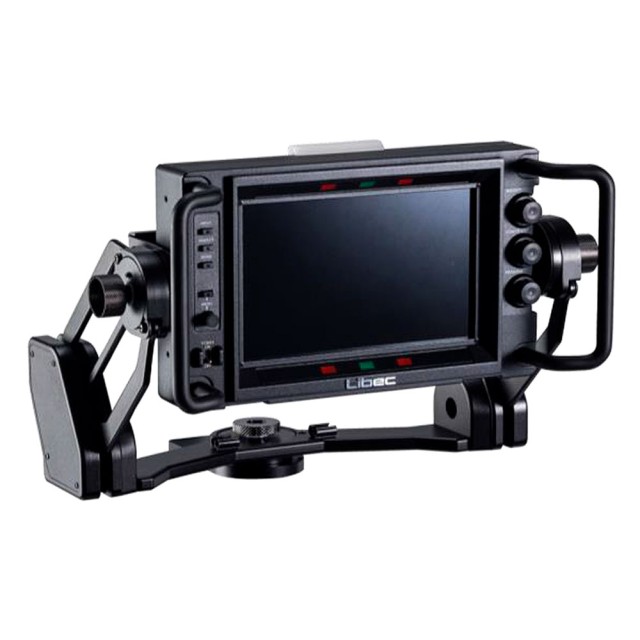

Large handles and adjustable pivots. Viewfinder position and angle are easy to change, even while the camera is on air.

Shoe attachments. Shoe attachments for Sony, Ikegami and Hitachi cameras are optional and hold the viewfinder securely on the camera.

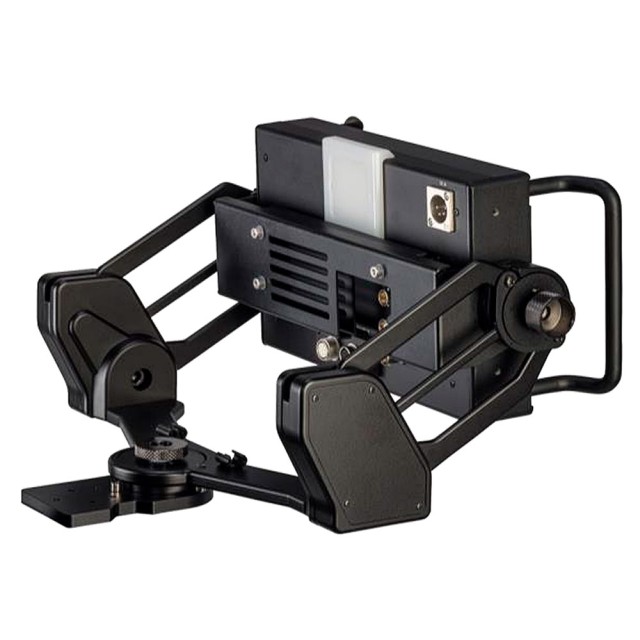

Rear panel. Connectors, tally and controls are laid out clearly on the back of the viewfinder.
