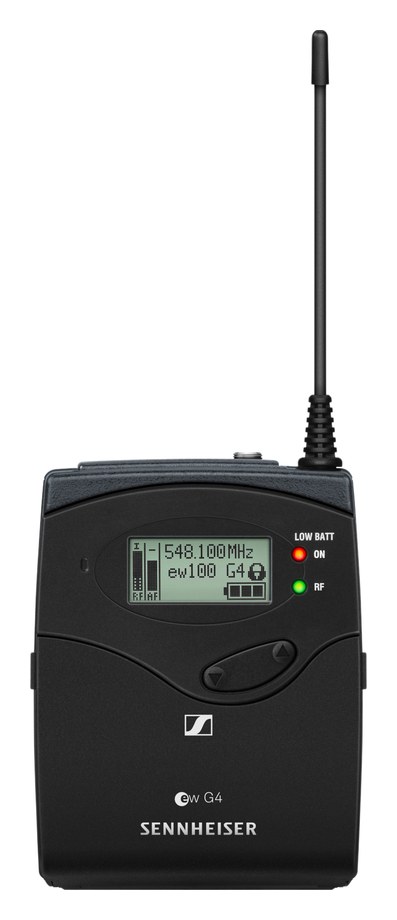

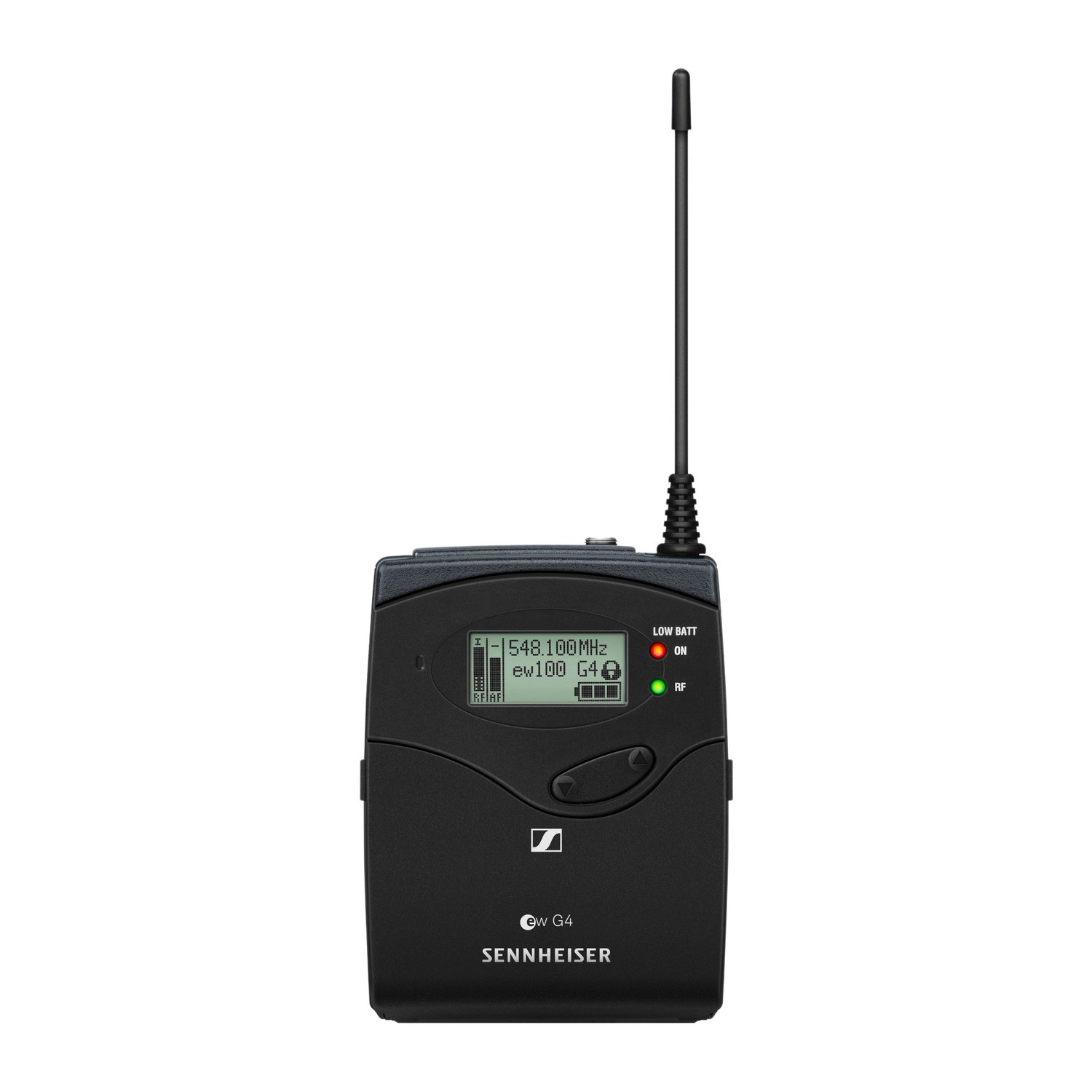

Sennheiser EK 100 G4-A camera receiver

SKU: EK 100 G4-A

The Sennheiser EK 100 G4-A is a camera receiver for the evolution wireless G4 100P Series in the A (516–558 MHz) range. Its lightweight aluminium housing mounts in the camera shoe with the CA 2 adapter, and adaptive diversity reception reaches up to 100 m. Two AA batteries last typically 8 hours, and the CL 1 and CL 100 cables for the camera jack or XLR input…

More information

352 € with VAT 290.91 € without VAT
Add to Compare Price history
Availability
on request
SKU:
EK 100 G4-A
Add to Compare Price history

Sennheiser EK 100 G4-G

300.3 €without VAT 248.18 €

Kapesní/kamerový přijímač řady 100, 470 - 516 MHz, včetně CA2, CL1, CL100

352 €without VAT 290.91 €

Top accessories for Sennheiser EK 100 G4-A camera receiver

Sennheiser BA 2015-4 rechargeable battery, pack of 4

The BA 2015-4 rechargeable battery pack powers bodypack transmitters and receivers
191 €
1 pcs in stock at the supplier

Sennheiser BA 2015 rechargeable battery

The Sennheiser BA 2015 is a rechargeable NiMH battery pack designed for evolution
80 €
3 pcs in stock at the supplier

Sennheiser L 2015

The L 2015 quick-charging unit automatically recharges two Sennheiser BA 2015 batteries.
181 €
on request

Sennheiser SK 100 G4-A transmitter

The Sennheiser SK 100 G4-A is a bodypack transmitter for the evolution wireless G4
301 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser EK 100 G4-A is a camera receiver for the evolution wireless G4 100P Series in the A (516–558 MHz) range. Its lightweight aluminium housing mounts in the camera shoe with the CA 2 adapter, and adaptive diversity reception reaches up to 100 m. Two AA batteries last typically 8 hours, and the CL 1 and CL 100 cables for the camera jack or XLR input are included.

Sound for documentary and news

A compact receiver for documentary makers, mobile journalism and audio for video. Setup is quick and operation stays simple in the field.

Sennheiser EK 100 G4-A camera receiver
Range A: 516–558 MHzAdaptive diversityRange up to 100 m3.5 mm jack output8 h on 2× AA160 g

Ready for the camera

The CA 2 adapter holds the receiver in the camera shoe, the CL 1 cable feeds a 3.5 mm jack input and the CL 100 cable an XLR input. Output level is adjustable over 42 dB in 6 dB steps.

1,680 frequencies

Tunable in 25 kHz steps across up to 42 MHz, with 20 banks of up to 12 intermodulation-free preset channels and one user bank.

Three squelch levels

A threshold of 5, 15 or 25 dBµV and pilot tone evaluation suppress noise when the transmitter signal is missing.

HDX compander

Sensitivity below 1.6 µV, signal-to-noise ratio ≥ 110 dB(A) and total harmonic distortion ≤ 0.9%.

Clear display

The backlit display shows frequency, bank and channel, RF and AF level, battery status and the key lock.

PACKAGE CONTENT

  • EK 100 G4 camera receiver
  • AA batteries ×2
  • CA 2 camera adapter
  • CL 1 cable (3.5 mm jack)
  • CL 100 cable (XLR – 3.5 mm jack)
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet

SPECIFICATIONS

  • Series: evolution wireless G4, 100 Series
  • Type: camera receiver
  • Frequency range: A (516–558 MHz)
  • Receiver principle: adaptive diversity
  • Tunable frequencies: 1,680 in 25 kHz steps
  • Switching bandwidth: up to 42 MHz
  • Frequency banks: 20 banks with up to 12 preset channels, 1 user bank
  • Sensitivity (with HDX): < 1.6 µV for 52 dB(A) eff. S/N
  • Squelch: 5 / 15 / 25 dBµV
  • Range: up to 100 m
  • Compander: Sennheiser HDX
  • Audio output: 3.5 mm jack, +12 dBu, mono, unbalanced
  • Output level adjustment: 42 dB range in 6 dB steps
  • Signal-to-noise ratio: ≥ 110 dB(A)
  • Total harmonic distortion: ≤ 0.9%
  • Power supply: 2 × AA batteries 1.5 V or BA 2015 rechargeable battery
  • Operating time: typically 8 h
  • Operating temperature: −10 °C to +55 °C
  • Dimensions: approx. 82 × 64 × 24 mm
  • Weight (incl. batteries): approx. 160 g

WE RECOMMEND

The following accessories go well with the Sennheiser EK 100 G4-A camera receiver.

Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Frequency bandA (516–558 MHz)
Number of channels1
Range100m
Product weight160g
