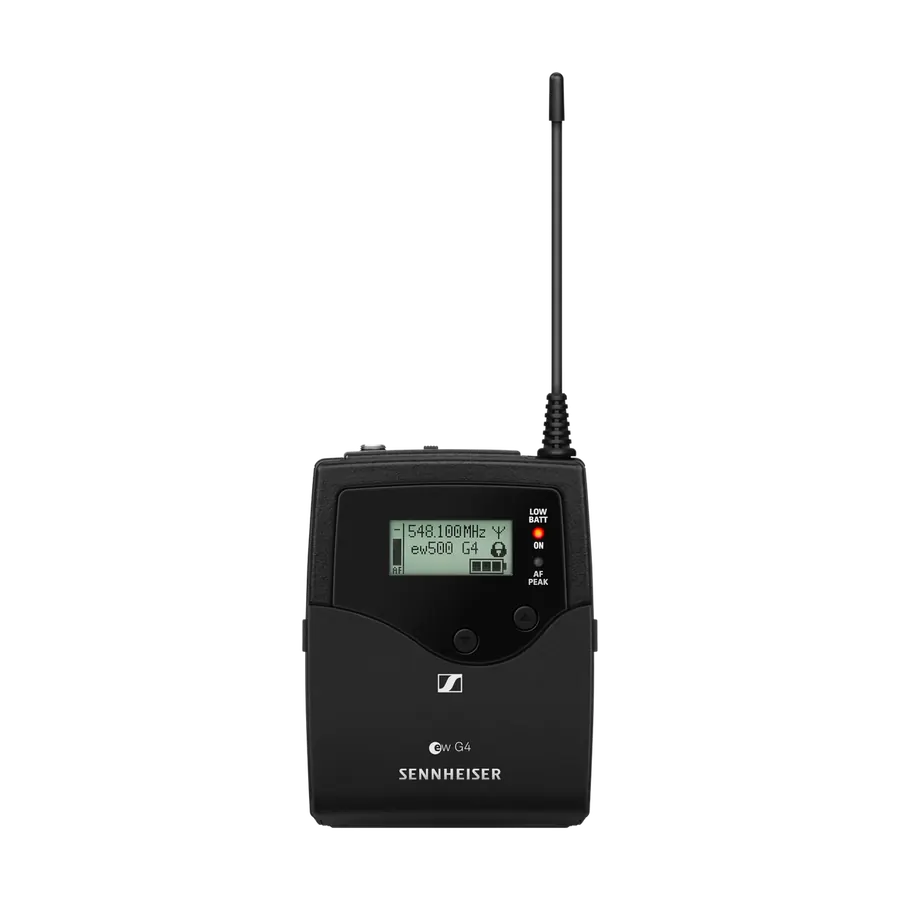

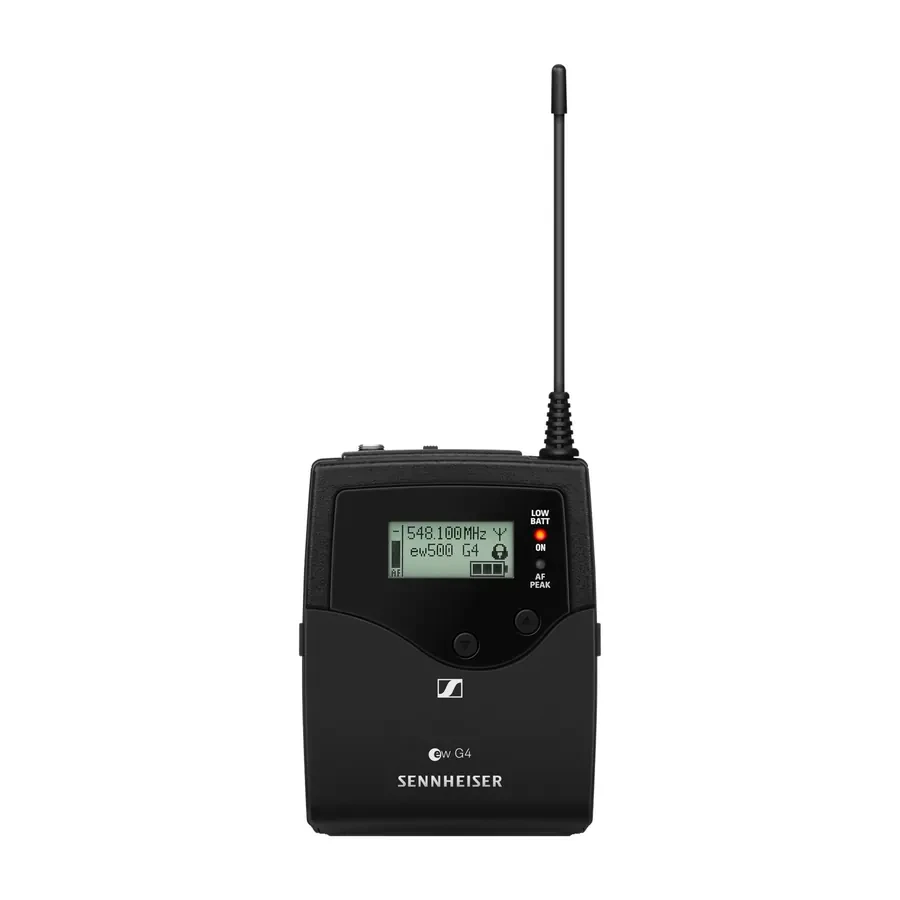

Sennheiser SK 500 G4-BW – bodypack transmitter, 626–698 MHz

The Sennheiser SK 500 G4-BW is a UHF bodypack transmitter for Sennheiser evolution wireless G4 500 Series systems. This version operates in the 626–698 MHz band and connects a compatible microphone or instrument through its locking 3.5 mm EW socket. Infrared synchronization makes setup with a compatible receiver straightforward; the transmitter supports up…

More information

489 € with VAT 404.13 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser SK 500 G4-BW is a UHF bodypack transmitter for Sennheiser evolution wireless G4 500 Series systems. This version operates in the 626–698 MHz band and connects a compatible microphone or instrument through its locking 3.5 mm EW socket. Infrared synchronization makes setup with a compatible receiver straightforward; the transmitter supports up to 32 compatible channels and typically runs for 8 hours on two AA batteries. Before ordering, confirm that its frequency band matches your receiver and local wireless regulations. Receiver and microphone are not included.

Sennheiser SK 500 G4 bodypack transmitter

EVOLUTION WIRELESS G4 · BW BAND · 626–698 MHz

Reliable UHF transmission for demanding stages

A compact transmitter for performers and presenters using a compatible evolution wireless G4 500 Series receiver. The locking EW microphone input, infrared sync and configurable RF output support a practical, receiver-matched setup for live work.

Find a clear channel

Up to 3,520 selectable frequencies and support for up to 32 compatible channels help coordinate a multi-channel G4 500 Series setup.

Match the RF output

Selectable 10, 30 or 50 mW output supports different operating needs, subject to local regulations and the compatible receiver configuration.

Ready for a working day

The transmitter runs on two AA cells for typically 8 hours. Infrared synchronization helps transfer settings from a compatible receiver.

PACKAGE CONTENT

  • SK 500 G4 bodypack transmitter ×1
  • AA batteries ×2
  • Pouch ×1
  • Quick guide ×1
  • Safety guide ×1
  • Manufacturer declaration sheet ×1

SPECIFICATIONS

  • Frequency band: BW, 626–698 MHz
  • Selectable frequencies: 3,520
  • Compatible channels: Up to 32
  • RF output: 10 / 30 / 50 mW, subject to local regulations
  • Audio input: Locking 3.5 mm EW socket
  • Audio frequency response: Mic 80–18,000 Hz; line 25–18,000 Hz
  • Power supply: 2 AA batteries
  • Typical operating time: 8 hours
  • Dimensions: Approx. 82 × 64 × 24 mm
  • Product weight: 160 g
  • Signal-to-noise ratio: ≥115 dB(A)
  • Total harmonic distortion: ≤0.9%
Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Frequency bandUHF
Number of channels32
Dimensions82x64x24mm
Product weight160g

Other parameters

Selectable frequencies3520 Channel
