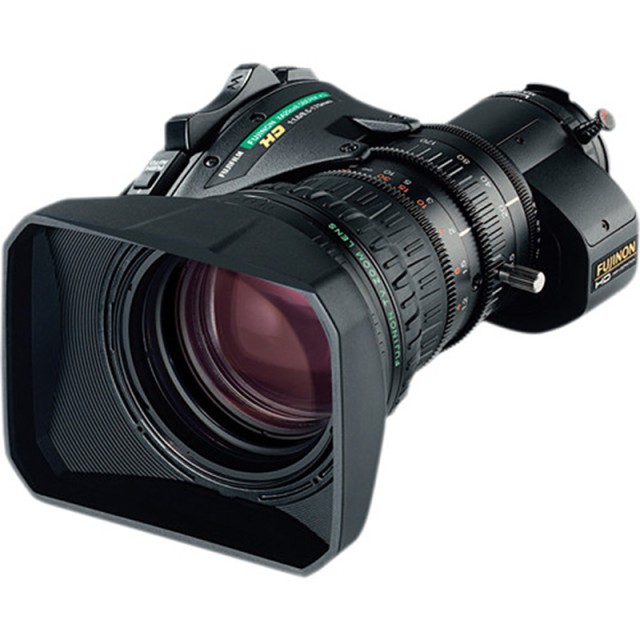

Fujinon XA20sx8.5BERM 2/3″ HD eXceed lens

The Fujinon XA20sx8.5BERM-K3 ENG Lens is a 8.5-170mm lens, designed to provide 2/3" format cameras with a wide to super telephoto angle-of-view. The lens has a 20x zoom ratio, and a 2x extender effectively doubles the focal range. An ergonomic, digital servo zoom control is also included. Most afordable, cost-effective lens for Blackmagic Design URSA Broadcast.

More information

Call us for pricing information
Availability
usually on stock
Manufacturer
SKU:
XA20sx8.5BERM
Add to Compare
Product description

Product description

The Fujinon XA20sx8.5BERM-K3 ENG Lens is a 8.5-170mm lens, designed to provide 2/3" format cameras with a wide to super telephoto angle-of-view. The lens has a 20x zoom ratio, and a 2x extender effectively doubles the focal range. An ergonomic, digital servo zoom control is also included. Most afordable, cost-effective lens for Blackmagic Design URSA Broadcast.

Internal focusing minimizes the effects of lens breathing, which ensures a more consistent focal length when adjusting focus. Fujinon's QuickZoom technology improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length.

  • Focal Length Covered 8.5 to 170mm (340mm with x2 extender)
  • HD Optical Performance
  • Built in a x2 extender
  • Newly eXceed Servo Grip
  • Quick zoom*1 and Auto Cruising
  • Latest EBC coatings for improved optical performance

PACKAGE CONTENT

XA20sx8.5BERM

SPECIFICATIONS

Model Name XA20sx8.5BERM
Focal length [1x] 8.5-170mm    [2x] 17-340mm
Zoom ratio 20x
Extender 2x
Maximum relative aperture (F-no.) 1 : 1.8 (8.5-113mm) / 1 : 2.7 (170mm)
Minimum object distance (M.O.D.) from front lens 0.9m
Object dimensions at M.O.D. 16 : 9 Aspect ratio

[1x]  8.5mm   910x511mm    170mm  47x26mm

[2x] 17mm   469x264mm  340mm   24x13mm

Angular field of view 16 : 9 Aspect ratio

[1x] 8.5mm   58.9° x 35.2°  170mm   3.2° x 1.8°

[2x] 17mm   31.5° x 18°  340mm   1.6° x 0.9°

Filter thread

M82 x 0.75

Approx Size φ85 x 200.8mm(φ x Length)
Approx Mass 1.6kg(without lens hood)











Parameters

Parameters

Manufacturer: Fujinon
Category: Lenses

Main parameters

BayonetB4 2/3"
Lens suitable for2/3"
Aperture (f)1.8
Optical zoom20x
Focal length8.5mm
Minimal focal length8.5mm
Maximum focal length340mm
Auto focusYes
ZoomYes

Other parameters

SeriesBERM
