Cartoni Focus 8 Red Lock System MS

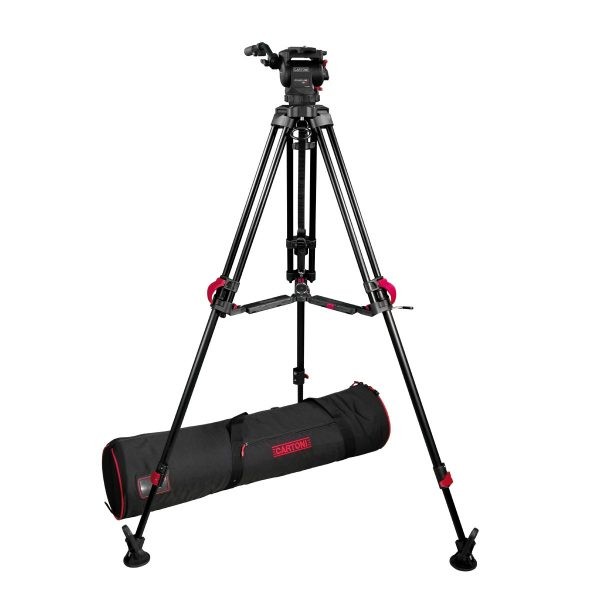

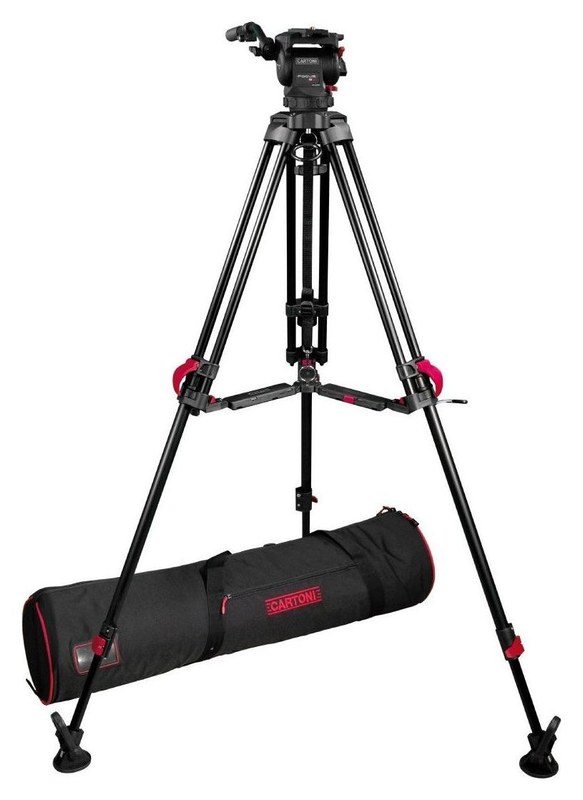

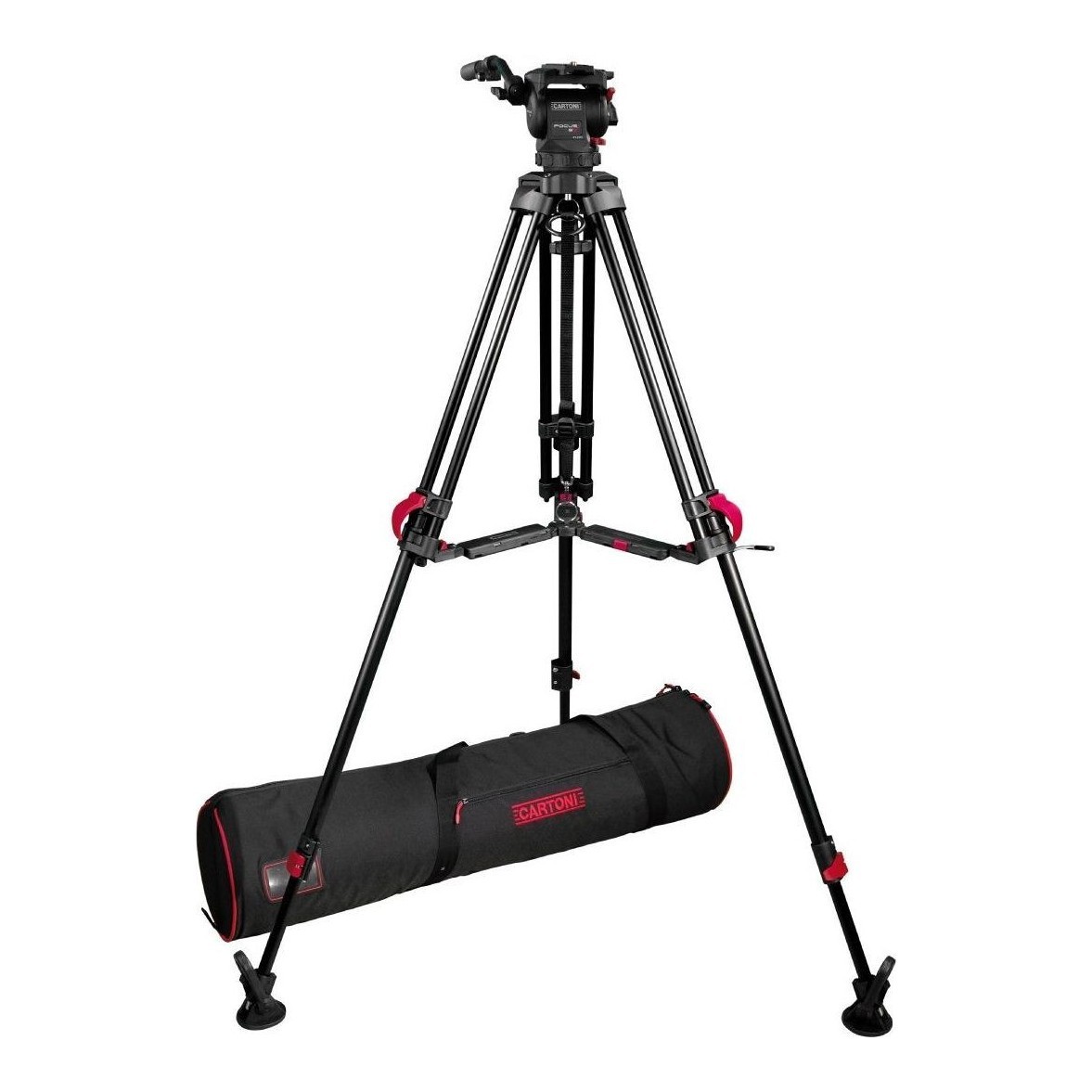

The Focus 8 Red Lock System MS is a complete camera support for set-ups of up to 8 kg. It combines the Focus 8 fluid head with a two-stage aluminium Red Lock tripod, a Smart Lock mid-level spreader, pivoting rubber feet and a soft carrying bag. The whole system weighs 5.8 kg and works at heights of 66–167 cm. It suits lightweight digital cinema and news cameras.

Focus 8 Red Lock System MS

Extreme ruggedness and versatility together with a superior quality/price ratio make it a dependable support for news, documentary and fast work in the field.

8 kg payload5.8 kg weightHeight 66–167 cm75 mm bowlAluminium tripod

Red Lock: fast to deploy, locked solid

The two-stage Red Lock tripod is light, deploys superfast and its positive position locks hold the legs firmly, so speed never comes at the cost of stability. The Smart Lock mid-level spreader and pivoting rubber feet are included.

Patented counterbalance

The Focus 8 head features patented continuously variable counterbalance and fluid drag on both pan and tilt.

Manfrotto and Sachtler plates

The camera mounts on a sliding camera plate compatible with Manfrotto and Sachtler plates.

±90° tilt

The head works across a ±90° tilt range and at temperatures from −40 to +60 °C.

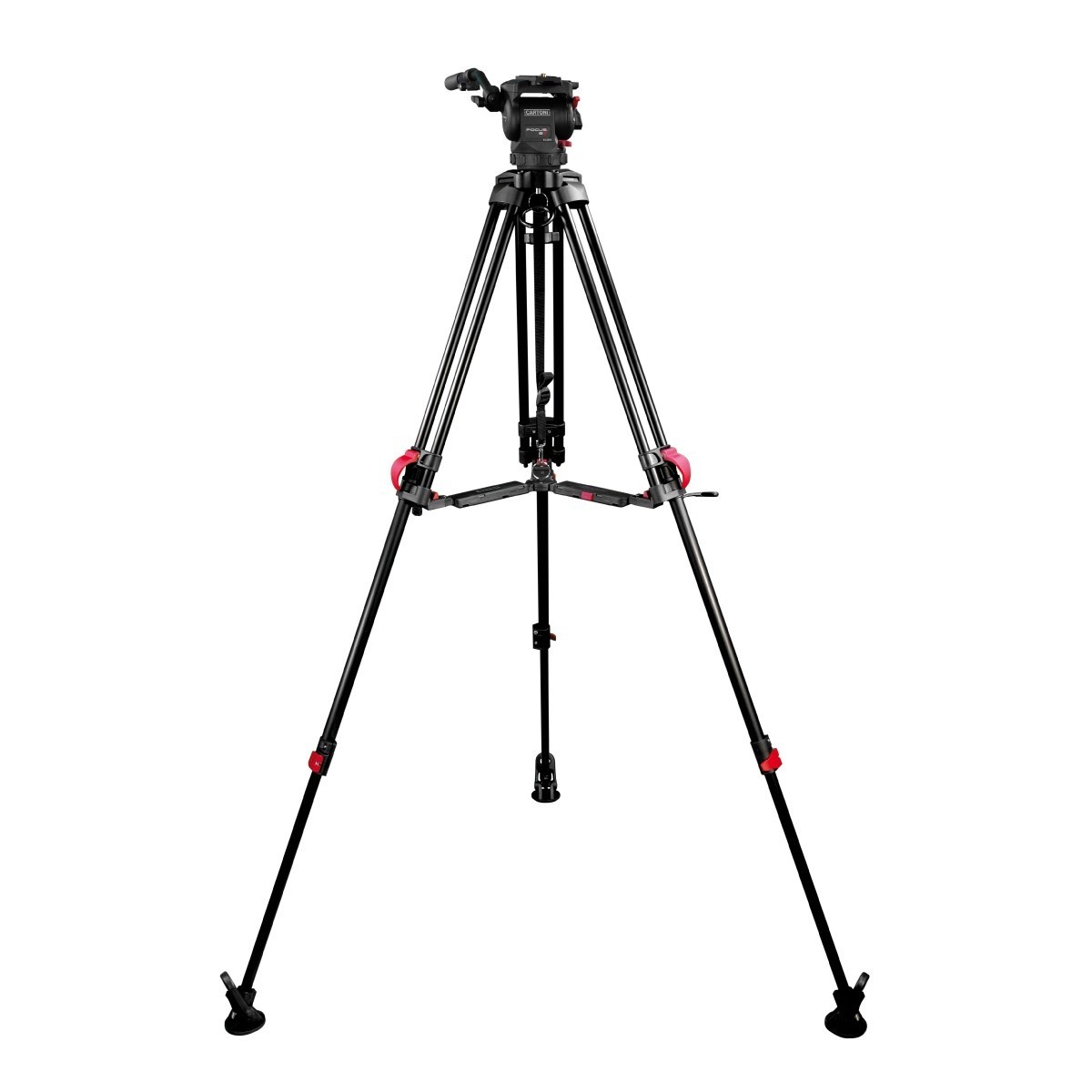

66–167 cm

Working height measured from the ground to the camera plate.

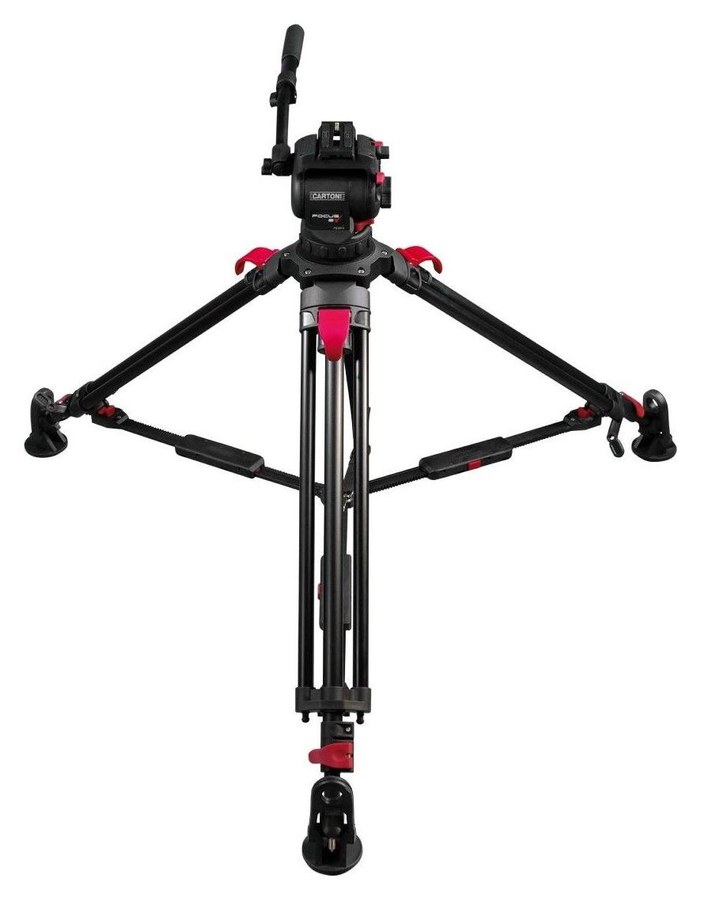

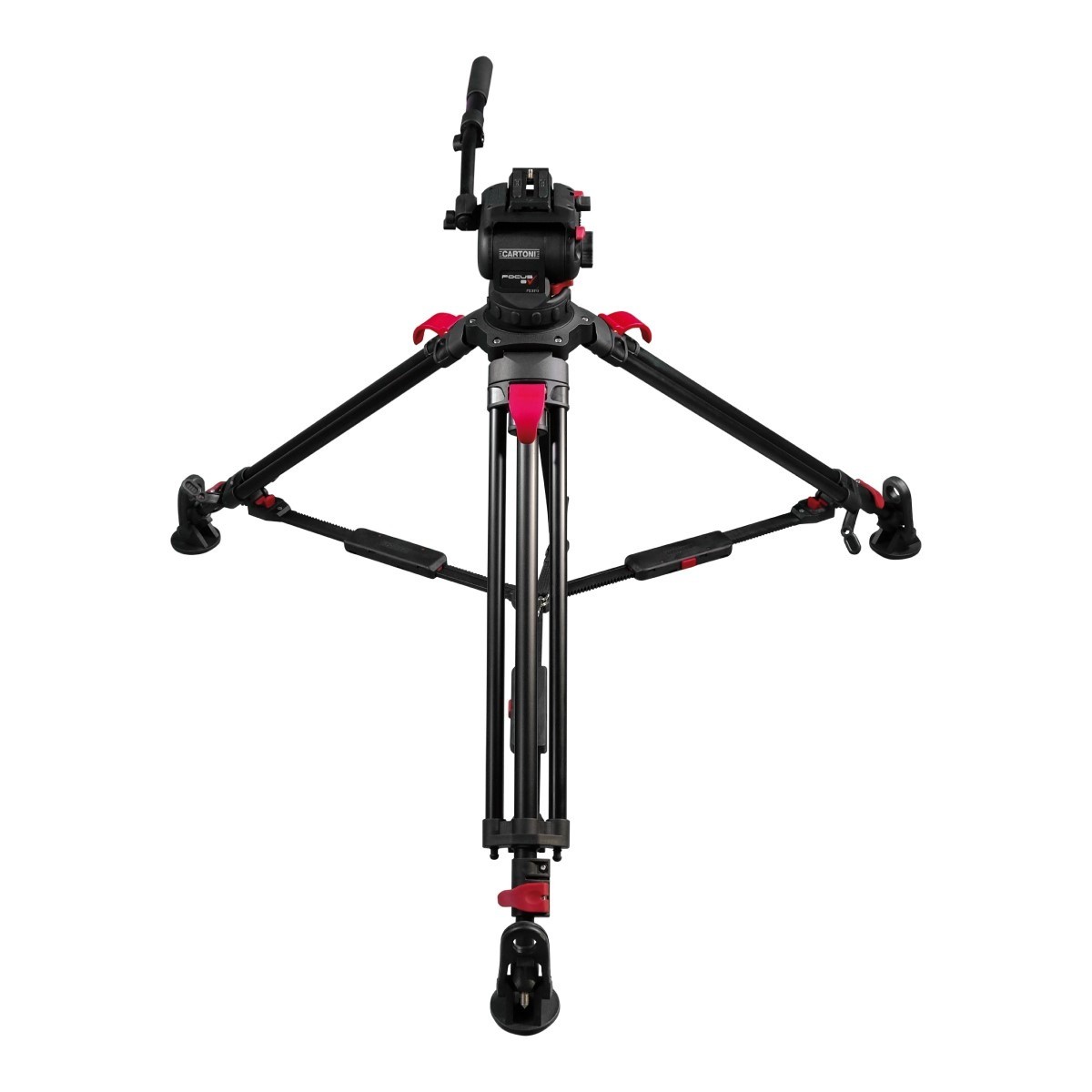

Smart Lock mid-level spreader

A top view of the Smart Lock mid-level spreader, which keeps the legs spread at mid height.

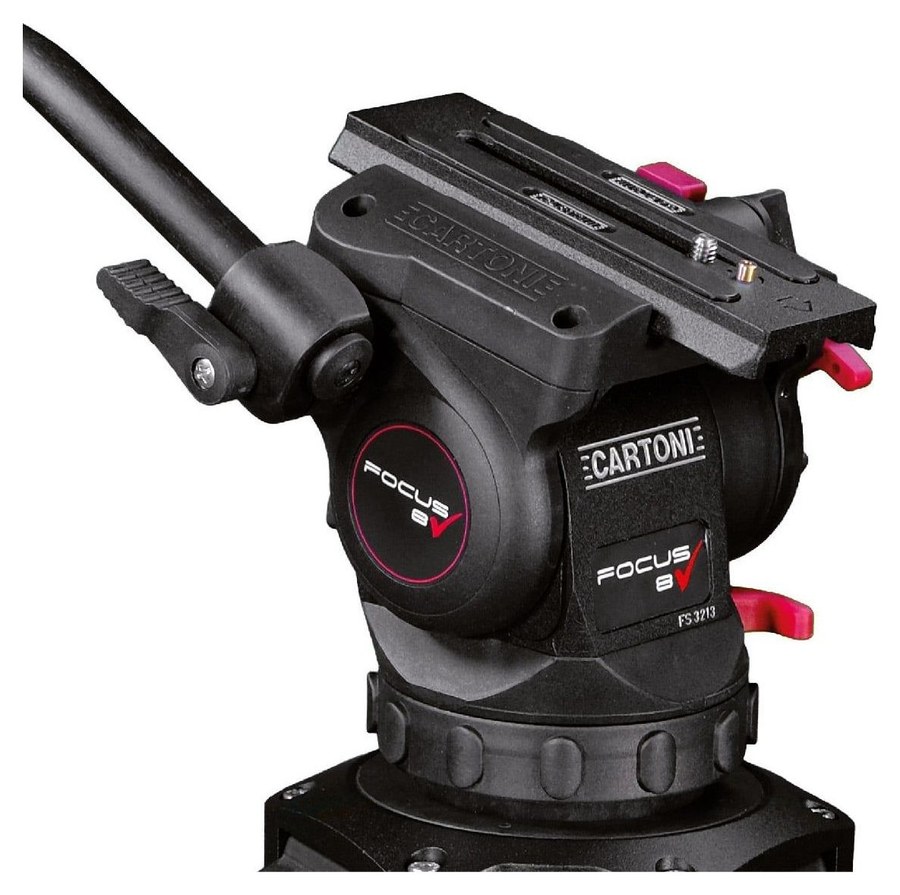

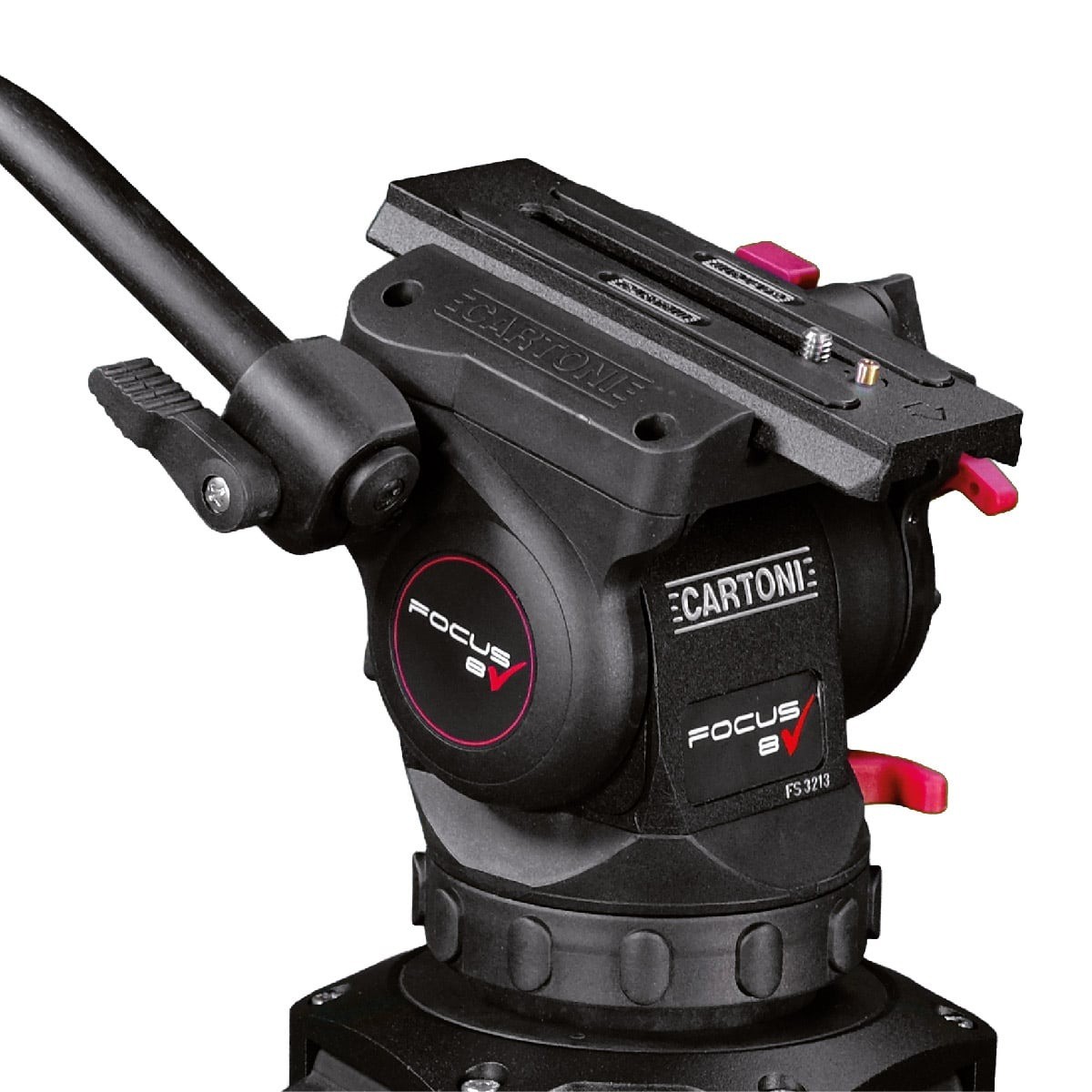

Focus 8 fluid head

Continuously variable counterbalance and fluid drag on both axes, a telescopic pan bar and a 75 mm bowl.

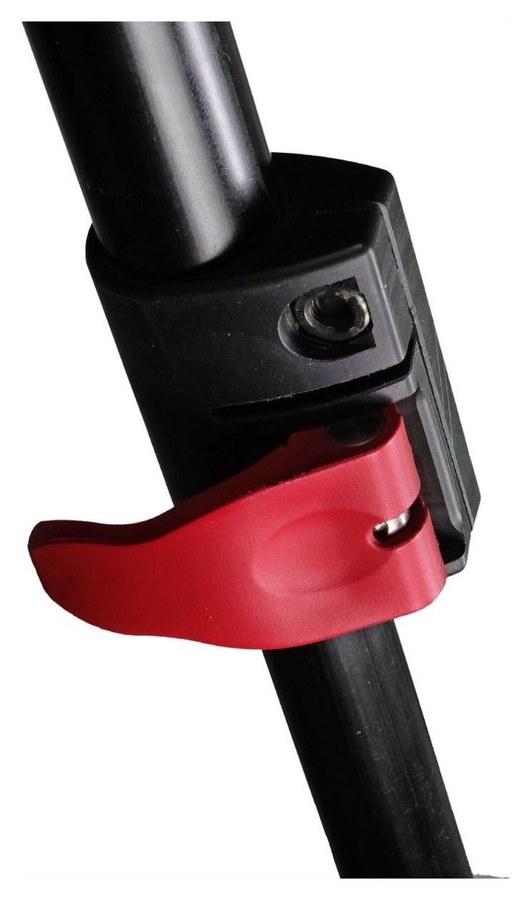

Red Lock locks

Bold red levers lock the tripod leg sections quickly and securely.

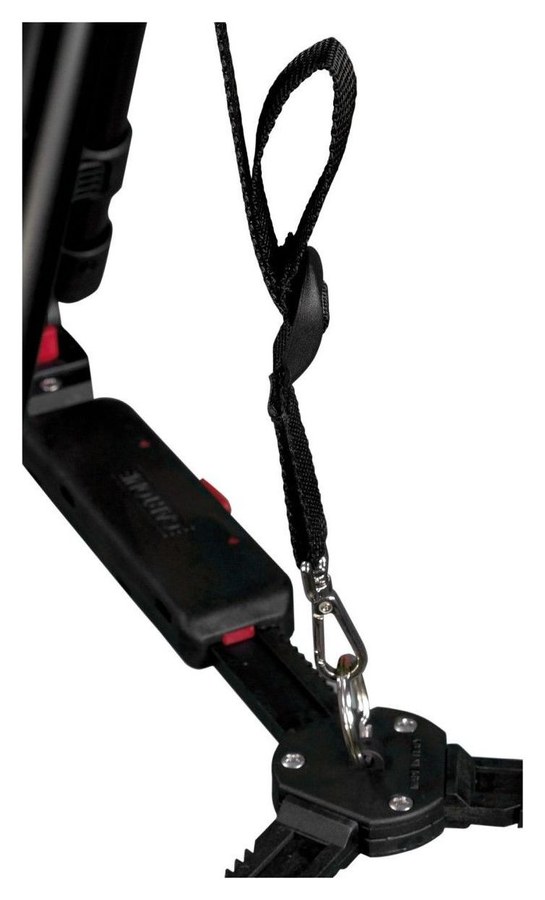

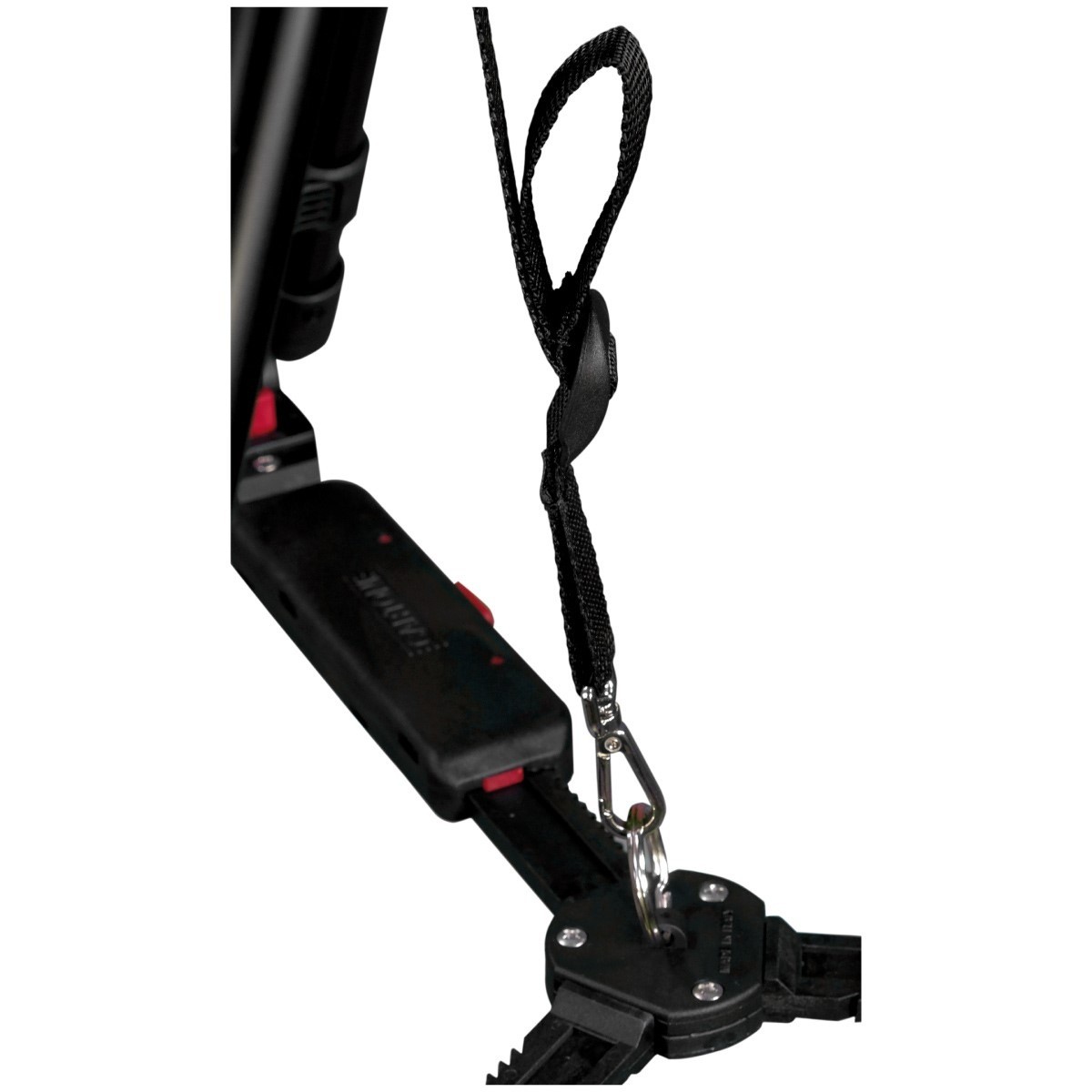

Carrying strap

The strap on the tripod makes the folded system easier to carry.

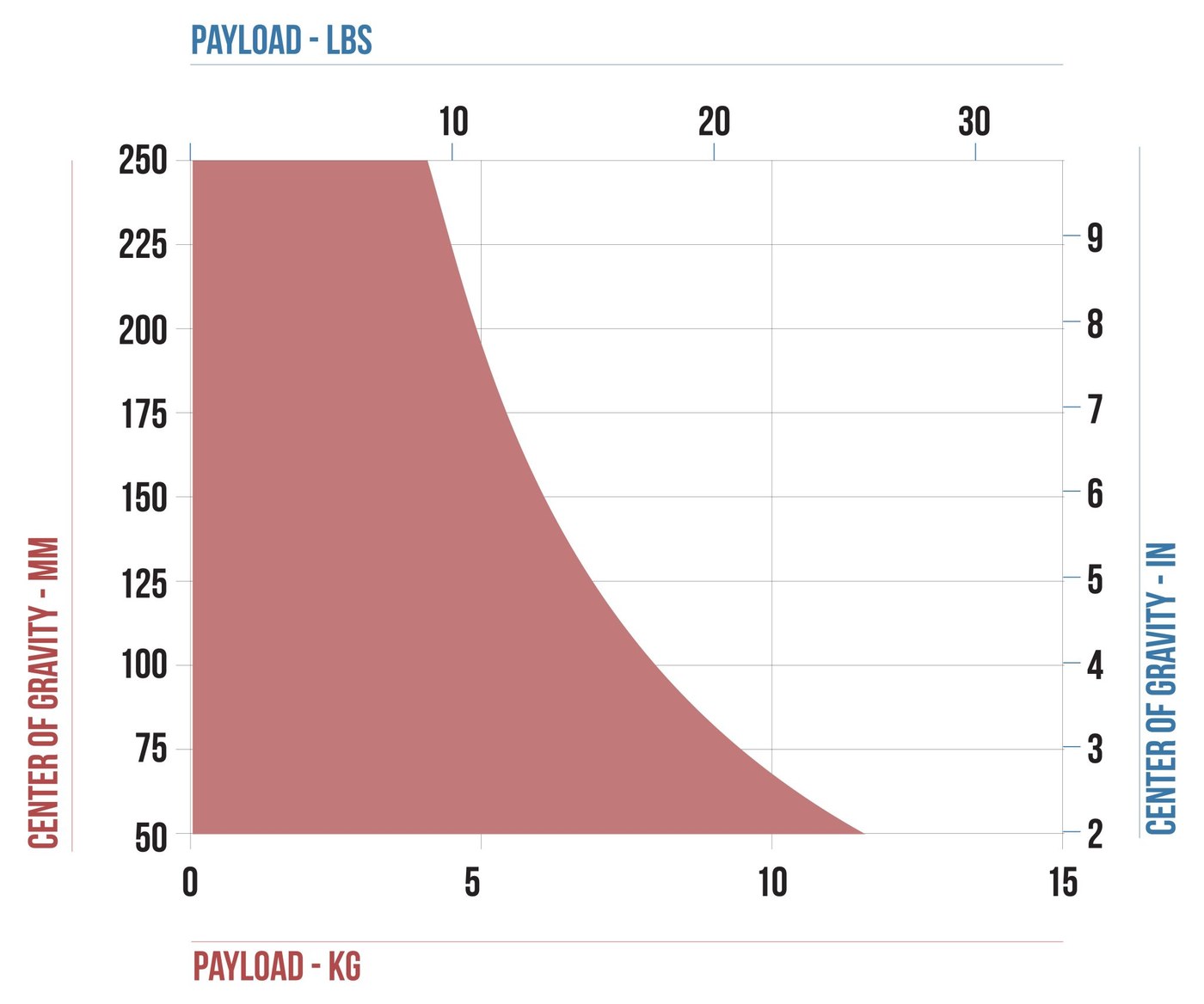

Focus 8 counterbalance chart

The chart shows how much camera weight the head balances depending on the height of the centre of gravity above the camera plate.
