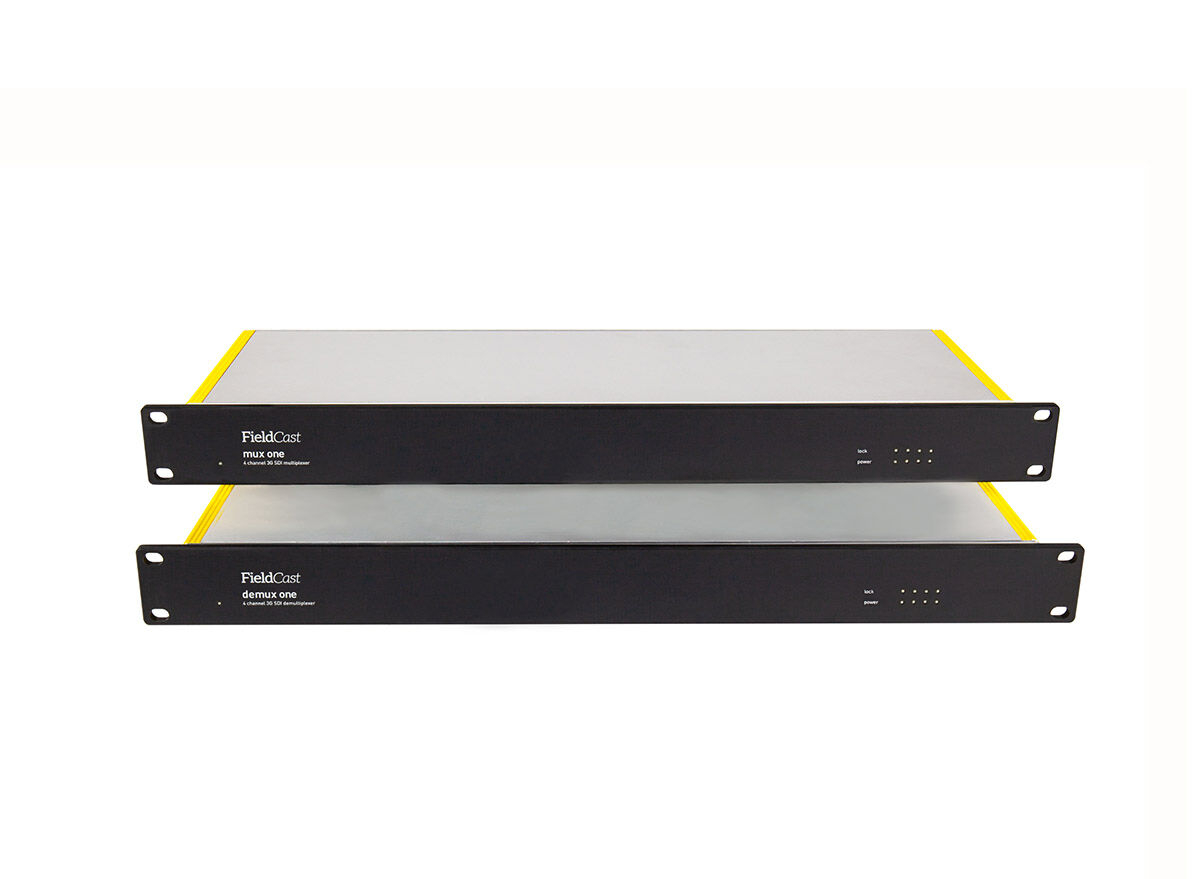

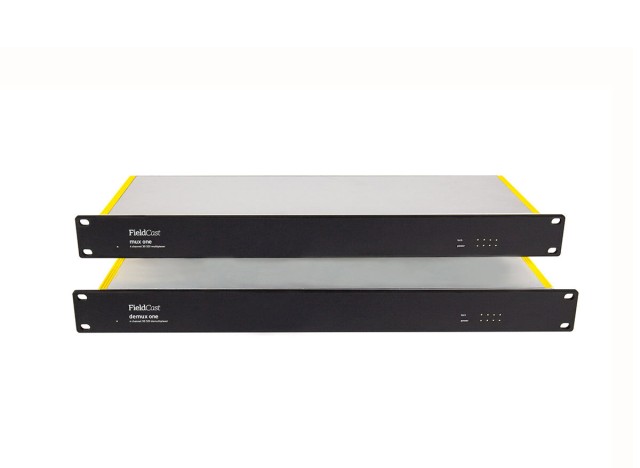

FieldCast Mux/Demux One 12G (4x SDI in/out)

Mux/Demux One 12G allows you to transmit four independent channels of 12G SDI video over just one optical fiber. Availability is expected for late 06/07 2025.

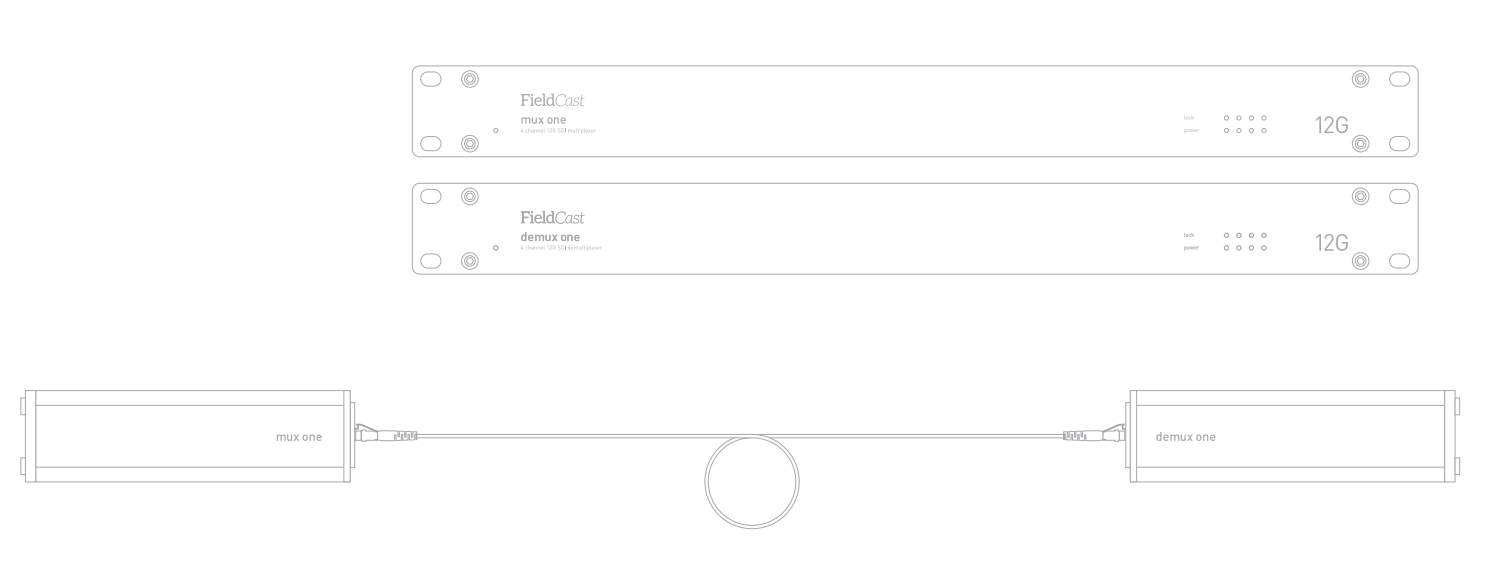

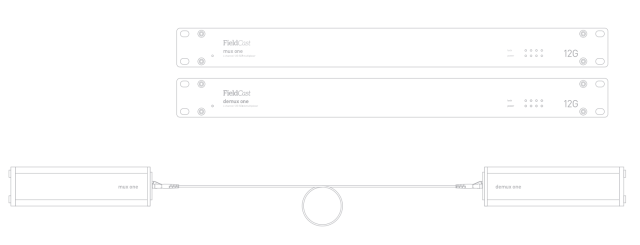

If your infrastructure only allows for a single simplex fibre, Mux/Demux One simply allows you to handle all the traffic. Or if you want to lay as little cable as possible during live events, the device allows you to multiplex up to four video channels and transfer all the data from point A to point B using just one fiber. All 12G video feeds retain full data integrity - what goes in comes out unchanged.

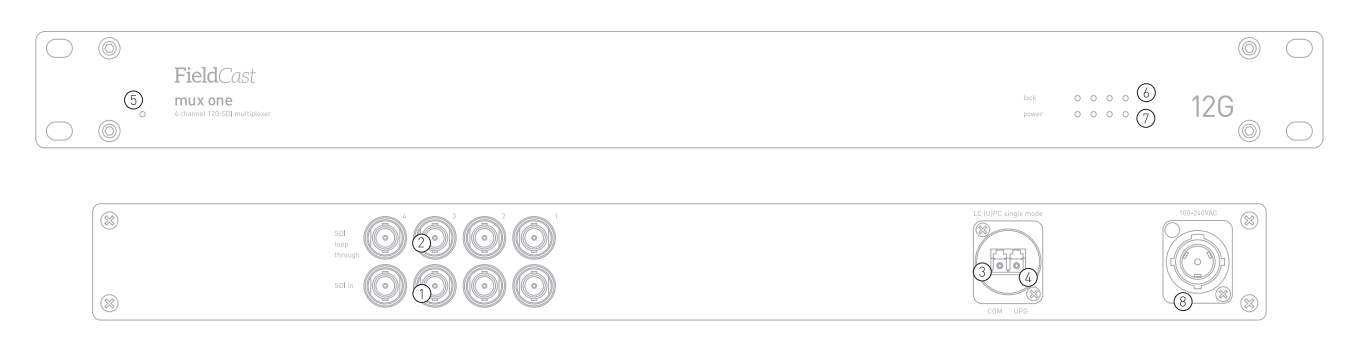

Mux One 12G

• 4-channel SDI input to 1-channel optical output (multiplexer)
• Design: aluminum, 1U (rack) size
• 4 12G (11.88 Gbps) SDI input channels, each with loopthrough SDI output
• Fiber optic technology: 9/125 single mode
• 75 ohm BNC connectors for all SDI inputs and loopthrough outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and UHD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM)
• One LC single mode (U)PC upgrade optical channel (UPG)
• Front panel: black, with 2 mm white LED indicators
• Indications: power, module activity, input signals
• Power consumption: < 40 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 1500 grams
• Manual and power cord included

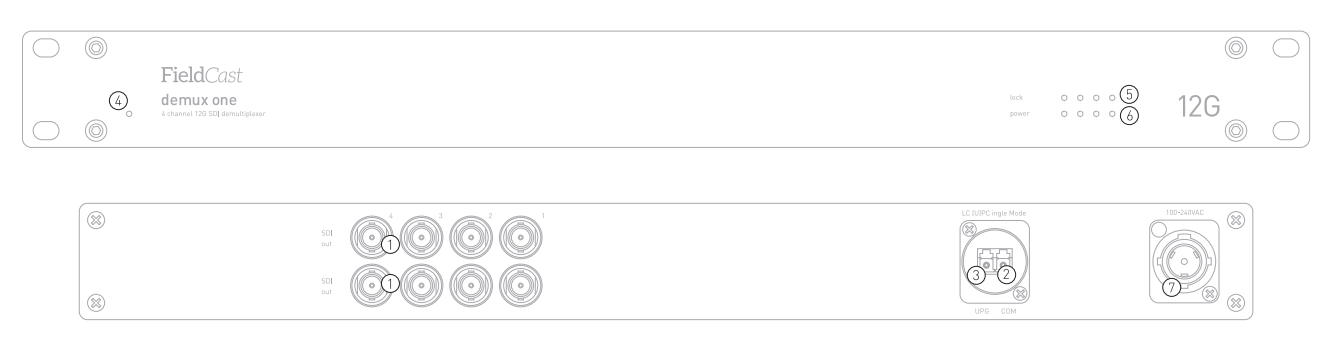

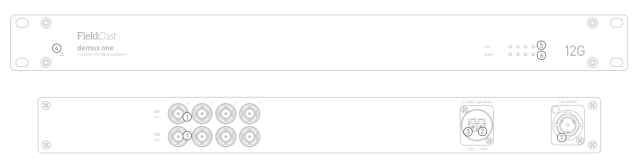

Demux One 12G

• Demultiplexor: 1 optical input → 4 SDI output channels
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 4 SDI channels 12G (11.88 Gbps) with dual SDI output
• 75 ohm BNC connectors for all SDI outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and Ultra HD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM)
• One LC single mode (U)PC upgrade optical channel (UPG)
• Front panel: black, with 2 mm LED indicators
• LED indicators: power, module activity, input signal
• Power consumption: < 40 W
• Proprietary hybrid WDM demultiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 80 (d) x 43 (h) mm
• Weight: 1500 grams
• Manual and power cord included
