FieldCast Mux/Demux One 12G Plus (4x SDI in/out + Ethernet over one fiber strand)

Mux/Demux One 12G Plus allows you to transmit four channels of 12G SDI video plus full duplex 1Gb Ethernet over just one optical fiber. Availability is expected for late 06/07 2025.

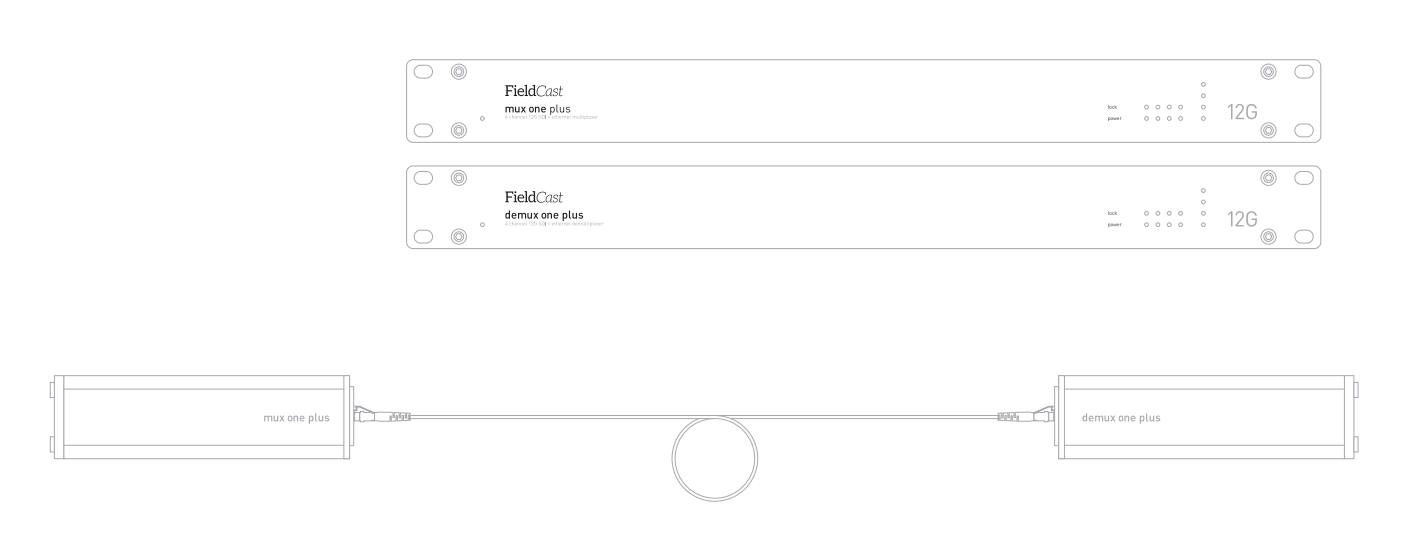

If your infrastructure only allows for a single simplex fibre, Mux/Demux One Plus simply allows you to handle all the traffic. Or, if you want to lay as little cable as possible during live events, the device allows you to multiplex up to four video channels plus Ethernet and transfer all the data from point A to point B using just one fiber. All 12G video signals retain full data integrity - what goes in comes out unchanged. The Ethernet connection behaves just like a regular Cat5 cable.

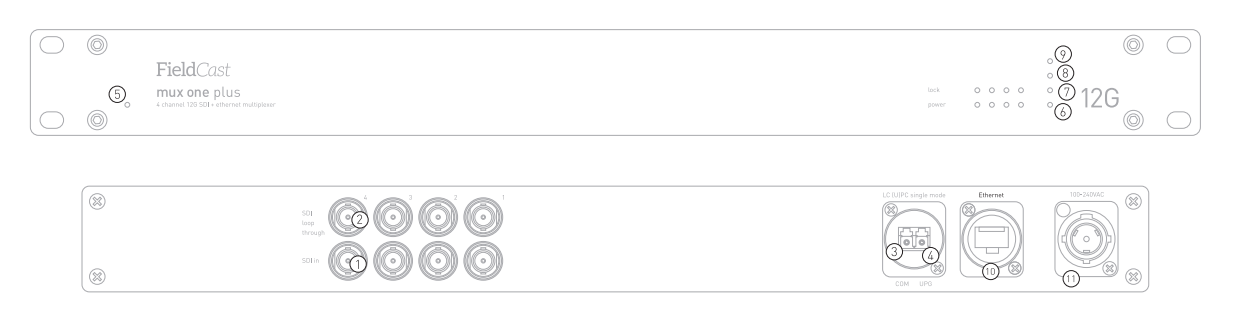

Mux One Plus 12G

• 4-channel SDI input to 1-channel optical output (multiplexer), plus 1Gb Ethernet optical extender
• Design: aluminum, 1U (rack) size
• 4 12G (11.88 Gbps) SDI input channels, each with loopthrough SDI output
• Fiber optic technology: 9/125 single mode
• 75 ohm BNC connectivity
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and UHD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM) for all SDI signals and Ethernet
• One LC single mode (U)PC upgrade optical channel (UPG)
• Ethernet protocol: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
• UTP RJ-45 connector for Ethernet (full/half duplex)
• Front panel: black, with 2 mm white LED indicators
• Indications: power, module activity, input signals, TP/LNK and 1Gb
• Power consumption: < 40 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 1800 grams
• Manual and power cord included

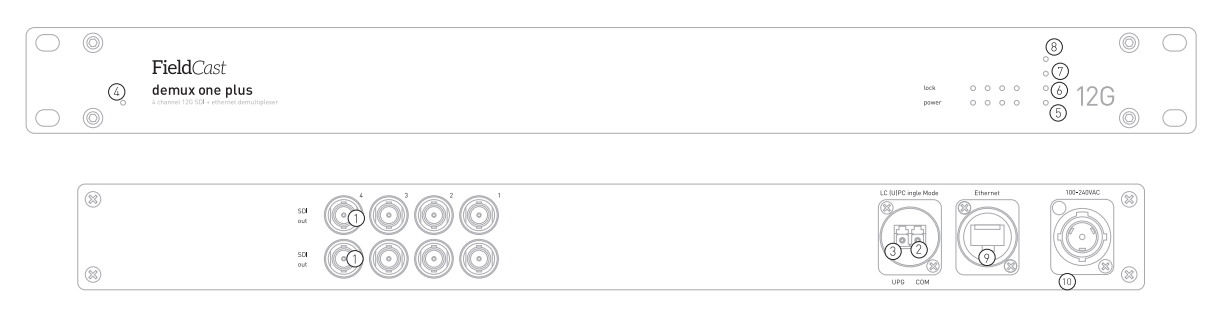

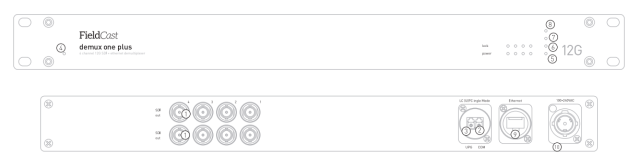

Demux One Plus 12G

• Demultiplexor: 1 optical input → 4 SDI output channels, plus 1Gb Ethernet optical extender
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 4 SDI channels 12G (11.88 Gbps) with dual SDI output
• 75 ohm BNC connectivity
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support for SD, HD and Ultra HD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM) for all SDI signals and Ethernet
• One LC single mode (U)PC upgrade optical channel (UPG)
• Ethernet protocol: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
• UTP RJ-45 connector for Ethernet (full/half duplex)
• Front panel: black, with 2 mm LED indicators
• LED indicators: power, module activity, input signal, TP/LNK and 1Gb
• Power consumption: < 40 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 1780 grams
• Manual and power cord included
