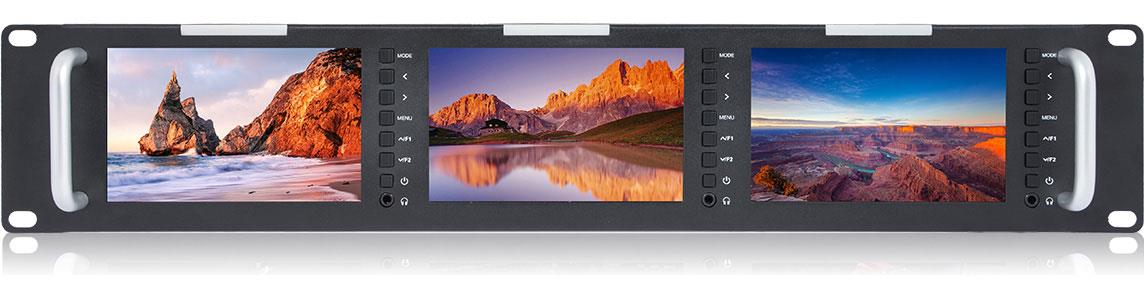

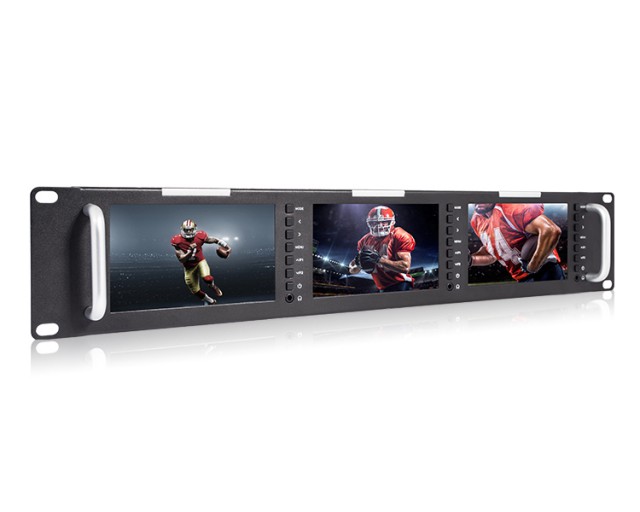

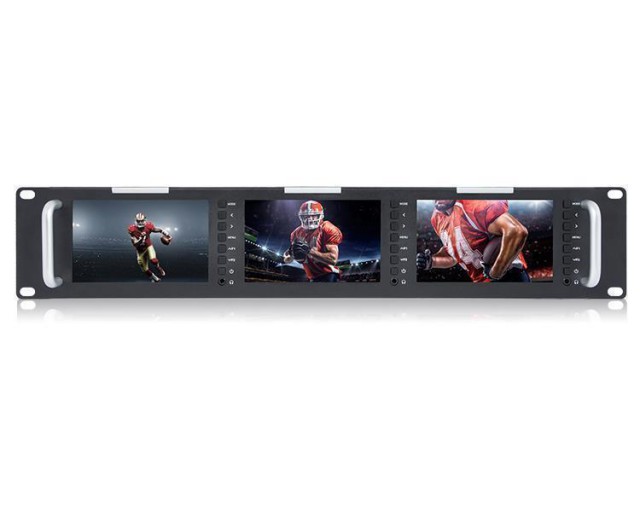

Feelworld T51 Triple 5" 2RU 800×480 Broadcast LCD Rack Mount Monitor

Three 5-inch panels in a 2U rack frame. 800×480 resolution, 500 cd/m², 140°/120° viewing angles and both 3G-SDI and HDMI inputs for monitoring SD and HD sources. The solid metal body dissipates heat well, which suits an OB van or a studio gallery.

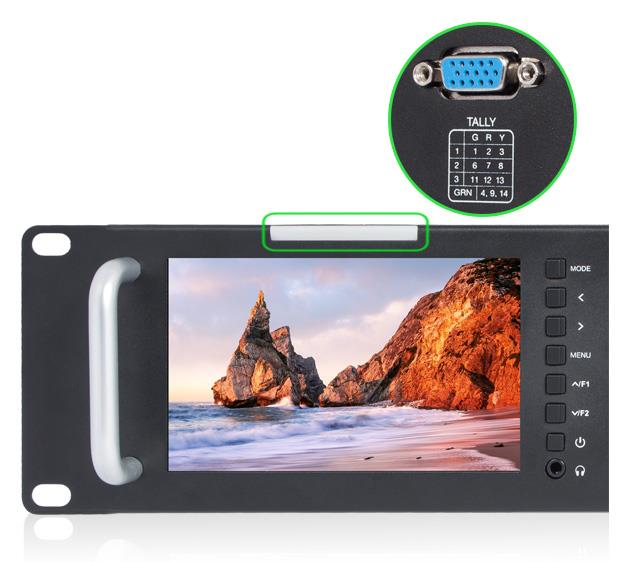

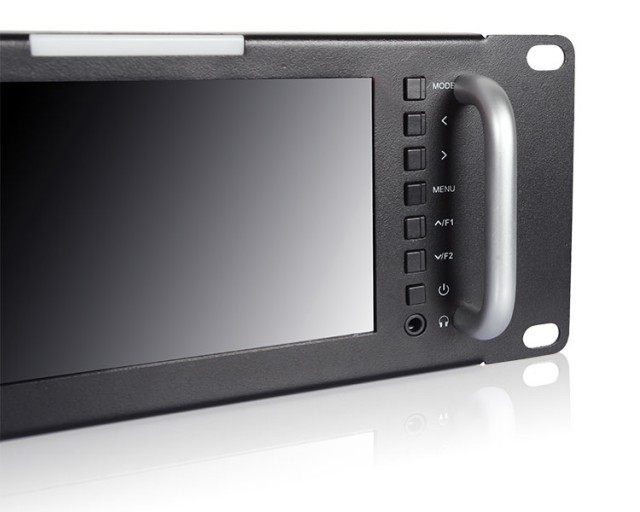

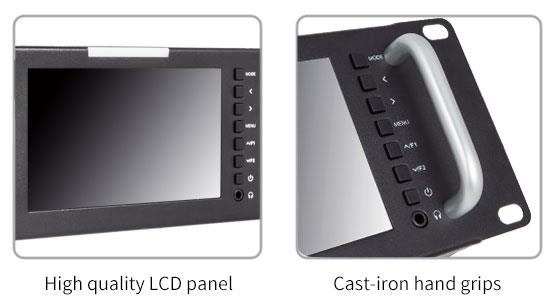

It is equipped with a 5" TFT panel with 800x480 resolution, 140°/120° viewing angles, 500 cd/m2 brightness and 500:1 contrast for previewing SD/HD material via 3G-SDI and HDMI inputs. Its compact size and solid metal body with good heat dissipation make it an ideal monitor for mounting in transfer trucks, portable racks or desktop installations in studios, directories or venues. A signal light (red/green/yellow) is available on the front panel of each monitor (DB-15).

Display Spec.

Model	T51
Screen Size	5"×3
Resolution	800×480 pixels
Dot pitch	0.045(W)×0.135(H) mm
Aspect Ratio	16:9
Brightness	500cd/m²
Contrast Ratio	500:1
Backlight	LED
Viewing Angle	70°/70°(L/R) 50°/70°(U/D)

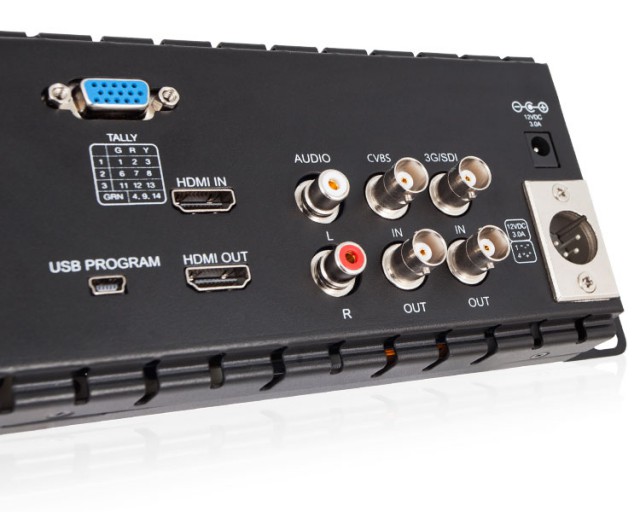

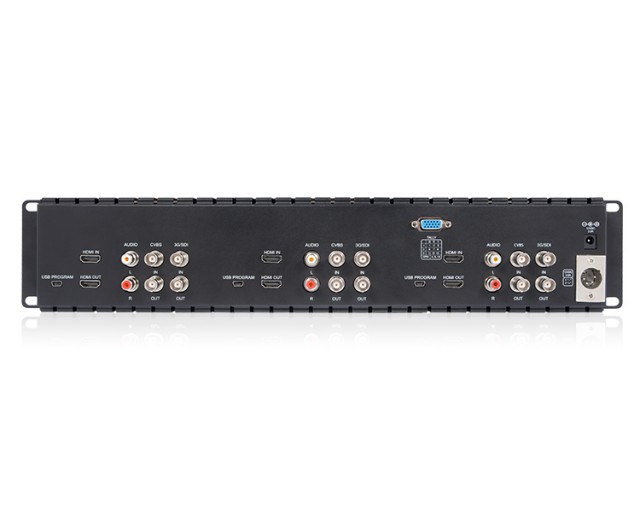

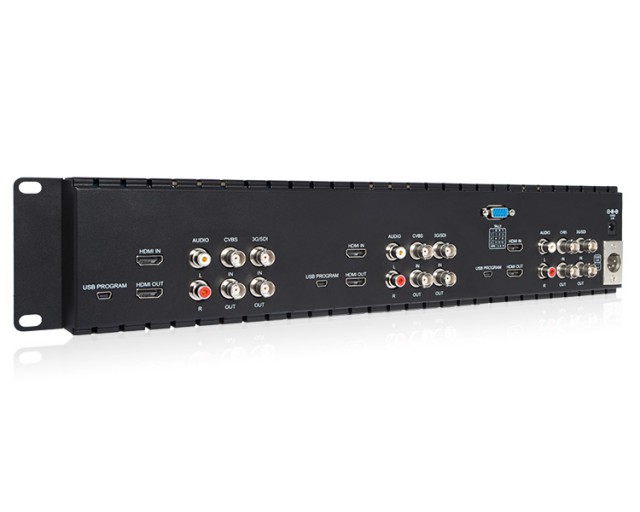

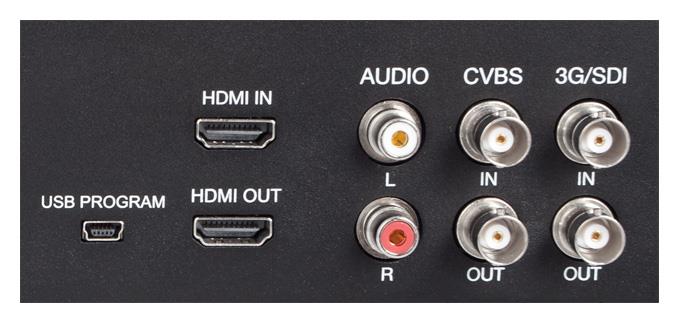

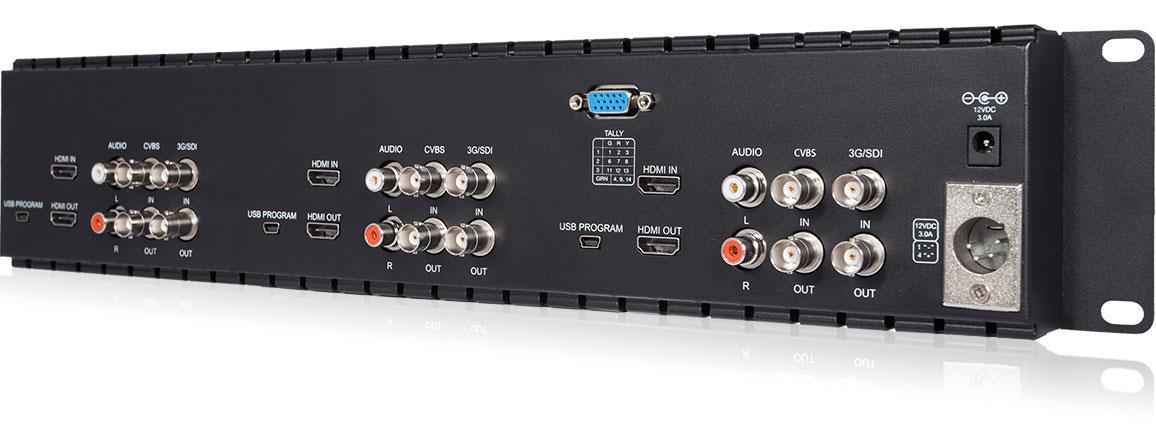

Input (Each LCD)

1 X BNC	3G-SDI
1 X HDMI	HDMI
1 X BNC	Video
2 X RCA	Audio(L/R)

Output (Each LCD)

1 X BNC	3G-SDI
1 X HDMI	HDMI
1 X BNC	Video

Audio (Each LCD)

Audio Out

Stereo Headphone × 1

SDI Support Format

480i/576i

720p(60/59.94/50/30/29/25/24/23.98)

1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

HDMI Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

General

Input Voltage	DC9～24V
Power Consumption	≤25W
Power Connector	DC/ 4-pin XLR
Operating Temperature	-20°C~55°C
Storage Temperature	-30°C~65°C
Install Way	Rack Mount
Unit Size	482.6Lx88Hx34D mm
Unit Weight	1570g
Outer Carton Qty	5
Outer Carton Size	637*552*258 (mm)
Gross Weight	15kgs

Advanced Features

*Peaking Focus Assist(Red highlight over parts of the monochrome image in focus)

*Check Field (Red,Green,Blue,Mono)

*Pixel to Pixel

*Center Marker

*Screen Marker (80%,85%,90%,93%,96%,2.35:1)

*Image Flip (H, V, H/V)

*Image Freeze

* Zoom All

* U/D & L/R Zoom

* Custom Color Temperature

*Built-in LED tally indicators (Red, Green, Yellow)
