Feelworld D71 Dual 7" 3RU IPS 1280x800 Broadcast LCD Rack Mount Monitor

This product is no longer offered. Please select from the alternatives below.
REFUNDS FOR SOLD OUT PRODUCT (1)

Feelworld D71 PLUS Dual 7"3RU Rack Mount Monitor 4K HDMI SDI

FEELWORLD D71 PLUS monitors are the ideal choice for 3G-SDI or 4K HDMI monitoring
743.14 €
In stock 1 pcs
Product description

Product description

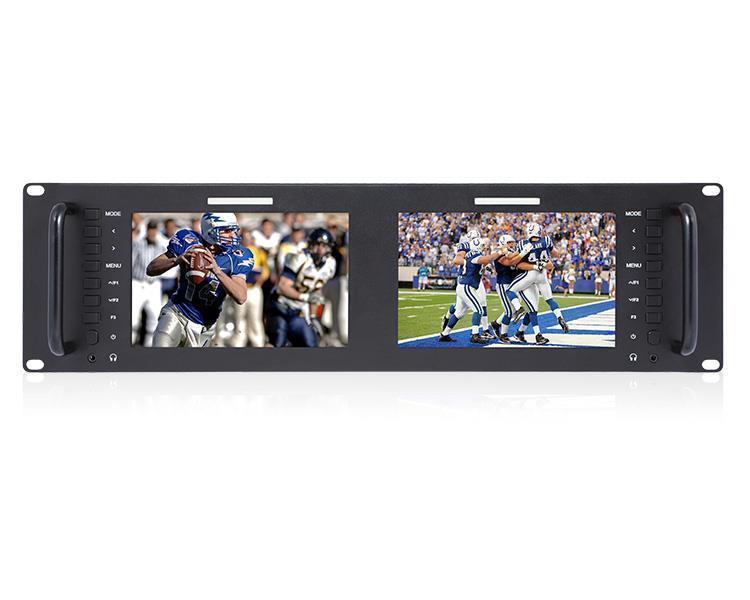

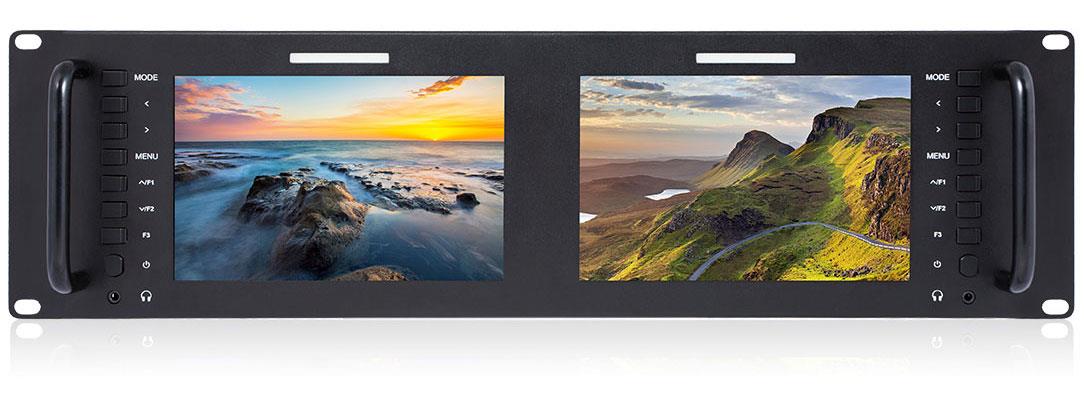

Dual 7" 3RU Rack Monitors
D71 are extremely thin and lightweight. 7" 3RU Rack Monitors with dual 7” IPS 1080x800 screens, viewing SD, HD and 3G-SDI video on 3RU rack monitor. With GPIO for Software control via Ethernet connection. FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very important conditions to make sure the whole system work smoothly.

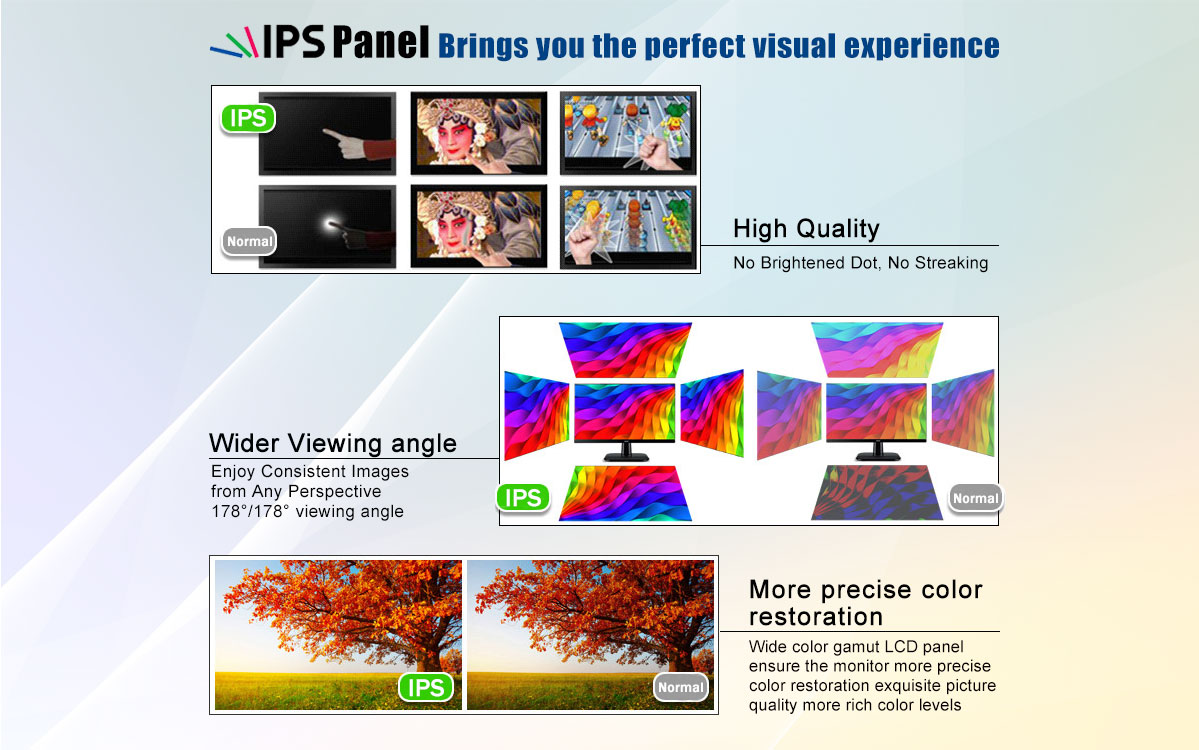

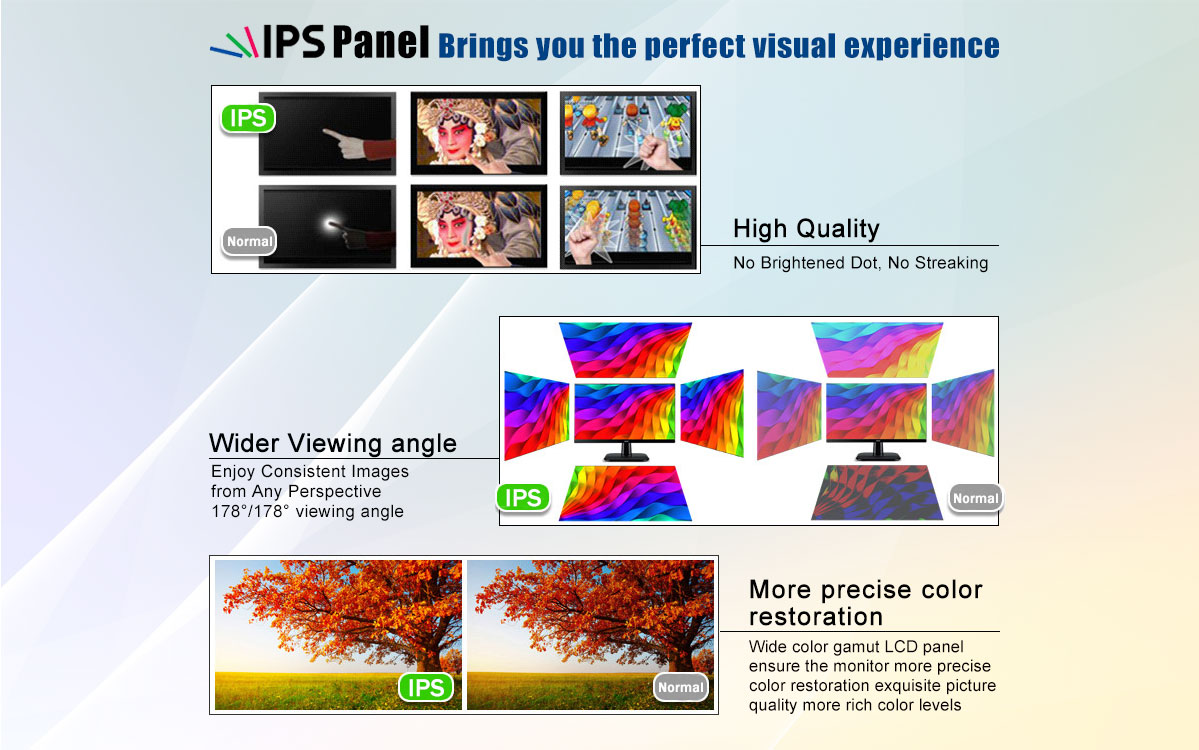

Enjoy Consistent Images from Any Perspective
D71 uses an IPS panel, which provides a wide 178°/178° viewing angle and brightness output of up to 400nit. This means you’ll be able to see accurate, consistent and bright images from any point of view.

Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to know one product operation mode, you can operate the full range products, time-saving and convenient.

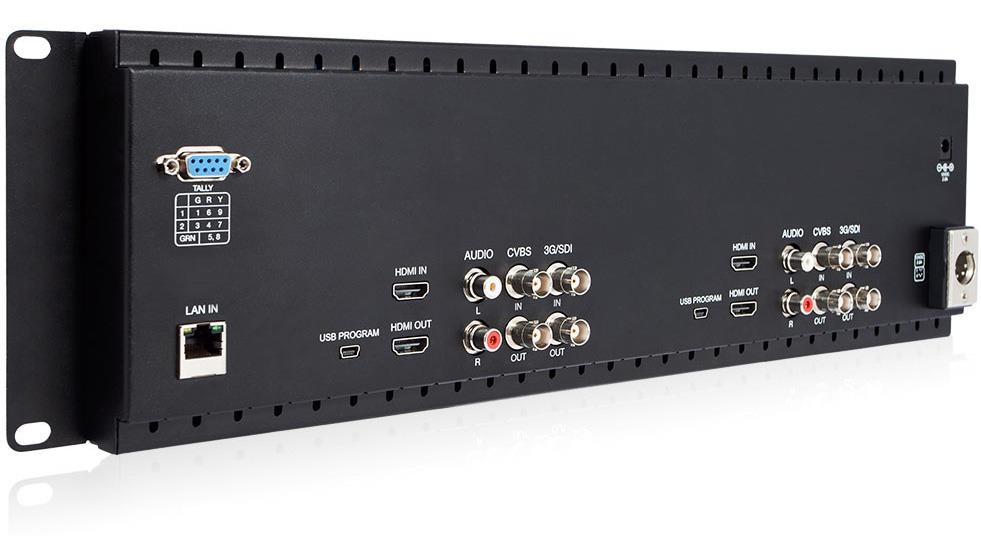

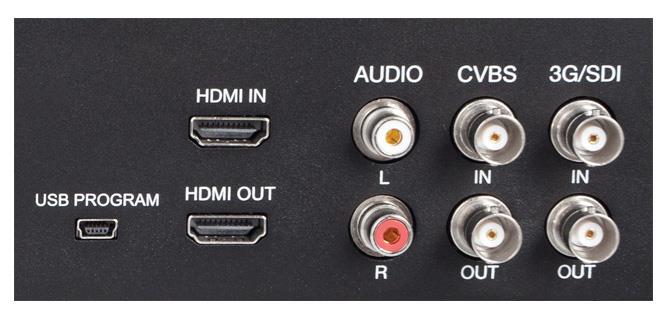

  • Multiple Inputs and Outputs
    SDI / HDMI / CVBS / Audio
    Each LCD of D71 monitor supports:
    Input:
    3G-SDI X 1
    HDMI X 1
    CVBS X 1
    Auido (L/R) X 2
    Output:
    3G-SDI X 1
    HDMI X 1
    CVBS X 1
    Audio:
    Stereo Headphone

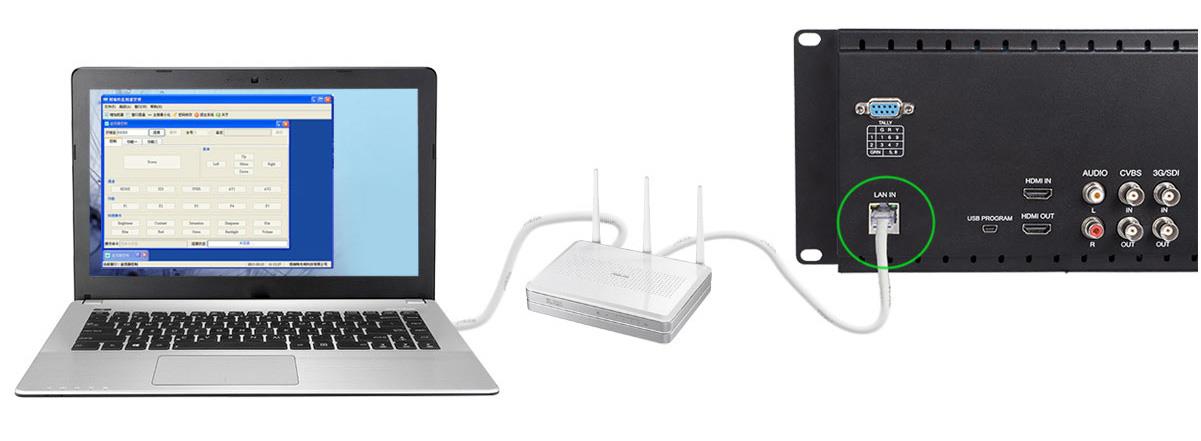

Network Control
D71 rack mount Monitor includes a LAN port,This allows the operator to Software control via Ethernet connection (software included). The rear panel LAN 100 port connects the unit to the LAN. Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This willthen display the IP address of that unit. Simply type this IP address into the address bar of your Software. It is possible to poll your LAN for all other units connected by accessing the NETWORK tab from the Top Menu.
The user can then control multiple networked D71 monitor at once using a single Software. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.

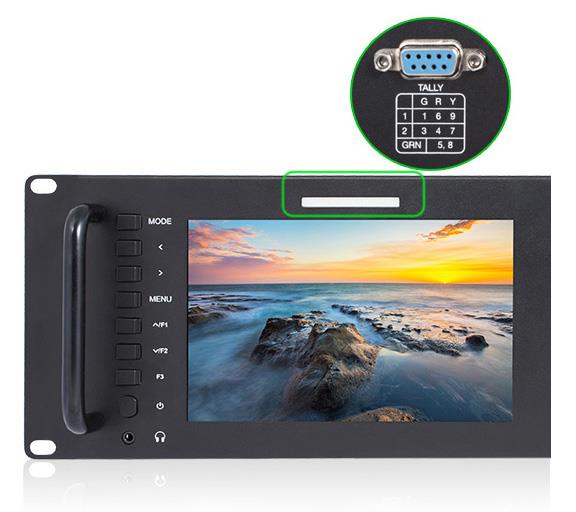

  • 3-color Tally Light
    DB-9 input signal
    There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.

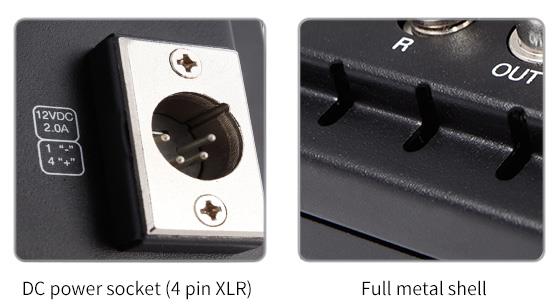

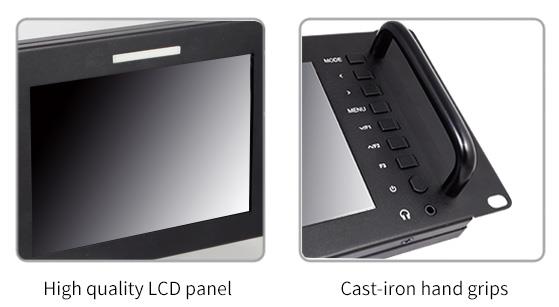

Stablity and Reliability
As rack mount LCD monitors usually in a continuous working condition, all components including LCD panel must be accordance with industrial quality standard. Full Metal case not only makes the product more robust, and durable, but also is a good solution to the heat dissipation problem.



The D71 is a very lightweight and compact combination of two 7" monitors in a 3U height bezel for mounting in instrument cabinets. It features 7" IPS panels with 1080x800 resolution, 178°/178° viewing angles and 400 cd/m2 brightness for viewing SD/HD material via 3G-SDI and HDMI inputs. With GPIO (Ethernet), compact size and a solid metal body with good heat dissipation, it is an ideal monitor for mounting in transmission trucks, portable racks or desktop installations in studios, directories or vaults.

The network interface provides easy remote control (in the control application, you only need to enter the IP address of the device, which can be found in MAIN MENU > NETWORK CONFIGURATION) of several monitors at once; the application also displays basic status information about all connected units. A signal light (red/green/yellow) is available on the front panel of each monitor (DB-9).

The D71 is an extremely thin and lightweight 7" 3RU rackmount monitor with two 7" 1080x800 IPS screens that allow SD, HD, and 3G-SDI video to be displayed on the 3RU rackmount monitor. It has GPIO for software control via Ethernet connection. The monitor can be used in all levels of television news production, post-production, broadcast programming and television broadcast trucks, video surveillance of specialty vehicles, and other areas. Since this series works with other adjacent professional equipment, high stability, high reliability and electromagnetic compatibility are therefore very important to ensure the smooth operation of the entire system.

Parameters

Parameters

Manufacturer: Feelworld
Category: Studio Monitors

Main parameters

Size7"
Monitor inputsHDMI
Monitor inputsSDI
Monitor inputsComposite Video
Monitor inputsEthernet
Monitor power supplyV-Mount
Luminosity400cd/m2
Panel resolution1280x800

Other parameters

Other featuresrack
