Fairlight Live Audio Panel 10
SKU: DVFL/AAFLP10

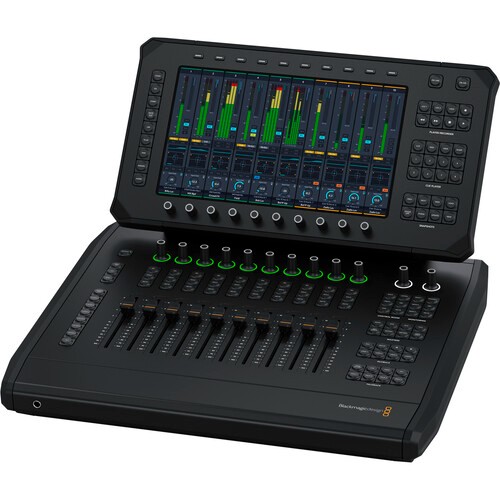

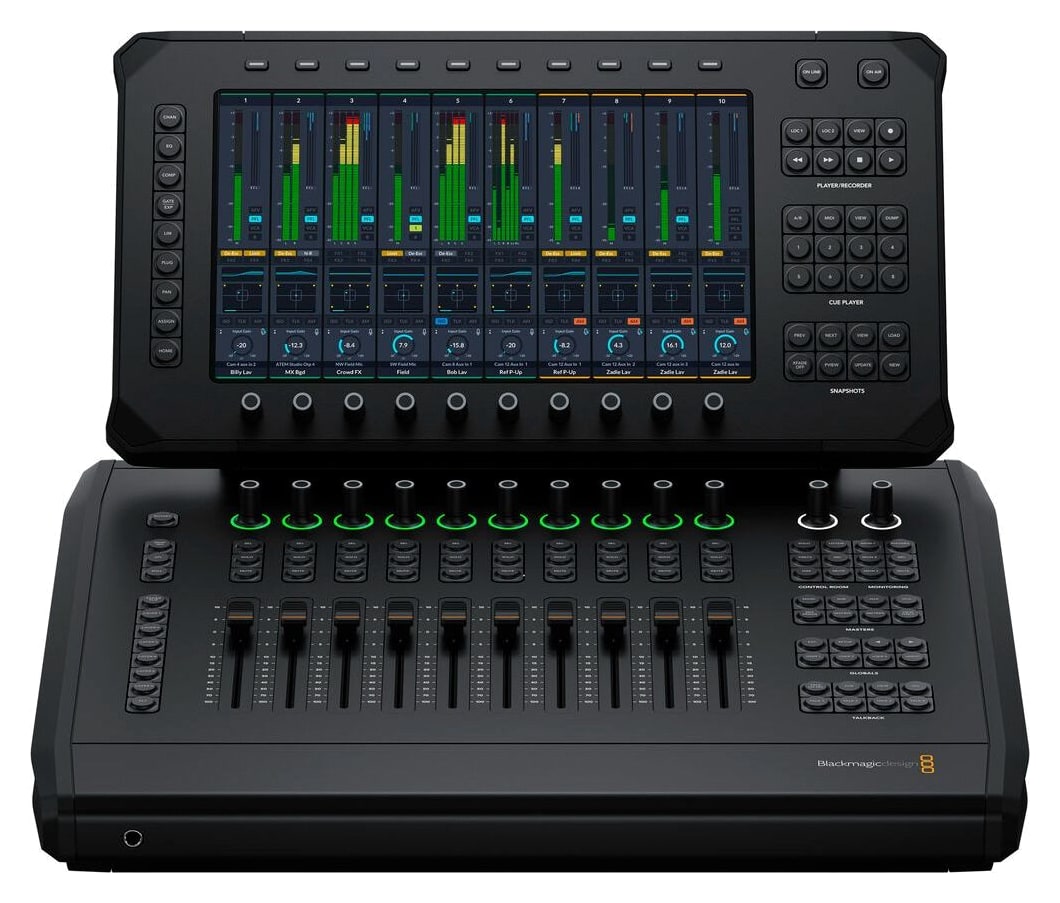

Fairlight Live Audio Panel 10 is a compact desktop control surface for professional live mixing in Fairlight Live. Ten motorized faders, a large 11.6-inch touchscreen and direct controls for layers, buses, matrix, aux, VCA, submasters and talkback speed up work in a small studio, control room or mobile production position.
2 299 € with VAT
1 900 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Fairlight Live Audio Panel 10 is a compact desktop control surface for professional live mixing in Fairlight Live. Ten motorized faders, a large 11.6-inch touchscreen and direct controls for layers, buses, matrix, aux, VCA, submasters and talkback speed up work in a small studio, control room or mobile production position.
Two 10G RJ45 connections carry SMPTE 2110 audio and video, complemented by analog I/O, HDMI monitoring, a separate 1G control network and USB-C for configuration and updates.

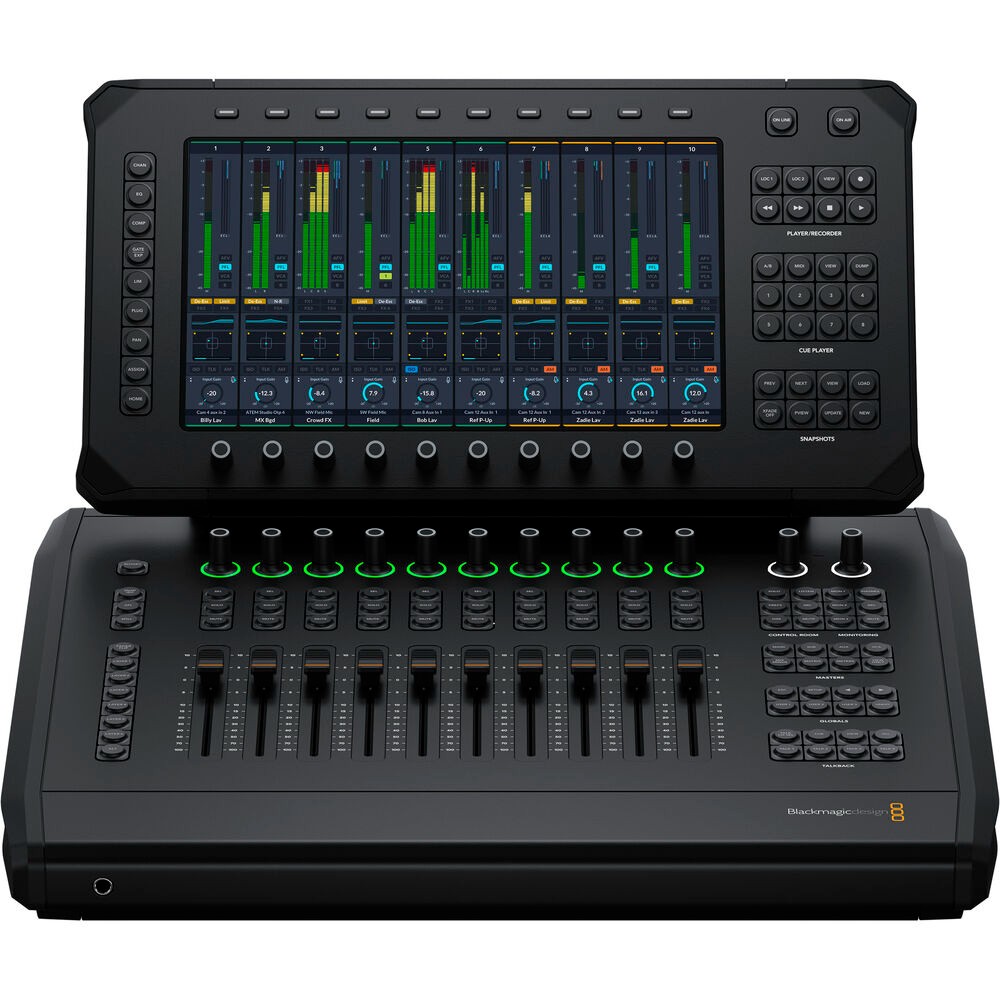

Fairlight Live · Panel 10

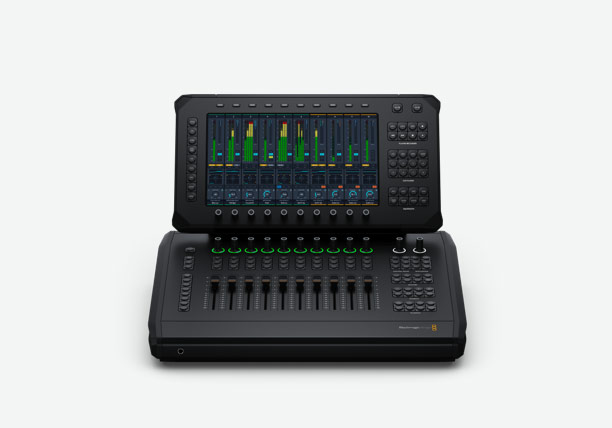

Ten faders for hands-on live mixing
The desktop panel combines tactile channel control with a touch overview of levels, EQ, dynamics and plug-ins. It is designed specifically for Fairlight Live and compact workspaces.
10 motorized faders11.6-inch LCD · 1920 × 1080
Audio, video and control in an IP workflow

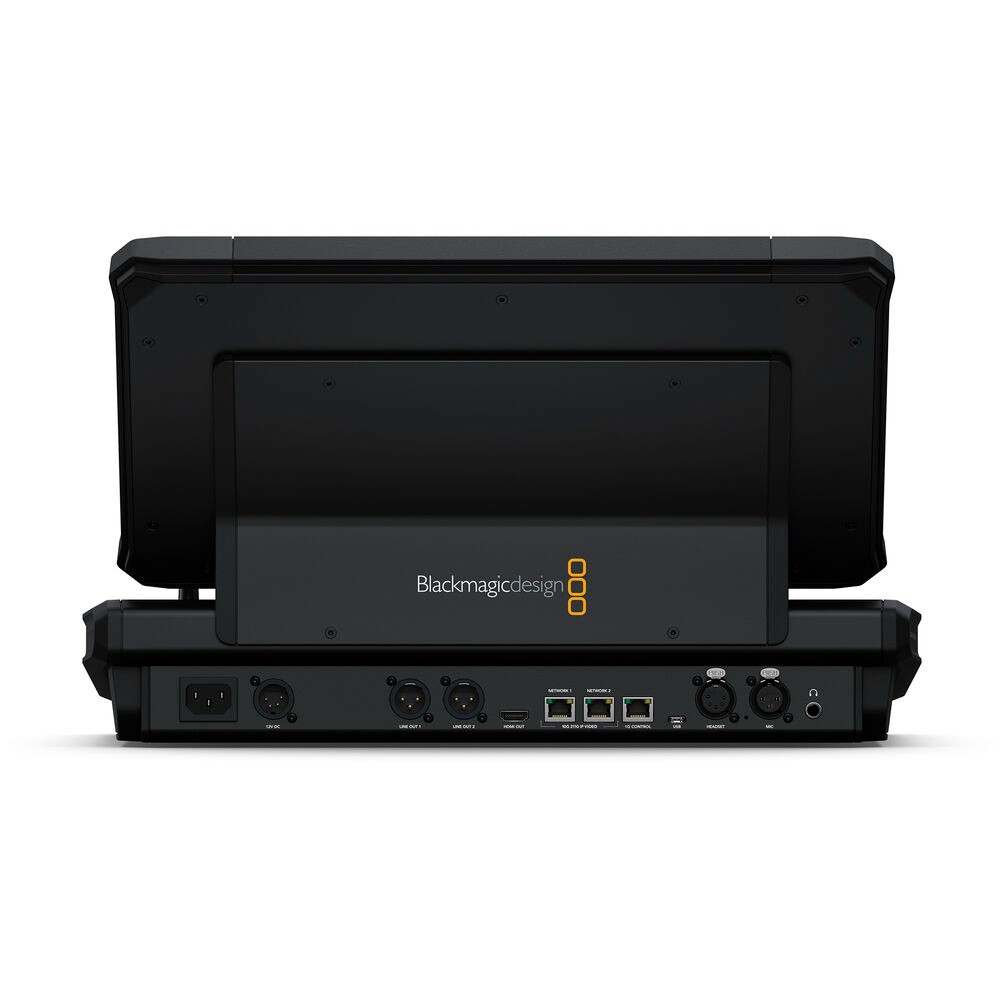

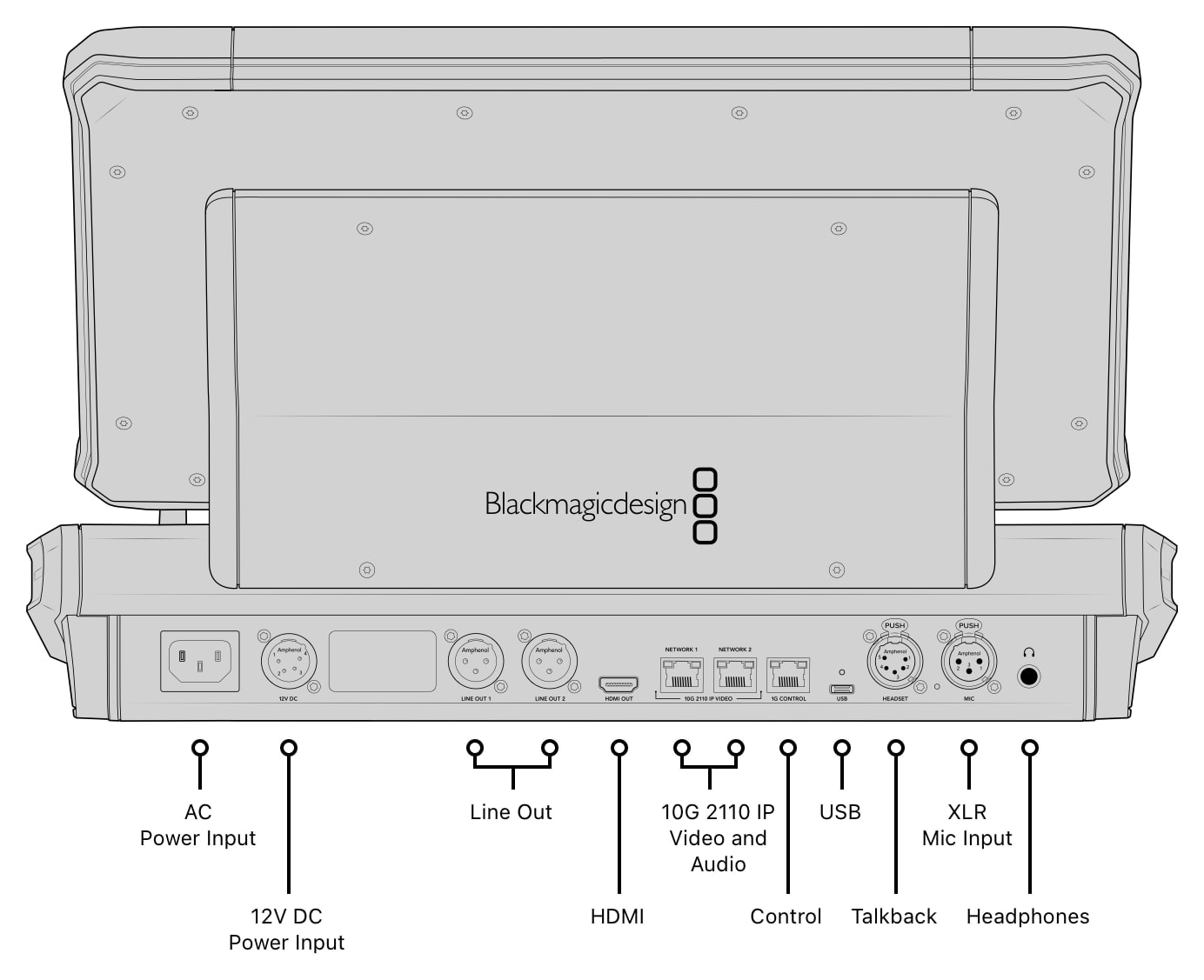

Two 10G RJ45 ports carry SMPTE 2110 video and audio together with the panel’s analog audio I/O. A separate 1G RJ45 port, USB-C and HDMI Type A simplify configuration, updates and monitor connection.
Talkback and safe on-air operation
An integrated talkback microphone, headset input and four talkback groups speed up communication. Fairlight Live adds an On-Air mode that protects the main audio output from unintended changes during a live broadcast.

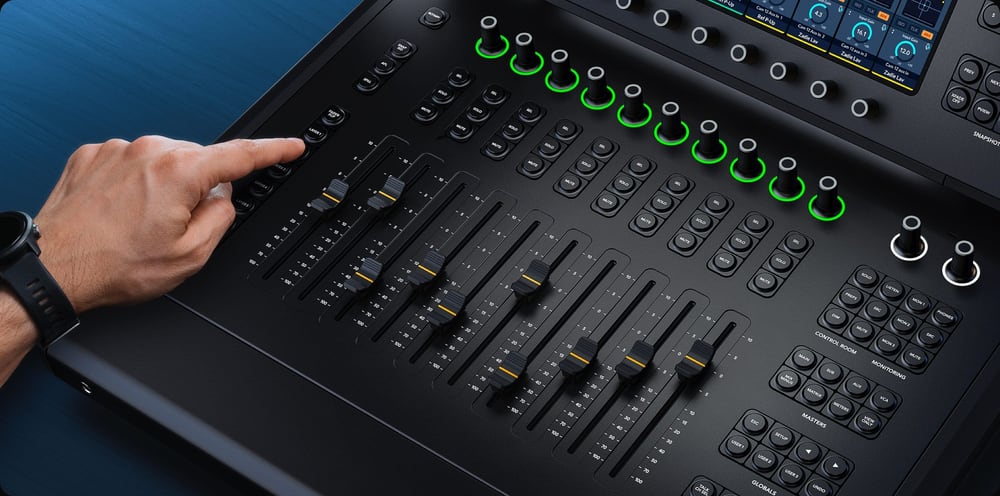

Mix control without searching through menus
Controls include layers, buses, matrix, aux, VCA, submasters and talkback for fast, direct access to the mix.

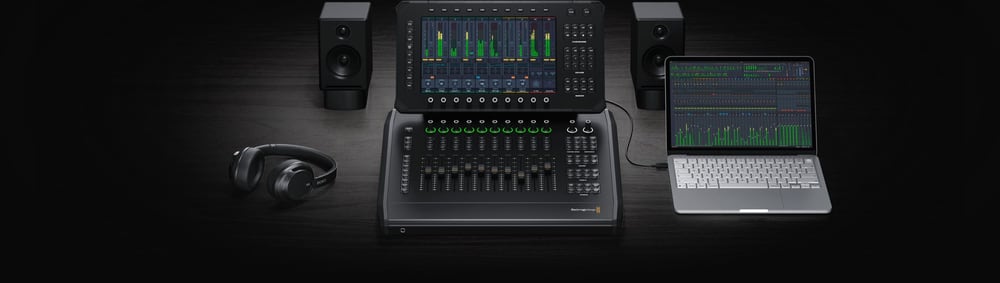

The touchscreen displays channel-strip information, levels, EQ, dynamics processing and plug-in interfaces. The panel is ideal for home studios and small post-production suites and is fully integrated with Fairlight Live.
Key features: 10 motorized faders and 10 rotary controls with LED rings; control of layers, buses, matrix, aux and VCA; submasters and talkback; 3-pin XLR microphone input, line-level XLR outputs, 5-pin XLR headset connection, HDMI and two 10G 2110 IP ports.
PACKAGE CONTENT
- Fairlight Live Audio Panel 10
- Welcome wallet with QR code for software download
SPECIFICATIONS
- Faders: 10 motorized flying faders
- Rotary controls: 10 multifunction rotary controls with LED ring indicators
- Built-in display: 11.6-inch LCD touchscreen, 1920 × 1080
- IP network: 2× 10G RJ45 Ethernet for SMPTE 2110 video and audio
- Control network: 1× 1G RJ45 for computer connection, configuration and updates
- Computer interface: 1× USB Type‑C
- Video output: 1× HDMI Type A; HD and Ultra HD up to 2160p60
- Analog input: 1× 3-pin XLR microphone input
- Analog outputs: 2× 3-pin XLR line-level output; 2× 6.35 mm headphone jack
- Talkback: built-in microphone, 5-pin XLR headset, 4 groups
- Power: internal 100–240 V AC 50/60 Hz supply; IEC C14 and 4-pin XLR 12 V DC input
- Operating temperature: 0 to 40 °C
- Software: Fairlight Live a Blackmagic OS
- Warranty: 1-year limited manufacturer’s warranty
