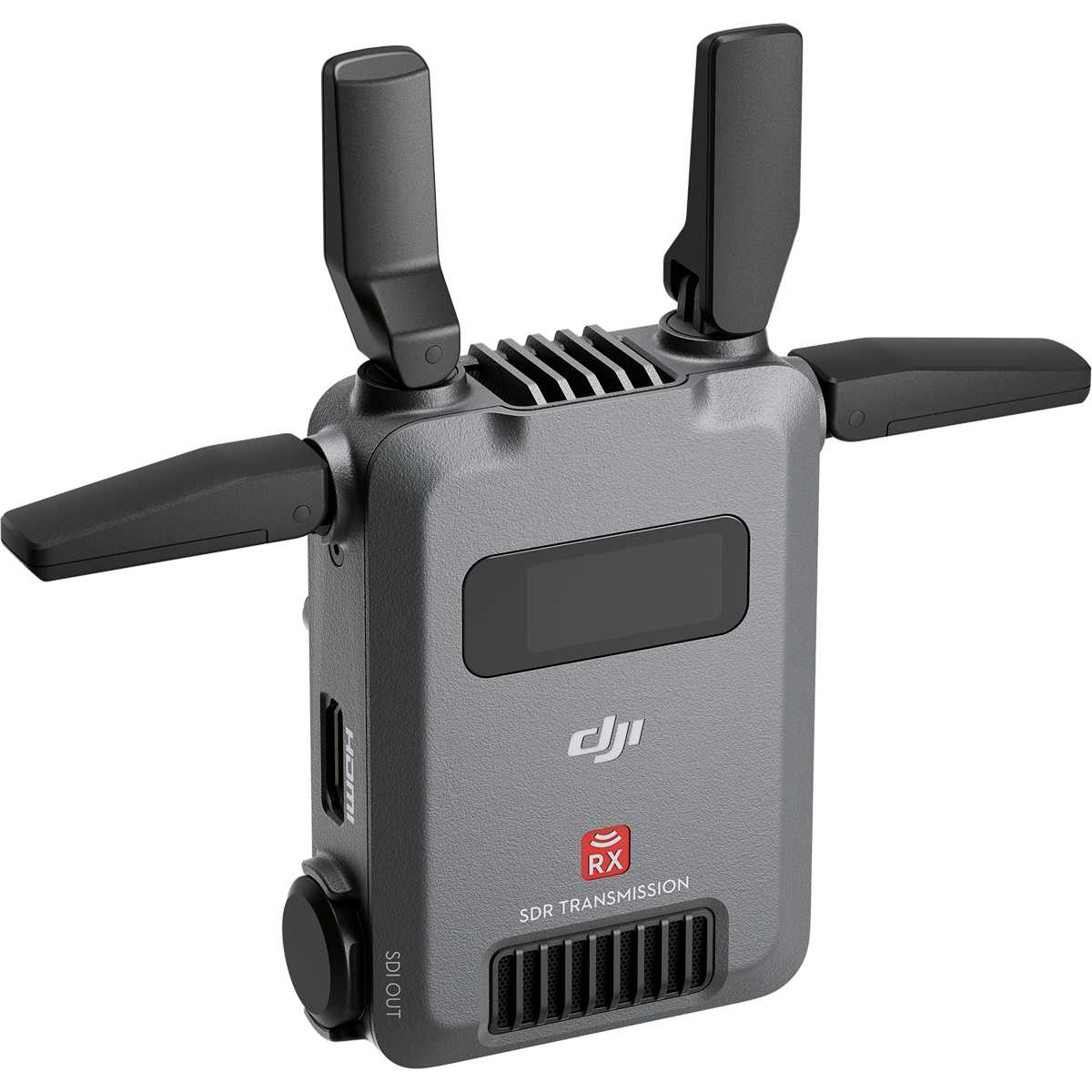

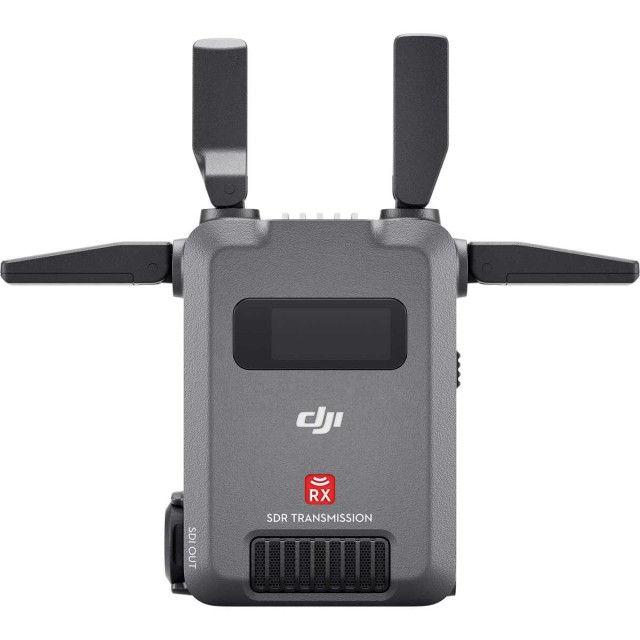

DJI SDR Transmission Receiver

DJI SDR Transmission Receiver is a receiver for wireless 1080p60 video using SDR technology, designed for the DJI SDR Transmission Transmitter. It feeds monitors over SDI or HDMI and shows the image on a phone or tablet via USB-C. Up to 3 km (FCC) / 2 km (CE) range, up to 20 Mbps and 35 ms latency excluding camera and screen. Powered by an NP-F battery or…

More information

298 € with VAT 246.28 € without VAT
-+
Availability
on request
SKU:
CP.RN.00000401.01
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

DJI SDR Transmission Receiver is a receiver for wireless 1080p60 video using SDR technology, designed for the DJI SDR Transmission Transmitter. It feeds monitors over SDI or HDMI and shows the image on a phone or tablet via USB-C. Up to 3 km (FCC) / 2 km (CE) range, up to 20 Mbps and 35 ms latency excluding camera and screen. Powered by an NP-F battery or USB-C.

Feed to monitors and tablets

Software-Defined Radio technology brings greater stability, interference resistance and penetration through obstacles. The receiver then shares the feed between a professional monitor and a mobile device.

DJI SDR Transmission Receiver
1080p/60 fpsUp to 20 Mbps2 km range (CE)35 ms latencySDI + HDMIBroadcast mode

Unlimited number of receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, giving every collaborator a high-quality feed and meeting the independent monitoring needs of each professional role.

Kilometres of range

Up to 3 km (FCC) / 2 km (CE) in Control mode and better penetration through obstacles cover wide-area, dynamic shoots.

Metadata from ARRI and RED

Metadata from mainstream cinema cameras travels over SDI, giving directors, cinematographers and DIT teams detailed shooting information in real time.

Voice calls

One-on-one real-time voice calls between receiver and transmitter let the camera operator talk to the director or client at any time.

Receiver power

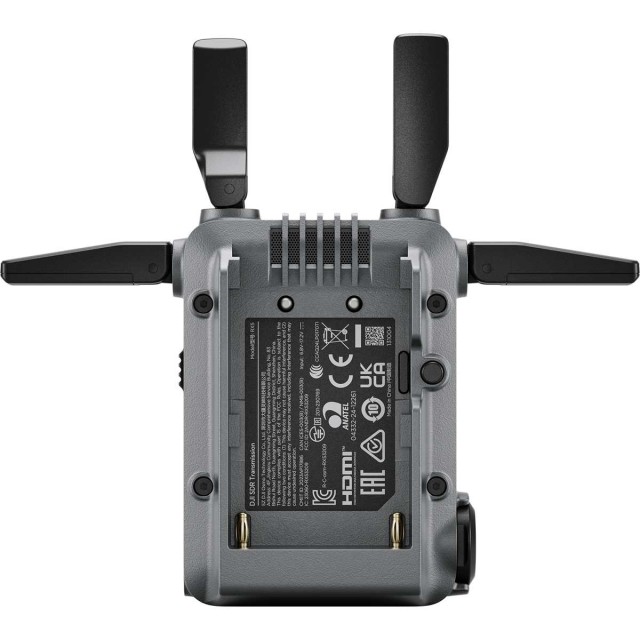

The receiver runs on an NP-F battery (6.8–8.4 V), a standard USB-C PD charger at 9 V / 2 A or a 6.8–17.2 V DC source via USB-C.

DJI SDR Transmission Receiver – Monitoring for the whole crew

Monitoring for the whole crew

The transmitter outputs three SDR and two Wi-Fi signals simultaneously. The receiver feeds monitors over SDI or HDMI, while phones and tablets can connect directly to the transmitter over Wi-Fi.

DJI SDR Transmission Receiver – DJI Ronin app

DJI Ronin app

In Broadcast mode you switch between cameras right in the app, which supports local recording and playback and offers LUT, peaking, waveform and false color.

DJI SDR Transmission Receiver – Monitoring over USB-C

Monitoring over USB-C

Connect the receiver to a phone or tablet with a USB-C cable for smooth, stable monitoring without Wi-Fi.

DJI SDR Transmission Receiver – Just 145 g

Just 145 g

Transmitter and receiver each weigh approx. 145 g with their foldable antennas, are easy to carry and support various mounting methods.

More information

Wi-Fi: For temporary monitoring, the transmitter can send the feed over Wi-Fi straight to a phone or tablet (200 m range, 110 ms latency) – dual-channel monitoring without a receiver.

Channel selection: The system switches frequencies smoothly and automatically and moves to the optimal channel when interference occurs. In SDR Control or Wi-Fi mode you can switch channels in the app while monitoring channel quality.

Gimbal and camera control: The DJI Ronin app supports Force Mobile, virtual joystick and recentering of DJI stabilizers. It controls cameras via PTP – viewing and adjusting aperture, shutter and ISO and triggering photos and recording. For Sony cameras it supports CEC control in Mirror Control mode.

PACKAGE CONTENT

  • 1× DJI SDR Transmission Receiver (RX)

SPECIFICATIONS

  • Brand: DJI
  • Model: DJI SDR Transmission Receiver
  • Manufacturer code: CP.RN.00000401.01
  • Type: receiver (RX)
  • Video transmission system: SDR
  • Video formats: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps; 1080i (not in Broadcast mode); 720p: 50/59.94/60fps
  • Coding and bitrate: H.264; up to 20 Mbps (Control mode)
  • Max. transmission distance: 3 km (FCC) / 2 km (CE) in Control mode
  • Latency: 35 ms excluding camera and screen latency (80 ms including), 1080p/60fps
  • Receiver frequency: 2.4000–2.4835 GHz and 5.725–5.850 GHz (5.8 GHz is not permitted in all countries)
  • Max. bandwidth: 20 MHz

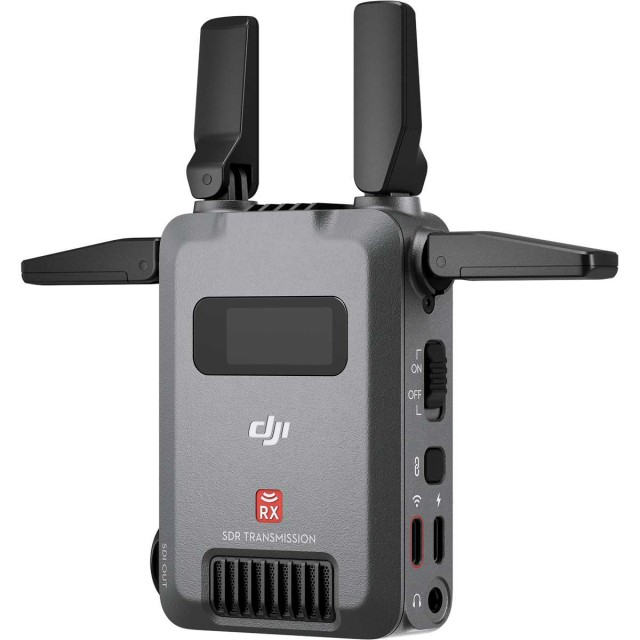

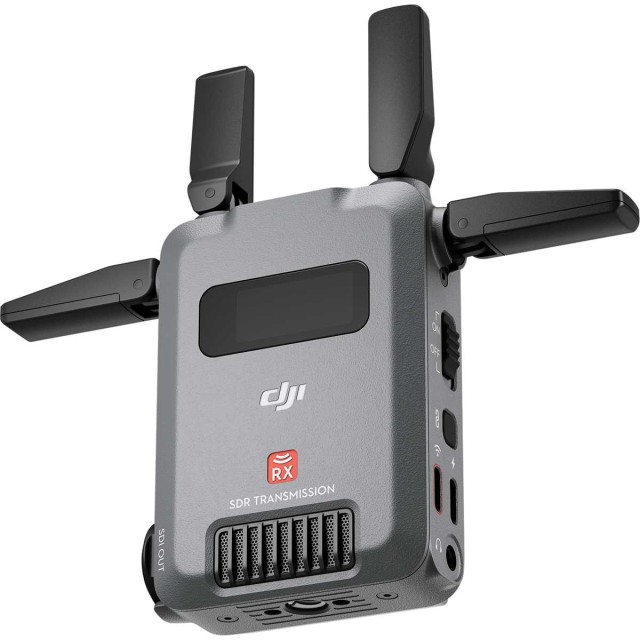

  • Receiver ports: SDI output, HDMI output, 3.5 mm stereo jack, USB-C firmware update and video output port, USB-C power port
  • Power supply: USB-C PD 9 V, 2 A; USB-C 6.8–17.2 V DC; NP-F battery 6.8–8.4 V
  • Power consumption: 8.3 W (1T1R, Control mode, 25 °C)
  • Weight: approx. 145 g including antennas
  • Dimensions: 86.5 × 64 × 32 mm (excluding antennas)
  • Operating temperature: −10 to 40 °C (14 to 104 °F)
  • Compatibility: DJI SDR Transmission Transmitter

WE RECOMMEND

For DJI SDR Transmission Receiver we recommend accessories that belong to this transmission system.

Original DJI accessories – cables, expansions, holders and antennas designed for this transmission system.

Power – NP-F batteries and power modules for longer cable-free operation.

Parameters

Parameters

Manufacturer: DJI
Category: Wireless video transmission

Main parameters

Line-of-sight range2000m
Weight per unit145g
Receivers in package1
Maximum transmission resolution1920px
Maximum frame rate60fps
Typical receiver power consumption8.3W
Frequency band2.4 GHz · 5 GHz
Power supplyNP-F550 · NP-F750 · NP-F970 · USB-C
Video codecH.264
Latency35 ms
InputWireless video reception
OutputHDMI · SDI · USB-C (video to Android) · USB-C (video to iOS)
