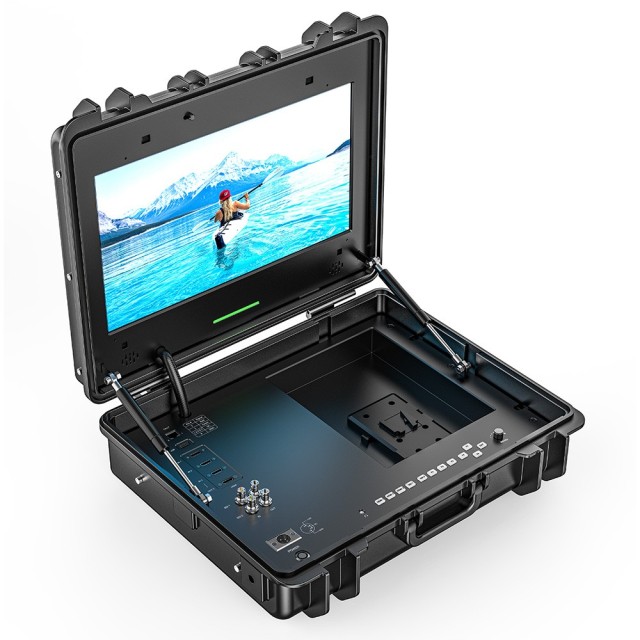

Desview SP17 Plus

The Desview SP17 Plus is a 17-inch 4K monitor with 400 nits, 10-bit color depth (8-bit + FRC) and 99.5% DCI-P3 coverage, built into a rugged ABS portable case that fits cabin baggage rules. It has three HDMI 2.0 inputs and two SDI inputs with loop outputs, histogram, waveform and vectorscope, custom 3D LUTs and HDR support. It runs via XLR or from a V-mount battery.

The newer model of the SP series: the ABS case resists dust, high temperatures and impacts, and its size meets aircraft cabin requirements. Once opened, the monitor is ready for the studio, the OB van or outdoor work.

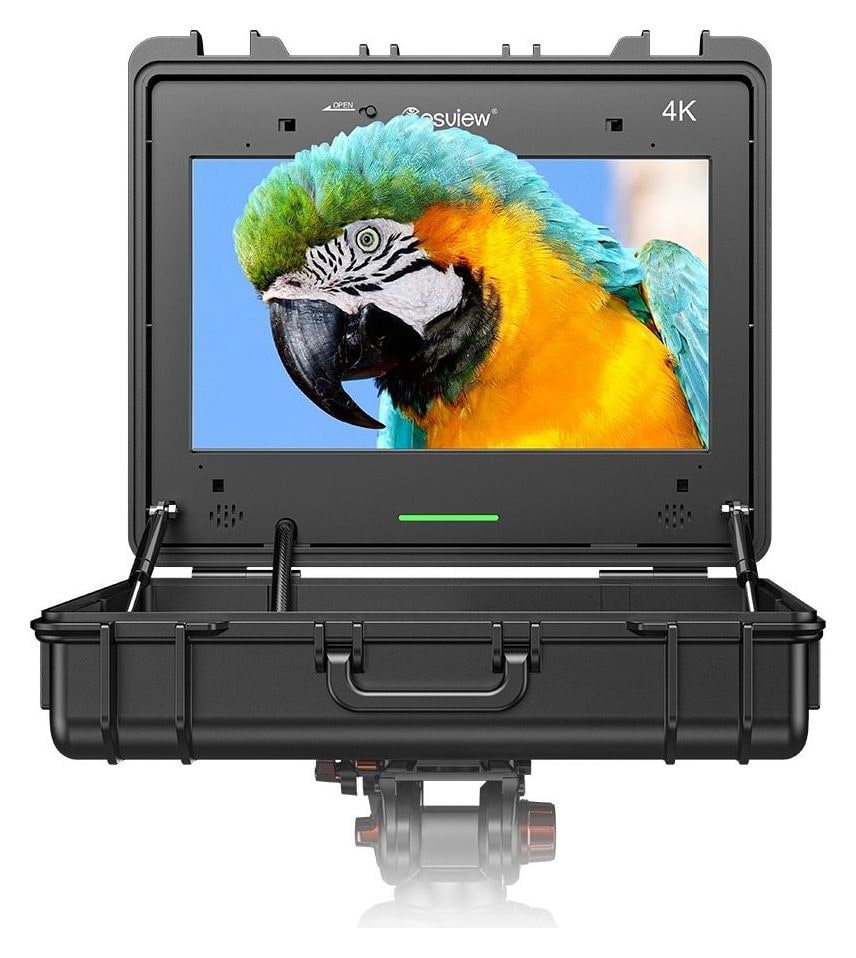

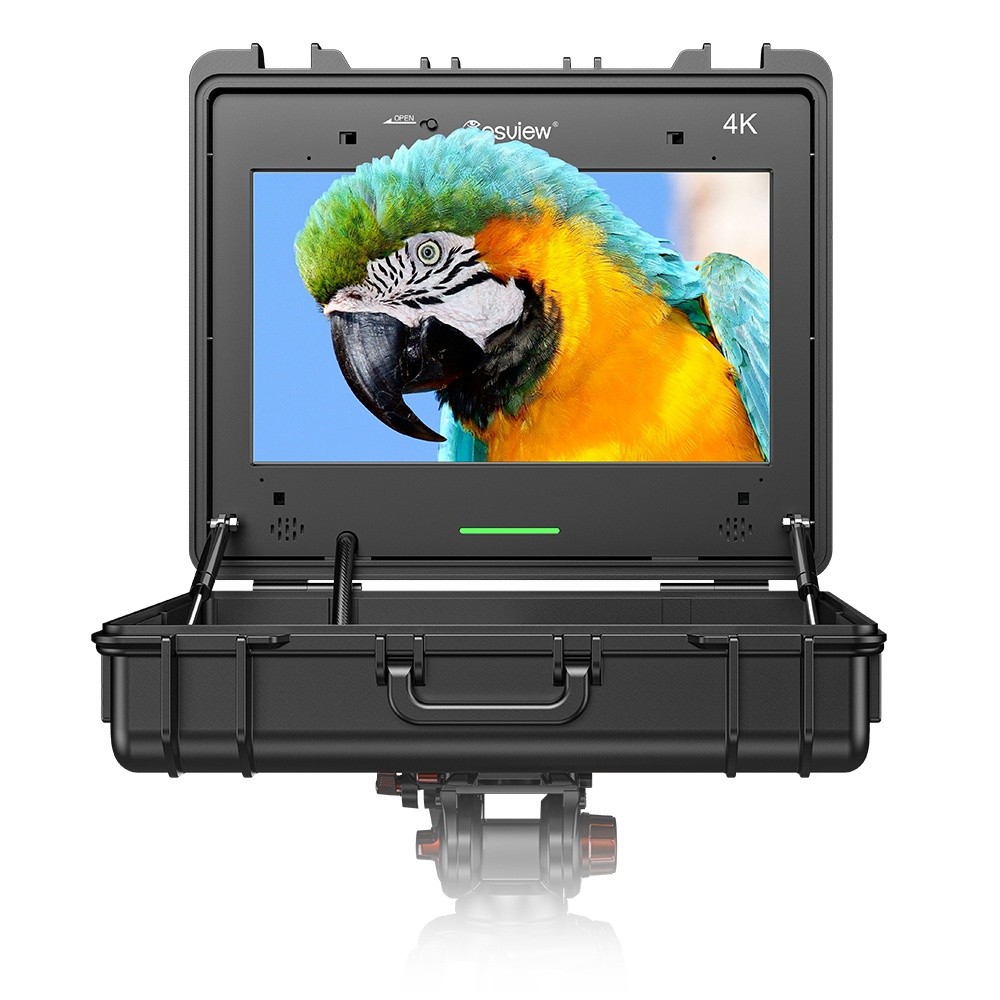

4K with 99.5% DCI-P3

The 17" 4K screen with 400 nits and 1000:1 contrast displays at 10-bit color depth (8-bit + FRC). The 178° viewing angle keeps colors free of shift from any angle, which also helps with color work.

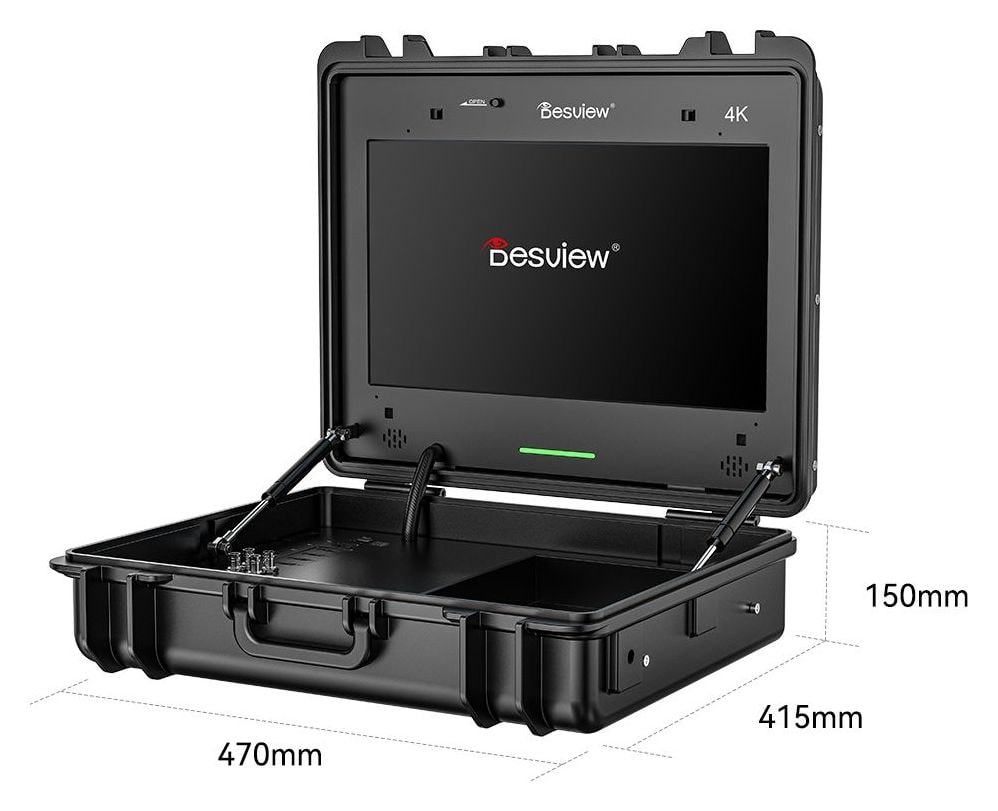

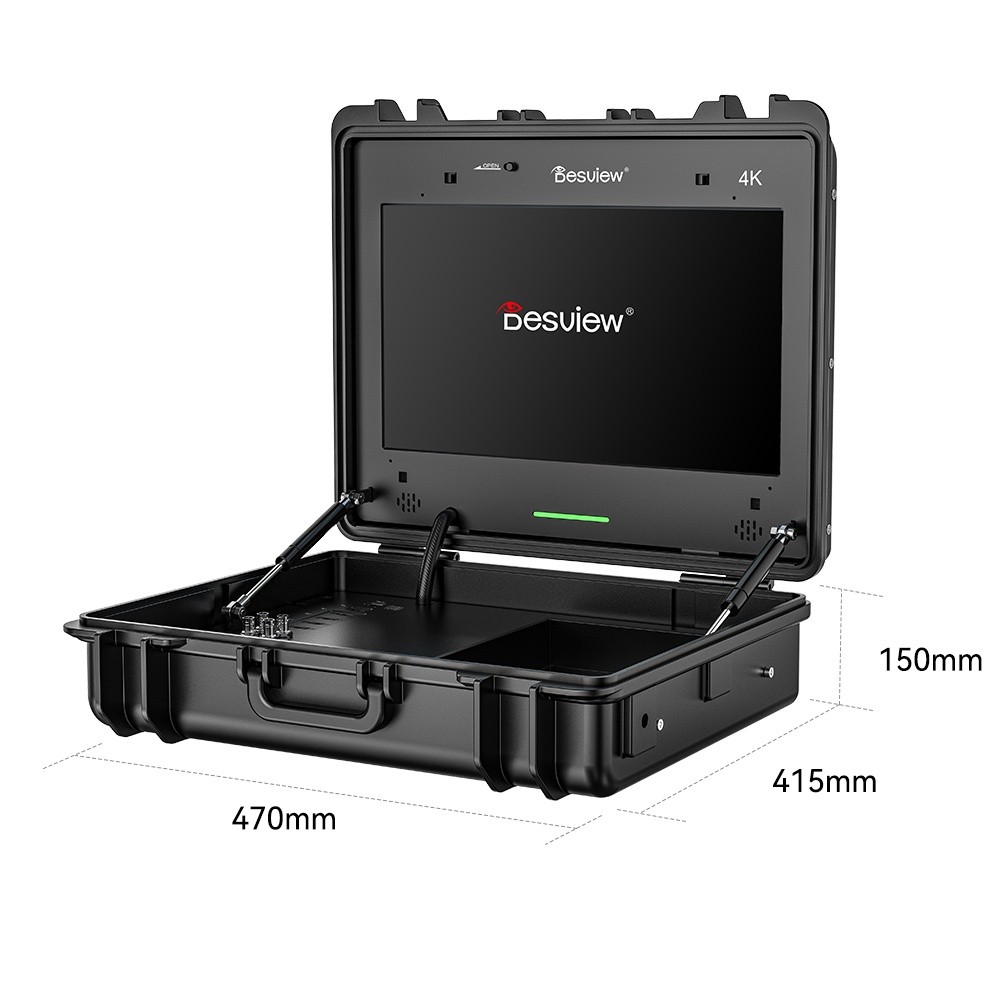

Case 470 × 415 × 150 mm

The whole monitor in its case measures 470 × 415 × 150 mm and weighs 9 kg. Inside you get histogram, waveform and vectorscope for checking highlights, shadows and color, built-in LUTs and custom 3D LUT import for a cinematic look.

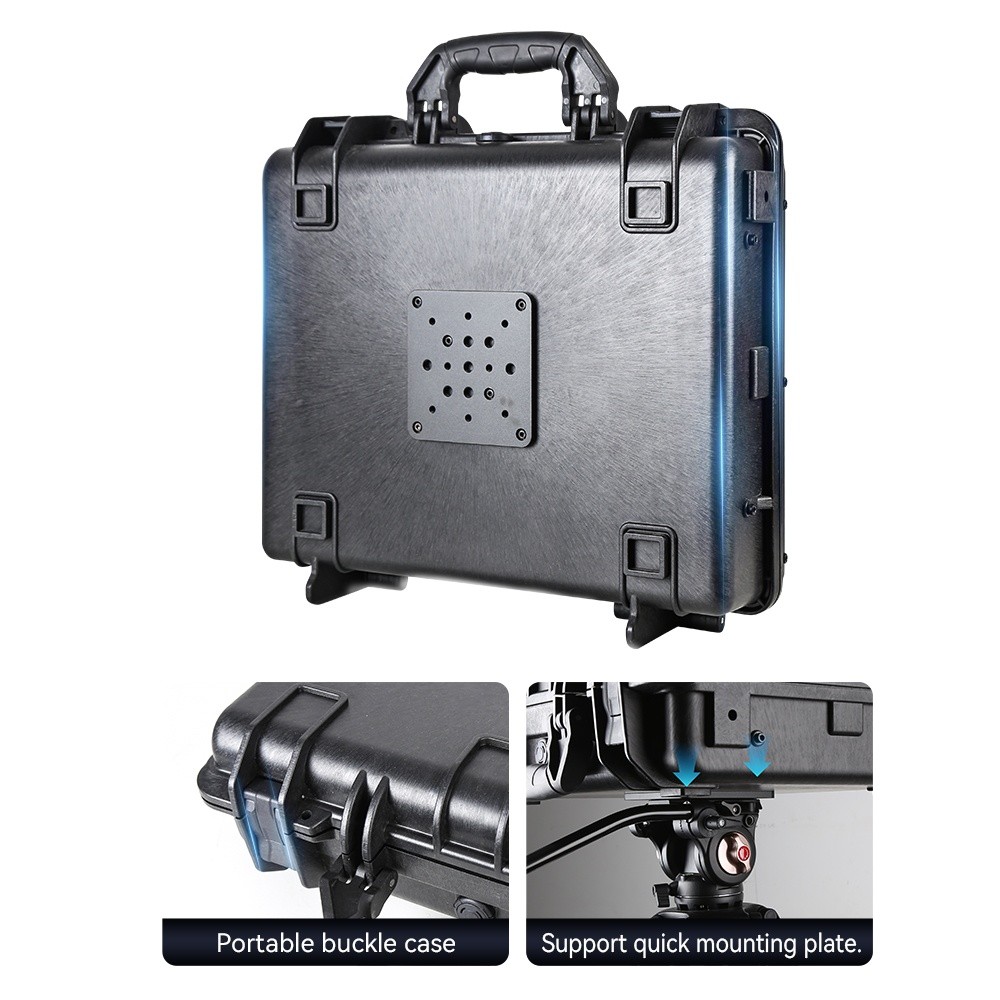

Portable case

The case closes with buckles and has a quick release plate on the bottom, so the monitor goes straight onto a tripod.

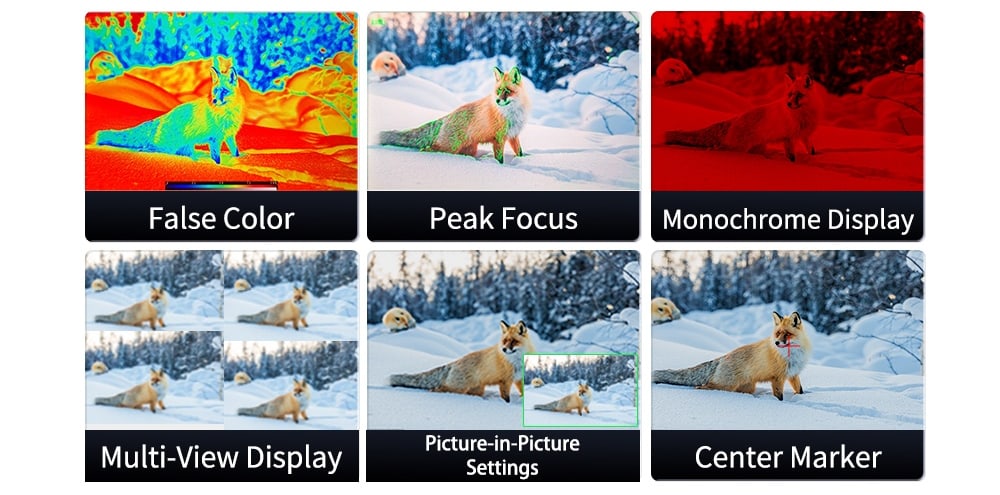

Monitoring assist functions

False color, focus peaking, monochrome, multiview, picture-in-picture and center marker.

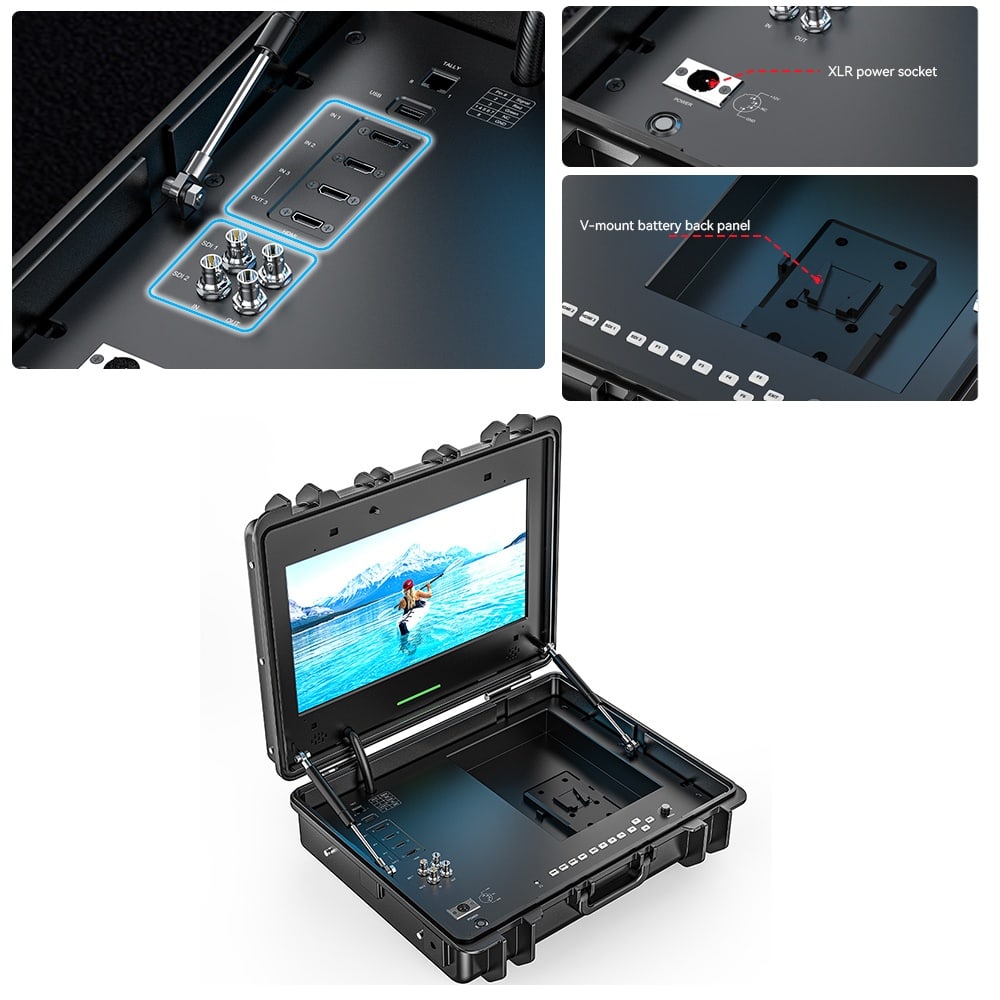

Connectors and power

Under the lid are three HDMI inputs, an HDMI output, SDI inputs and outputs, a USB port and a tally connector, next to the XLR power socket and the V-mount battery plate.

More information

The Desview SP17 Plus is a professional monitor for videographers and filmmakers who demand the highest monitoring quality. With its 17" size, 4K resolution and a range of advanced features, you capture every detail.

Key features

• 17" screen in a portable case, 4K Ultra HD resolution
• 178°/178° (H/V) viewing angle for consistent color and clarity from any angle, 16:9 aspect ratio
• 400 cd/m² brightness for good visibility in bright surroundings, 1000:1 contrast
• Inputs: 3× HDMI 2.0, 2× SDI, tally, USB; outputs: 1× HDMI, 2× SDI (loop); 4K HDMI signal up to 60 Hz
• Advanced tools: multiview, waveform for brightness and color balance, vectorscope for saturation and hue, histogram for exposure, color space management

The SP17 Plus is designed for professionals who need reliability and accuracy in the field. Its combination of high resolution, extensive connectivity and advanced monitoring tools makes it a good choice for any serious video production, in the studio or on location.

• Time code: display for precise synchronization
• Audio meter: visual representation of audio levels
