Datavideo VP-840 4K HDMI Distribution Amplifier 1x4

The Datavideo VP-840 is an HDMI 1×4 distribution amplifier that sends one source to four displays at the same time. It handles data rates up to 18 Gbps and supports HDMI 2.0a, HDCP 2.2 and 1.4, plus 4K2K at 60 Hz with HDR. EDID management offers a default profile and learning from a connected display; automatic downscaling helps match outputs to displays with different resolutions. Use it to distribute a player, computer or other HDMI source to four monitors in a presentation, conference room or production system.

One source, four displays

The VP‑840 splits one HDMI input into four simultaneous outputs. It carries data rates up to 18 Gbps and supports HDMI 2.0a and HDCP 2.2/1.4. At up to 4K2K 60 Hz, it supports 4:4:4 at 8-bit and HDR at 4:2:0 10-bit. EDID options help match the signal to connected displays.

4K2K up to 60 Hz18 Gbps1 input → 4 outputs

Connections and EDID

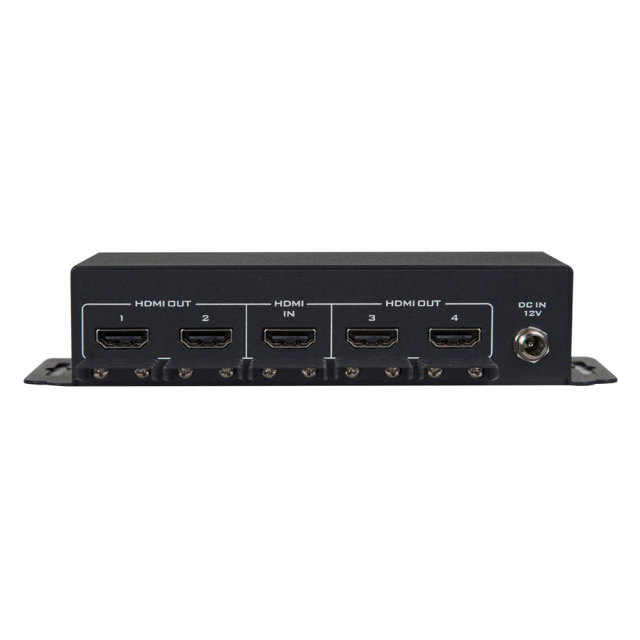

The rear panel provides one HDMI input, four HDMI outputs and a 12 V power connector. EDID offers a default profile or learning from a connected display; automatic downscaling helps when displays use different resolutions. Front-panel LEDs indicate power, input signal and the status of each output.
