Cartoni Jibo Fluid
SKU: J103-JIBO
Cartoni Jibo Fluid Action is a portable three-section camera jib with a 20 kg (44 lb) payload and fluid damping on pan and tilt. The damping unit adds gentle drag that makes the move more precise, and a lever switches it off. The jib weighs 15 kg (33 lb), folds down to 1.2 m (47″) and sets up in under three minutes. It sits on a 100 mm bowl tripod, sold s…
Call us for pricing information
Availability
14-30 days
Top accessories for Cartoni Jibo Fluid
Cartoni AT950 Reduction Ring 100/75 mm
The Cartoni AT950 reduction ring sits in a 100 mm bowl and reduces it to 75 mm. This
87 €
In stock 3 pcs
Cartoni Jibo Mitchell Adapter
Promotion: -34% ends in: 21d: 19h: 55m
Cartoni AJ107 is the adapter that puts the Jibo camera jib on a tripod with a Mitchell
193.67 €
294.03 €
In stock 1 pcs
Cartoni Focus 18
The Cartoni Focus 18 is a magnesium-alloy and aluminium fluid head for the latest
3 089 €
14-30 days
Cartoni Focus 22
The Cartoni Focus 22 offers the widest payload range of the whole Focus series –
4 589 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Cartoni Jibo Fluid Action is a portable three-section camera jib with a 20 kg (44 lb) payload and fluid damping on pan and tilt. The damping unit adds gentle drag that makes the move more precise, and a lever switches it off. The jib weighs 15 kg (33 lb), folds down to 1.2 m (47″) and sets up in under three minutes. It sits on a 100 mm bowl tripod, sold separately.
A jib with fluid damping
Jibo adds diagonal tracking and elevation from ground level up to 2 m (78″) to the pan and tilt of the head. The telescopic front arm sets the reach between 122 and 172 cm, and the extendable rear arm with counterweights balances the camera precisely.
Fluid Action20 kg payload15 kg weightReach up to 172 cm
From the floor to two metres
The camera travels in an arc from floor level up to 2 m, adding diagonal tracking and elevation to the pan and tilt of the head.
Fluid Action
The damping unit adds gentle drag to pan and tilt; a lever switches it off.
Set up in 3 minutes
The three sections fit together easily and the jib is ready to work.

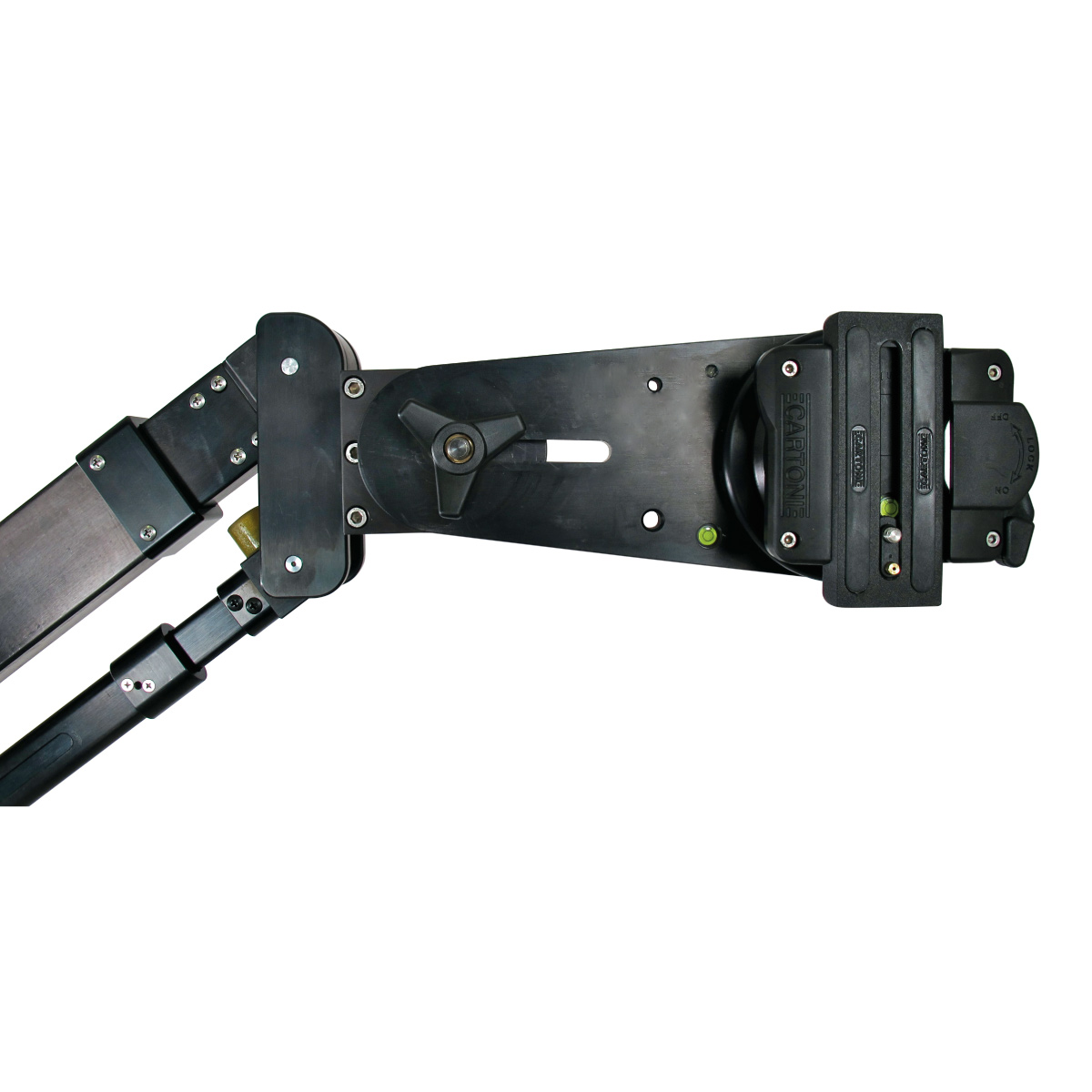

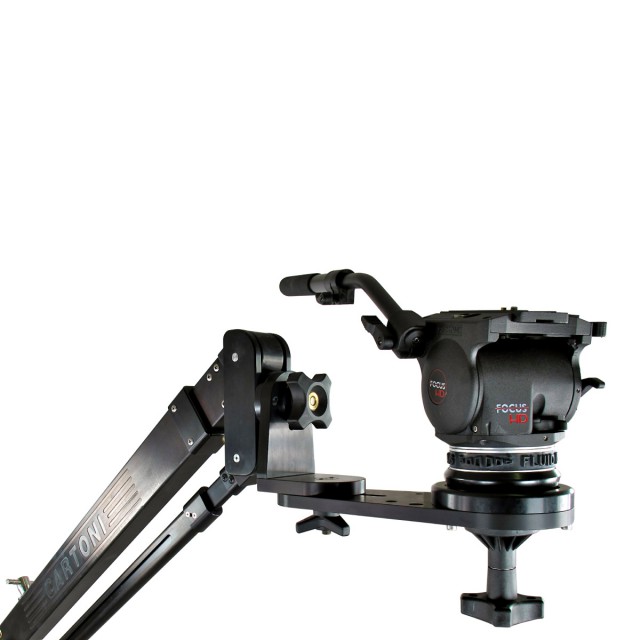

Head in any position
The fluid head can be mounted on top of the arm, underslung or sideways.

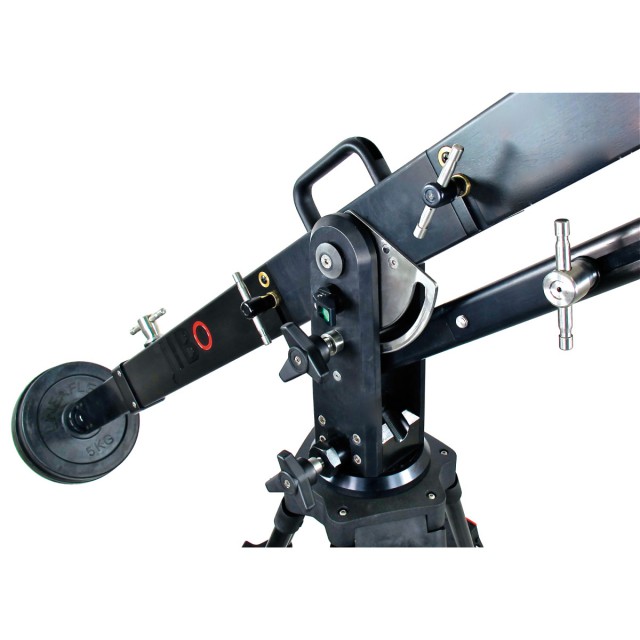

Precise balance
The extendable rear arm takes up to 25 kg of rubberised weight plates.

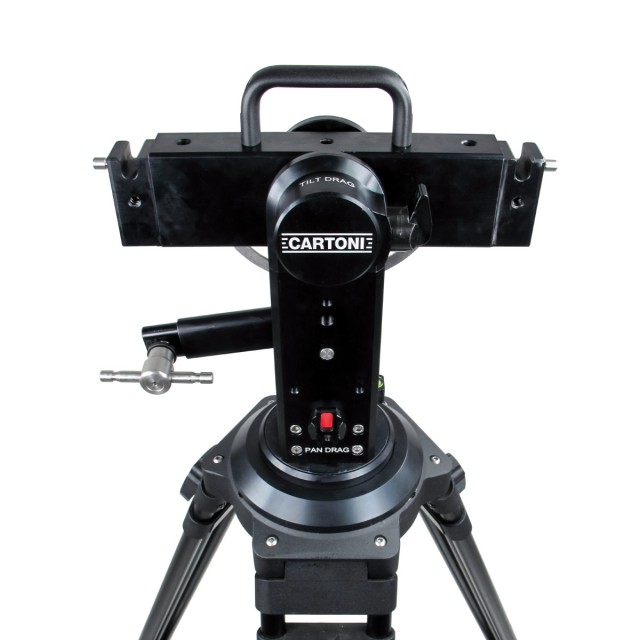

Centre with damping unit
In the Fluid Action configuration the damping unit sits in the centre of the jib and a lever turns it on or off.
With a remote head
The head mount can be turned underslung; camera and zoom controls clamp onto the optional T-bar.

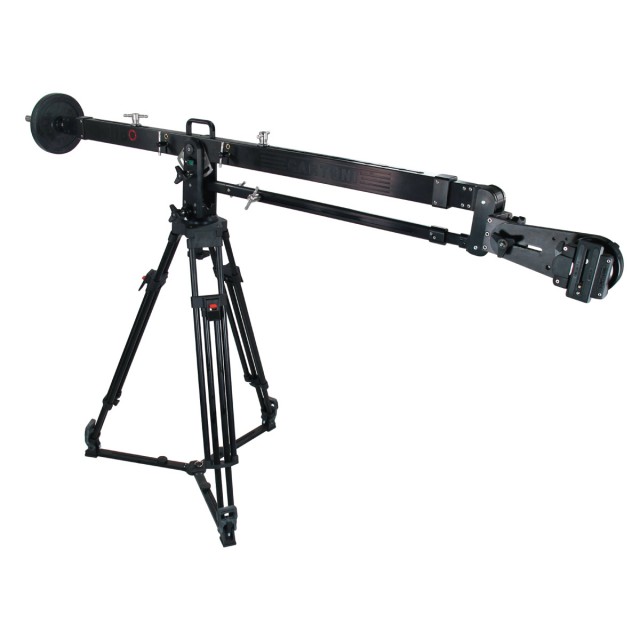

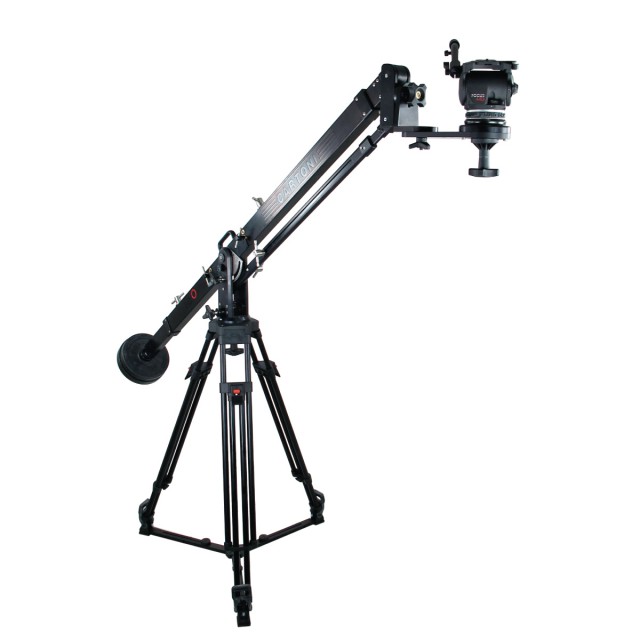

Jib on a tripod
Jibo sits on any tripod with a 100 mm bowl; the reach ranges from 122 to 172 cm.
More information
About the product
The standard configuration includes a 100 mm bowl head mount that turns left or right and sits on top of or under the arm, plus two spirit levels. For remote control of camera and zoom there is a T-bar to clamp the controls on; for heavier set-ups Cartoni offers a Mitchell flat base adapter and an adapter for 150 mm bowl tripods. Tripod, spreader and fluid head are sold separately.
PACKAGE CONTENT
- Cartoni Jibo Fluid Action jib (three sections, damping unit)
- Tie-down knob for 100 mm bowl fluid heads
SPECIFICATIONS
- Payload: 20 kg (44 lb)
- Weight: 15 kg (33 lb)
- Material: aluminium
- Tripod mount: 100 mm bowl
- Head mount: 100 mm bowl (75 mm with the AT950 reduction ring)
- Reach: 122–172 cm (48–67.7″)
- Folded length: 1.2 m (47″)
- Camera height: from ground level up to 2 m (78″)
- Counterweight: typically 20 kg (44 lb); the rear arm takes up to 25 kg of rubberised weight plates
- Damping: Fluid Action unit on pan and tilt, switched off by a lever
- Sections: 3
- Manufacturer code: J103
