Cartoni Jibo
SKU: J102-JIBO
Cartoni Jibo is a portable three-section camera jib with a 20 kg (44 lb) payload. It weighs 15 kg (33 lb), folds down to 1.2 m (47″) and sets up in under three minutes. On top of the pan and tilt of the head it adds diagonal tracking and elevation from ground level up to 2 m (78″). It fits any 100 mm bowl tripod; tripod, spreader and fluid head are sold s…
Call us for pricing information
Availability
14-30 days
Top accessories for Cartoni Jibo
Cartoni AT950 Reduction Ring 100/75 mm
The Cartoni AT950 reduction ring sits in a 100 mm bowl and reduces it to 75 mm. This
87 €
In stock 3 pcs
Cartoni Jibo Mitchell Adapter
Promotion: -34% ends in: 27d: 02h: 55m
Cartoni AJ107 is the adapter that puts the Jibo camera jib on a tripod with a Mitchell
193.67 €
294.03 €
In stock 1 pcs
Cartoni Focus 18
The Cartoni Focus 18 is a magnesium-alloy and aluminium fluid head for the latest
3 089 €
14-30 days
Cartoni Focus 22
The Cartoni Focus 22 offers the widest payload range of the whole Focus series –
4 589 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

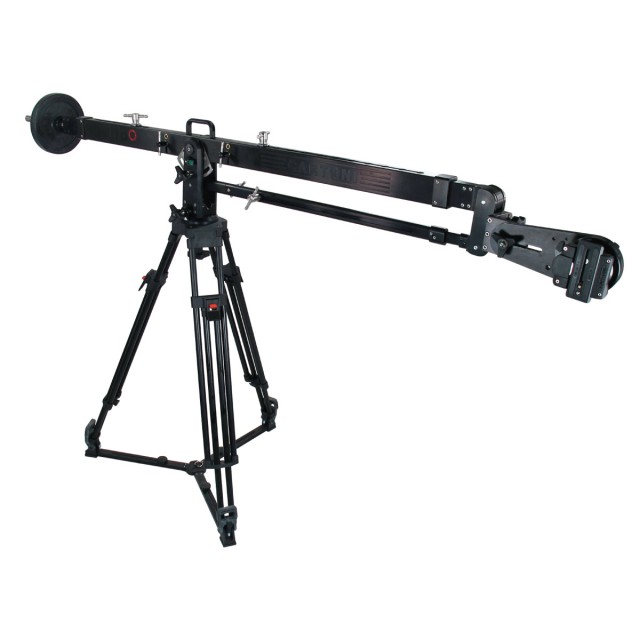

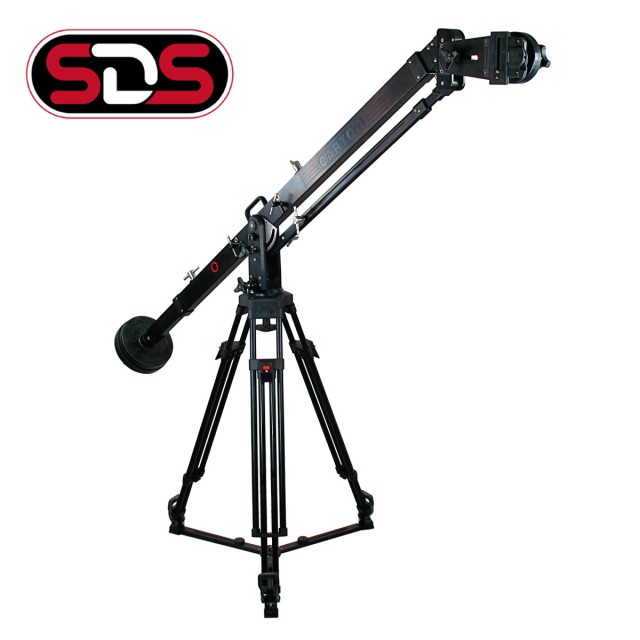

Cartoni Jibo is a portable three-section camera jib with a 20 kg (44 lb) payload. It weighs 15 kg (33 lb), folds down to 1.2 m (47″) and sets up in under three minutes. On top of the pan and tilt of the head it adds diagonal tracking and elevation from ground level up to 2 m (78″). It fits any 100 mm bowl tripod; tripod, spreader and fluid head are sold separately.
A location jib in three minutes
The extendable rear arm with counterweights balances the camera precisely, while the telescopic front arm sets the reach between 122 and 172 cm. A horizontal lock keeps the arm still until the camera is balanced.
20 kg payload15 kg weightReach up to 172 cm100 mm bowl
From the floor to two metres
The camera travels in an arc from floor level up to 2 m, adding diagonal tracking and elevation to the pan and tilt of the head.
Set up in 3 minutes
The three sections fit together easily and the jib is ready to work.

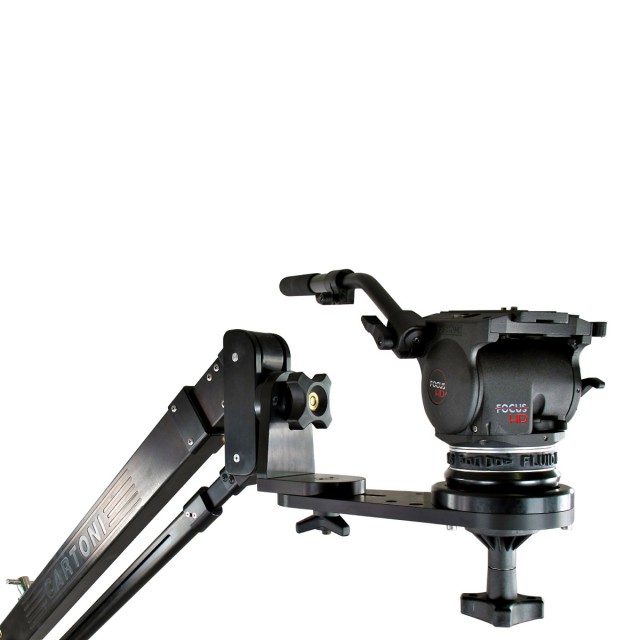

Head in any position
The fluid head can be mounted on top of the arm, underslung or sideways.
Precise balance
The extendable rear arm takes up to 25 kg of rubberised weight plates.
Horizontal lock
Holds the arm level while you set up or change the camera.

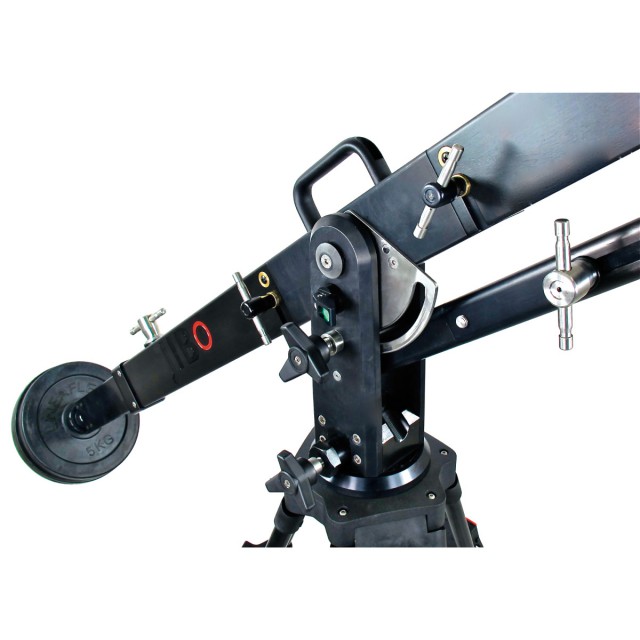

Pivot and counterweight
The centre section carries the horizontal lock; the rear arm extends and holds rubberised counterweight plates.

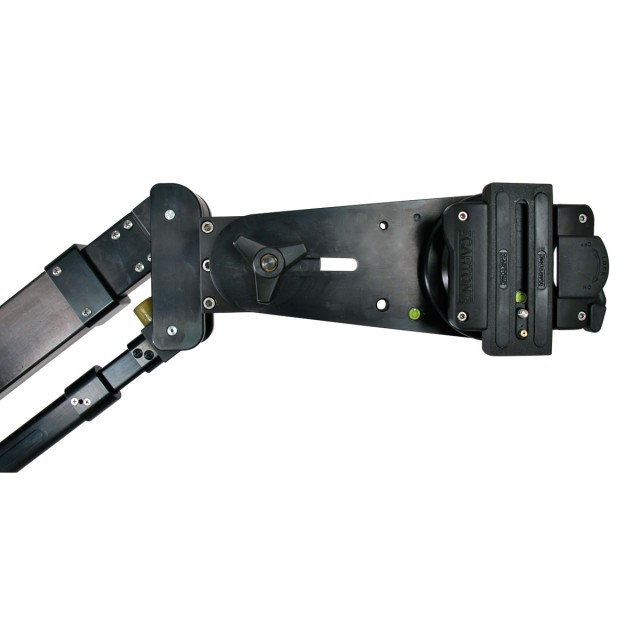

Head mount
The front tongue takes heads with a 100 mm bowl, and 75 mm with the AT950 reduction ring.
The jib taken apart
Jibo breaks down into the centre section, two arm sections, the counterweight and the head mount, which fit into a wheeled case.
More information
About the product
The standard configuration includes a 100 mm bowl head mount that turns left or right and sits on top of or under the arm, plus two spirit levels. For remote control of camera and zoom there is a T-bar to clamp the controls on; for heavier set-ups Cartoni offers a Mitchell flat base adapter and an adapter for 150 mm bowl tripods. Tripod, spreader and fluid head are sold separately.
PACKAGE CONTENT
- Cartoni Jibo jib (three sections)
- Tie-down knob for 100 mm bowl fluid heads
SPECIFICATIONS
- Payload: 20 kg (44 lb)
- Weight: 15 kg (33 lb)
- Material: aluminium
- Tripod mount: 100 mm bowl
- Head mount: 100 mm bowl (75 mm with the AT950 reduction ring)
- Reach: 122–172 cm (48–67.7″)
- Folded length: 1.2 m (47″)
- Camera height: from ground level up to 2 m (78″)
- Pan range: 360°
- Counterweight: typically 20 kg (44 lb); the rear arm takes up to 25 kg of rubberised weight plates
- Sections: 3
- Manufacturer code: J102
