Blackmagic Design Universal Videohub Power Supply

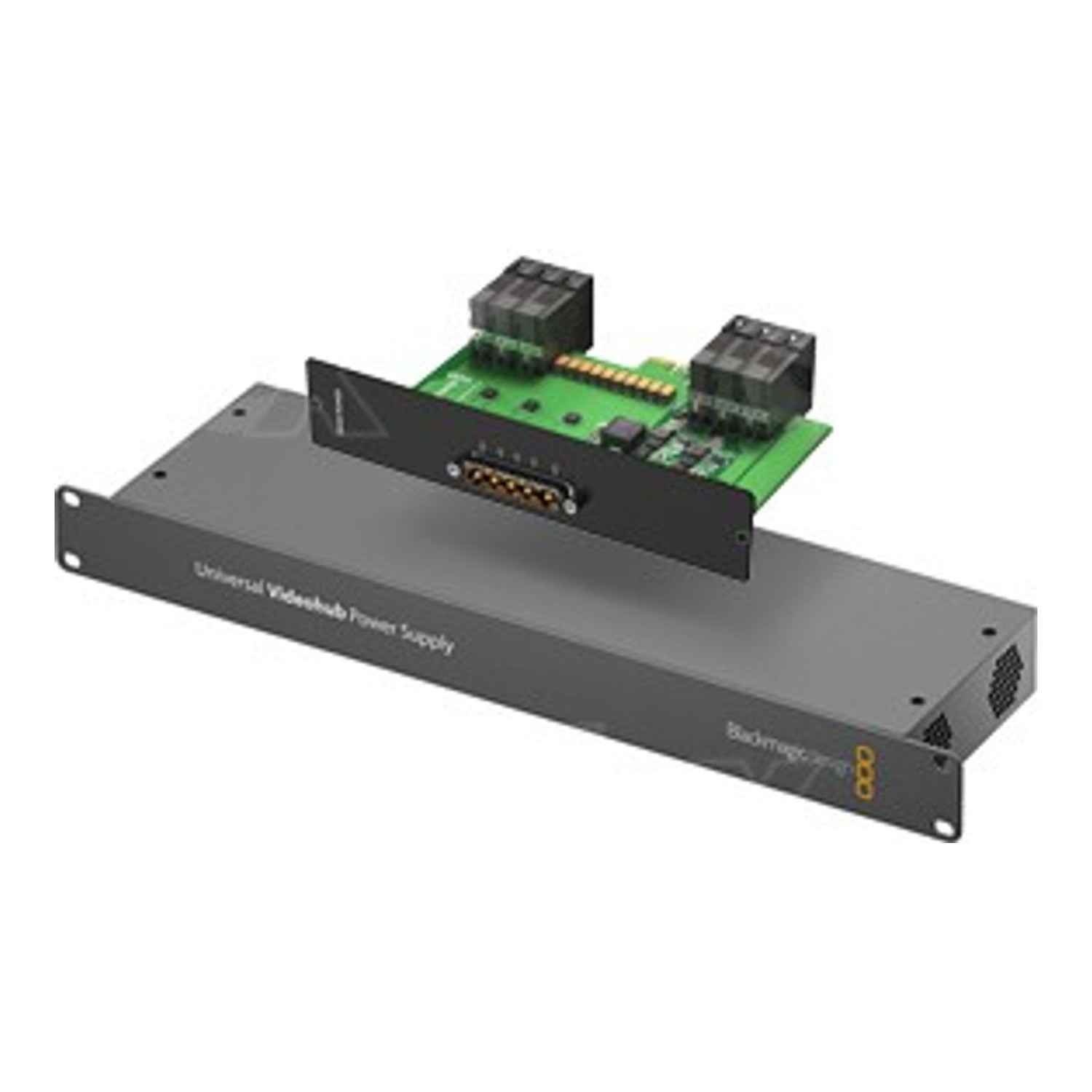

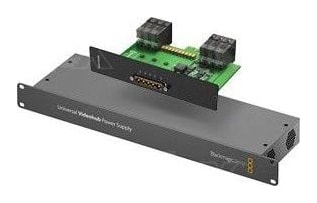

This complete rack power solution for Universal Videohub includes a power card, connection cables and a power supply in a 1 RU enclosure. One set handles a fully loaded Universal Videohub 288 frame with mixed optical fiber and BNC cards, while a second set creates a backup power path. The power card is marked Main Power +12 V 800 W.

800 W power for Universal Videohub 288

A 1 RU rack power supply with a power card and cables – required for a fully loaded router with mixed optical fiber and BNC cards.

+12 V, 800 W1 RU rack power supplyPower card includedOptional redundancy

One set to run, two for backup

The Universal Videohub 288 frame takes two power cards – a second set provides redundant power.

For large routers

Designed for fully loaded frames with optical fiber and BNC cards.

Main power

The card connects to the 1 RU rack power supply via the Main Power connector.

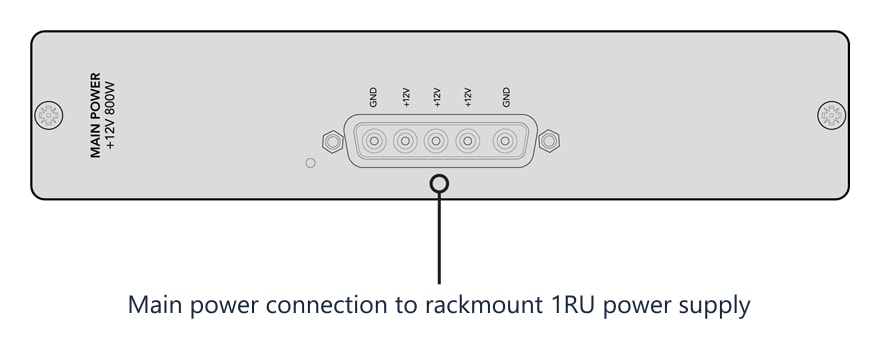

Power card front panel

The card has the main power connector (GND and +12 V) for connection to the 1 RU rack power supply.
