ATOMOS Shogun AV-19

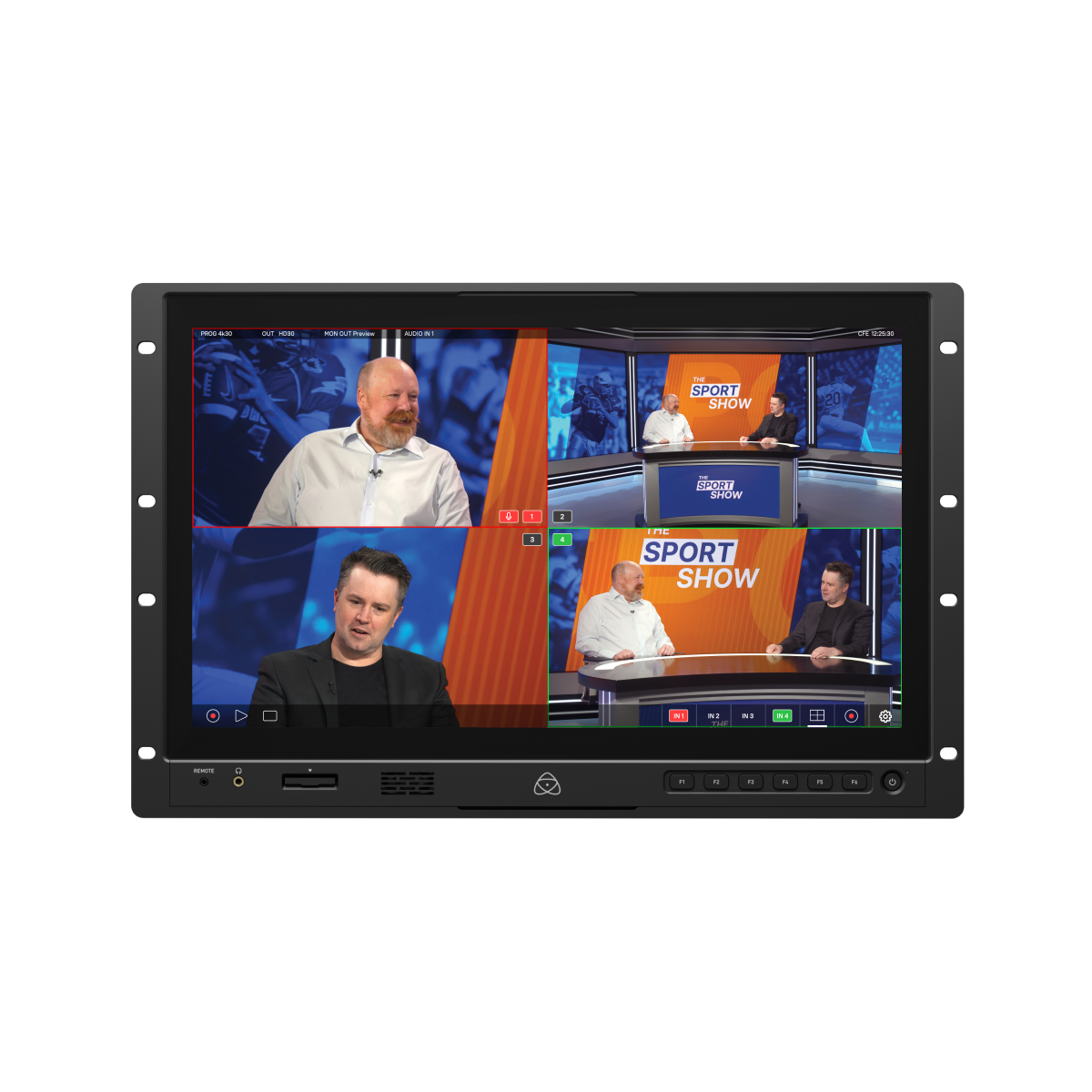

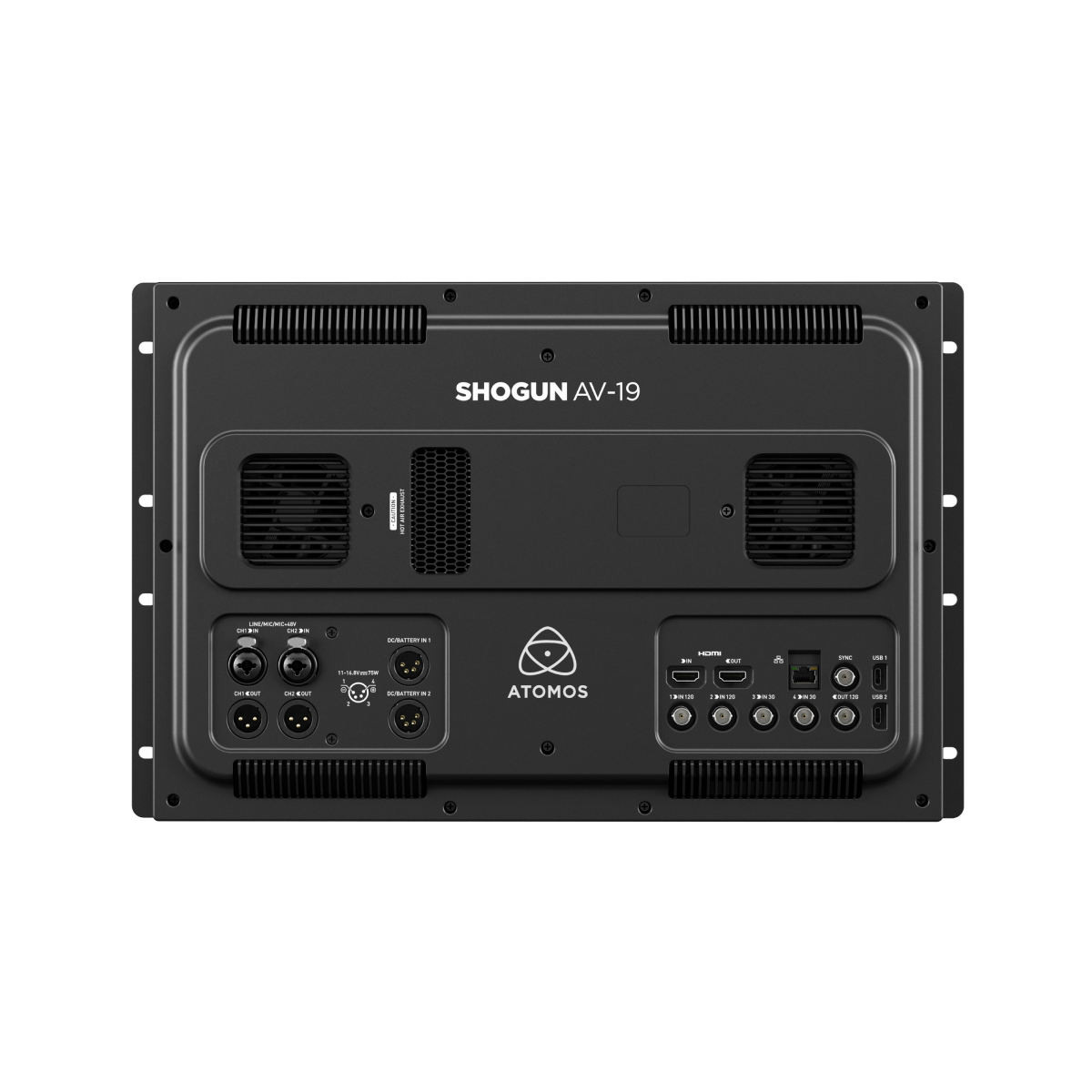

The ATOMOS Shogun AV-19 is a 19″ rack-mount 4K HDR DCI-P3 monitor-recorder-switcher designed for live production, broadcast, and video villages. In a single 7RU unit, it combines four SDI inputs for ISO recording, a fifth program channel, live switching, HDMI, XLR audio with phantom power, and NDI HX3 over Ethernet.

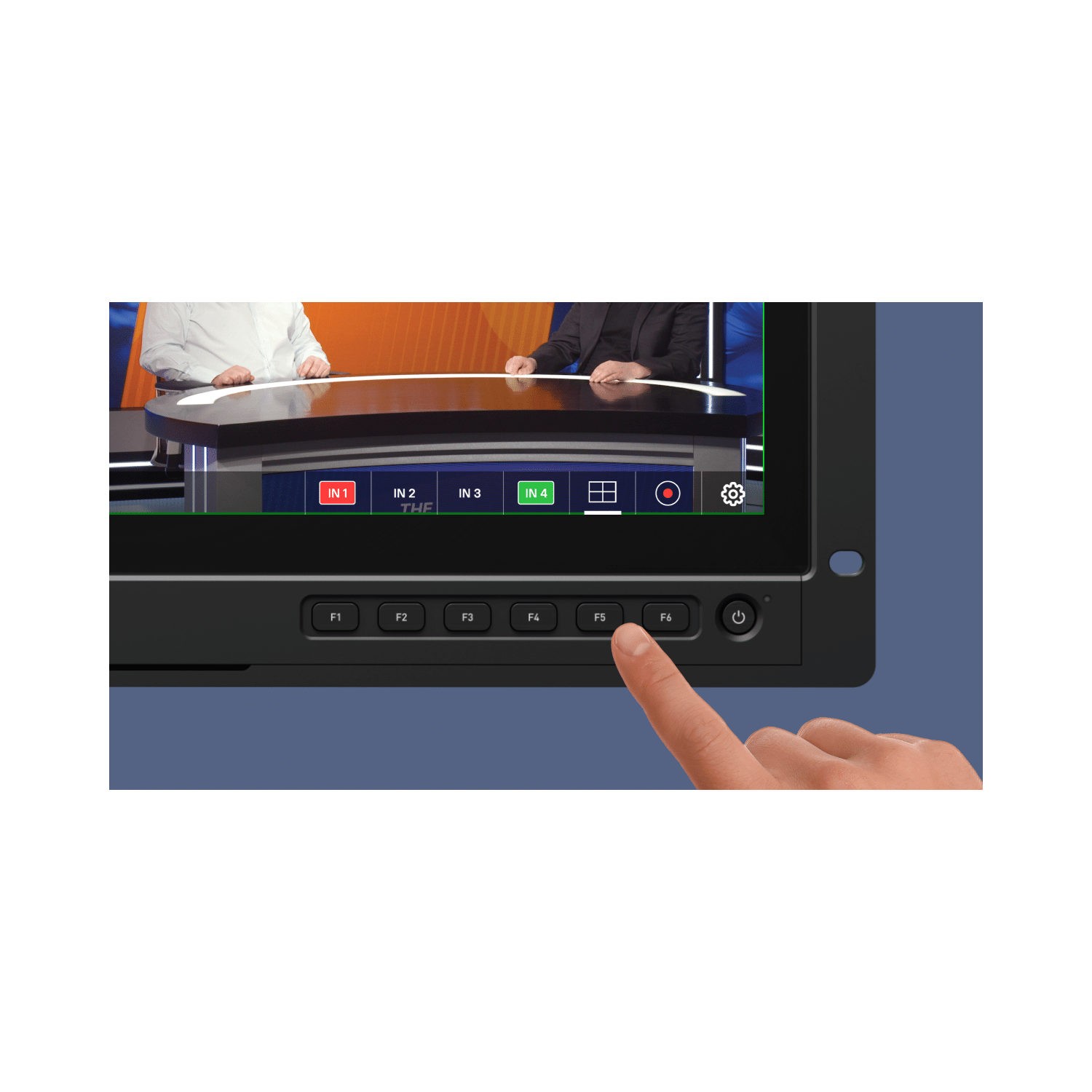

Recordings in ProRes, ProRes RAW, or Avid DNx are saved to CFexpress or external USB-C storage. EL Zone, waveform, vectorscope, focus peaking, LUTs, and professional calibration facilitate precise HDR and Rec.709 monitoring; backup recording and configurable buttons ensure reliable operation on set and in the studio.

ATOMOS SHOGUN AV-19

SWITCH AND RECORD LIVE

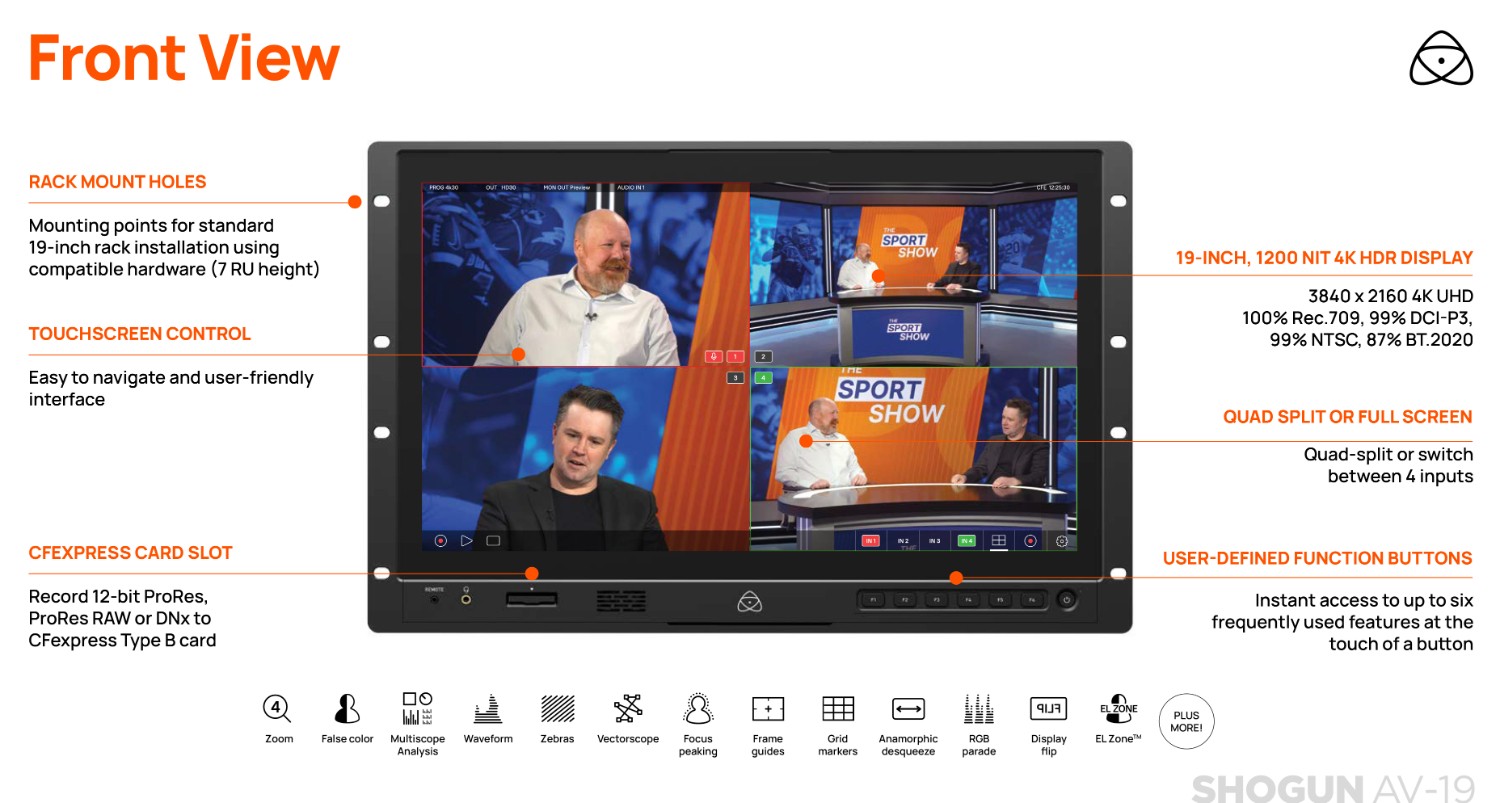

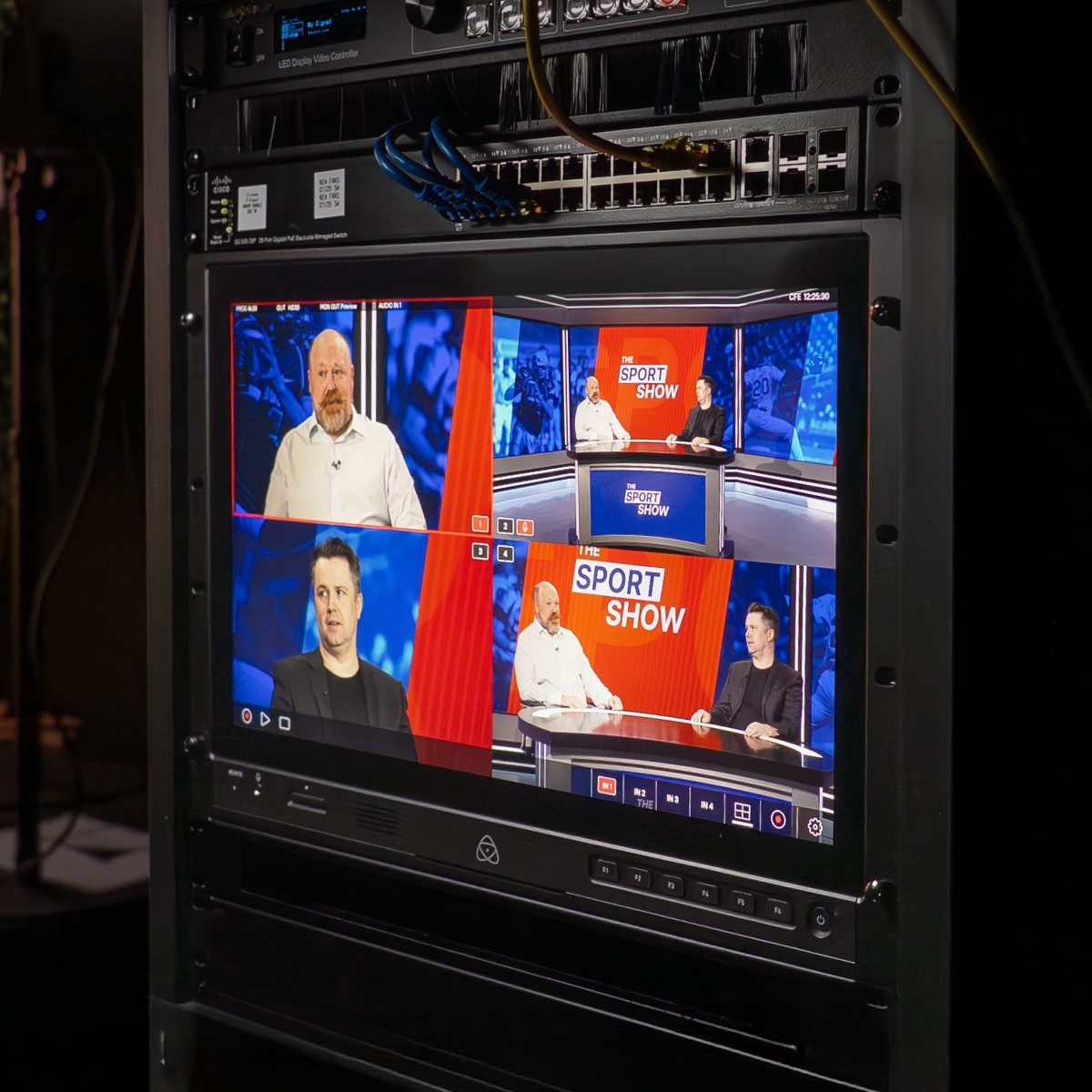

Shogun AV-19 combines a 19-inch 4K HDR DCI-P3 touchscreen monitor, recording, live switching and IP workflow in one rack-ready device. It is built for control rooms, video villages, studio installations and outside broadcasts where the team must monitor, decide and record with confidence.

FOUR CAMERAS, ONE CLEAR OVERVIEW

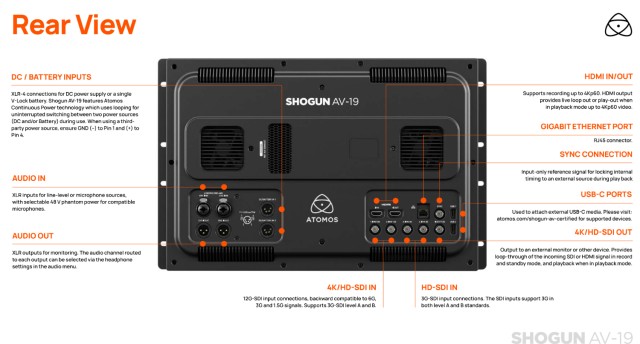

Two 12G-SDI and two 3G-SDI inputs join HDMI up to 4Kp60 for real-time multi-source monitoring and switching. Recording up to four isolated SDI feeds and a fifth program output gives the production both rapid delivery material and the flexibility required for post-production.

RECORDING AND IP WORKFLOW WITHOUT COMPROMISE

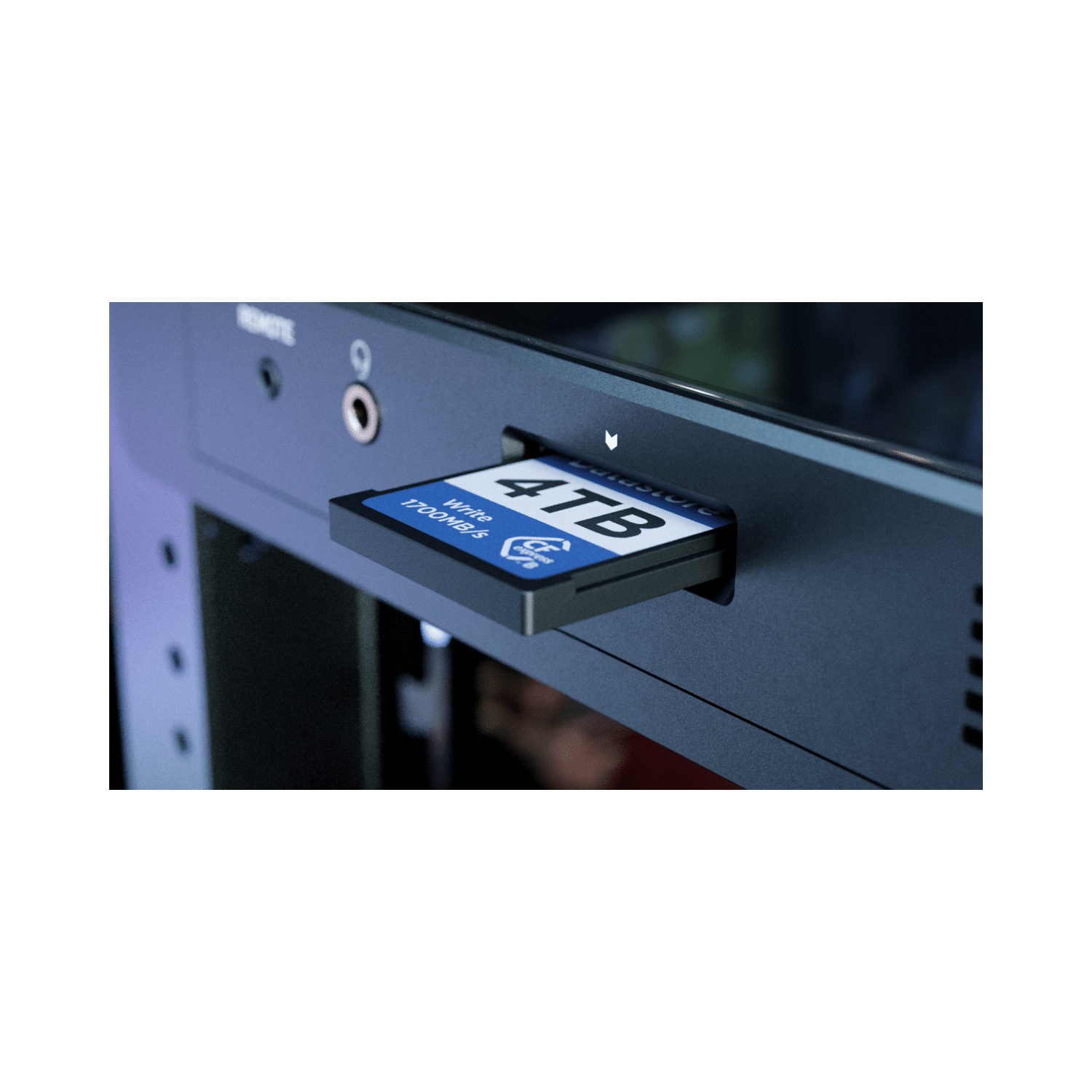

Record ProRes, ProRes RAW and Avid DNx internally to CFexpress Type B or to external USB-C media. Native NDI HX3 over Ethernet transports picture, sound and metadata across a standard network, while EL Zone, waveform, vectorscope, focus peaking and 3D LUT support keep exposure, focus and colour under control.
