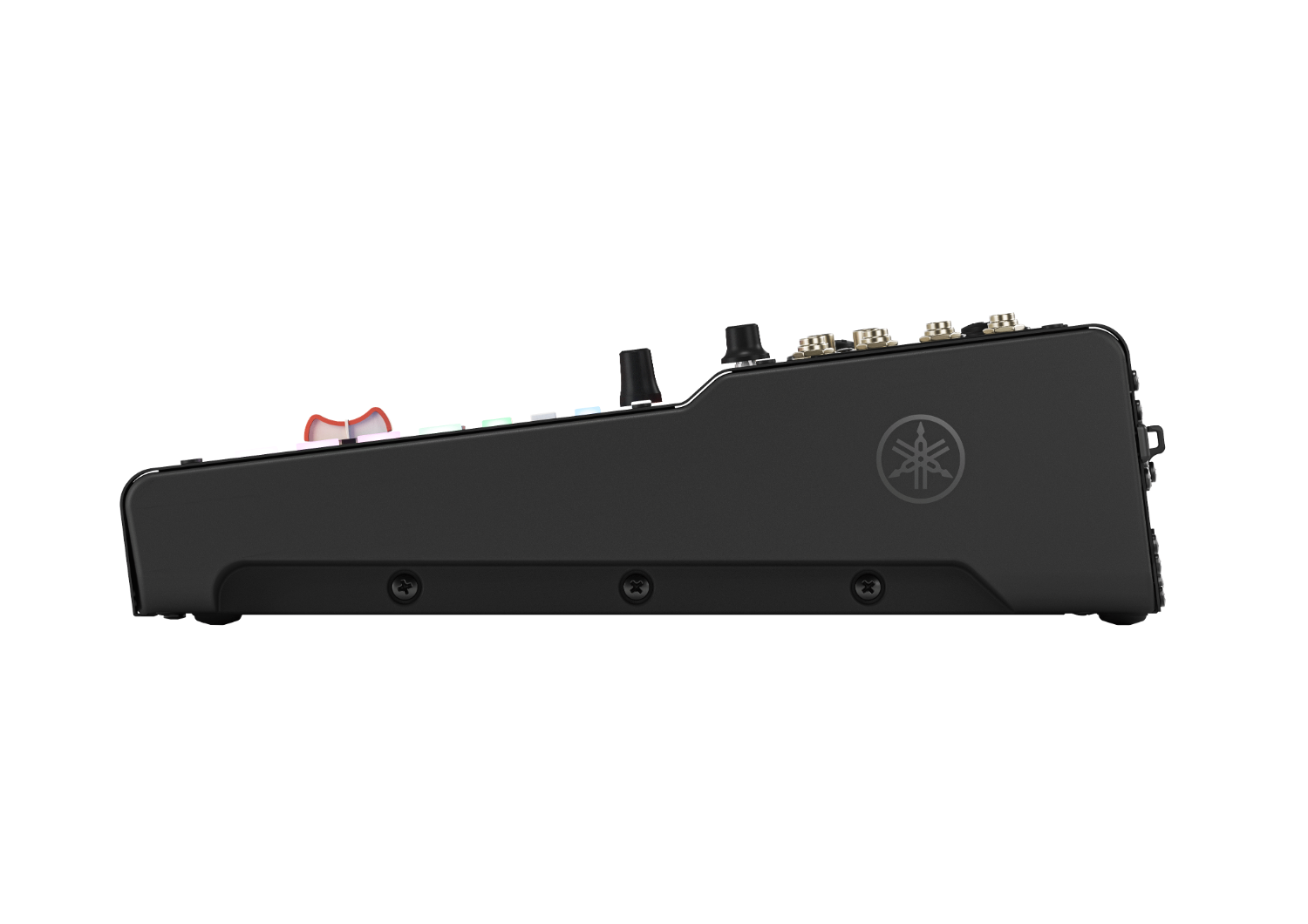

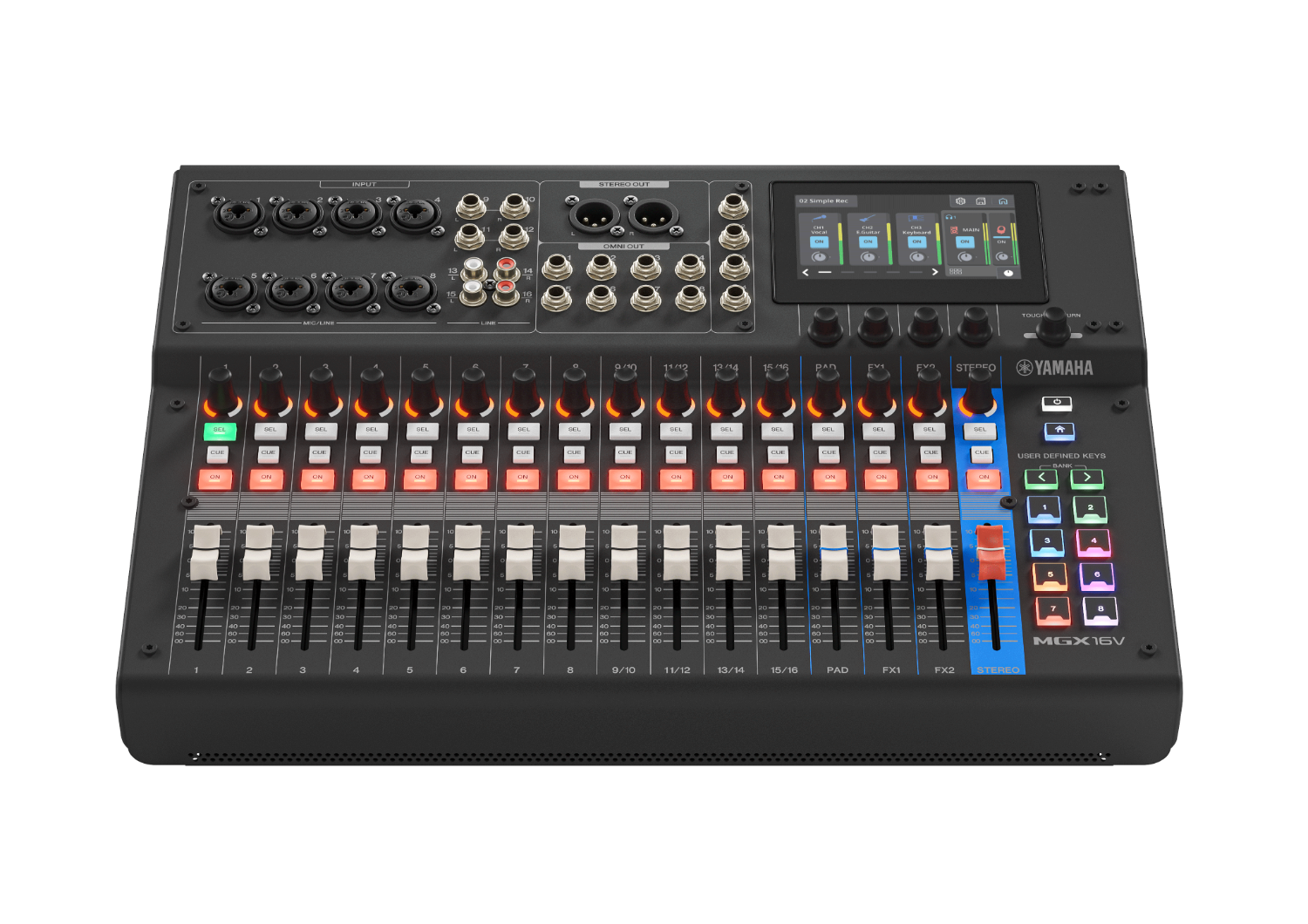

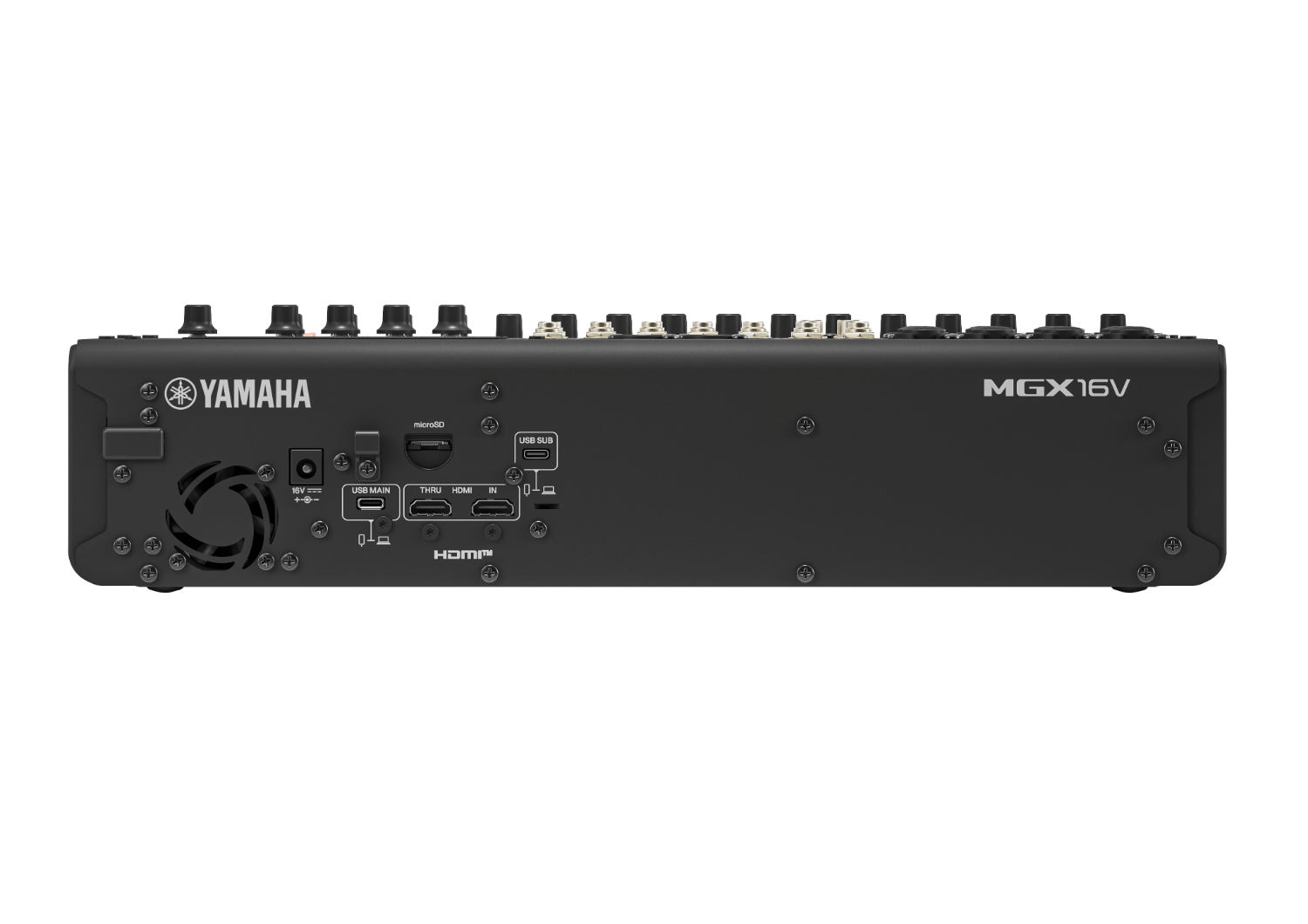

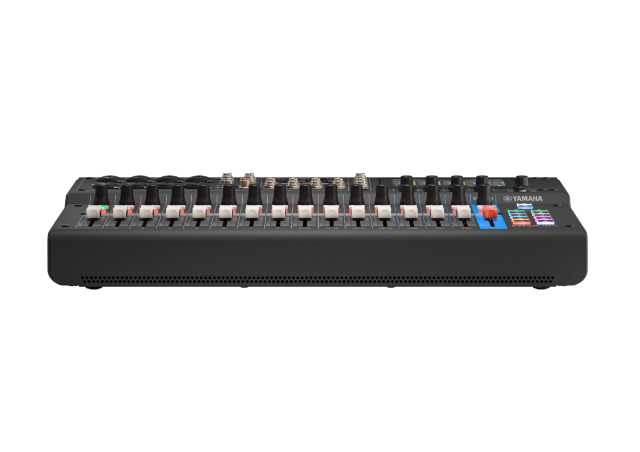

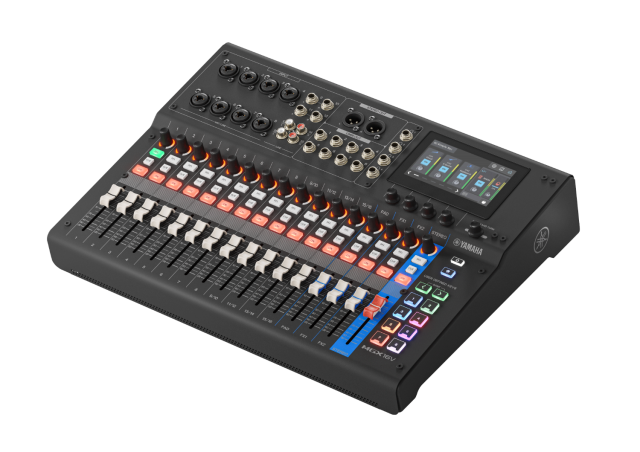

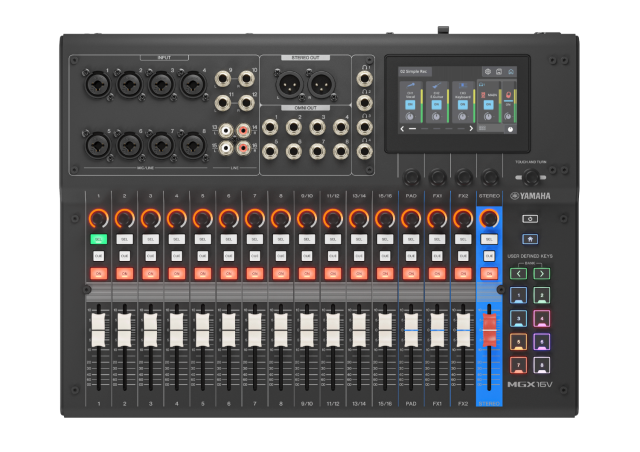

Yamaha MGX16V Black

The Yamaha MGX16V is the flagship model of the MGX series, combining a high-capacity digital mixing console with an integrated HDMI audio/video interface. Designed for professional live production, streaming, and installed AV systems, it delivers premium sound quality, advanced DSP processing, and seamless audio-video integration.

Features

• 8 Mic/Line combo inputs with high-performance mic preamps
• Integrated HDMI-USB audio/video interface
• 8 mono channels, 4 stereo channels, and dedicated Sound Pad
• 86 dB mic gain range with ultra-low distortion
• Creative DSP tools: Gate, Compressor, EQ, Reverb, Amp Simulator, Voice Changer
• Advanced DSP including Ducker, Multi-Band Compressor, and Delay
• Touch LCD with feature-rich GUI and Touch & Turn control
• 8 customizable sound pads and user-defined keys
• Scene Recall and Simple Mode
• Bluetooth audio input
• Dual MAIN / SUB USB ports
• Steinberg software suite included

Technical Specifications

• Inputs: 8 × Combo Mic/Line
• Channels: 8 mono, 4 stereo, 1 Sound Pad
• USB Recording / Playback: 18-track
• HDMI-USB Audio/Video Interface: Yes
• Outputs: 2 × XLR, 8 × TRS OMNI
• Headphone Outputs: 4
• Dimensions (W × H × D): 419 × 96 × 319 mm
• Weight: 4.9 kg
• Included Software: Steinberg Software Suite
