Vaxis STORM 1000S KIT 1TX 2RXV-MOUNT

  • Free transport
SKU: VS19-1000S-TRR01

The Vaxis Storm 1000S kit with two V-Mount receivers sends visually lossless 1080p60 with under 1 ms latency up to 1148 ft. SDI and HDMI inputs, cross-conversion, each receiver has 2× SDI and HDMI out for monitors.

More information

5 279 € with VAT 4 362.81 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VS19-1000S-TRR01
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Vaxis Storm 1000S kit with two V-Mount receivers sends visually lossless 1080p60 with under 1 ms latency up to 1148 ft. SDI and HDMI inputs, cross-conversion, each receiver has 2× SDI and HDMI out for monitors.

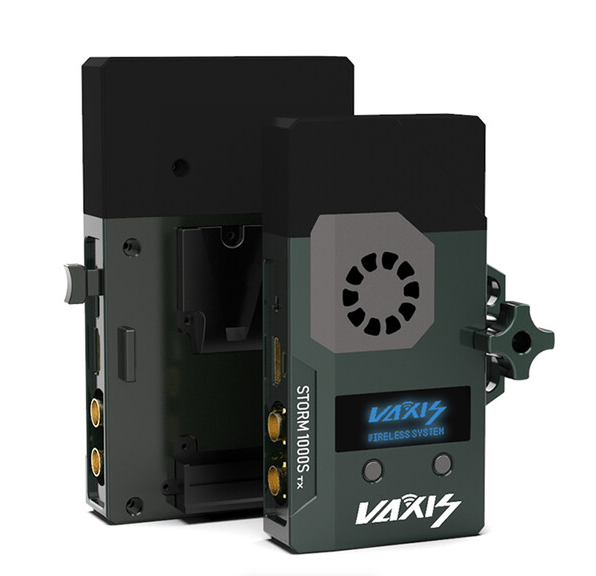

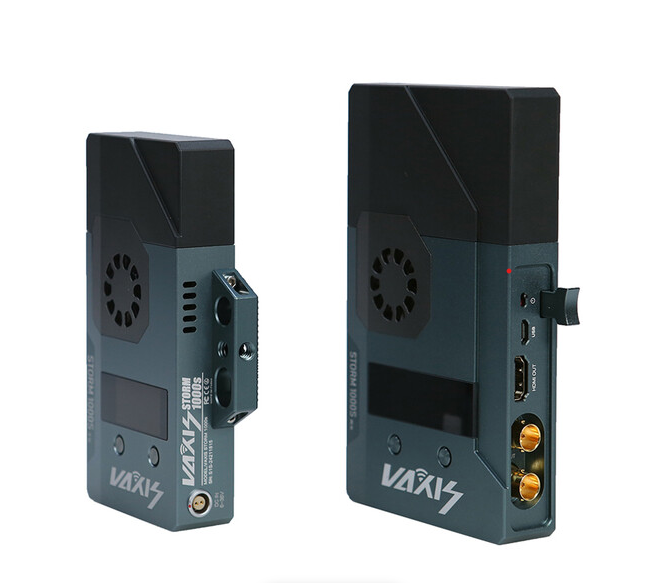

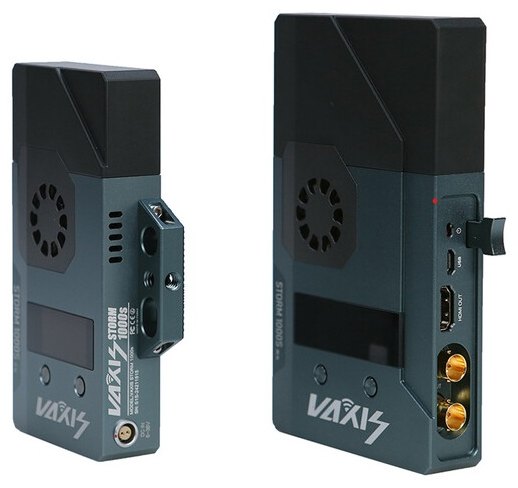

Storm 1000S is a compact wireless link for film and TV production. The transmitter takes the signal over 3G-SDI or HDMI, cross-converts between them and passes it on via SDI loop. Two receivers with integrated V-Mount plate output the image on two 3G-SDI and one HDMI – with under 1 ms of delay over up to 1148 ft (350 m).

One transmitter, two monitors

Storm 1000S transmitter and two receivers with V-Mount battery plates.

Up to 1148 ft rangeUnder 1 ms latency1080p6020 channels at 5 GHz1 TX, 2 RX

Compatible interfaces

The transmitter has 3G-SDI and HDMI inputs, an SDI loop output and HDMI/SDI cross-conversion. It passes timecode and metadata, and 0′ mode supports ARRI ALEXA Mini instant playback.

Clean channels

Twenty selectable channels in the 5.1–5.9 GHz band at 20 or 40 MHz width. Bright LCD screens on every unit show status and scan results.

Focus puller and director at once

Thanks to multicast, one transmitter sends the same image to both receivers at the same time. Focus puller and director watch the shot without delay and in full quality.

Multicast

One transmitter for multiple receivers.

Compatibility

Works with Vaxis Storm 058, 800, 2000 and 5000.

Power

2-pin LEMO, micro-USB and V-Mount on the receiver.

1/4″-20 mount

Thread on every unit.

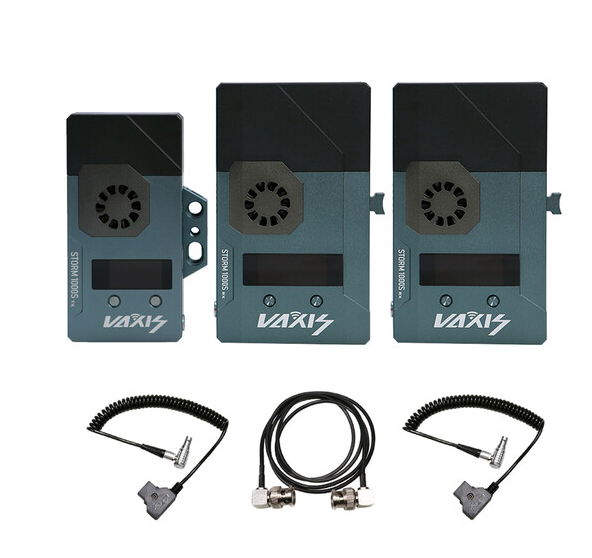

PACKAGE CONTENT

  • Storm 1000S transmitter ×1
  • Storm 1000S receiver with V-Mount plate ×2
  • Power cables and mounting accessories (vary by region)

SPECIFICATIONS

  • Brand: Vaxis
  • Model: Storm 1000S Kit 1TX 2RX V-Mount, VS19-1000S-TRR01
  • Range: up to 1148 ft / 350 m (line of sight)
  • Latency: under 1 ms
  • Resolution: 1080p60, visually lossless
  • Band: 5.1–5.9 GHz, 20 channels, 20/40 MHz width
  • Transmitter video: 3G-SDI in, HDMI in, 3G-SDI loop out, cross-conversion
  • Receiver video: 2× 3G-SDI out, 1× HDMI out
  • Power: 2-pin LEMO, micro-USB; receiver integrated V-Mount
  • Other: multicast, timecode and metadata, 0′ mode for ARRI ALEXA Mini
  • Antennas: internal
  • Mounting: 1/4″-20 thread on each unit

WE RECOMMEND

The Vaxis Storm 1000S is a professional wireless video transmission system with zero latency and integrated V-Mount power, ideal for demanding film productions. For the best results in the field, we recommend supplementing the kit with rugged mounting arms and premium Vaxis optical filters for creative image control.

Mounting Accessories - High-quality arms for securely attaching transmitters and receivers to camera rigs or monitors.

4x5.65" Optical Filters - Professional filters for matte boxes that enhance the visual quality of the transmitted 1080p image.

95mm Circular Filters - A wide range of Vaxis effect and ND filters compatible with modern film lenses.

Cabling and Power - Additional cables for power and service purposes within the Vaxis ecosystem.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

Latency1 ms
InputSDI · HDMI
