VAXIS ARRAY ANTENNA(without RX and Flight case)

The Vaxis Array Antenna is a 5 GHz panel that replaces the five whip antennas of a Storm 3000 receiver and focuses reception. Five SMA cables are included, with a V-Mount or Gold Mount plate and an articulating baby-pin arm.

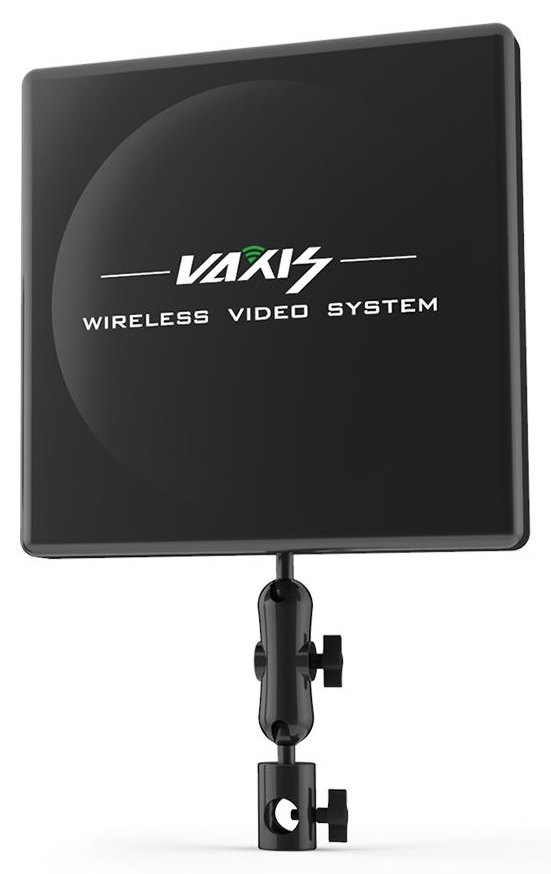

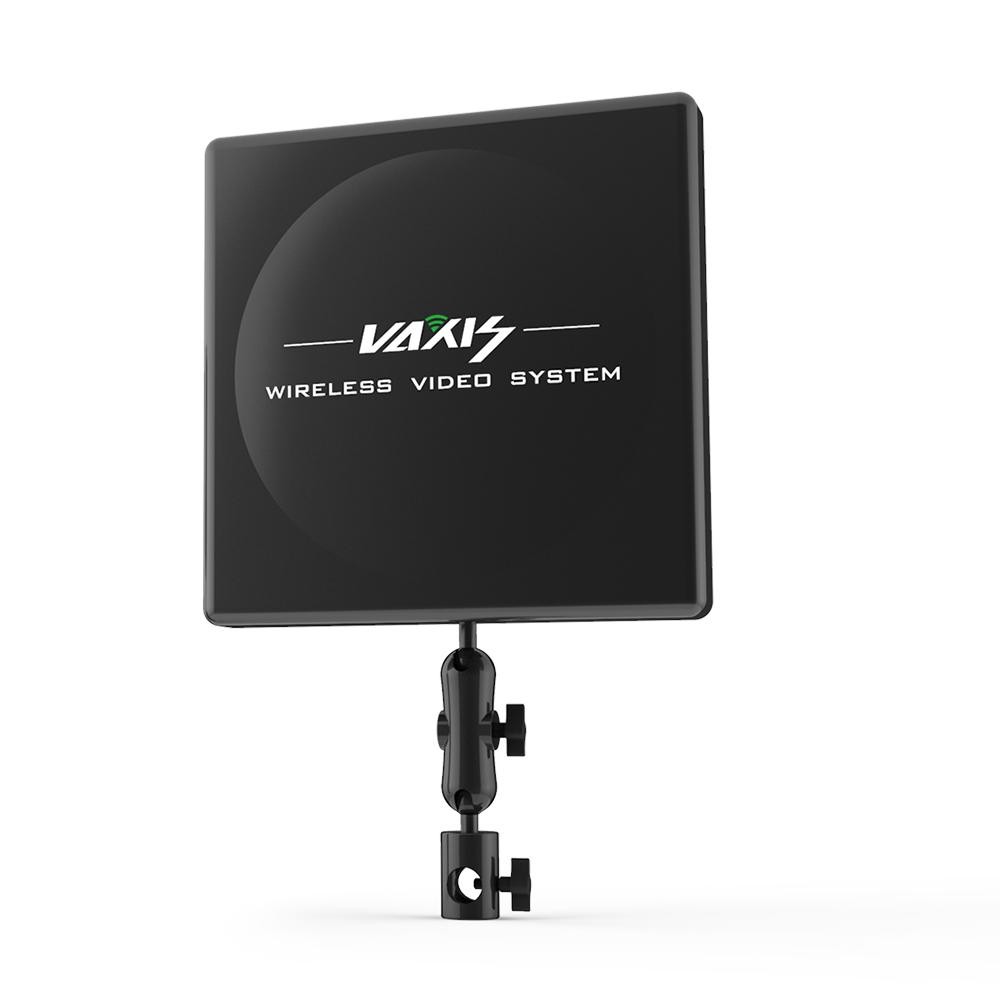

Array Antenna is a Vaxis 5 GHz panel antenna that connects to a receiver with five SMA antenna connectors, typically the Vaxis Storm 3000 RX. Aim the panel at the transmitter and it concentrates reception in one direction, which suits video village, OB vans and fixed positions. The back carries a V-Mount or Gold Mount plate depending on the version, and the panel sits on an articulating arm with a baby-pin receiver for a stand or C-stand.

Directional reception for Storm 3000

A 5 GHz panel antenna with five SMA cables, a battery plate and an articulating arm.

5 GHz band5 SMA connectorsV-Mount / Gold MountBaby-pin receiverArticulating arm

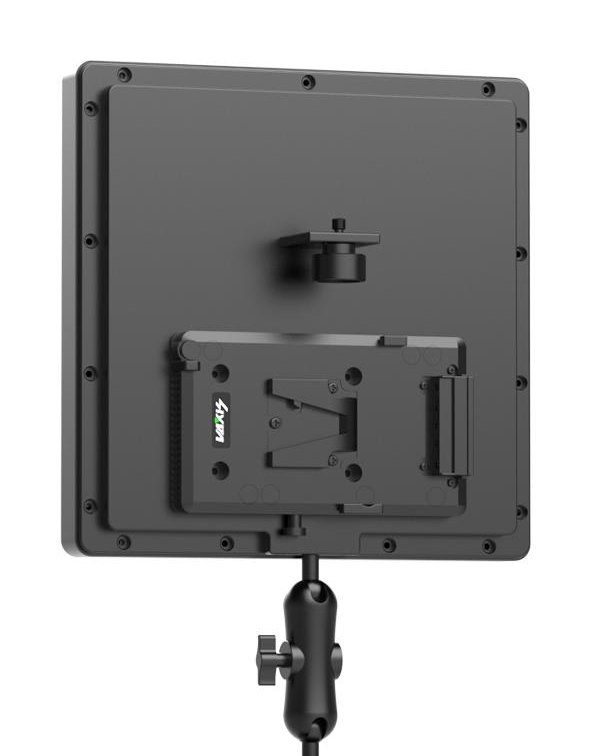

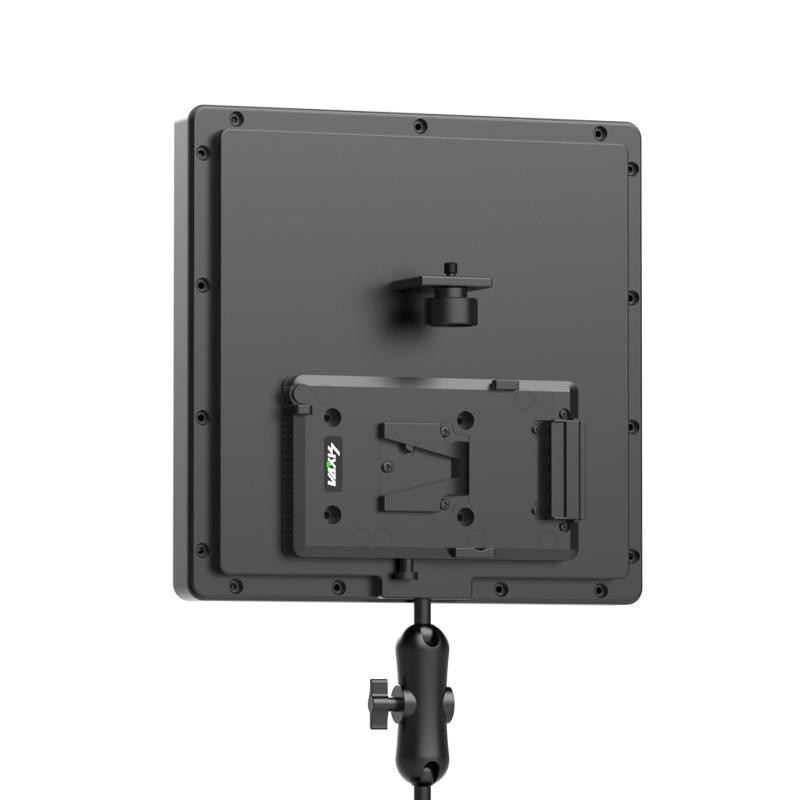

Battery plate on the back

The back of the panel carries a V-Mount or Gold Mount plate depending on the version, keeping the setup with the receiver together in one place.

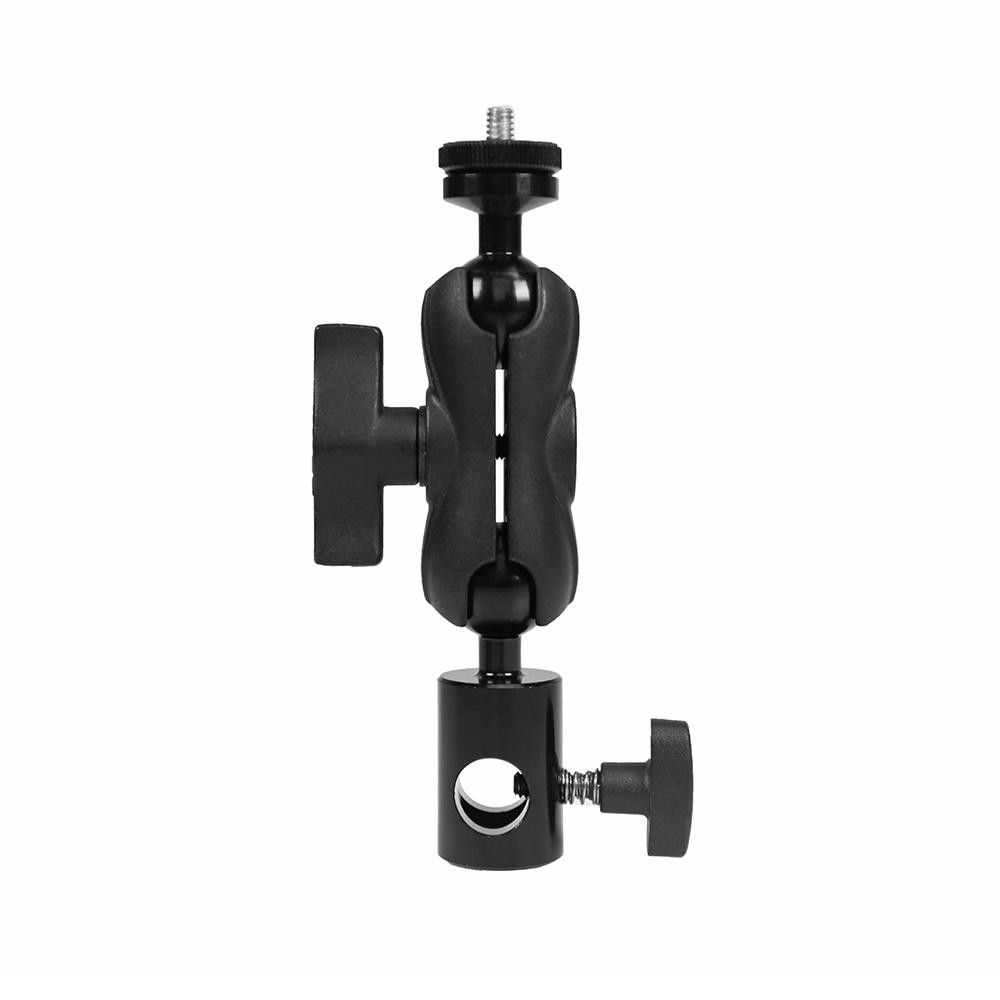

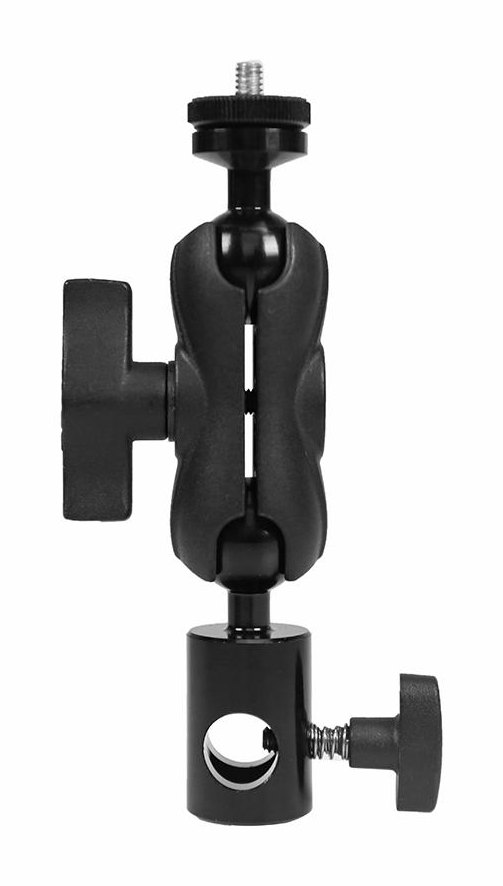

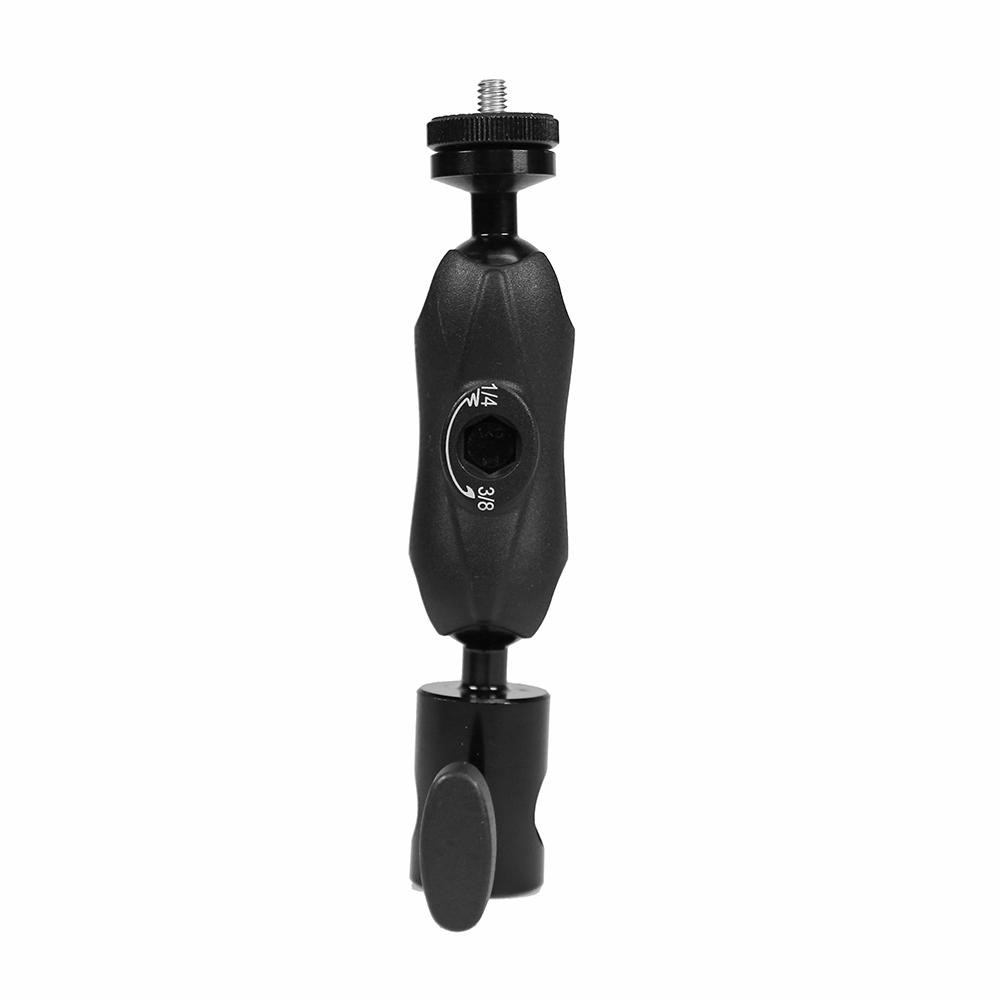

Articulating arm

An arm with two joints and a 1/4″ screw points the panel precisely at the transmitter; the lower socket fits the baby pin of a stand or C-stand.

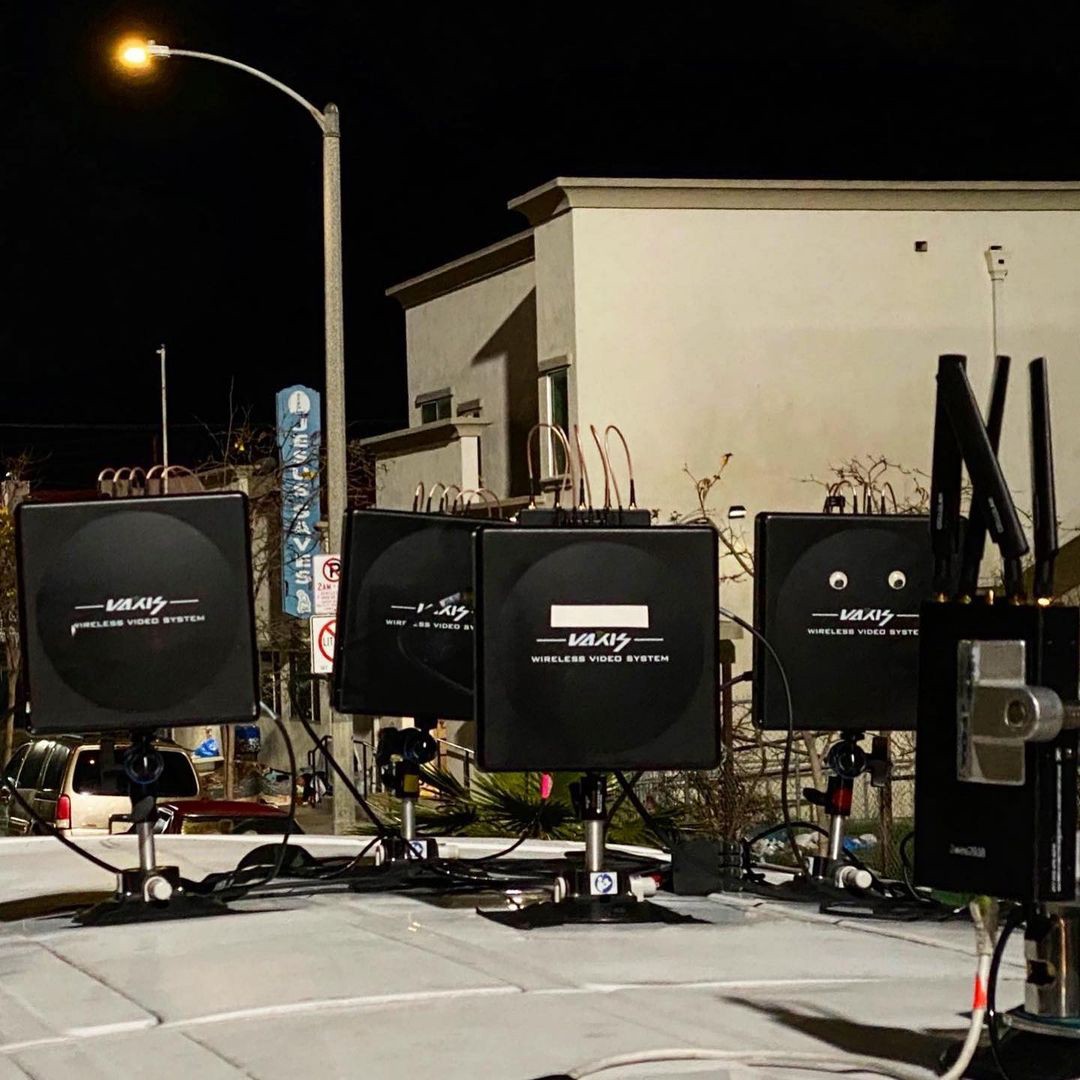

Signal where you need it

Whip antennas receive in every direction. The Array Antenna panel turns towards the transmitter and helps keep a stable picture at the monitoring position, even at greater distance or with interference.

Five SMA cables

Connect the panel to every antenna input of the receiver.

Two versions

V-Mount plate (VAR17-02) or Gold Mount (VAR17-02-2).

Stand mounting

Baby-pin receiver and swivel joints for precise aiming.

Receiver not included

Neither the receiver nor a flight case is included.
