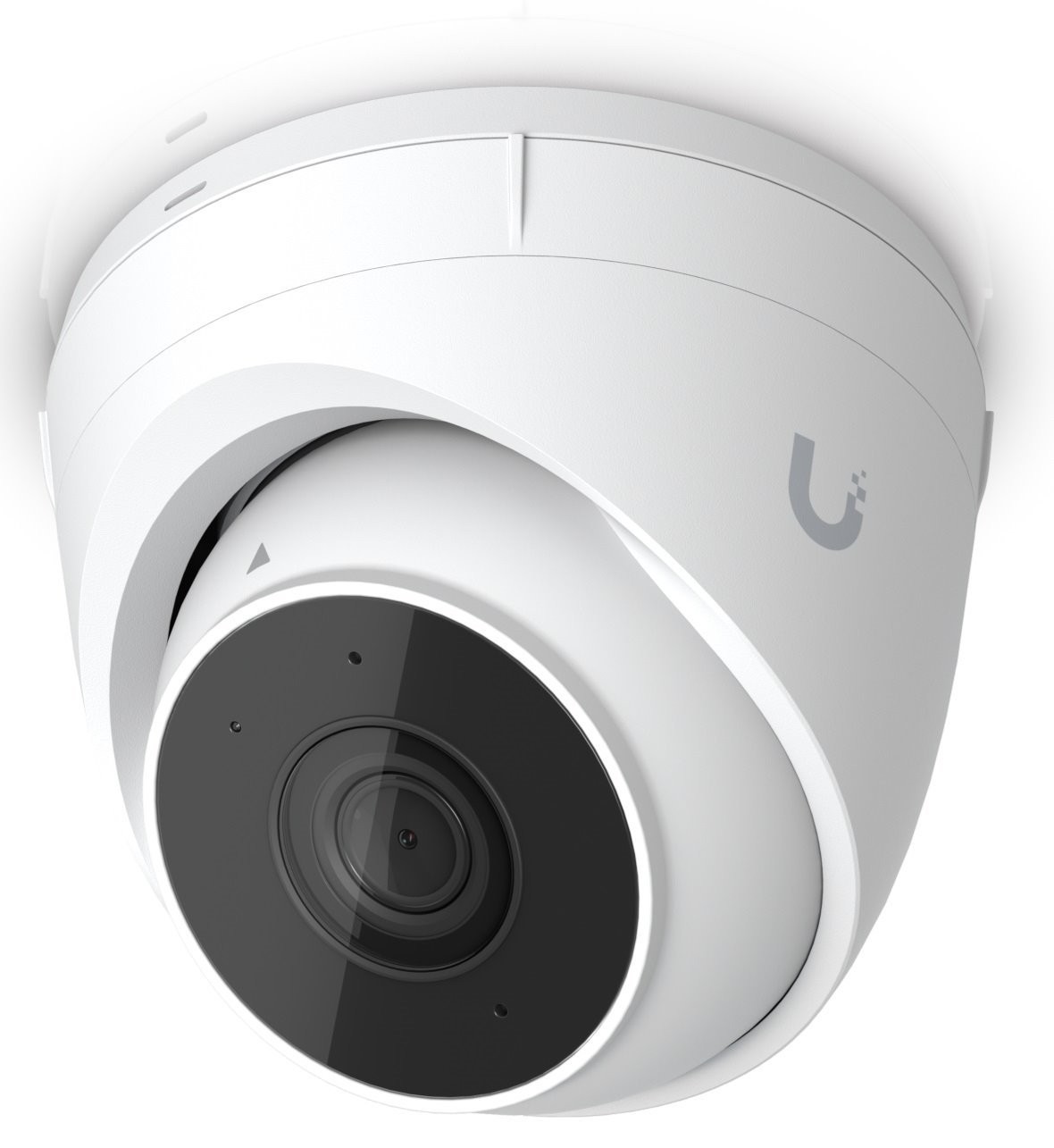

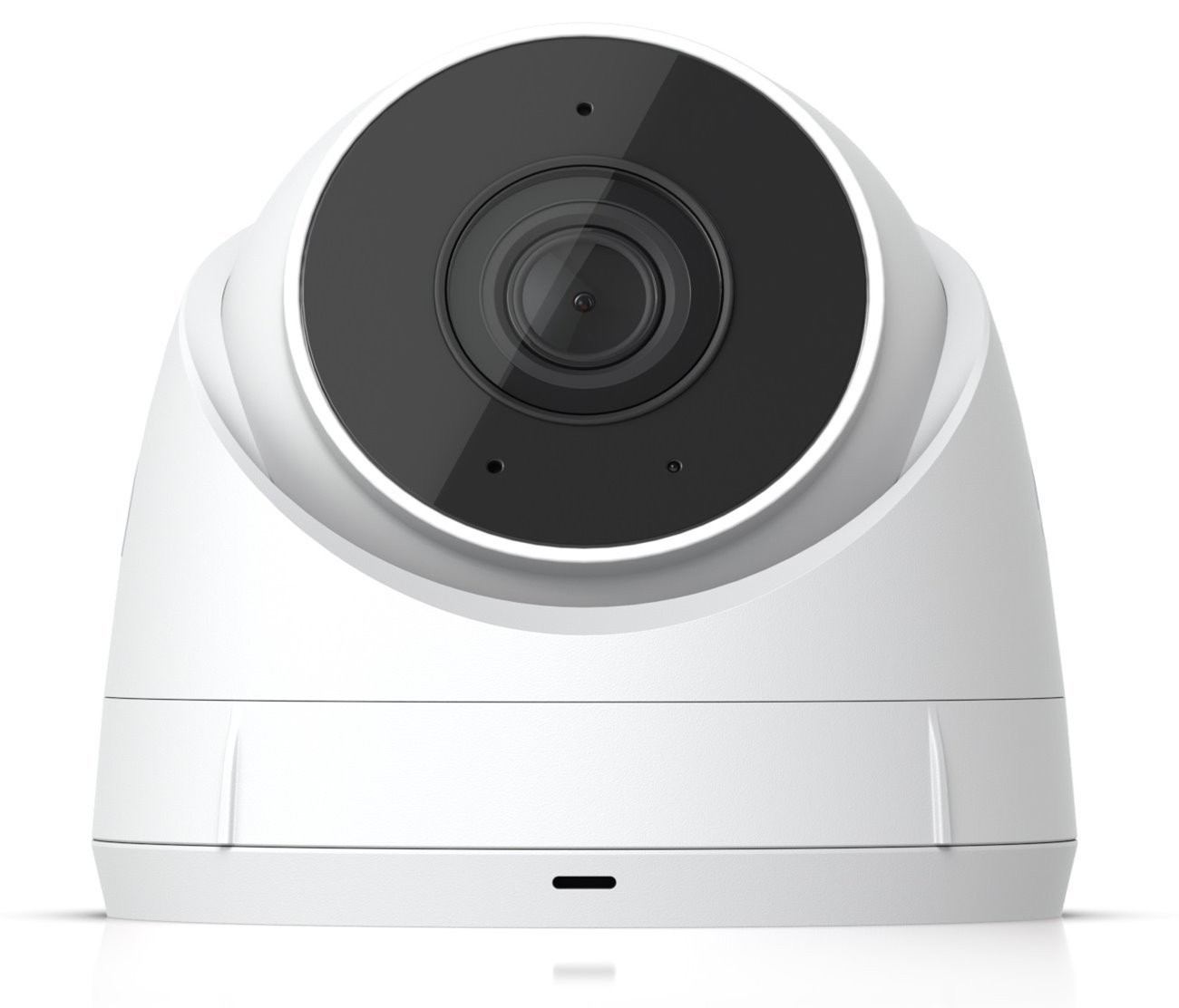

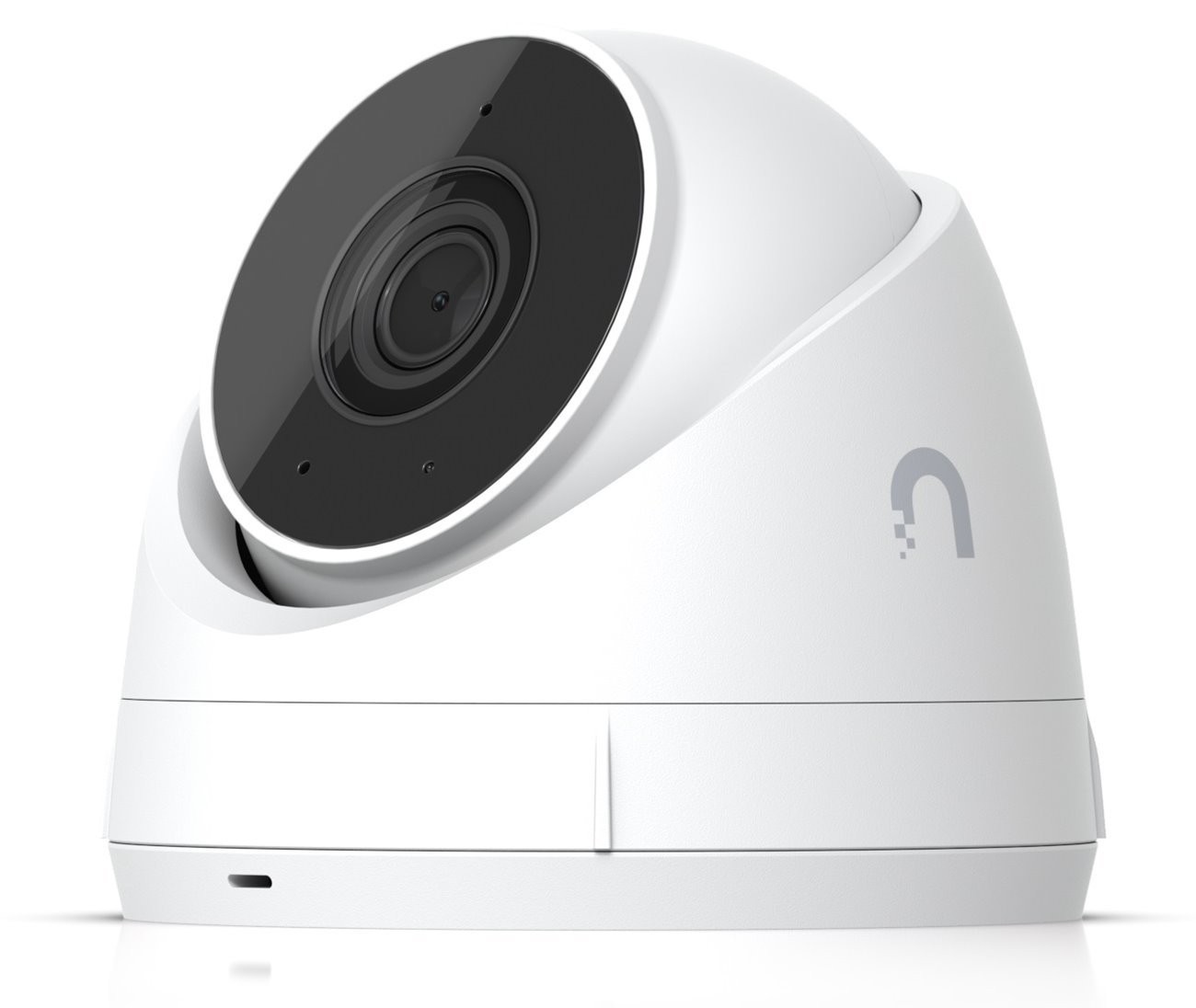

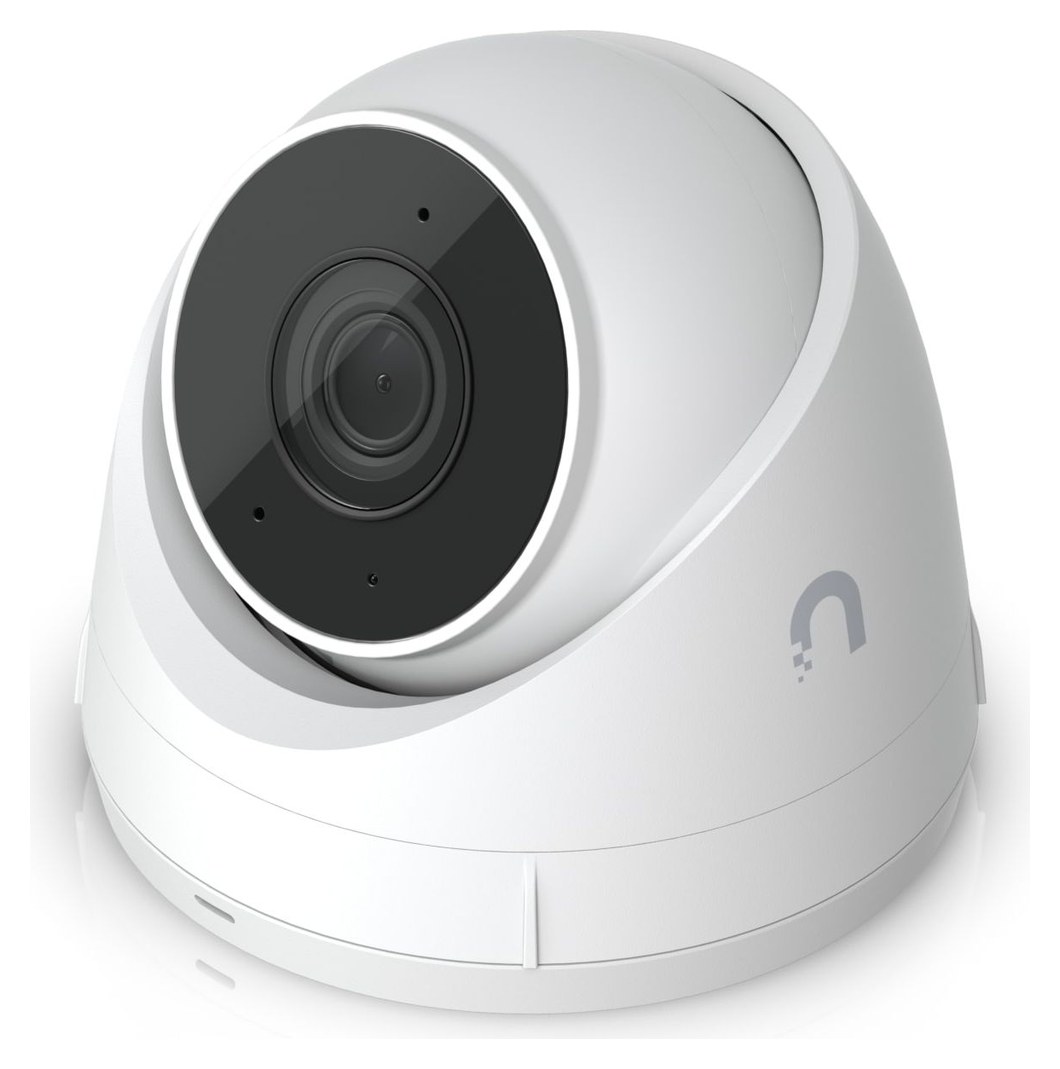

Ubiquiti UniFi Protect G5 Turret Ultra

The UVC-G5-Turret-Ultra is a fifth-generation camera from the UniFi Video series. It features a 1/2.4" CMOS sensor with a resolution of 4MP (2688 x 1512 px, 16:9) @ 30 FPS. The fixed lens has a viewing angle of 102.4° horizontally, 54.9° vertically, and 120.6° diagonally. The camera is equipped with a microphone (can be disabled) and (1) 10/100Mbps Ethernet port, through which the camera is powered using POE 802.3af or passive POE with an input voltage of 37-57 V DC. For night mode, the camera is equipped with IR illumination with a range of 30 m. Maximum power consumption is only 4 W!

The UVC-G5-Turret-Ultra is a fifth-generation camera from the UniFi Video series. It features a 1/2.4" CMOS sensor with a resolution of 4MP (2688 x 1512 px, 16:9) @ 30 FPS. The fixed lens has a viewing angle of 102.4° horizontally, 54.9° vertically, and 120.6° diagonally. The camera is equipped with a microphone (can be disabled) and (1) 10/100Mbps Ethernet port, through which the camera is powered using POE 802.3af or passive POE with an input voltage of 37-57 V DC. For night mode, the camera is equipped with IR illumination with a range of 30 m. Maximum power consumption is only 4 W!

UVC-G5-Turret-Ultra

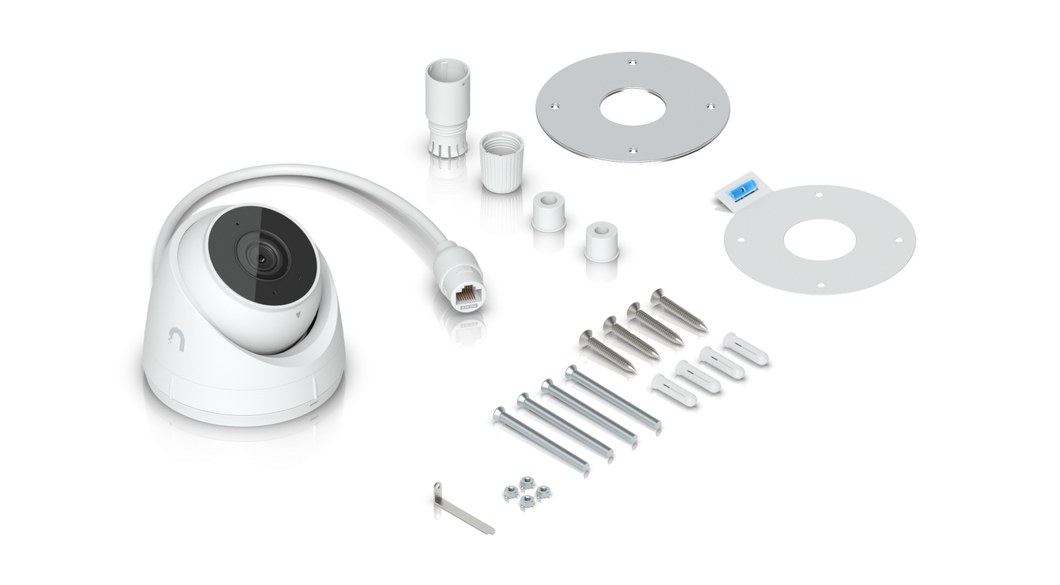

Package contents
Camera
Waterproof grommet
Metal bracket
Set of screws and nuts with metric thread
Set of screws and dowels
Drilling template
Safety pin

Ultra-compact 2K HD PoE camera resistant to tampering and weather conditions with long-range night vision.
2K (4MP) video resolution
Extremely wide viewing angle (102.4°)

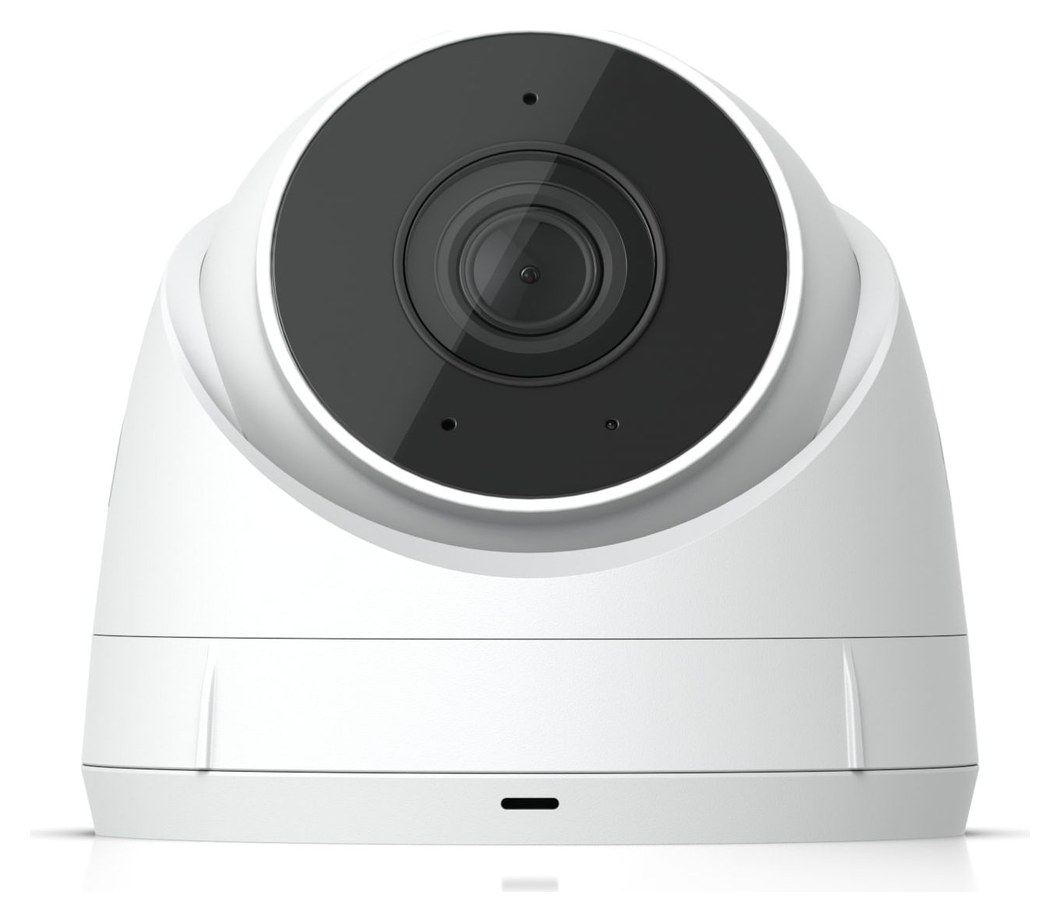

30 m (98 ft) IR night vision

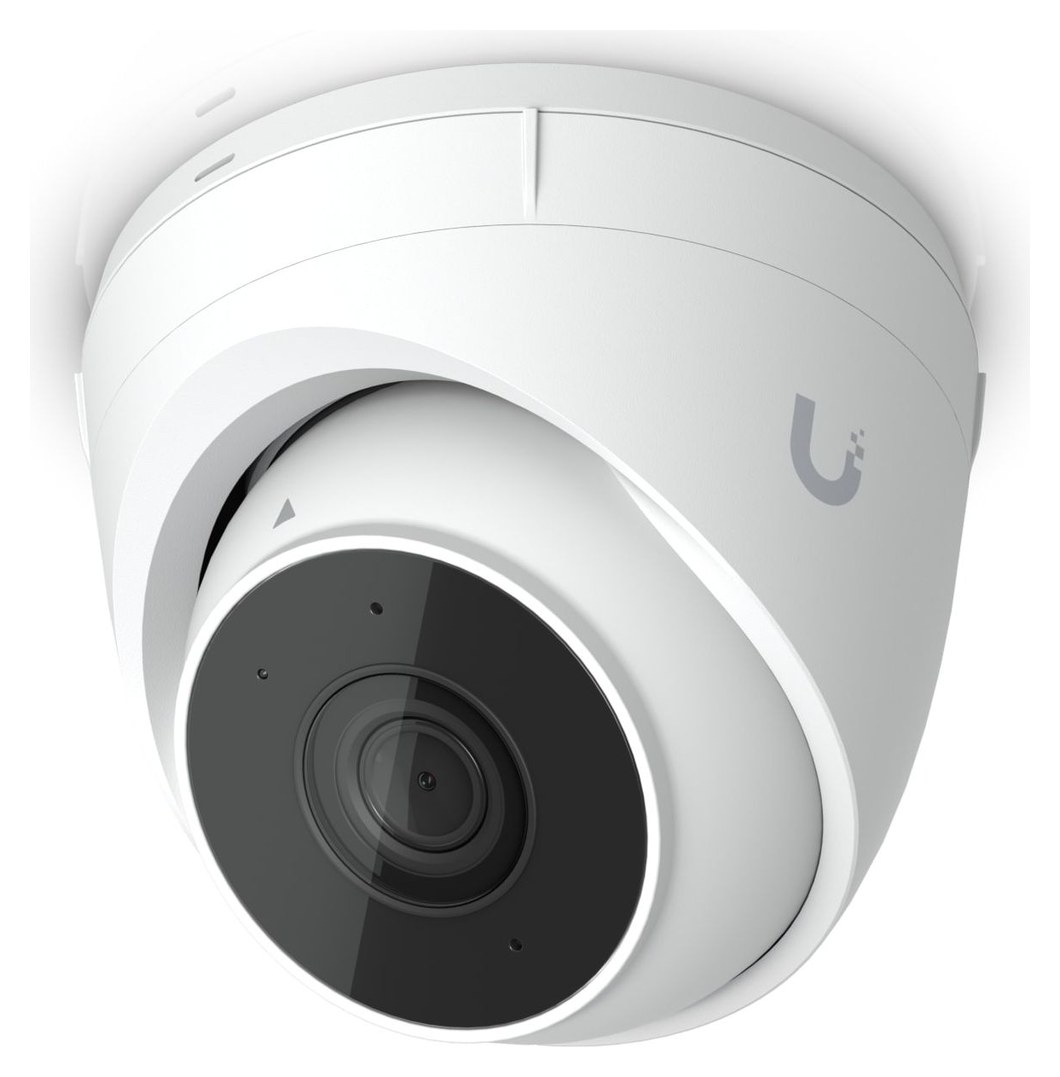

AI event detection
Record audio with built-in microphone

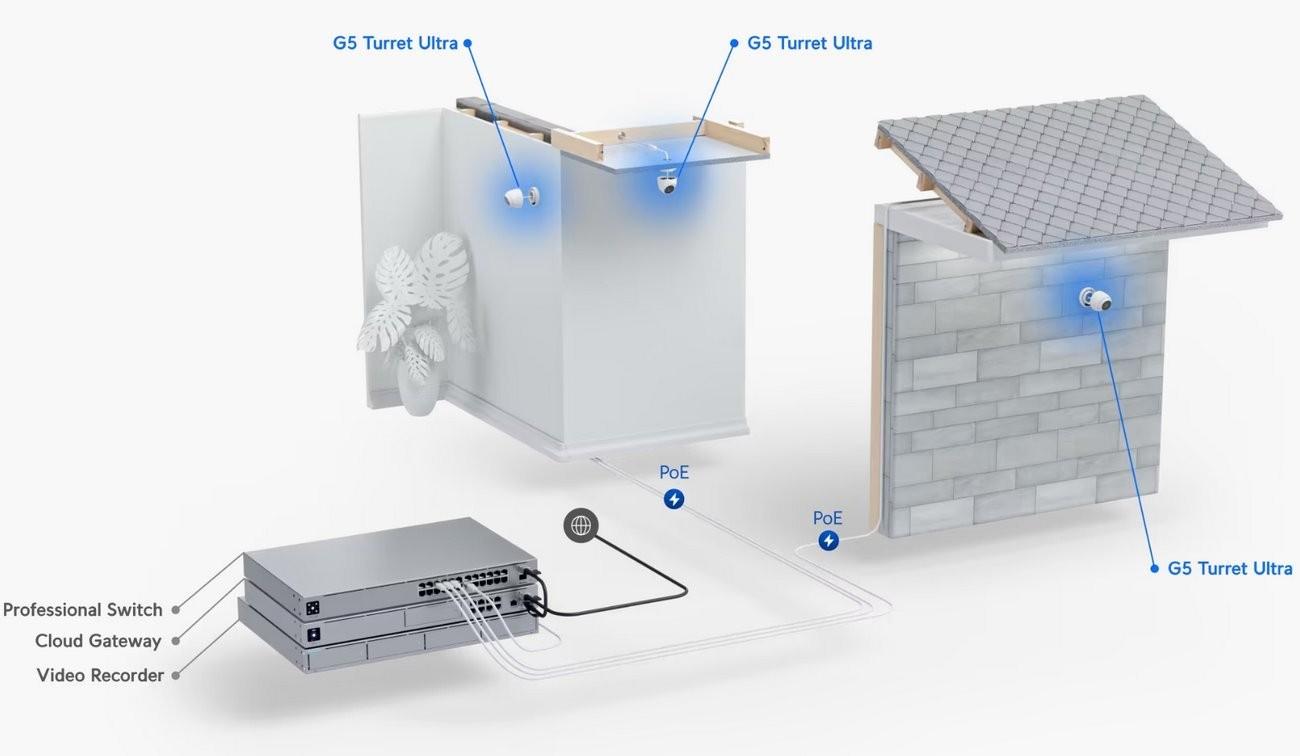

Connect and power via PoE
Weatherproof (outdoor-rated)

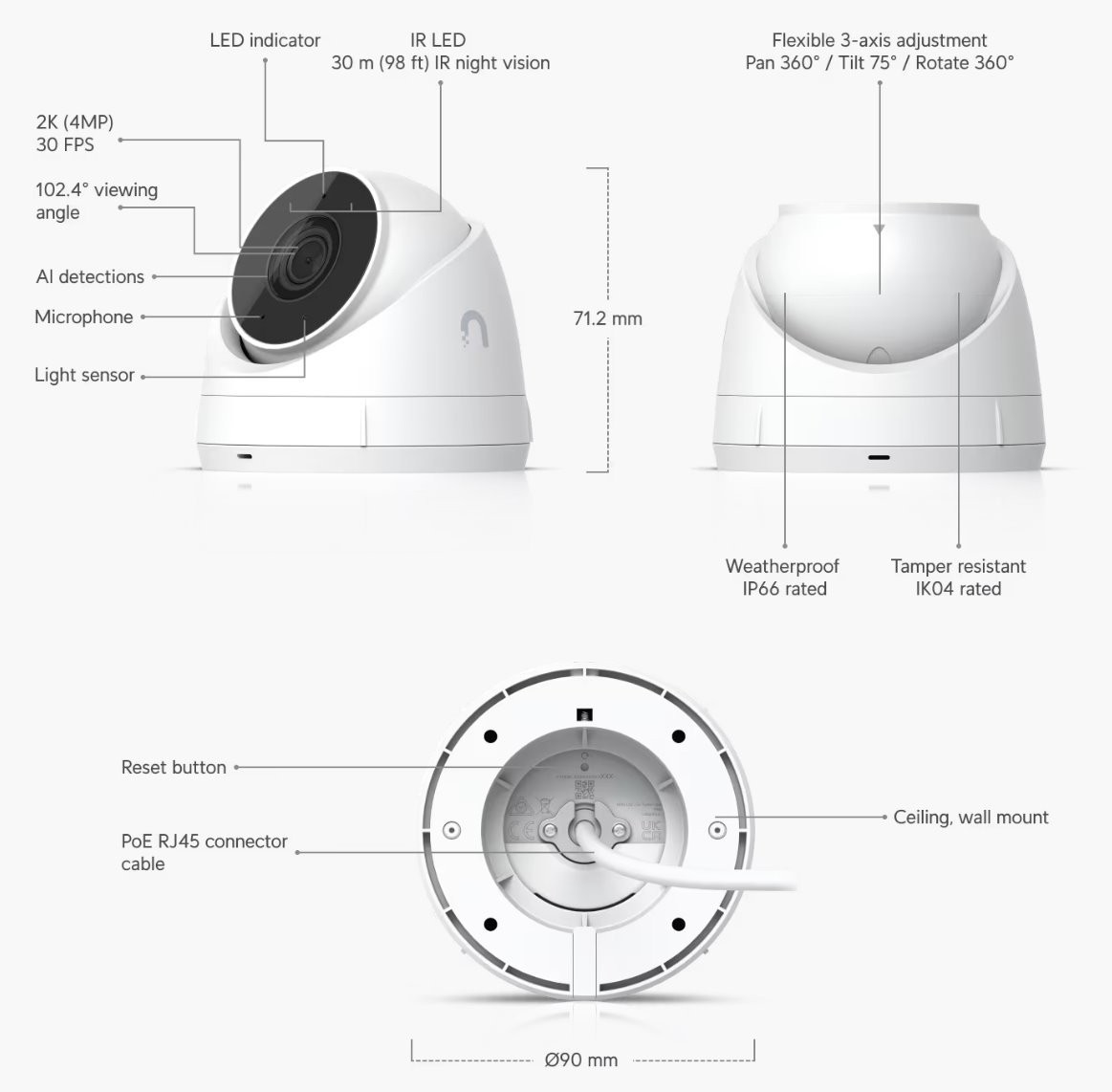

Mechanical

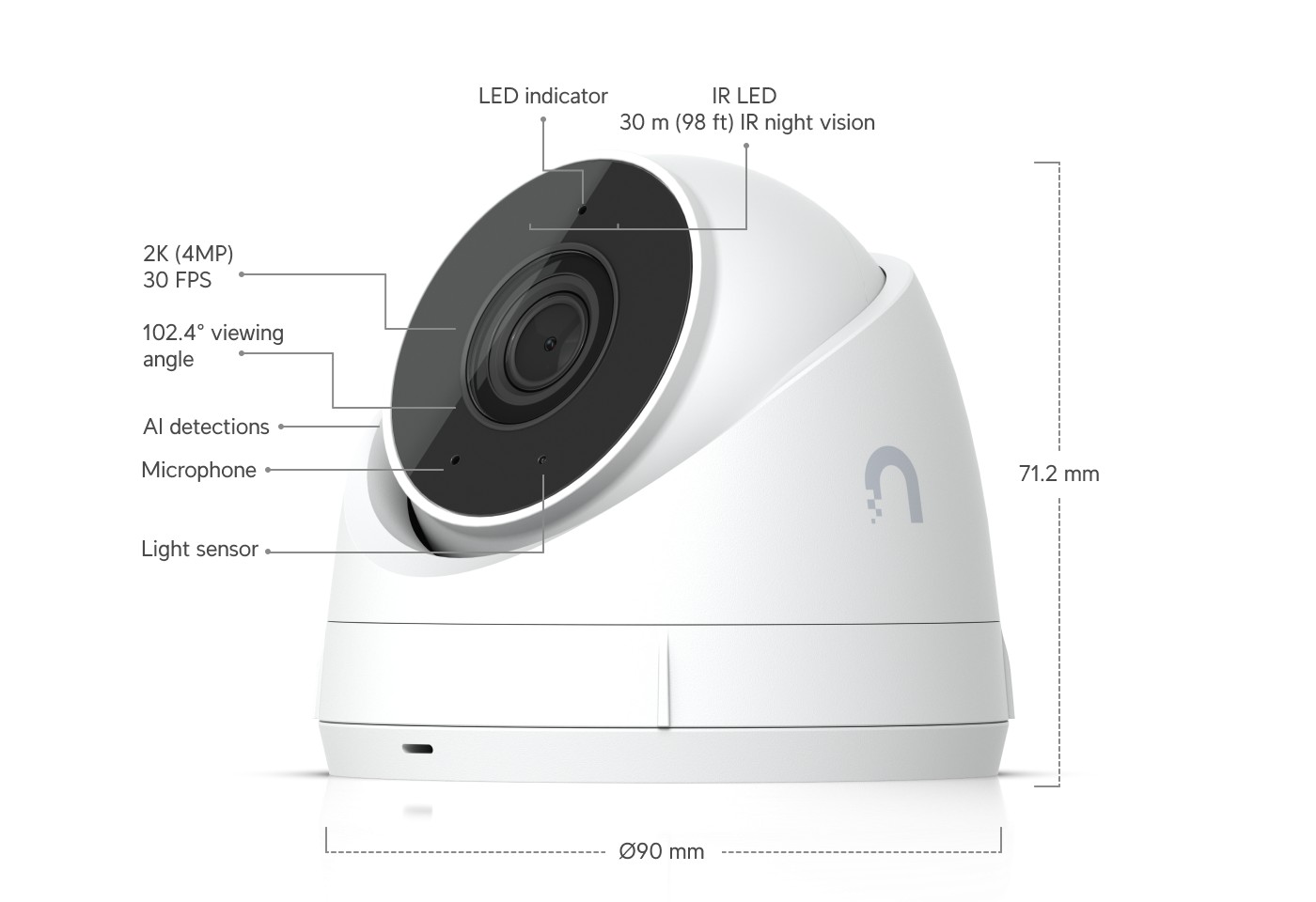

Dimensions 090 x 71.2 mm (03.5 x 2.8")
Weight 330 g (11.6 oz)
Housing material Aluminum alloy, UV-stabilized polycarbonate

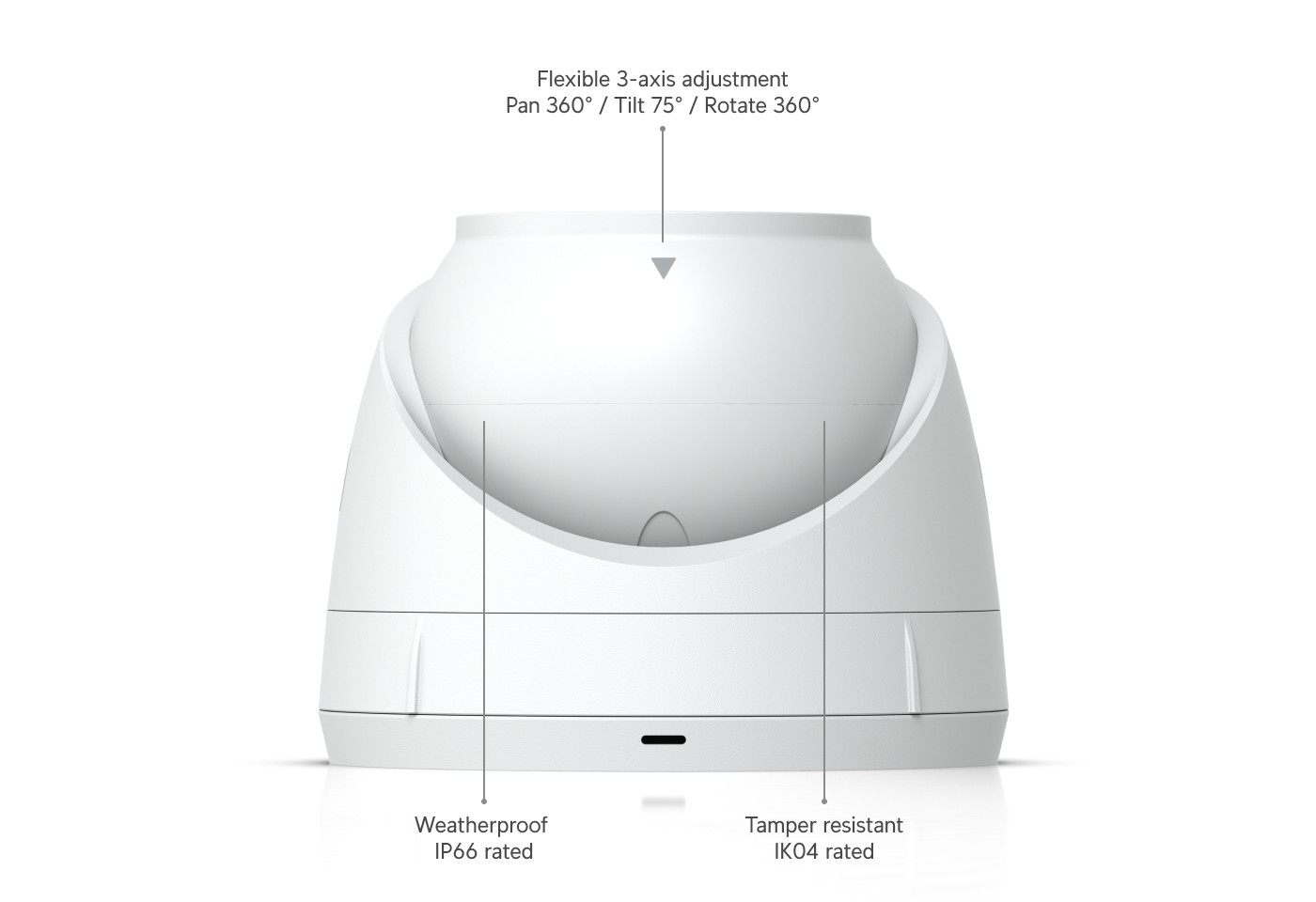

Weather resistance IP66
IK04 impact resistance
Cable jacket cover dimensions O20 x 70.6 mm (0.8 x 2.8")
Cable jacket cover materials Thermoplastic elastomer, polycarbonate, silicone rubber
Cable length 30 cm (1 ft)
Cable diameter 5 mm (0.2")
Cable jacket material Polycarbonate
Cable connector type RJ45
Optics
Sensor 1/2.4" CMOS sensor
Lens Fixed focal length
Viewing angle H: 102.4°, V: 54.9°, D: 120.6°
Night mode Built-in IR LED illumination and IR cut filter
Video
Resolution 4MP 2688 x 1512 (16:9)
Max. frame rate 30 FRAMES PER SECOND
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, motion NR, masking, text overlay
System
Processor Dual-core chip based on Arm® Cortex-A7®
Network interface 10/100 MbE RJ45 port
Max. power consumption 4W
Power supply method Poe
Supported voltage range 37–57 V DC
LED R/G/B/W

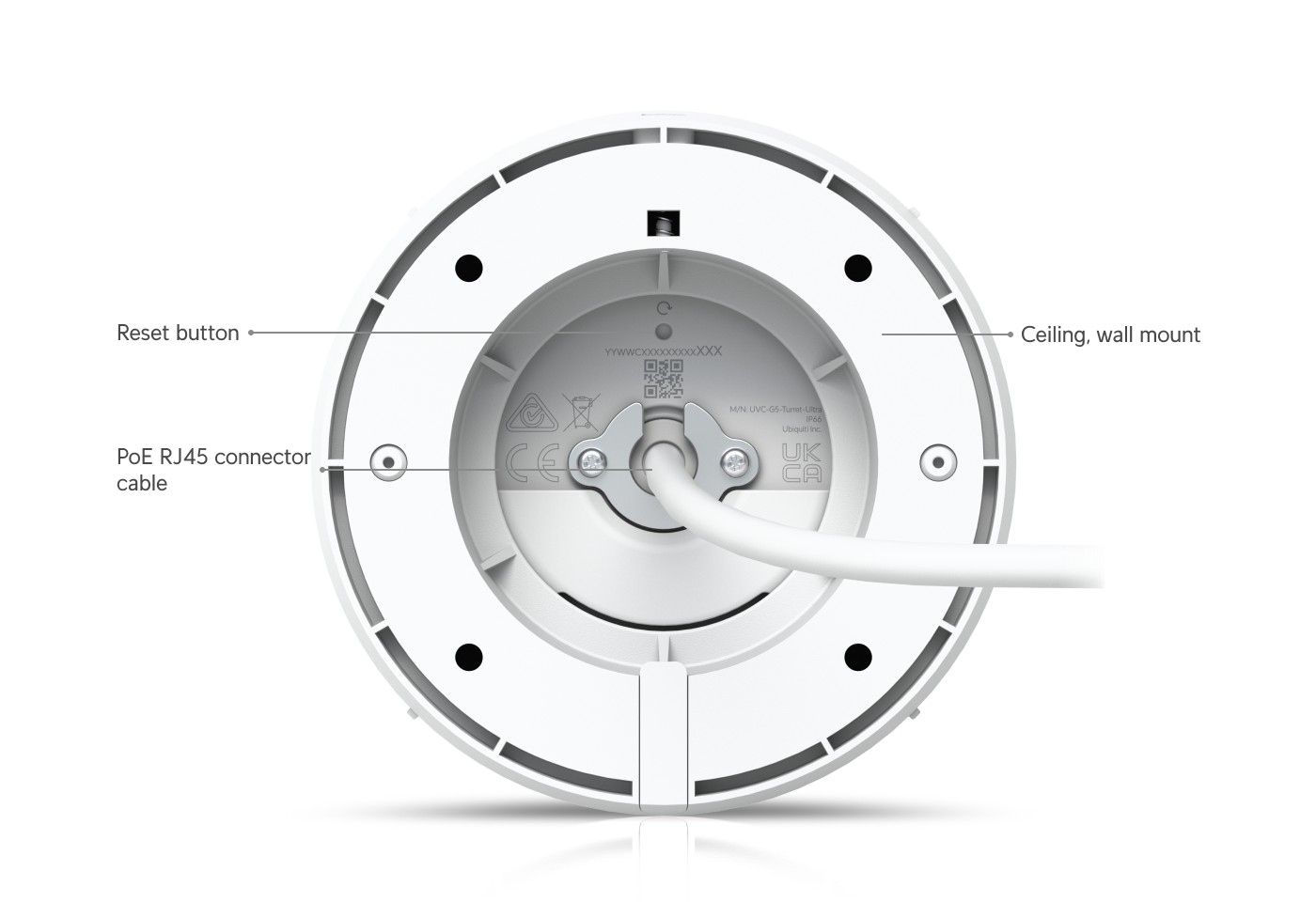

Factory reset button

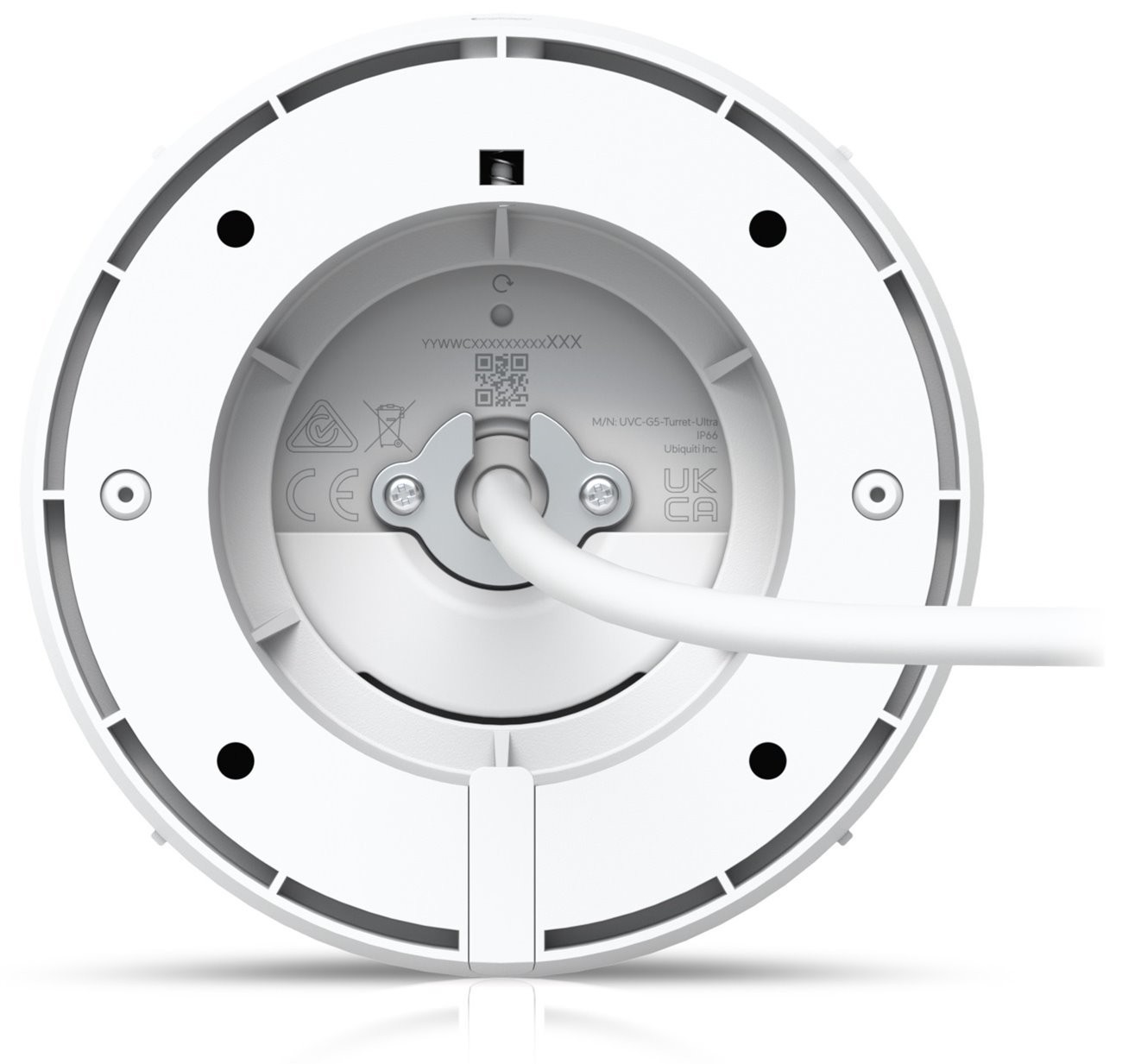

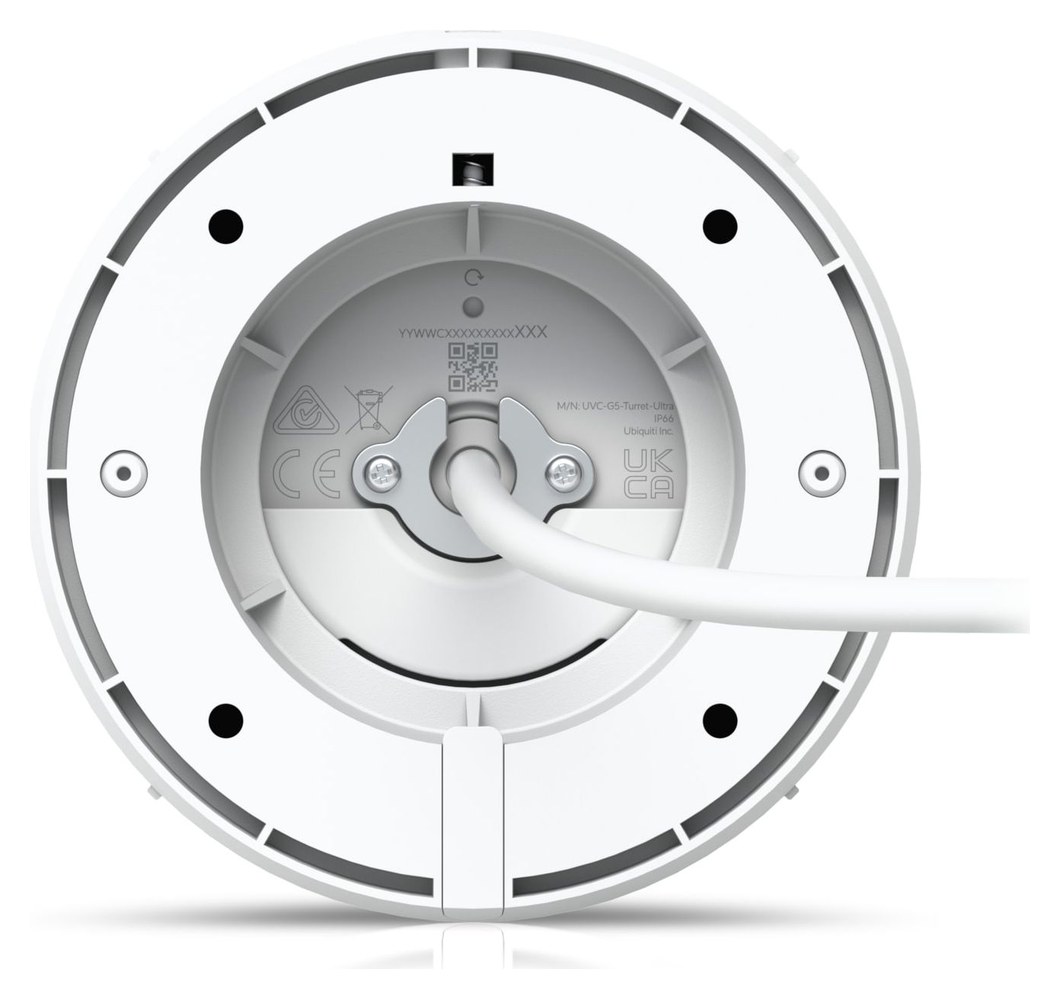

Mounting Surface mount
Ambient operating temperature -30 to 50oC (-22 to 122oF)
Ambient operating humidity 0 to 90% non-condensing
Certification FCC, IC, CE
Audio
Microphone Yes (can be disabled)
