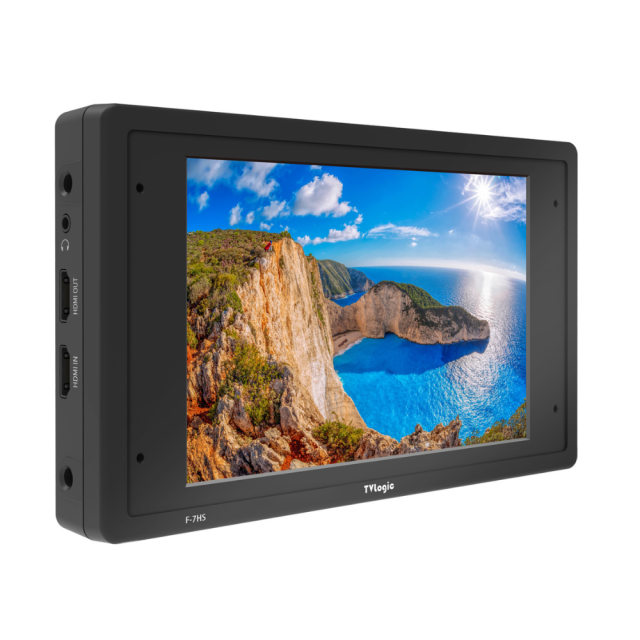

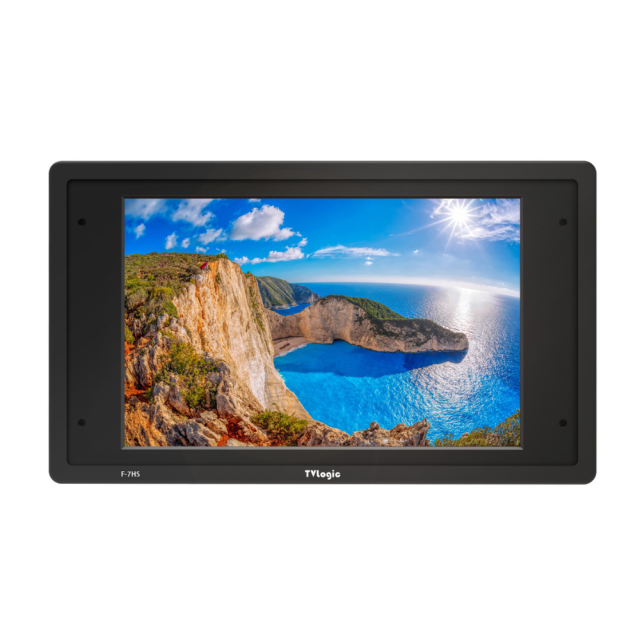

TVLogic F-7HS 7" FHD Field Monitor 3G-SDI/HDMI I/O
SKU: TVL-F-7HS
7" FHD Field Monitor with Enhanced Sharpness. Includes D-Tap Cable & Camera Mount. Expected September 2022.
2 631.75 € with VAT
2 175 € without VAT
Availability
new product, yet unavailable
Top accessories for TVLogic F-7HS 7" FHD Field Monitor 3G-SDI/HDMI I/O
TV Logic External Acrylic Filter For F-7H
Protect the screen on your F-7H MK II monitor from scratches and dust with this External
127.05 €
To be sent 1 pcs
TVLogic Director's Cage for F-7H, F-7H Mark II & F-7HS
Form fitting aluminium cage for TVLogic F-7H/M2/F-7HS 7” field monitors. Included
216.59 €
14-30 days
TVLogic Hood-F7H
This TVLogic Sun Hood fits on your F-7H or F-7H Mark 2 monitor, protecting the screen
139.15 €
14-30 days
TVLogic Battery Bracket for F-7H Monitor (Canon BP Series)
Power your F-7H monitor with a Canon BP series battery by connecting this Battery
139.15 €
14-30 days
TV Logic F-7H Monitor Battery Bracket - Canon LP-E6
Power your F-7H monitor with two Canon LP-E6 batteries by connecting this Battery
229.9 €
14-30 days
TVLogic Battery Bracket for F-7H Monitor (Sony NP-F770/F970)
Power your F-7H monitor with a Sony NP-F770/F970 battery by connecting this Battery
155.28 €
14-30 days
TV Logic Battery Adapter For F-7H - Gold Mount
TV Logic G-Mount-F7H (GMountF7H) Battery Adapter for F-7H Monitor - Gold Mount. Gold
320.65 €
14-30 days
TVLogic Battery Bracket for F-7H Monitor (Panasonic CGA/VB Series)
Power your F-7H monitor with a Panasonic CGA/VB series battery by connecting this
155.28 €
14-30 days
TVLogic Battery Bracket for F-7H Monitor (Panasonic AF-100)
Power your F-7H monitor with two Panasonic AF-100 batteries by connecting this Battery
229.9 €
14-30 days
Product description
Product description
7" FHD Field Monitor with Enhanced Sharpness. Includes D-Tap Cable & Camera Mount. Expected September 2022.
7’’ Full HD monitor with 1920 x 1080 resolution
Luminance up to 1,500 cd/m2
Contrast Ratio 1200:1
Color Depth 10 bit
1x HDMI HDMI + 1x BNC 3G-SDI inputs
1x HDMI HDMI + 1x BNC 3G-SDI out
HDMI ↔ SDI Cross Conversion
HDR Emulation (PQ, HLG, S-Log3)
Custom 3D LUT Import by USB Flash Drive
Various Built-in Camera LUTs
ARRI Metadata
Excellent Sharpness
Peaking Boost
Waveform / Vectorscope
H/V Flip
Marker
Split Zoom
Focus Assist
16ch Audio Level Meter
Anamorphic Desqueeze
Timecode Display
Luma(Y’) Zone Check
Screen Tally
Power Supply 12VDC/1.8A
Weight 0.8 kg
V-Mount/Gold Mount battery bracket optional
Parameters
Parameters
| Manufacturer: | TVLogic |
| Category: | Camera monitors |
Main parameters
| Size | 7" |
| Monitor inputs | HDMI |
| Monitor inputs | 3G-SDI |
| Luminosity | 1500cd/m2 |
| Panel resolution | 1920x1080 |
Other parameters
| Tally | Yes |
| Other features | HDR |
| Other features | 3D LUT correction |
| High Brightness (NITS) | Yes |
