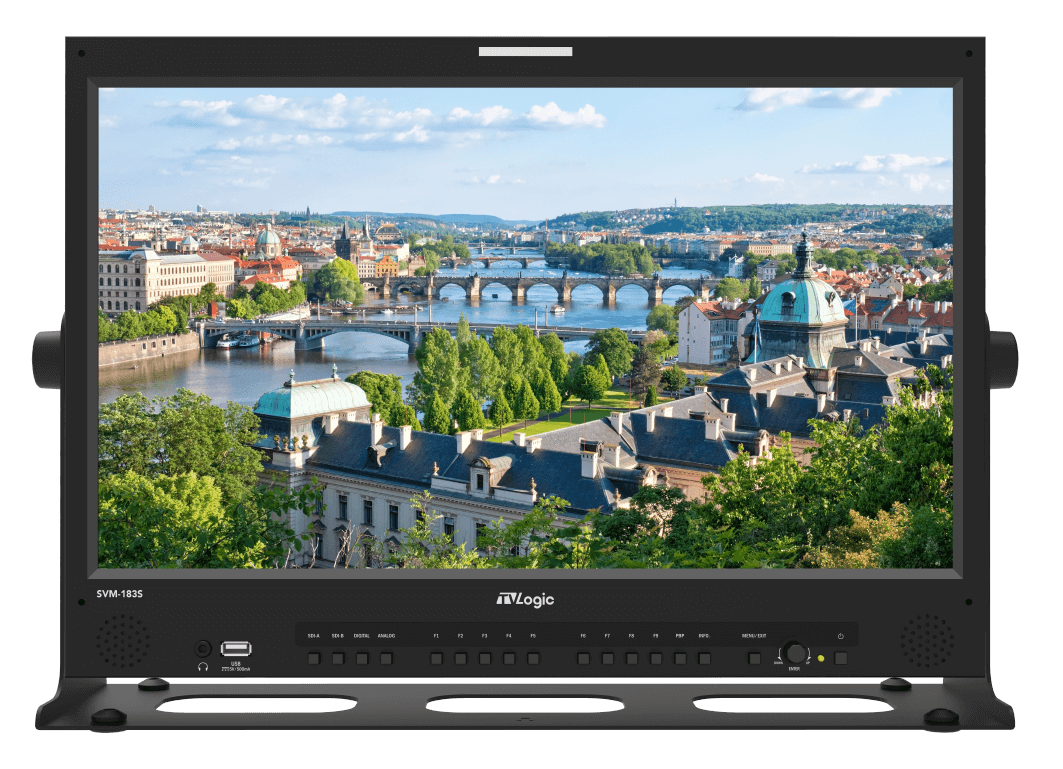

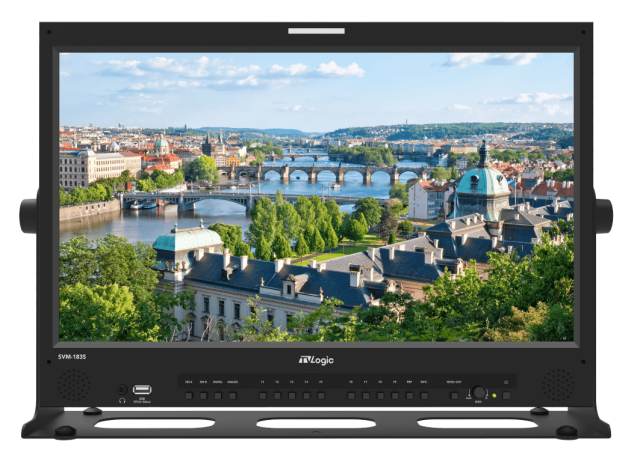

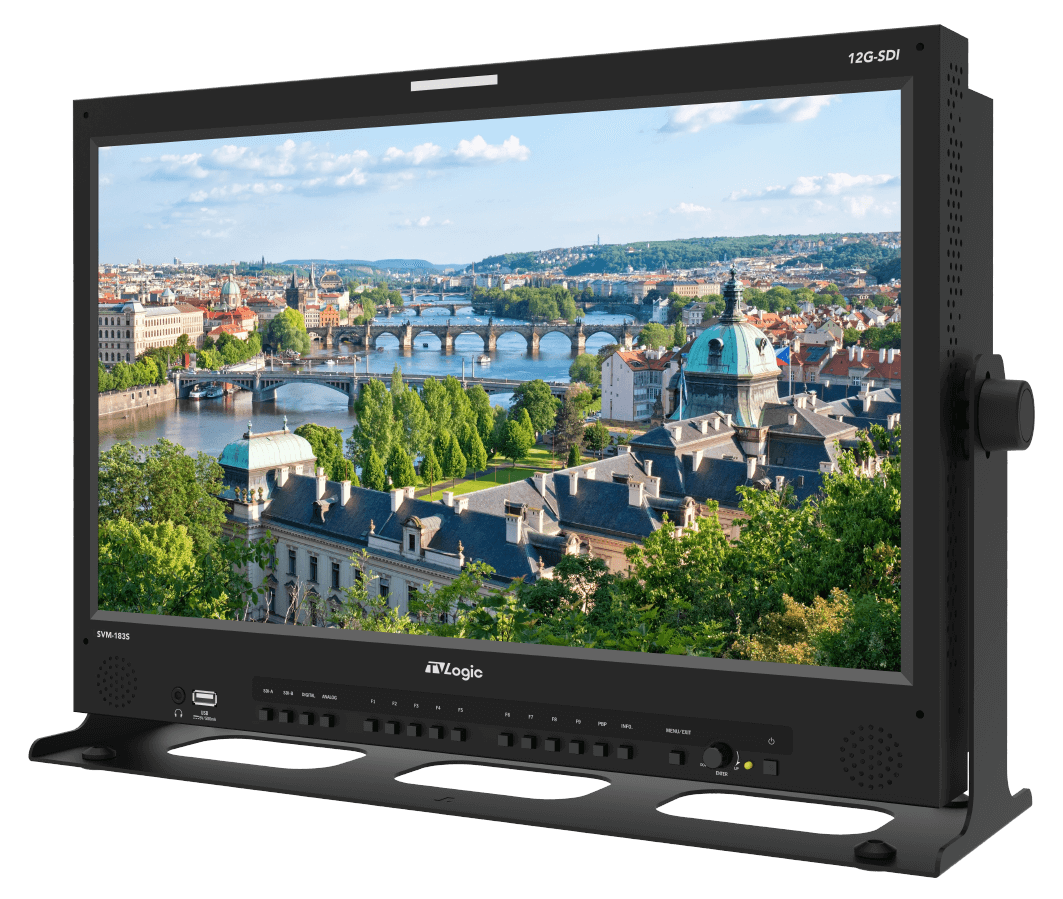

TVLogic SVM-183S

The TVLogic SVM-183S is a high performance 18 inch multi format monitor designed for professional broadcast and field production. It features a sharp display with wide viewing angles and excellent color reproduction for precise monitoring. With support for multiple video formats including SDI and HDMI, this versatile display ensures seamless integration into any professional workflow. Its lightweight yet durable design makes it ideal for studio setups or mobile production kits. Advanced features like waveform and vectorscope help creators achieve perfect exposure and accuracy.

18.5" 12G-SDI with FHD LCD Monitor

These new generation of monitors feature wide viewing angle IPS panel, various HDR EOTFs,  Accurate Color Reproduction by 3D LUT. The SVM series monitors support the high-performance functions such as HDR EOTF, 12G-SDI Picture-by-Picture dispaly, Custom 3D LUT import, 12G-SDI Input to 3G-SDI Processed Output, LUT-applied output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and many more, which make the SVM monitors ideal for live production, versatile monitoring in the studio and field location, edit suite, post production.

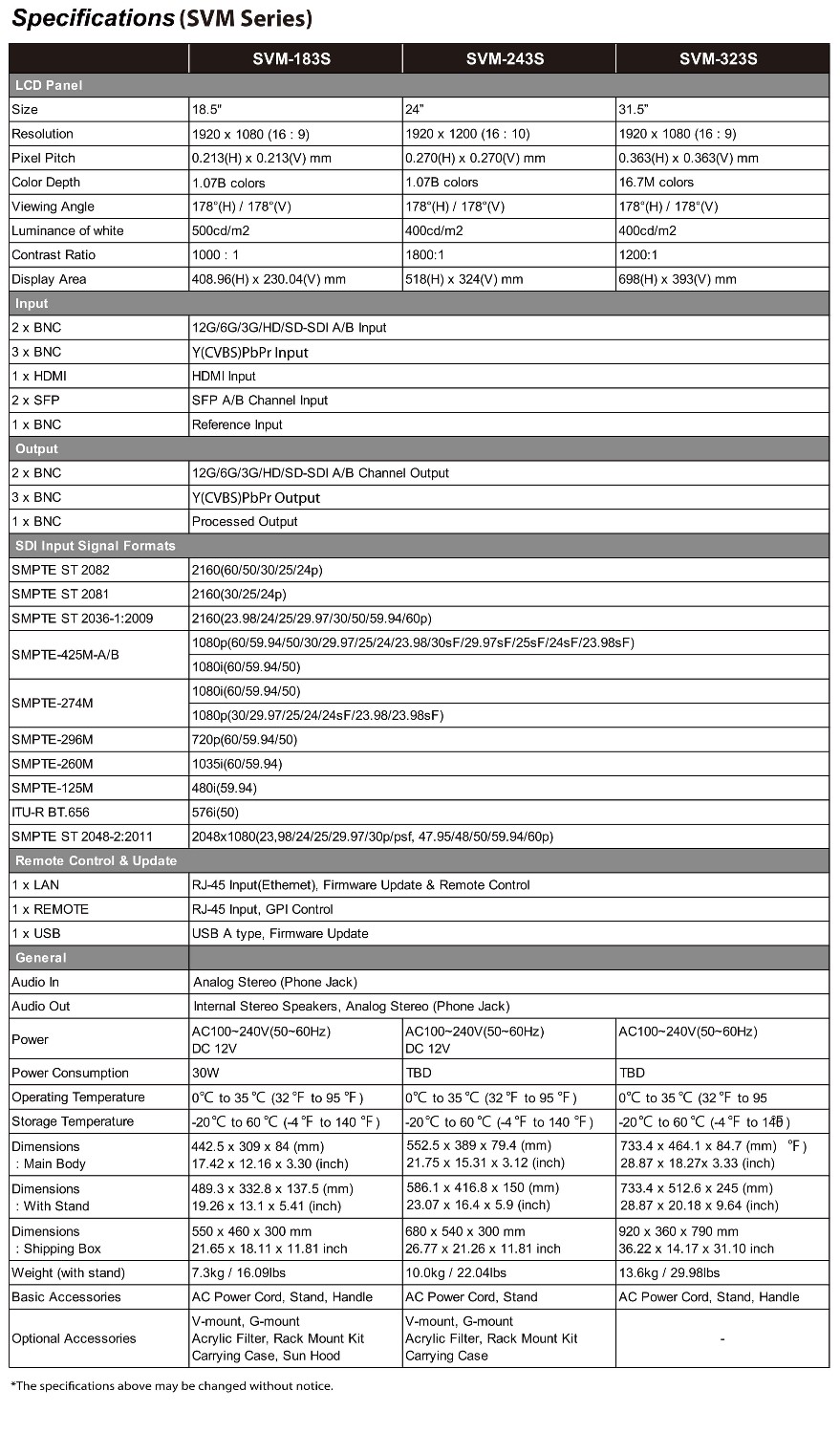

Main Body Dimensions

Main Body   442.5 x 309 x 84 (mm) / 17.42 x 12.16 x 3.30 (inch)
With Stand  489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch)
Weight         7.3kg / 16.09lbs

Product Highlights

• 2 x 12G-SDI Input and Loopout
• 12G-SDI Input to 3G-SDI Downscale Output
• Processed Monitor Output
• Picture-by-Picture Display
• HDR (PQ, HLG, S-LOG3)
• Custom 3D LUT Import by USB Flash Drive
• Auto Detection of SDI Payload ID
• Image Capture & Overlay
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Audio Phase Meter
• Fast Mode / Focus Assist / Marker
• Closed Caption in Multi Languages (CC-608, CC-708, OP47)
• Blue/Mono Only / Timecode Display
• Remote Control & FW Update via Ethernet
• Dynamic UMD / Tally / H Flip, V Flip
