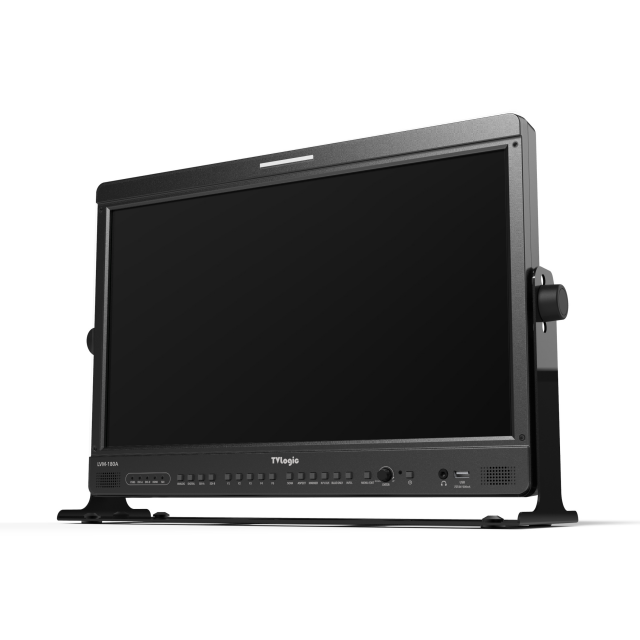

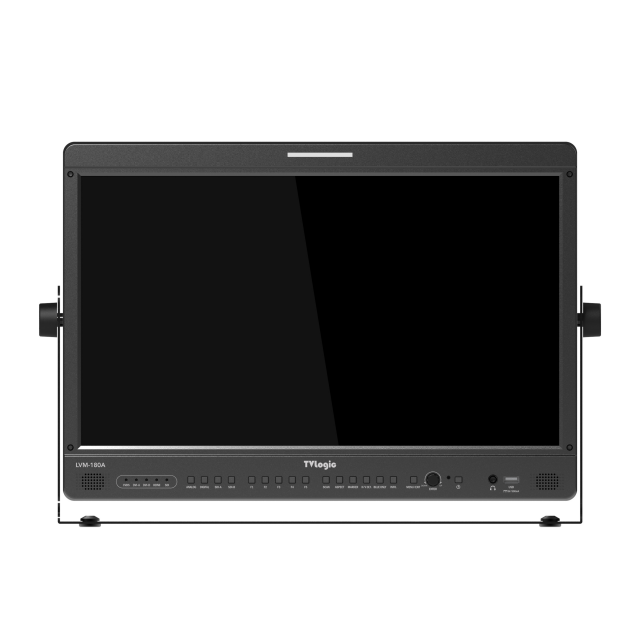

TVLogic 18.5" Wide Viewing LCD Monitor

The LVM-180A is 18.5” model with a 18.5 inch IPS LCD panel with 1920x1080 native resolution, 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful performance and artifact-free image reproduction. Support for various cinema camera…

More information

2 843.5 € with VAT 2 350 € without VAT
-+
Availability
14-30 days

Show all accessories

Product description

Product description

The LVM-180A is 18.5” model with a 18.5 inch IPS LCD panel with 1920x1080 native resolution, 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Parameters

Parameters

Manufacturer: TVLogic
Category: Studio Monitors

Main parameters

Size18.5"
Monitor inputsHDMI
Monitor inputsSDI
Monitor inputs3G-SDI
Luminosity500cd/m2
Panel resolution1920x1080
