The TTArtisan Tilt Shift 17mm f/4 Z lens is a manual focus ultra-wide-angle lens designed for full-frame Z-mount cameras. Featuring tilt adjustment up to 8°, a 104° angle of view, and a complex 17-element optical design, it is ideal for architecture, landscape, and creative perspective control photography.
The TTArtisan Tilt Shift 17mm f/4 Z lens is a manual focus ultra-wide-angle lens designed for full-frame Z-mount cameras. Featuring tilt adjustment up to 8°, a 104° angle of view, and a complex 17-element optical design, it is ideal for architecture, landscape, and creative perspective control photography.
An ultra-wide 17 mm full-frame lens with manual focus. Shift straightens the converging lines of buildings, tilt turns the plane of focus.

Shift straightens lines, tilt turns the plane of focus, and the whole mechanism rotates through 360°. One lens covers architecture, interiors, landscape and creative shots.
Minimum focus distance of 0.3 m.
An ultra-wide 17 mm on full frame.
Including two large aspherical elements.
Protects the curved front element; the lens has no filter thread.
A regular wide-angle lens makes vertical lines converge in architecture. Shifting the optics by up to 8 mm corrects the perspective in camera, so buildings stay straight and vertical.

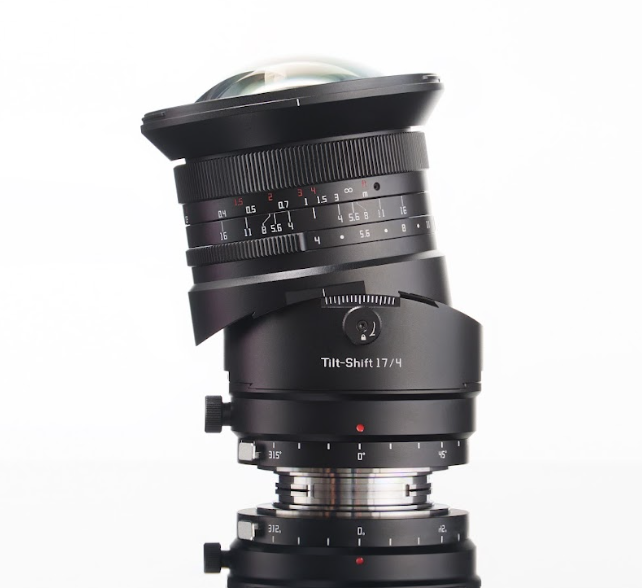

Tilting the optics by up to 8° turns the plane of focus relative to the sensor. Only a narrow band of the frame stays sharp, and a city or landscape looks like a miniature model.

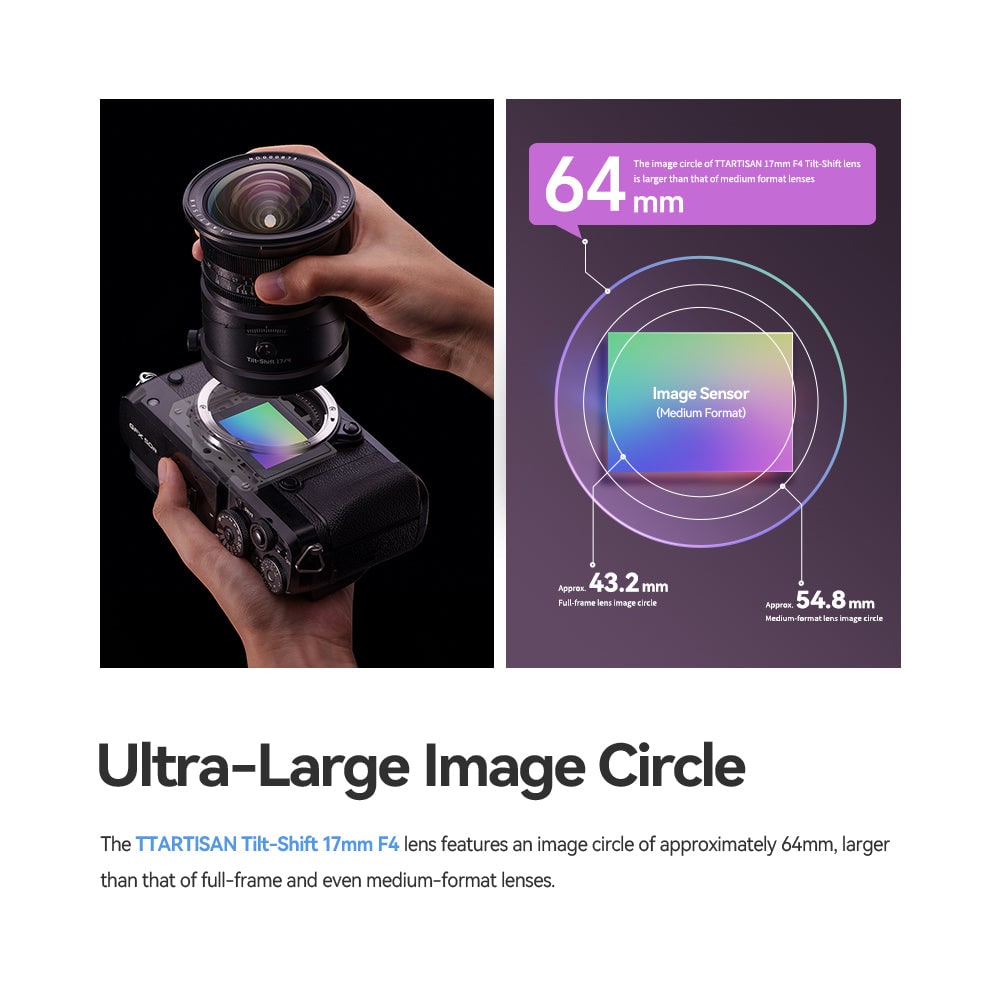

The image circle is larger than that of full-frame (approx. 43.2 mm) and medium-format lenses (approx. 54.8 mm).

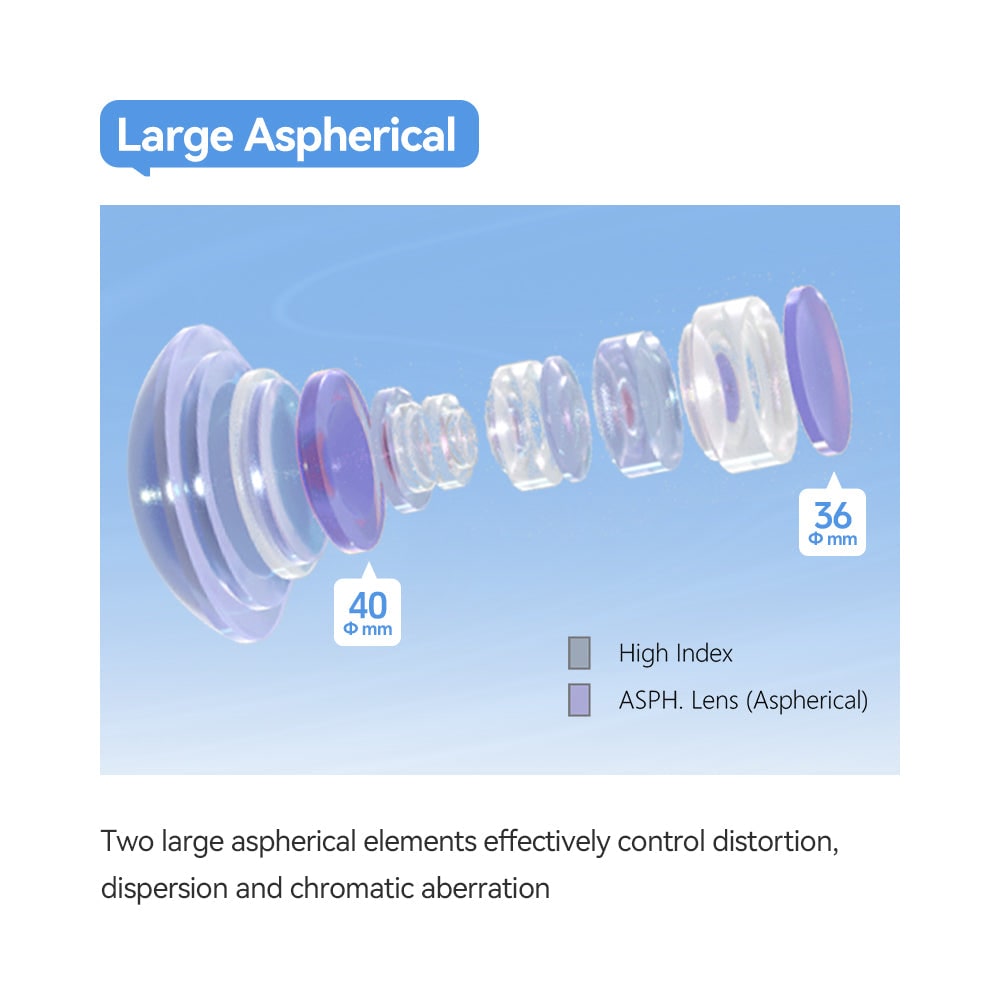

Two large aspherical elements control distortion, dispersion and chromatic aberration and keep the edges sharp. Six high-index elements reduce the size of the lens while increasing resolution.

The 10-blade aperture is set manually from F4 to F16. It gives smooth blur and distinct 10-point starbursts around point light sources.

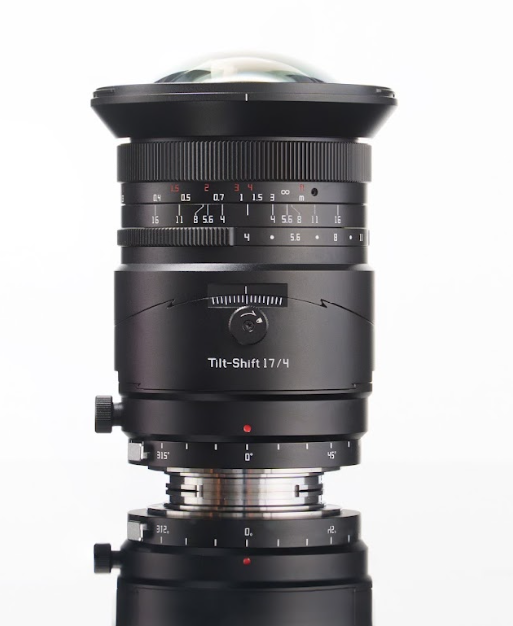

The whole tilt and shift mechanism rotates through 360° with click stops every 15°. You can set shift and tilt vertically, horizontally or diagonally, depending on the subject.

The lens hood cuts unwanted side light and protects the curved front element from bumps and scratches. The lens has no filter thread.

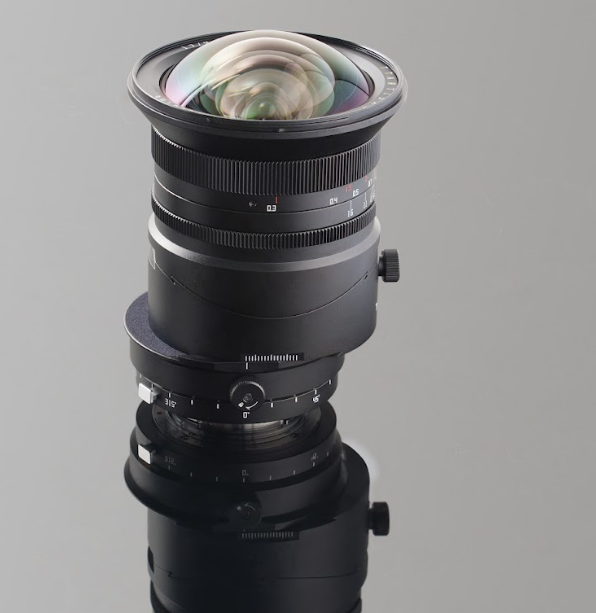

The lens body is all metal and the aperture ring has click stops. The lens weighs approx. 1051–1056 g and focuses manually from 0.3 m.

Photos taken with the Tilt-Shift 17 mm F4 lens.




The TTArtisan Tilt Shift 17mm f/4 Z Lens (F-TS174-Z-B) is a specialized ultra-wide-angle lens designed for full-frame Z-mount cameras, offering advanced tilt-shift capabilities for precise control over perspective and focus. With an expansive 104° angle of view, this lens is well suited for architectural, interior, landscape, and creative photography where maintaining straight lines and controlling depth of field are essential.
The lens features a tilt adjustment of up to 8°, allowing photographers to manipulate the plane of focus to achieve creative effects or maximize sharpness across complex scenes. This capability makes it particularly useful for architectural photography, product photography, and landscapes where perspective and focus control are critical.
Its sophisticated optical design incorporates 17 elements in 11 groups, delivering impressive clarity, contrast, and detail across the frame. The manual focus system ensures precise control during shooting, with a minimum focusing distance of 0.3 meters for capturing both wide scenes and closer compositions.
Built with a robust construction and finished in a sleek black design, the lens weighs approximately 1051–1056 grams, providing durability and stability during use. The TTArtisan Tilt Shift 17mm f/4 Z lens is an excellent choice for photographers seeking creative control and professional-quality wide-angle performance.
| Manufacturer: | TTArtisan |
| Category: | Lenses |
| Minimum Focusing Distance | 300mm |
| Number of aperture blades | 10 |
| Lens mount | Z-mount |
| Tilt Shift | Yes |
| Lens color | Black |
| Lens type | Prime lens |
| Lens suitable for | Full frame |
| Aperture (f) | 4 |
| Focal length | 17mm |
| Auto focus | No |
| Zoom | No |
| Weight | 1056g |
