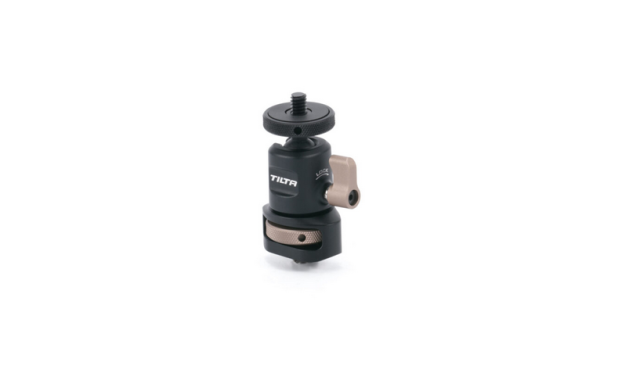

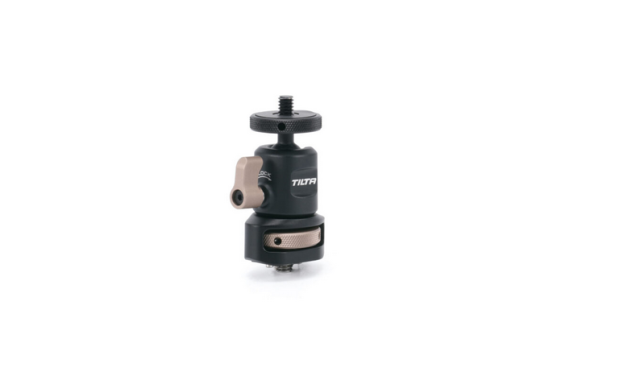

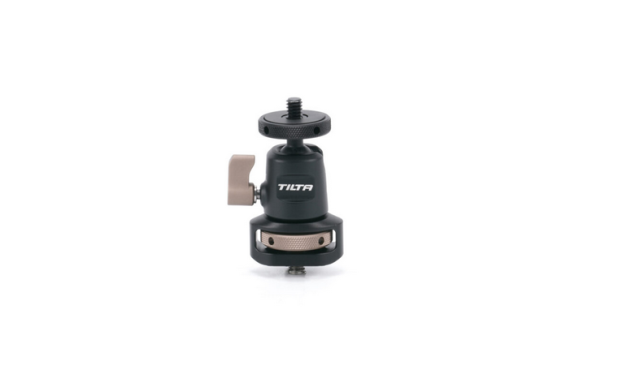

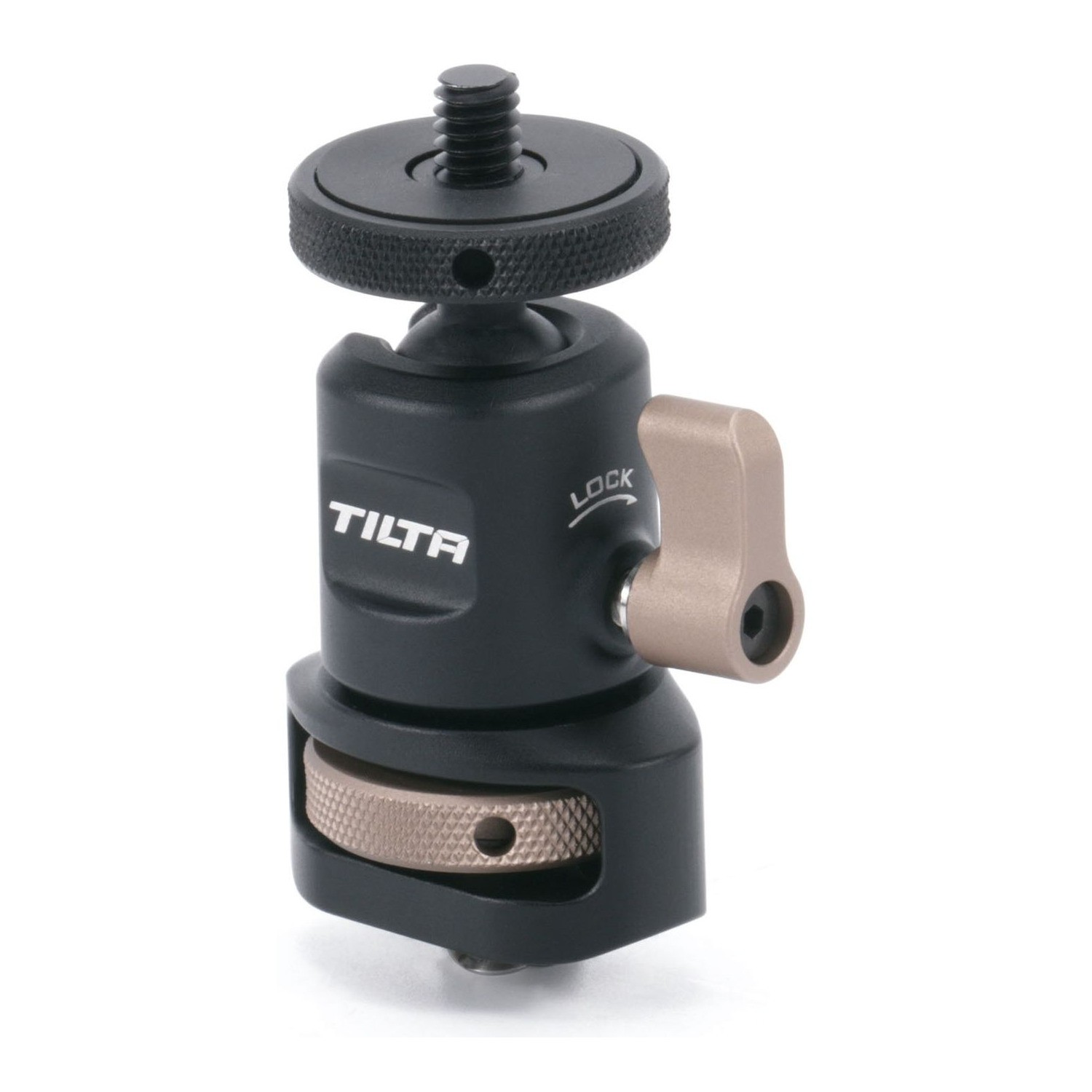

Tilta Mini Ball Head Mount (1/4"-20 with Locating Pins) - Black

The Tilta Mini Ball Head Mount is a thumb-sized ball head that tilts a monitor or an on-board light exactly where you are looking. The bottom carries a 1/4"-20 screw with locating pins so nothing twists on a cage or a handle; the top has a 1/4"-20 thread with a locking washer and a 1.5 kg load rating. The joint allows 90° vertically, a 125° range and 360° rotation. It weighs 70 g.

The Tilta Mini Ball Head Mount is the smallest way to put a monitor or a light at a different angle from the camera itself. It fits in the palm, holds 1.5 kg, and with a single screw loosened it turns to any position — then locks again and stays put.

Nothing turns at the bottom

The base carries a 1/4"-20 screw with two locating pins. They drop into the holes on a cage, a handle or a plate, so the head cannot twist by itself — not even with a monitor hanging off it and a cable pulling.

1/4"-20 with a locking washer on top

The top plate carries a 1/4"-20 thread with silicone washers around it. An accessory tightens down without marking, and the locking washer keeps that torque after hours of vibration. The top rating is 1.5 kg.

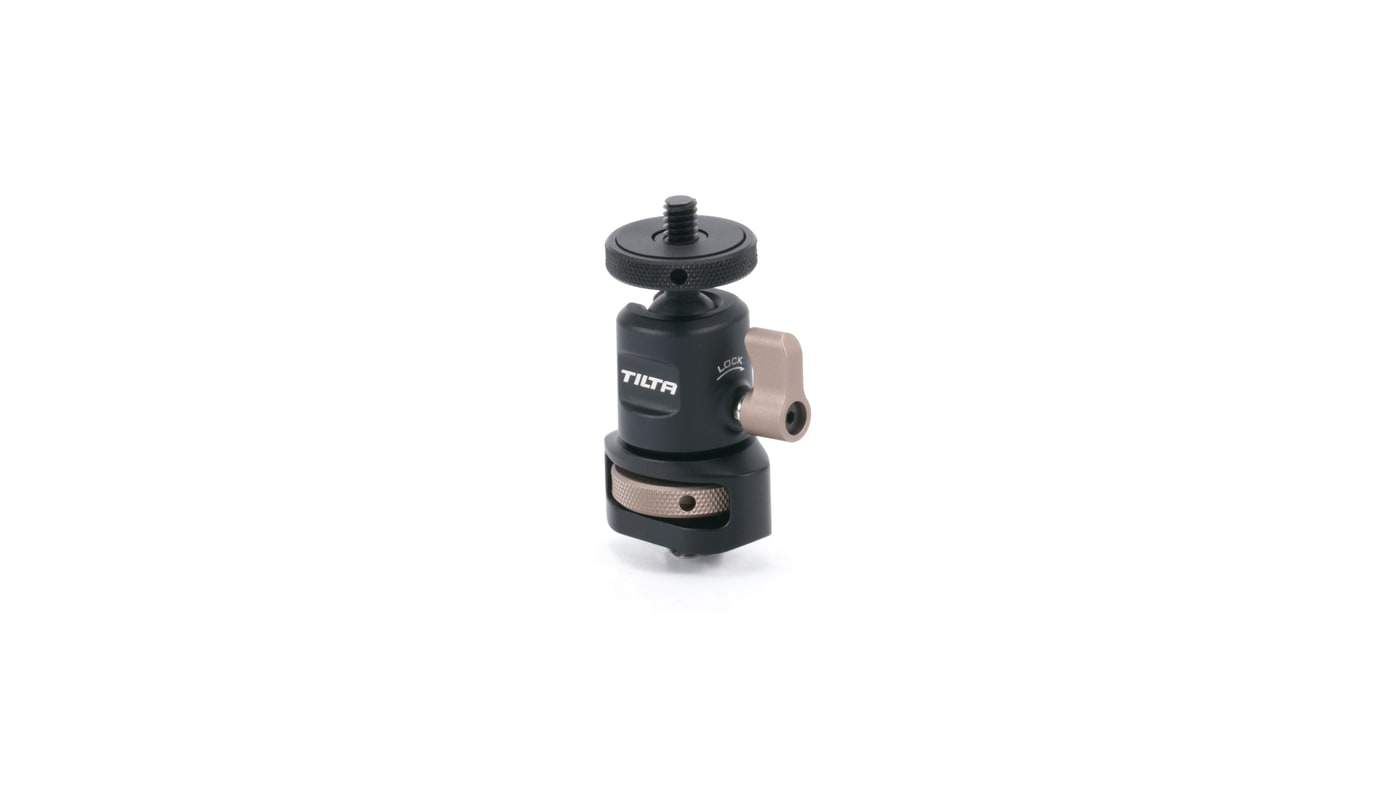

90° vertical, 125° range, 360° rotation

The joint has a single-sided cut-out: the monitor tilts up to 90° down, the whole tilt range is 125° and the base spins a full 360°. One M5 toggle screw switches between tilting and locked.
