Tilta Gravity Motorized Lighting Control System (35KG) - Titanium Gray

The Tilta TLA-MCS-L35-TG Gravity Motorised Lighting Control System (35 kg, Titanium Gray) is a groundbreaking wireless motorized lighting head that supports up to 35 kg fixtures and allows ultra-precise, app- or console-controlled 360° pan (±180°) at 90°/s and -50° to +90° tilt at 45°/s. Powered by standard V-Mount batteries and fully integrated with the Nucleus Nano II ecosystem, it enables one operator to simultaneously control up to 12 lights with programmable moves – perfect for large film sets, studios, virtual production and live events.

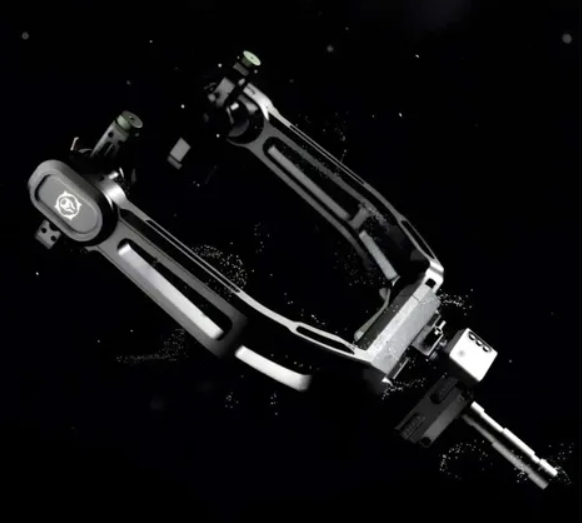

The Tilta Gravity Motorised Lighting Control System (35 kg model) revolutionizes professional lighting by replacing manual repositioning with silent, high-speed, high-precision robotic heads. Built from aerospace-grade aluminum in signature Titanium Gray, each unit supports heavy fixtures up to 35 kg (Aputure 1200d, ARRI Orbiter, Skypanel S60, etc.) via a Mitchell or 150 mm bowl mount. Dual-axis brushless motors deliver buttery-smooth 360° continuous panning and 140° total tilt range with adjustable speed and damping for cinematic motion control. Wireless 2.4 GHz control reaches 100 m and allows grouping, multi-light choreography, and DMX/CRM X integration via the upcoming console or free iOS/Android app.

Key Features

• 35 kg (77 lb) maximum payload
• 360° continuous pan @ up to 90°/s (full rotation in 4 s)
• −50° to +90° tilt @ up to 45°/s
• Silent, high-torque brushless motors with adjustable damping
• Wireless 2.4 GHz control (100 m range) – up to 12 units simultaneously
• Full Nucleus Nano II integration (hand wheel & side handle control)
• Free iOS/Android app + upcoming dedicated console for programming & DMX
• V-Mount battery powered (no proprietary packs needed)
• Mitchell mount base + 150 mm bowl adapter included
• Built-in safety limits & overload protection
