Teradek USB to 5pin Control Hub for Smart 7 Monitors
New
SKU: TE-11-0895
The Teradek 11-0895 USB to Dual 5-Pin Control Hub connects a compatible SmallHD Smart 7 monitor to wireless camera control via the Teradek Bolt 4K receiver. The hub connects to the monitor via a Micro-USB Type-B connector and provides two 5-pin ports for control connections.
The Teradek 11-0895 USB to Dual 5-Pin Control Hub connects a compatible SmallHD Smart 7 monitor to wireless camera control via the Teradek Bolt 4K receiver. The hub connects to the monitor via a Micro-USB Type-B connector and provides two 5-pin ports for control connections.
A compatible Wireless Camera Control Adapter for Bolt and the appropriate license for camera control on the SmallHD monitor are required for operation.
CAMERA CONTROL VIA SMART 7
Model 11‑0895 adds two 5-pin control ports to a compatible SmallHD Smart 7 monitor. It is part of a wireless camera control workflow with the Teradek Bolt 4K receiver.

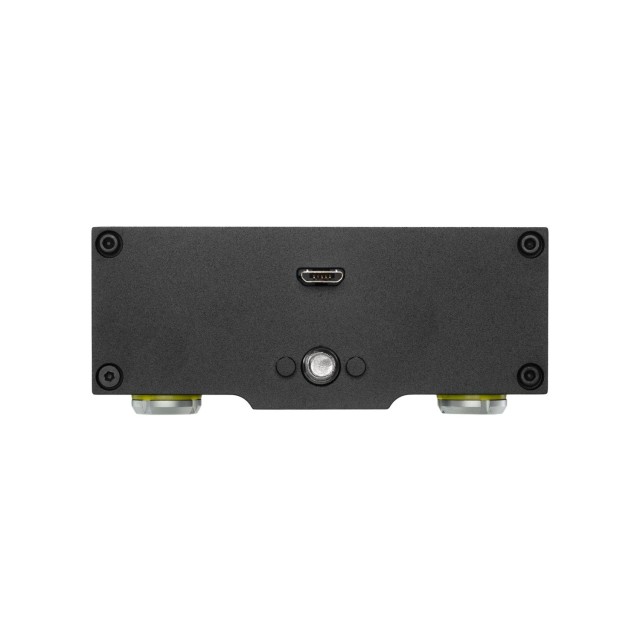

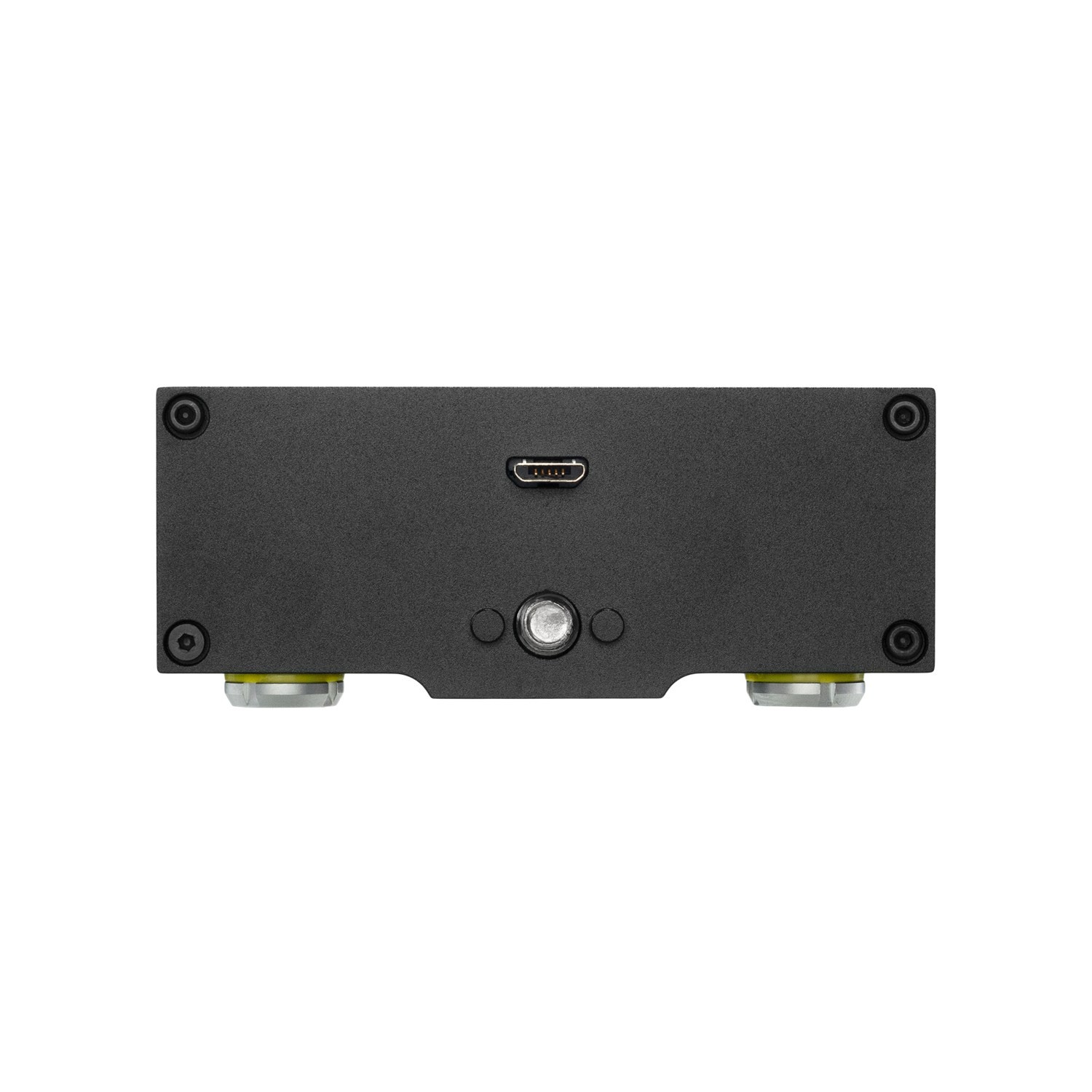

On the monitor side, it uses a Micro-USB Type-B connector; it is not a universal USB hub.

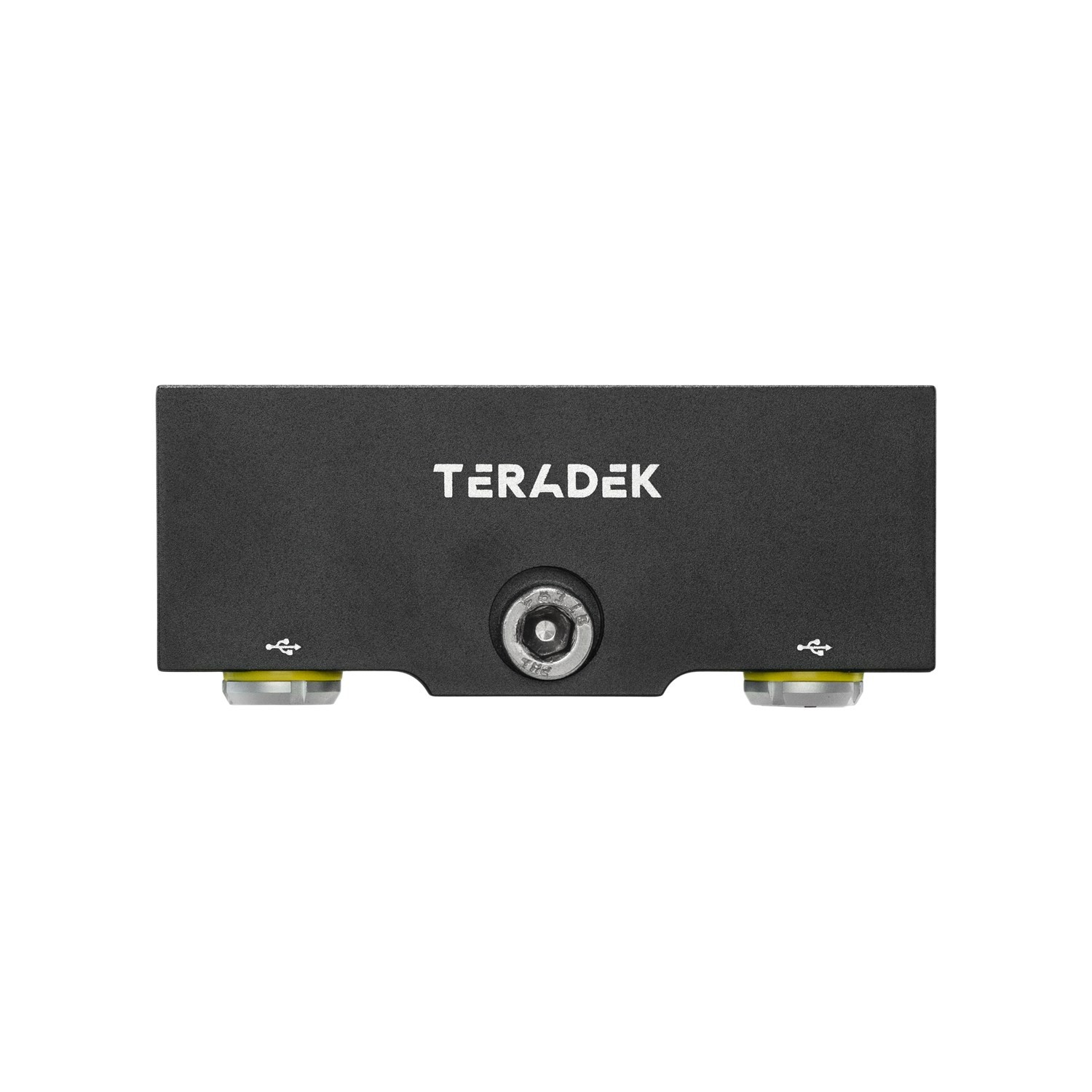

TWO 5-PIN PORTS
The hub requires a compatible Wireless Camera Control Adapter for Bolt and a SmallHD license for the specific camera. Before ordering, verify that your monitor, Bolt, and licensed camera system are compatible.
PACKAGE CONTENT
1× Smart 7 Dual USB Hub
1× low-profile 1/4‑20 screw
SPECIFICATIONS
Model: Teradek 11-0895
Compatibility: SmallHD Cine 7, Indie 7, and 702 Touch / Smart 7 workflow
Input: Micro-USB Type-B
Outputs: 2× 5-pin
Intended Use: Wireless camera control with Teradek Bolt 4K
