Teradek 11-1469 SmallHD Monitor Interface Cable, 5-Pin to Micro-USB, 8 in

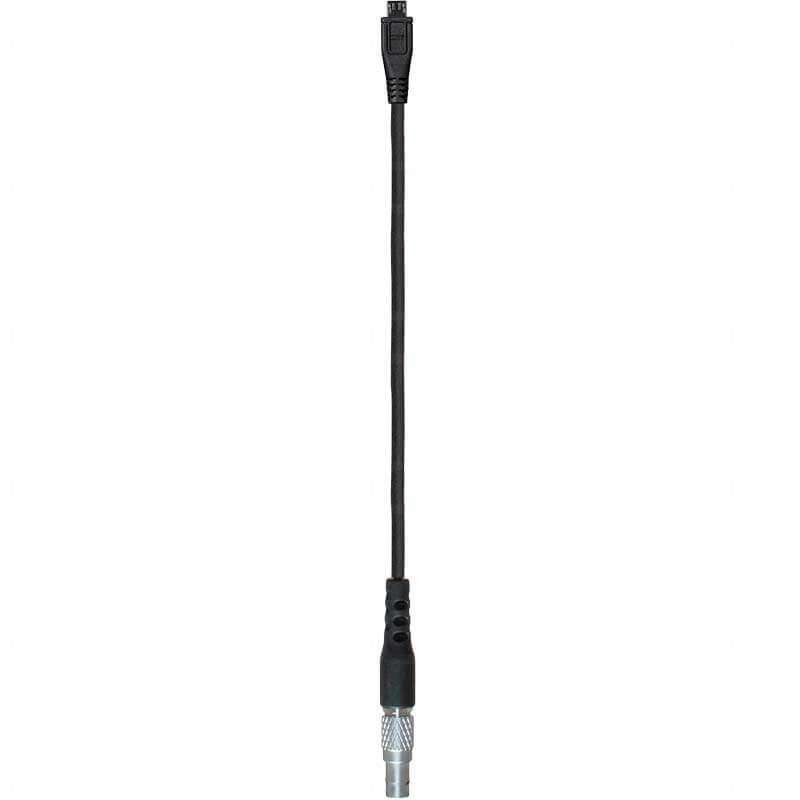

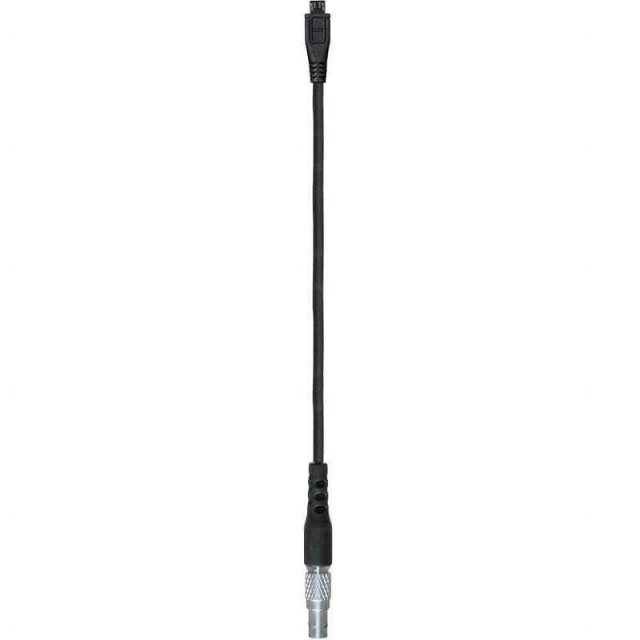

The Teradek 11-1469 is an 8-inch (20 cm) interface cable from the 5-pin circular locking connector on a CTRL.1/CTRL.3 controller to the Micro-USB 2.0 Type-B port on a compatible SmallHD monitor. With FOCUS Bolt and CINE 7 monitors, it carries lens data for the Teradek RT Lens Data Overlay.

Check the exact monitor model and firmware before use: SmallHD’s Lens Data Overlay guide requires firmware 3.4.0 or later. CTRL.1 requires a separate Lens Mapping license; the license is included with CTRL.3.

LENS CONTROL

Lens data on a SmallHD monitor

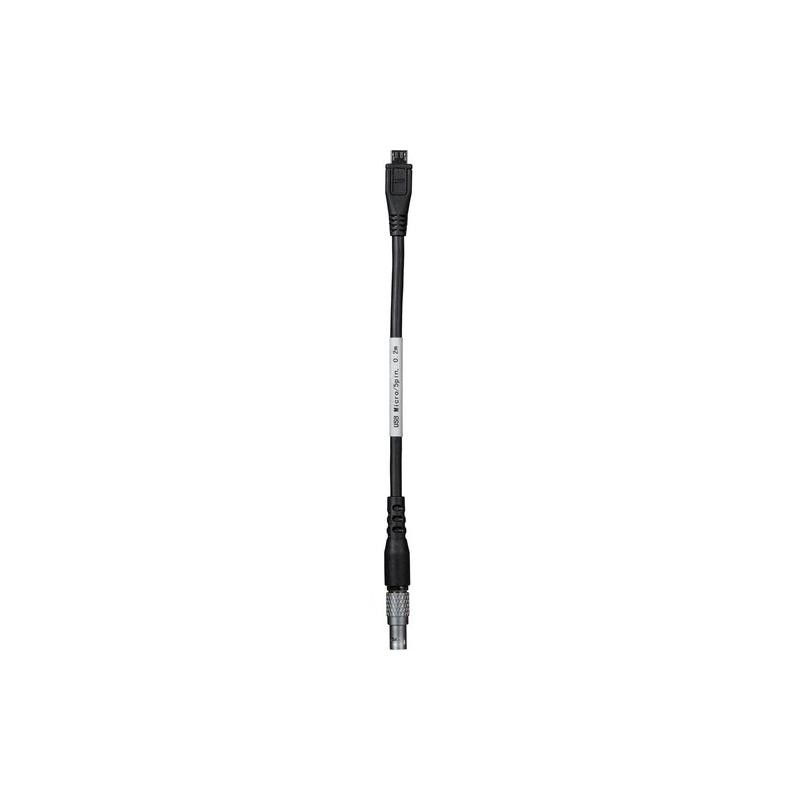

The 11-1469 connects the circular locking port on a Teradek CTRL.1/CTRL.3 controller to a monitor’s Micro-USB 2.0 Type-B port, enabling the Teradek RT Lens Data Overlay on compatible setups.

Controller connection

The five-pin circular locking end connects to the controller’s Wired Mode connector. At 8 inches (20 cm), the cable is intended for a short controller-to-monitor link on a camera rig.

Overlay requirements

SmallHD specifies monitor firmware 3.4.0 or later for Lens Data Overlay. CTRL.1 requires a Lens Mapping license; CTRL.3 includes it.
