Teradek RT - FIZ Kit (CTRL.5, MDR.X, MOTR.S MAX)

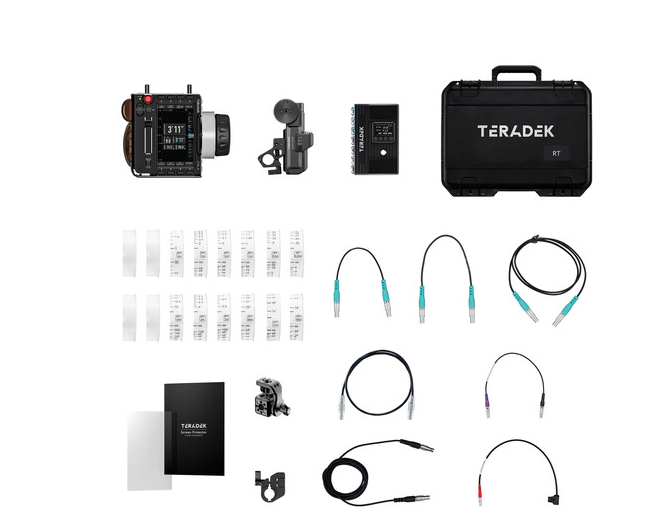

The Teradek RT FIZ Wireless Lens Control Kit with CTRL.5, MDR.X, and MOTR.S Max is a professional wireless focus, iris, and zoom control system designed for precise cinema lens operation. It combines the 3-axis CTRL.5 controller, MDR.X receiver, and high-torque MOTR.S Max motor with essential cables, mounting hardware, battery, charger, and lens marking accessories.

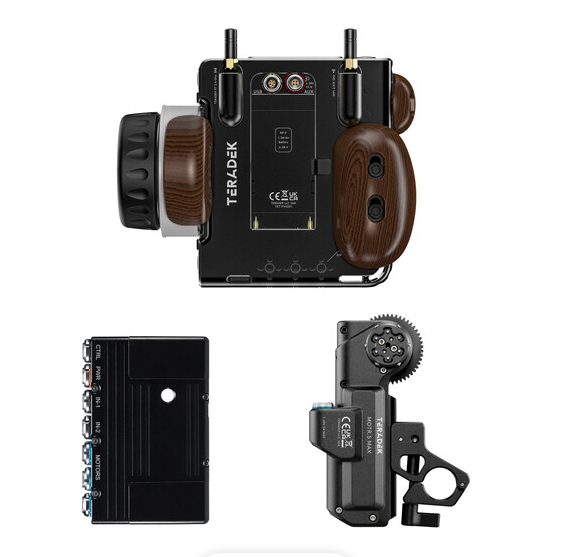

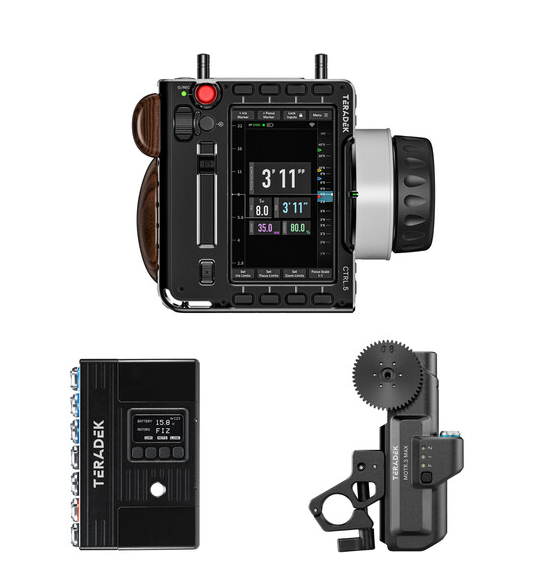

The Teradek RT FIZ Wireless Lens Control Kit (CTRL.5, MDR.X, MOTR.S Max) provides a complete wireless solution for professional cinema lens control, allowing operators to precisely control focus, iris, and zoom (FIZ) from a dedicated CTRL.5 wireless controller. The system combines the feature-rich CTRL.5 3-axis controller with the compact MDR.X 3-channel Bluetooth receiver and powerful MOTR.S Max lens motor, making it suitable for demanding camera configurations including handheld rigs, gimbals, cranes, drones, and other movement-based setups. The CTRL.5 features a 5" touchscreen, customizable quick-action buttons, pressure-sensitive controls, adjustable tension knob, camera control capabilities, expandable optics and lens-map library, and multiple connectivity options. The MDR.X provides three motor outputs for FIZ control, auxiliary inputs, camera control, an OLED display, and long-range Teradek RT wireless connectivity. The MOTR.S Max delivers up to 1.2 Nm of torque and speeds of up to 275 teeth per second, with support for 15 and 19mm rods and a 0.8 MOD lens gear.

Key Features:

• CTRL.5 3-axis wireless lens controller
• 5" touchscreen with up to 2000 nits brightness
• Wireless focus, iris, and zoom control
• MDR.X 3-channel receiver with Bluetooth
• MOTR.S Max high-torque lens motor
• Up to 1.2 Nm maximum motor torque
• Motor speed up to 275 teeth per second
• Teradek RT wireless range up to 5000' / 1500m
• Wi-Fi/Bluetooth range up to 500' / 150m
• 11 customizable quick-action buttons
• Adjustable control knob with 9 levels of tension
• Pressure-sensitive rocker, slider, and record button
• Expandable optics library and lens-map functionality
• Camera control support for compatible cameras
• 5-pin USB and 4-pin AUX connectivity

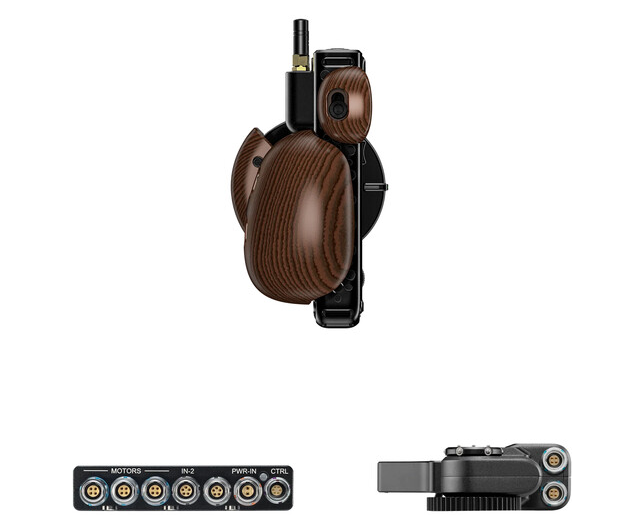

• MDR.X features three motor ports for focus, iris, and zoom
• Two auxiliary inputs for wired controls
• Integrated OLED display on MDR.X
• MOTR.S Max supports 15mm and 19mm rods
• Includes 0.8 MOD lens gear
• Suitable for cinema, handheld, gimbal, crane, and drone applications
