The Teradek RT MOTR.S/MAX Motor Gear 11‑0940 is a standalone gear wheel for MOTR.S and MOTR.MAX lens control motors. It has a pitch of 0.8 Mod, 50 teeth, and a width of 7 mm; it serves as a mechanical connection between the motor and a compatible lens gear ring.
The Teradek RT MOTR.S/MAX Motor Gear 11‑0940 is a standalone gear wheel for MOTR.S and MOTR.MAX lens control motors. It has a pitch of 0.8 Mod, 50 teeth, and a width of 7 mm; it serves as a mechanical connection between the motor and a compatible lens gear ring.
The wider contact surface is suitable for focus, aperture, or zoom rings on select cine and ENG lenses. Before ordering, verify the lens’s gear pitch and compatibility with the motor you are using.
GEARS FOR MOTR.S AND MOTR.MAX

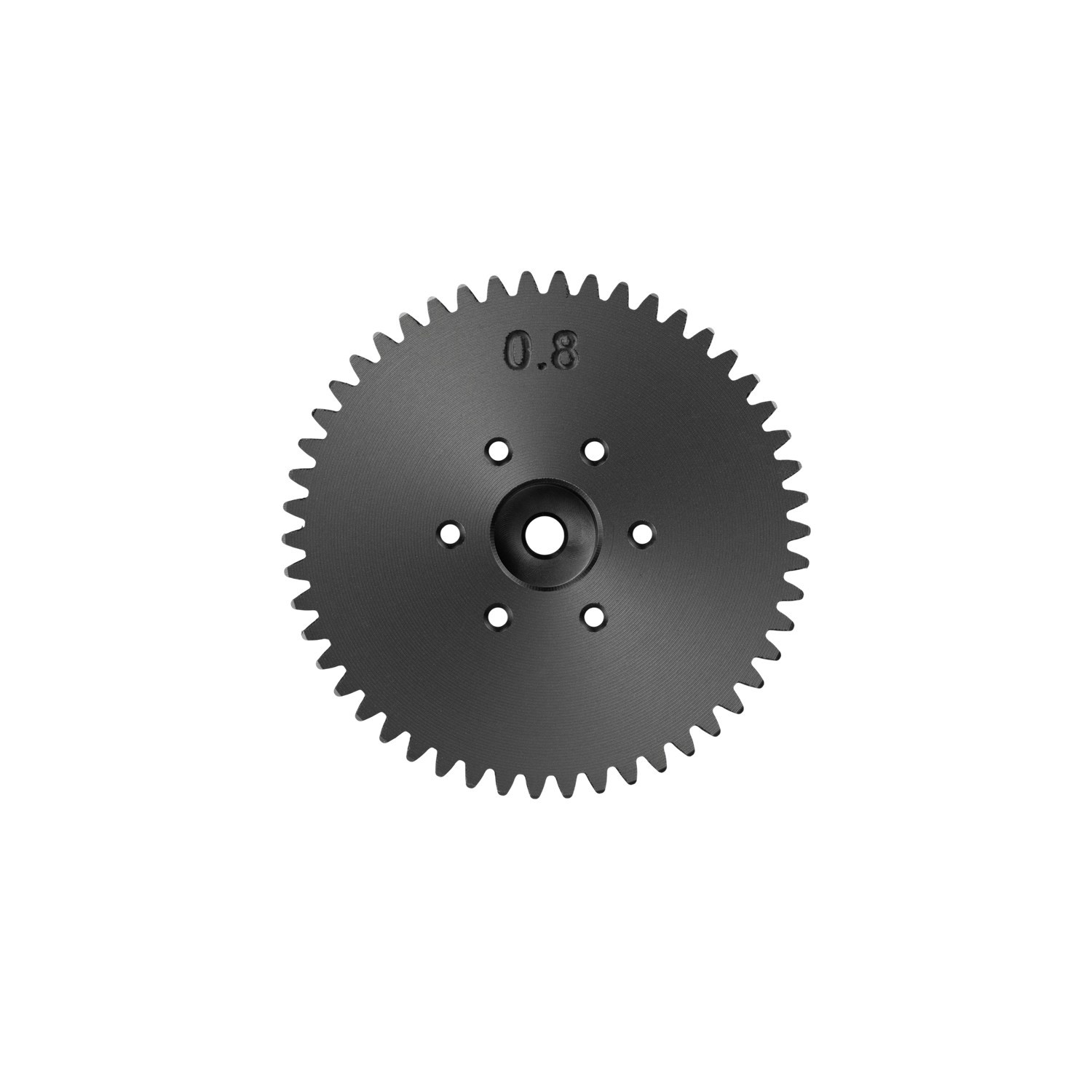

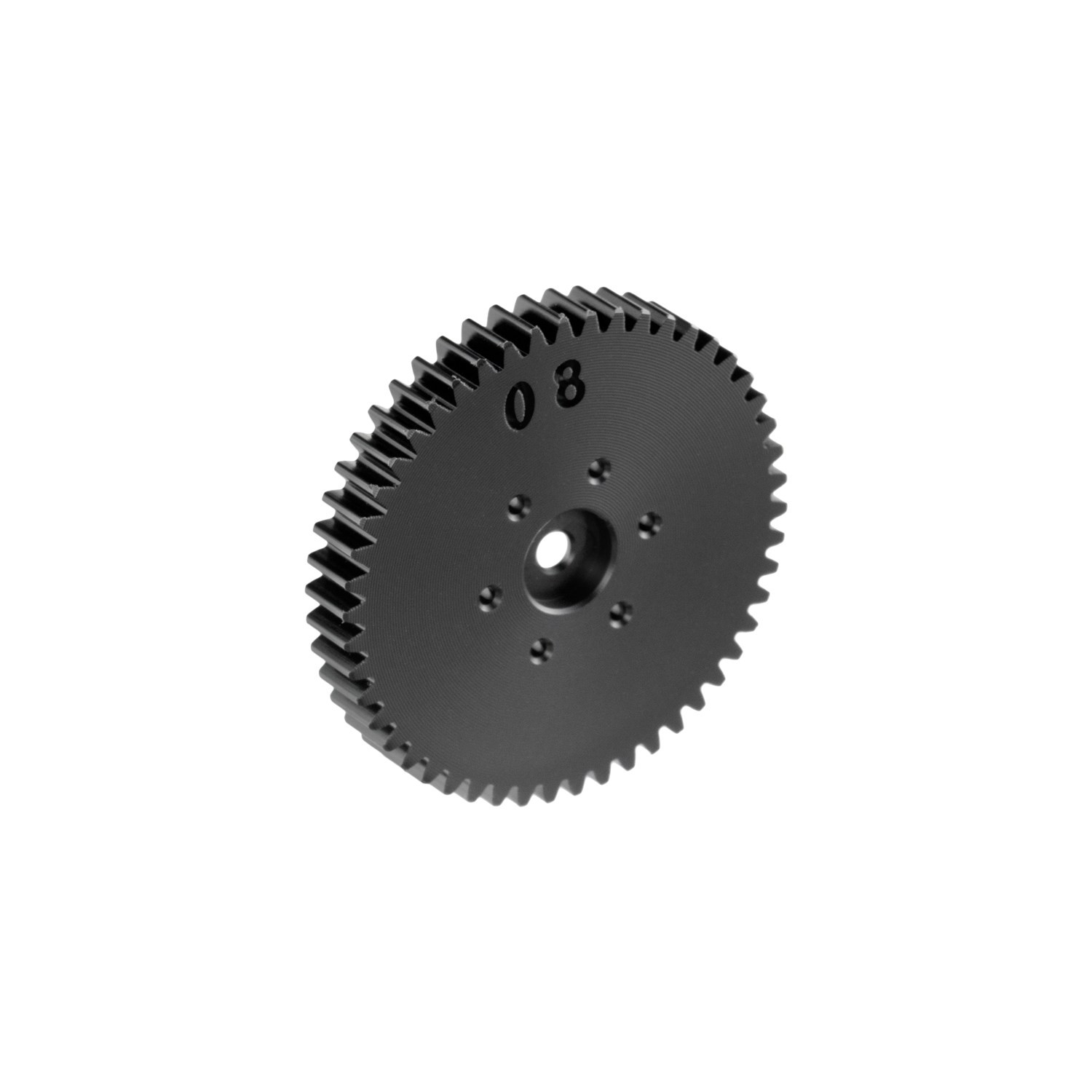

Model 11‑0940 is a 0.8 Mod motor gear with 50 teeth and a width of 7 mm. It is designed for Teradek RT MOTR.S/MAX motors and for lenses with corresponding gear teeth.
The correct combination of pitch, number of teeth, and width is essential for precise motion transfer between the motor and the lens ring.
CONTACT SURFACE FOR CINE AND ENG LENSES

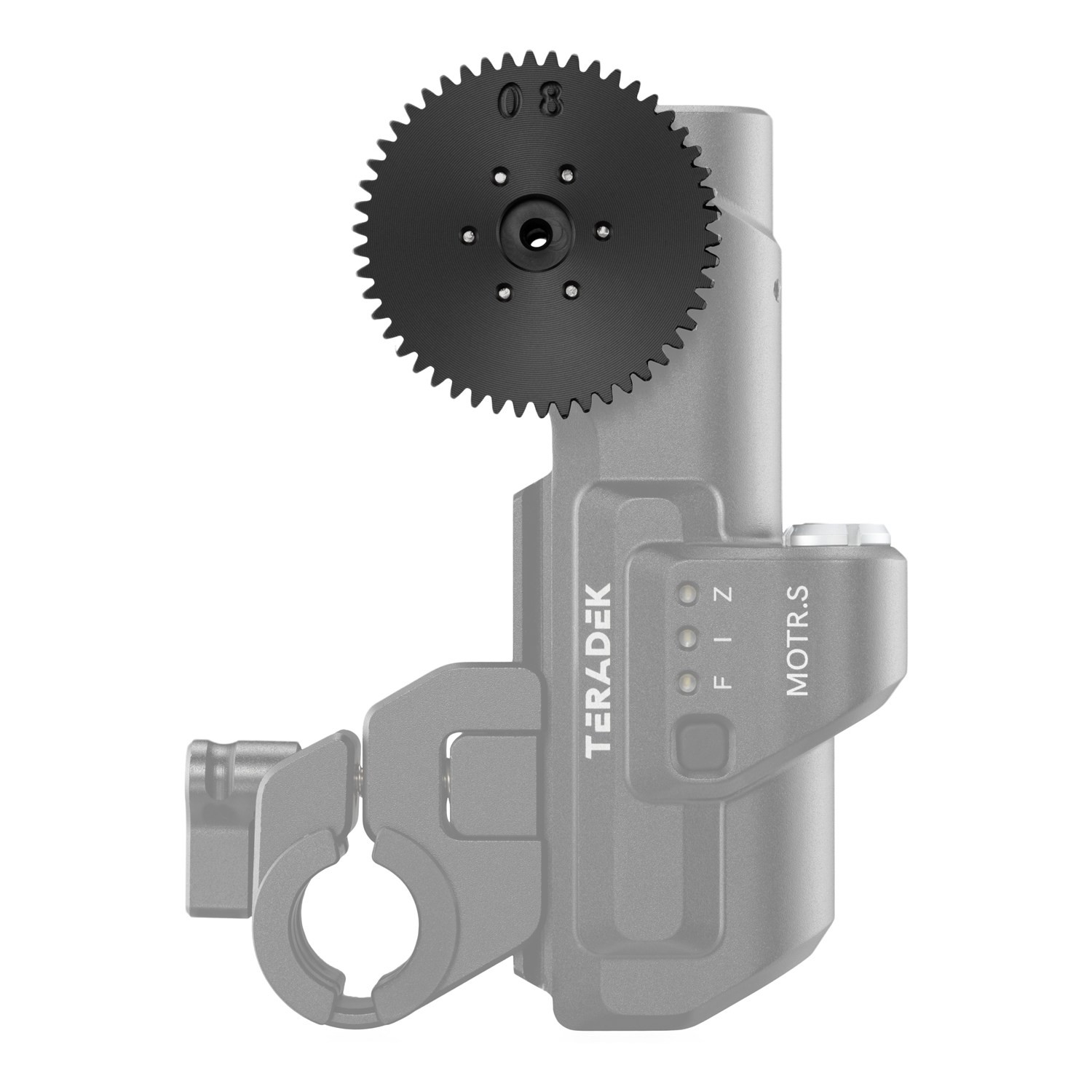

The 7 mm width provides support for compatible focus, iris, or zoom rings. The wiring diagram shows the gear mechanism on the motor; the motor and lens are not included with this individually sold gear.
