Teradek Live Ranger Mk II 750 12G-SDI/HDMI - Wireless RX V-Mount

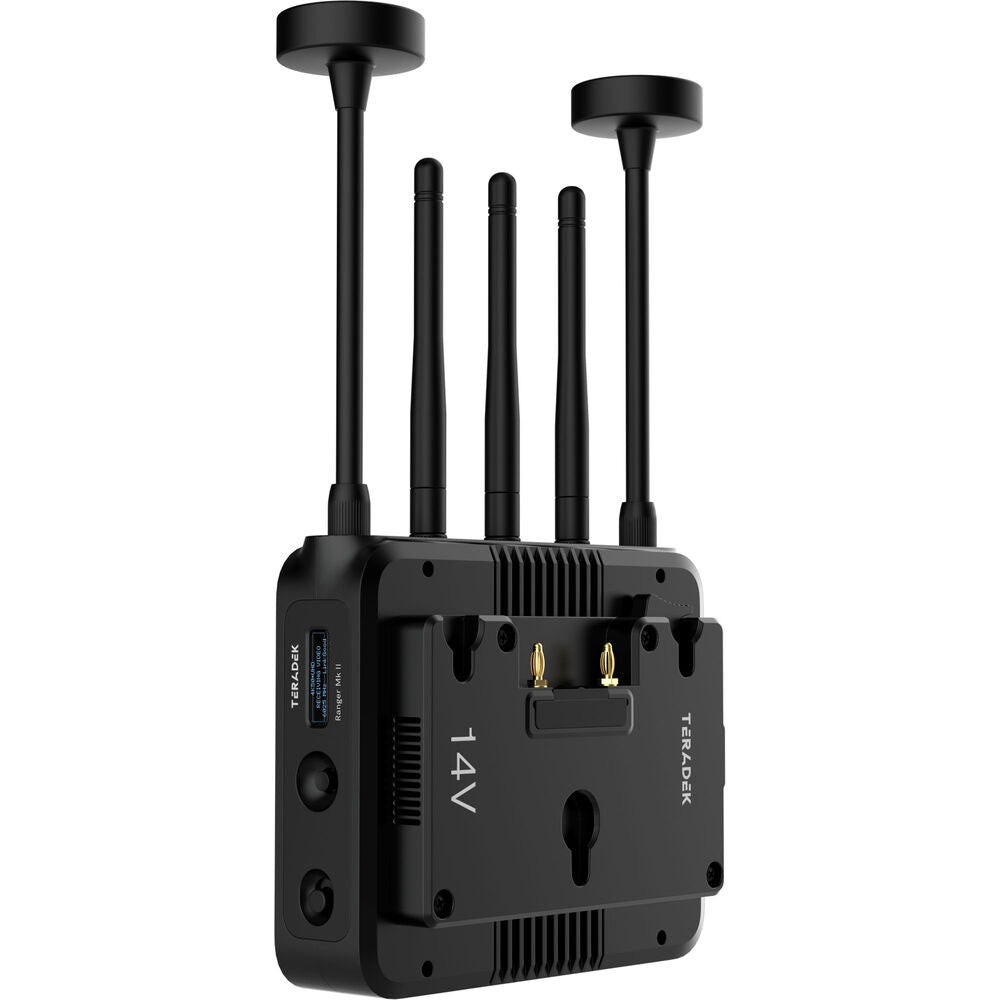

The Teradek Live Ranger Mk II 750 RX V-Mount (10-2582-V) is a professional wireless receiver for monitoring and distribution workflows, with a range of up to 750 ft / 228.6 m line of sight. It receives visually lossless video up to 4K60 in 10-bit 4:2:2 HDR and provides both HDMI and 12G-SDI outputs for simultaneous connection of production equipment.

It operates from 4.9 to 6.4 GHz, including licensed and unlicensed 6 GHz U-NII-5 channels, subject to local regulations. Five external antennas, AES-256 encryption, and sub-1 ms latency support reliable broadcast, live-event, drone, and handheld operation.

The receiver can pair with Ranger transmitters and one transmitter can serve up to six receivers. Launchpad via Bluetooth 5 LE simplifies configuration, channel selection, and RF spectrum analysis. Power is supplied via the 2-pin DC input or included V-Mount battery plate; 1/4-20 and 3/8-16 threads support rig mounting. The box includes the receiver, five 2 dBi antennas, and a V-Mount battery plate.
