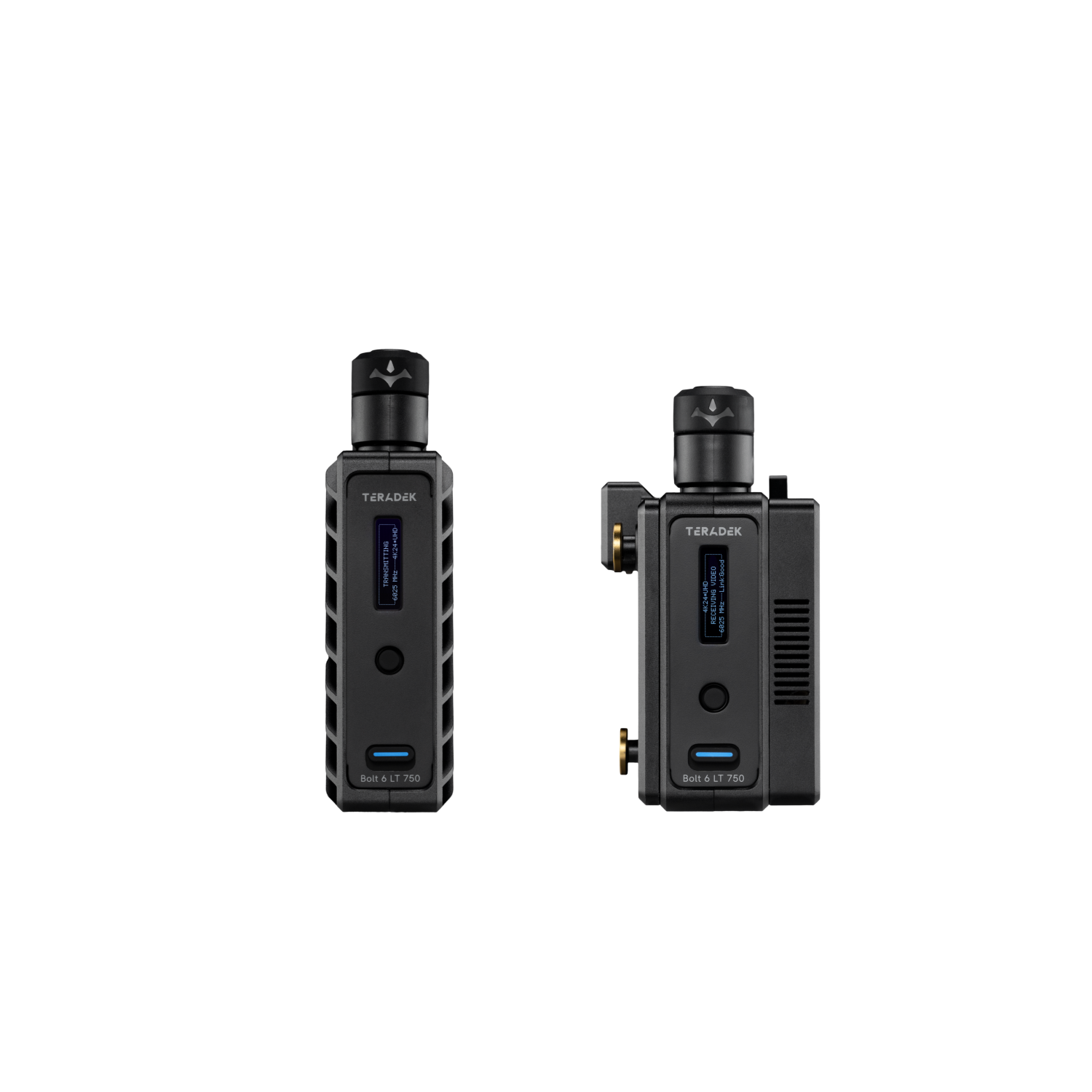

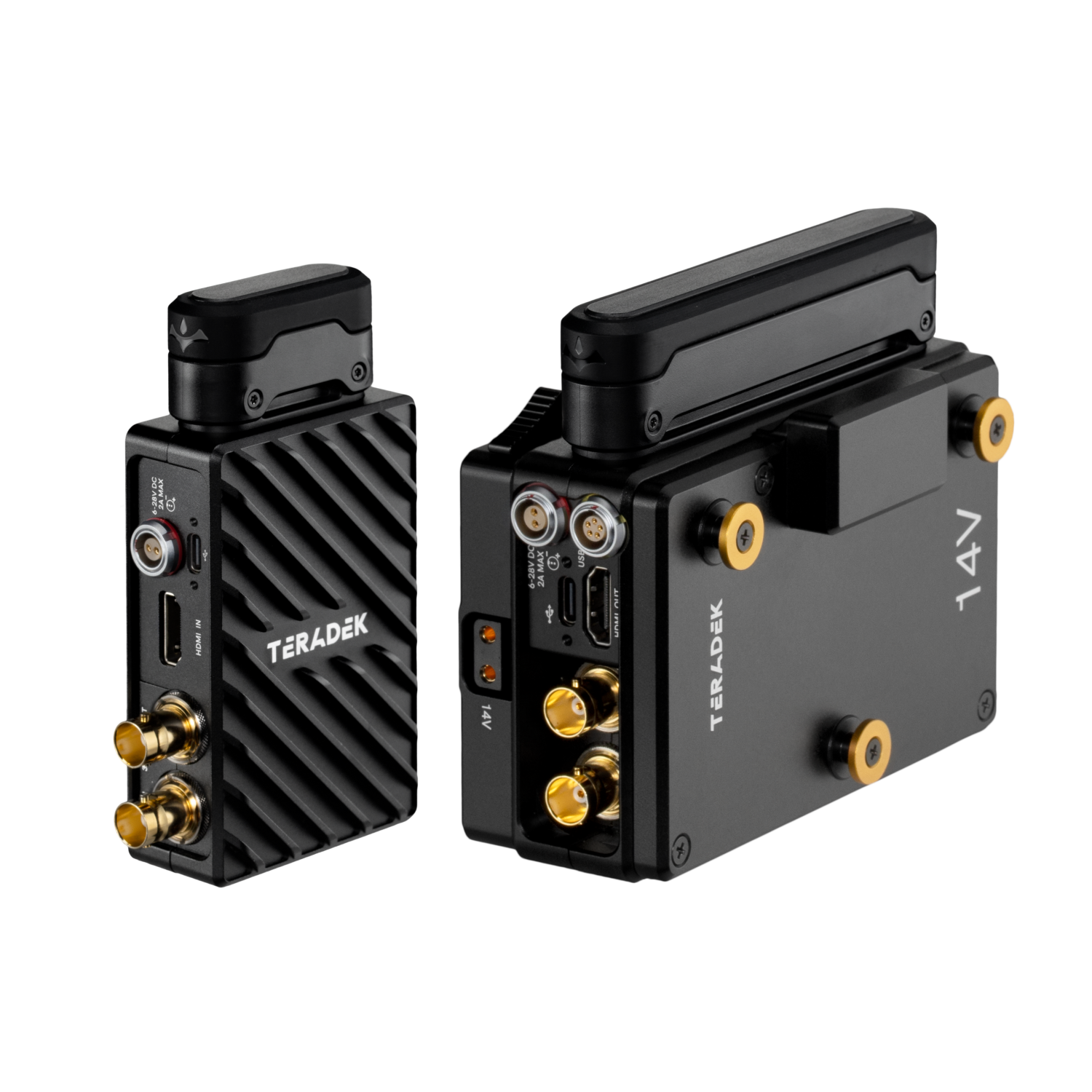

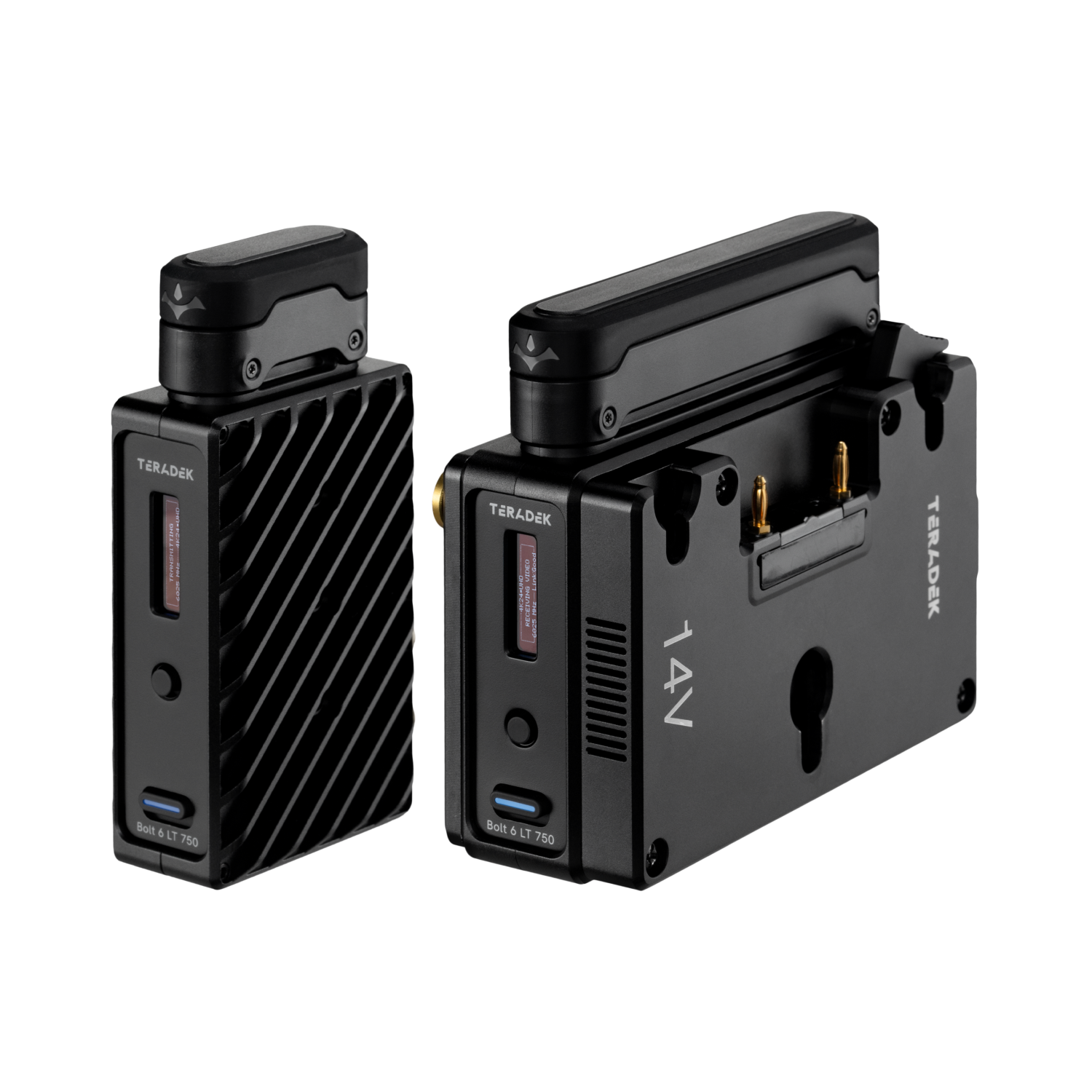

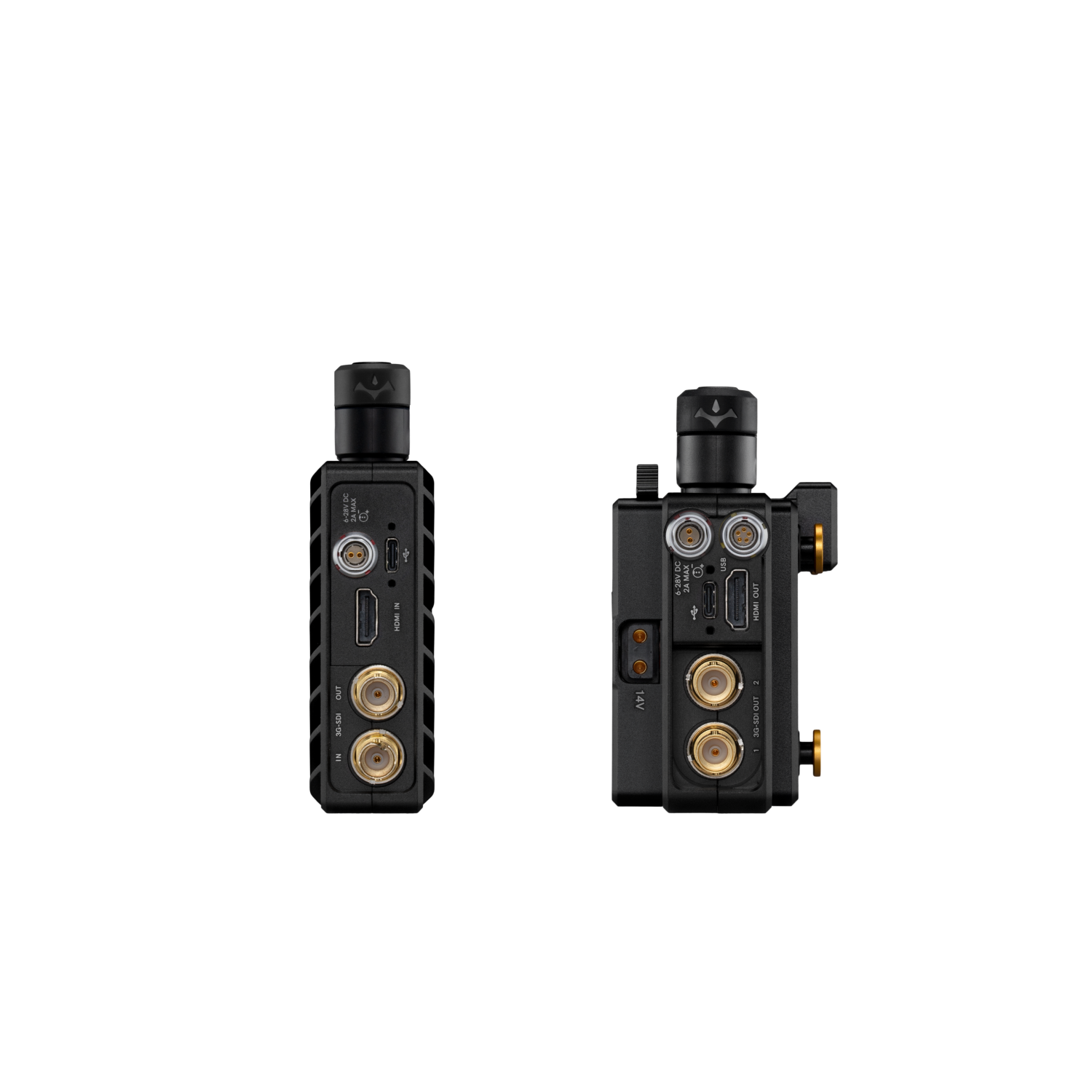

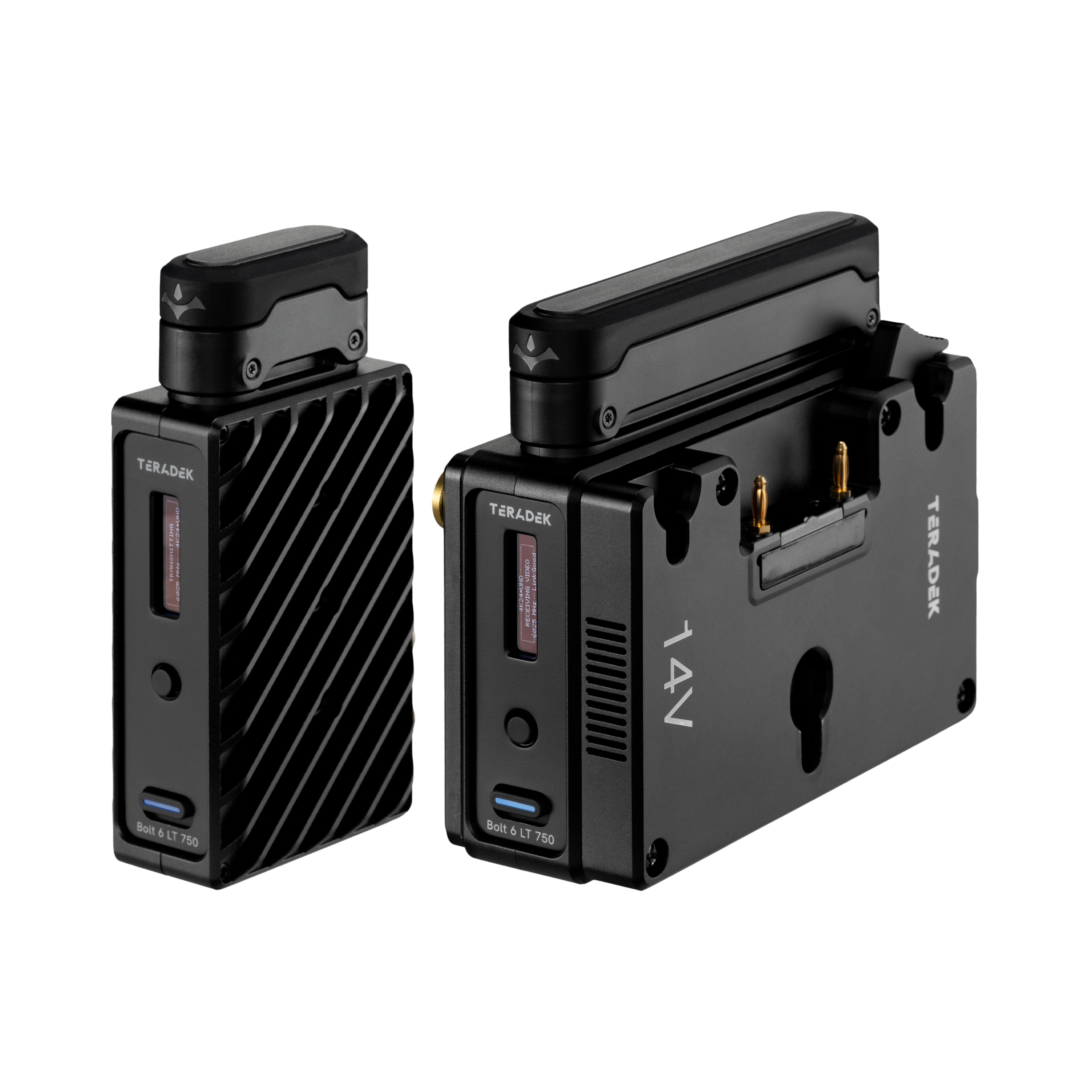

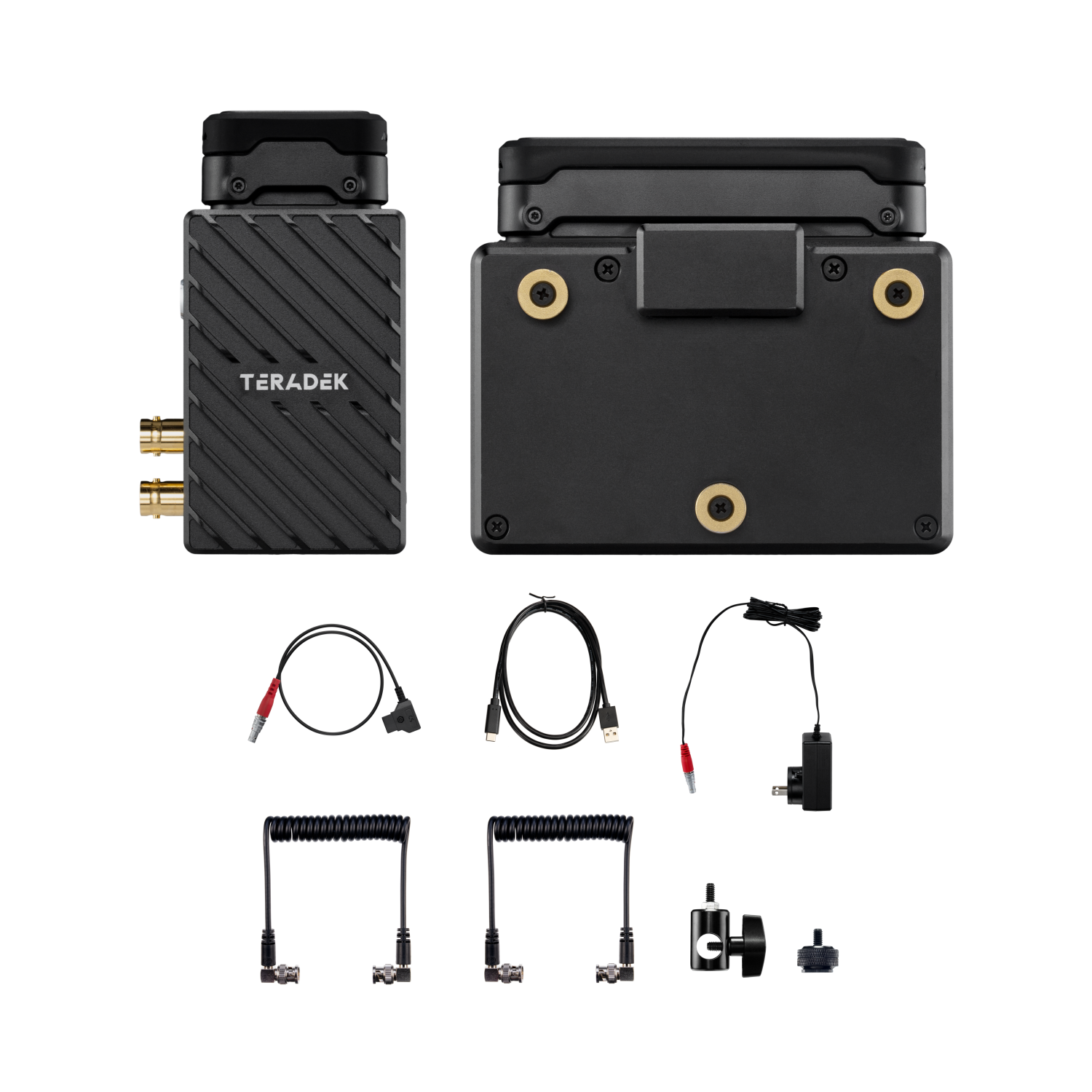

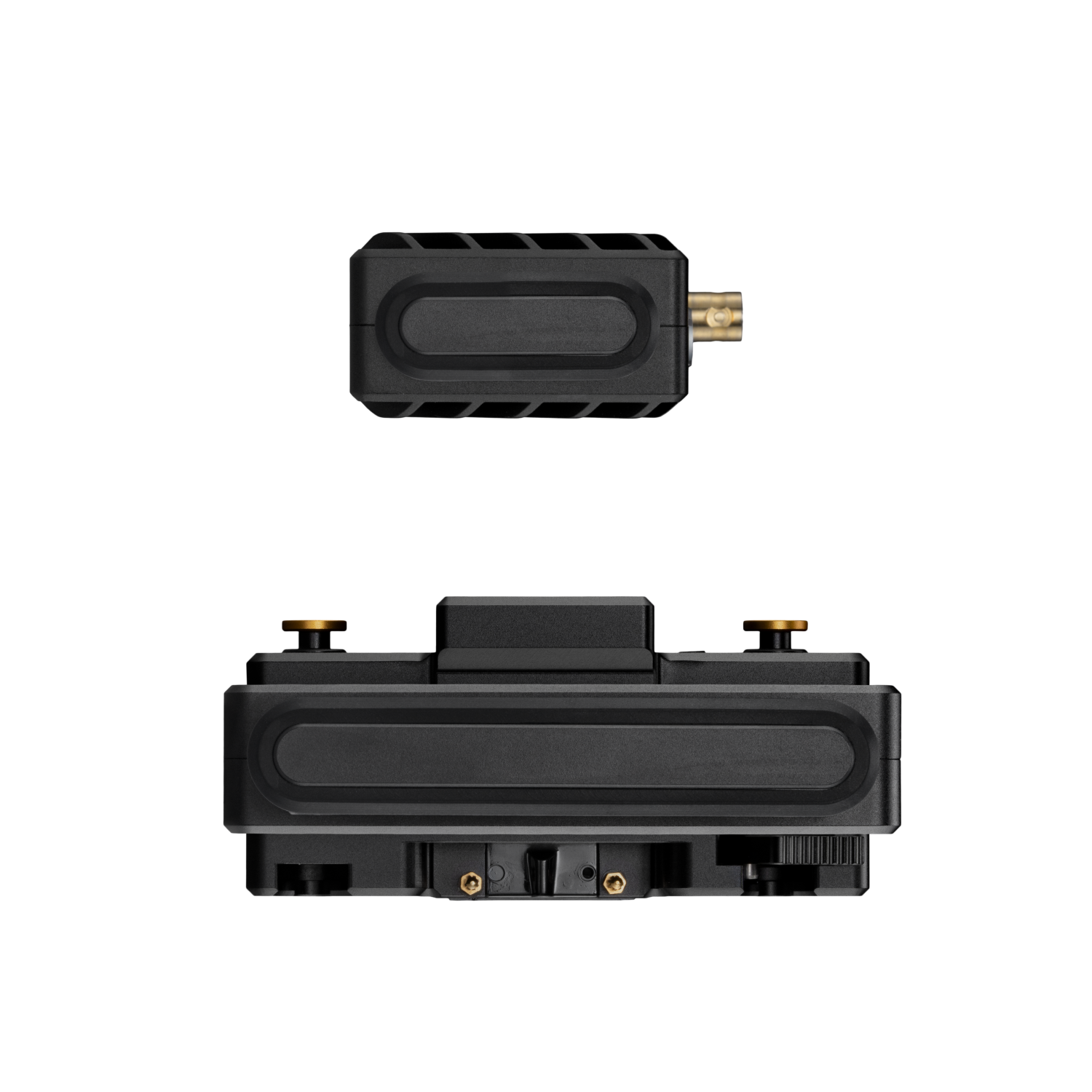

Teradek Bolt 6 LT 750 Int Ant TX / RX Gold-Mount

COMPACT BOLT 6 LT SET

The 10-2260-GII configuration combines a Bolt 6 LT 750 transmitter and receiver with permanently integrated antennas and Gold Mount power plates. It is designed for clean, rugged camera setups without protruding external antennas.

3G-SDI AND HDMI

The transmitter accepts 3G-SDI or HDMI; the receiver offers both 3G-SDI and HDMI outputs. The set supports up to 1080p60 10-bit 4:2:2 HDR via 3G-SDI and up to 4K30 via HDMI, making it easy to integrate into standard camera and monitoring workflows.

750 FT IN THE 5- AND 6-GHZ BANDS

With line-of-sight, this 750-ft version reaches up to approximately 228 m. The Bolt 6 LT wireless system operates on the 5 and 6 GHz bands, and a single transmitter can be used with up to six Bolt 6 LT receivers.
