Teradek Live Ranger Micro 5000 3G-SDI/HDMI - Wireless RX No Mount

Teradek Ranger Micro 5000 RX is a wireless-video receiver for professional monitoring and live production. This no-mount version receives uncompressed Ranger Micro video with virtually zero delay and, when used with a panel antenna, provides up to 5,000 ft (about 1,524 m) of line-of-sight range.

The receiver provides two 3G-SDI outputs and one HDMI 1.4b output for monitors, recorders, or other devices. It supports signals up to 1080p60, automatic output scaling to 1080p, a test pattern, and a spectrum analyser for locating a less congested channel. Ranger Micro operates across licensed and unlicensed 4.9–6.4 GHz bands and uses AES-256 encryption.

RANGER MICRO 5000 · RECEIVER ONLY

WIRELESS VIDEO UP TO 5,000 FT

The standalone Ranger Micro 5000 receiver adds another monitoring position to an existing wireless system. It receives uncompressed video up to 1080p60 with effectively zero delay; the stated range requires line of sight and a panel antenna.

OUTPUTS FOR VIDEO VILLAGE

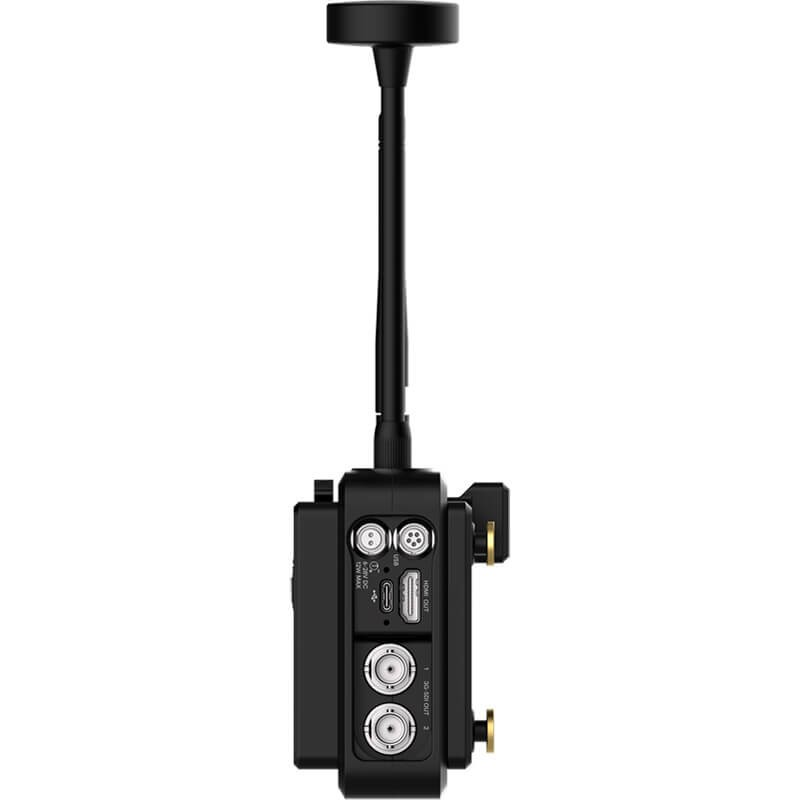

Two 3G-SDI outputs and one HDMI output connect production monitors or recorders. Built-in scaling can adjust the output format to 1080p, while the test pattern and spectrum analyzer help with setup on location.

FLEXIBLE RIGGING

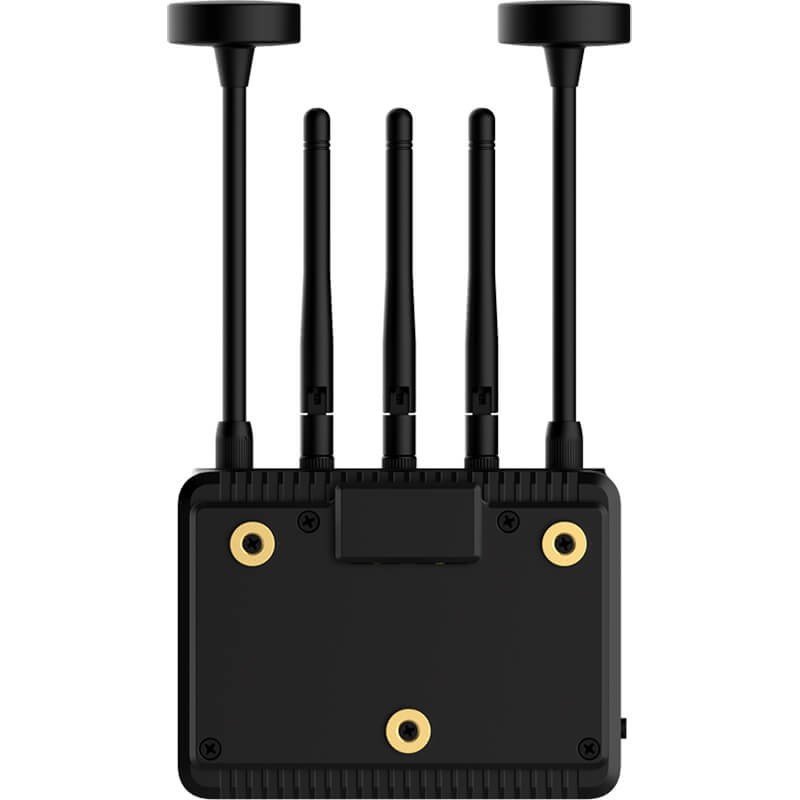

The 10-2557 configuration is sold without a battery mount. The receiver has mounting threads and uses a locking 2-pin 7–28 V DC power input. A compatible Ranger transmitter can serve multiple receivers simultaneously.
