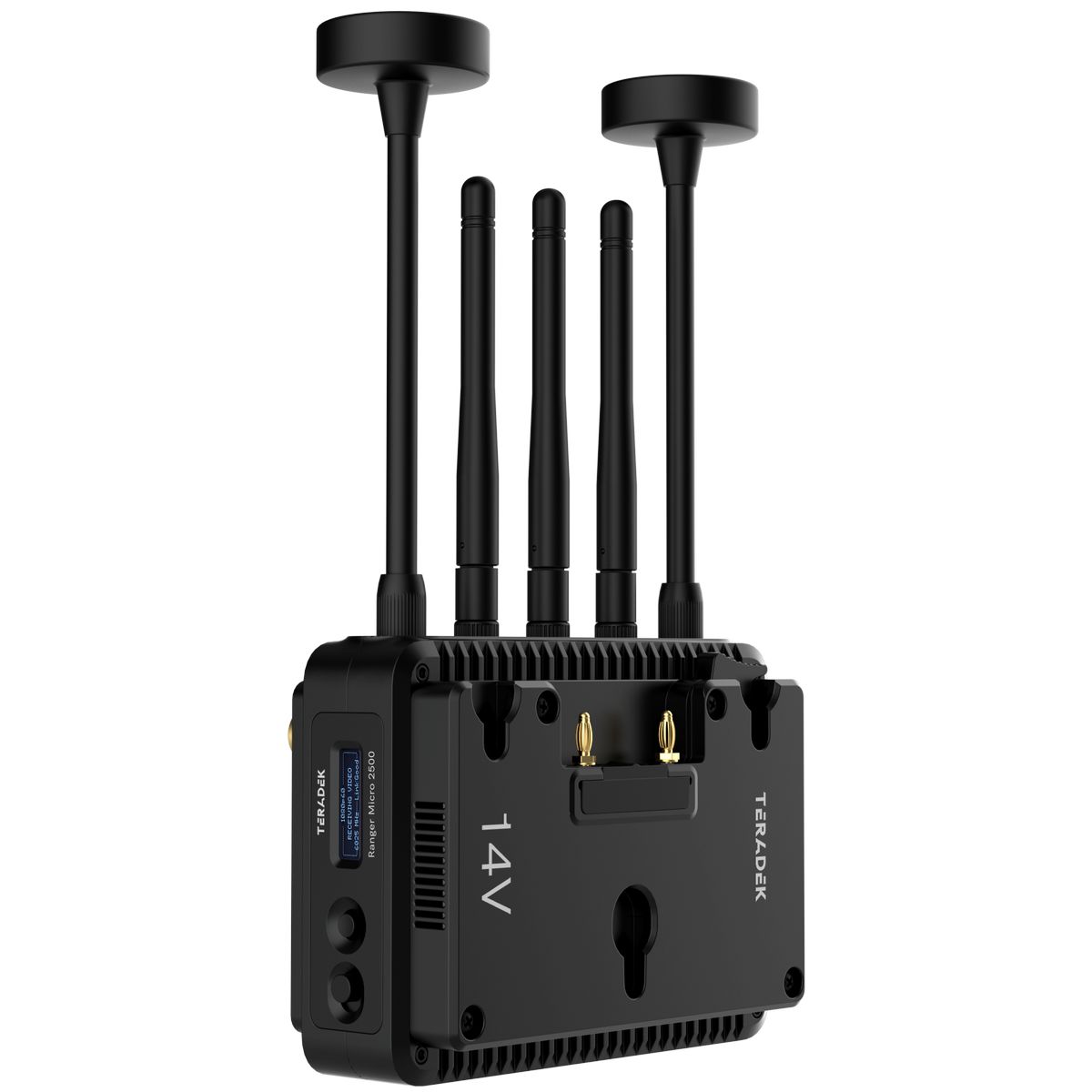

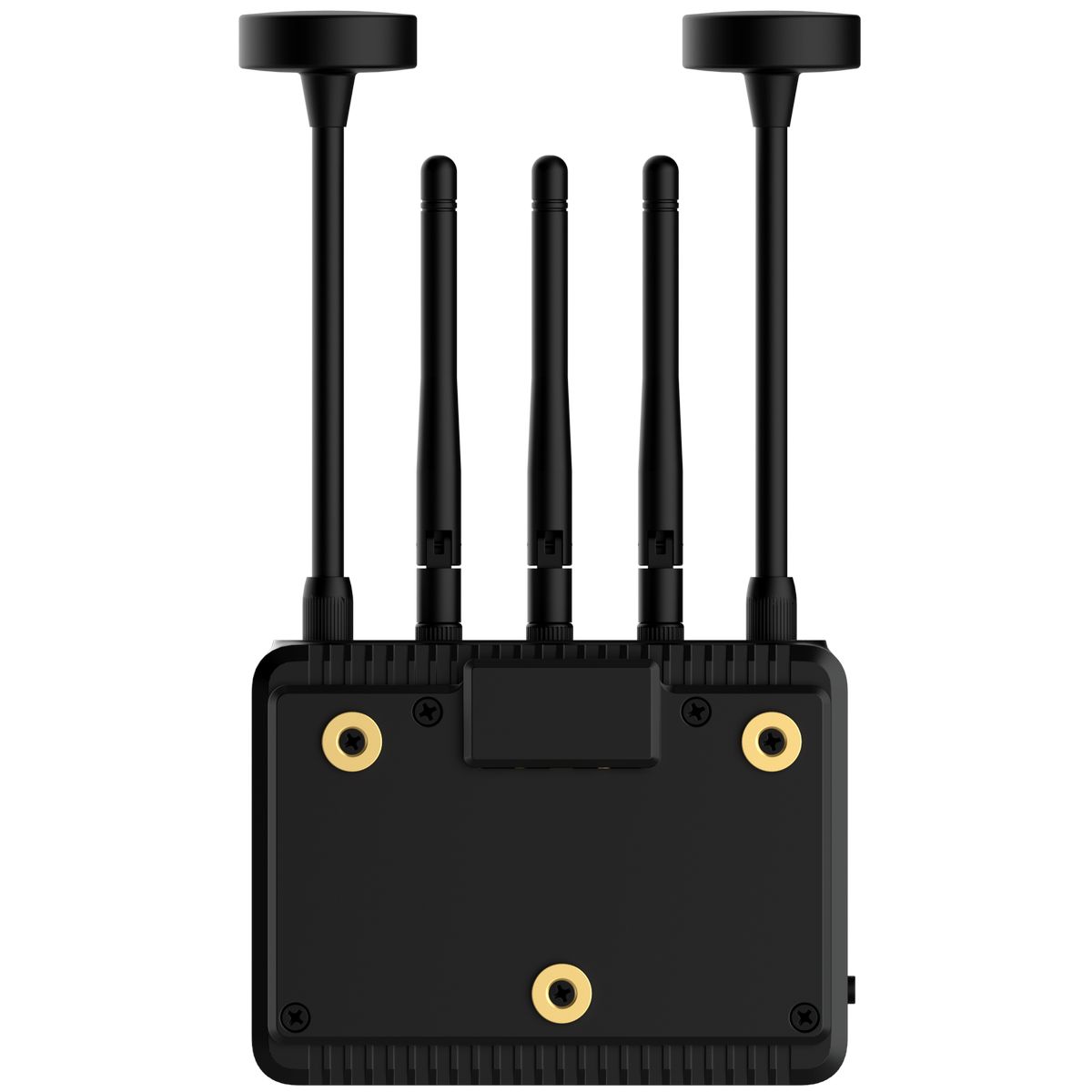

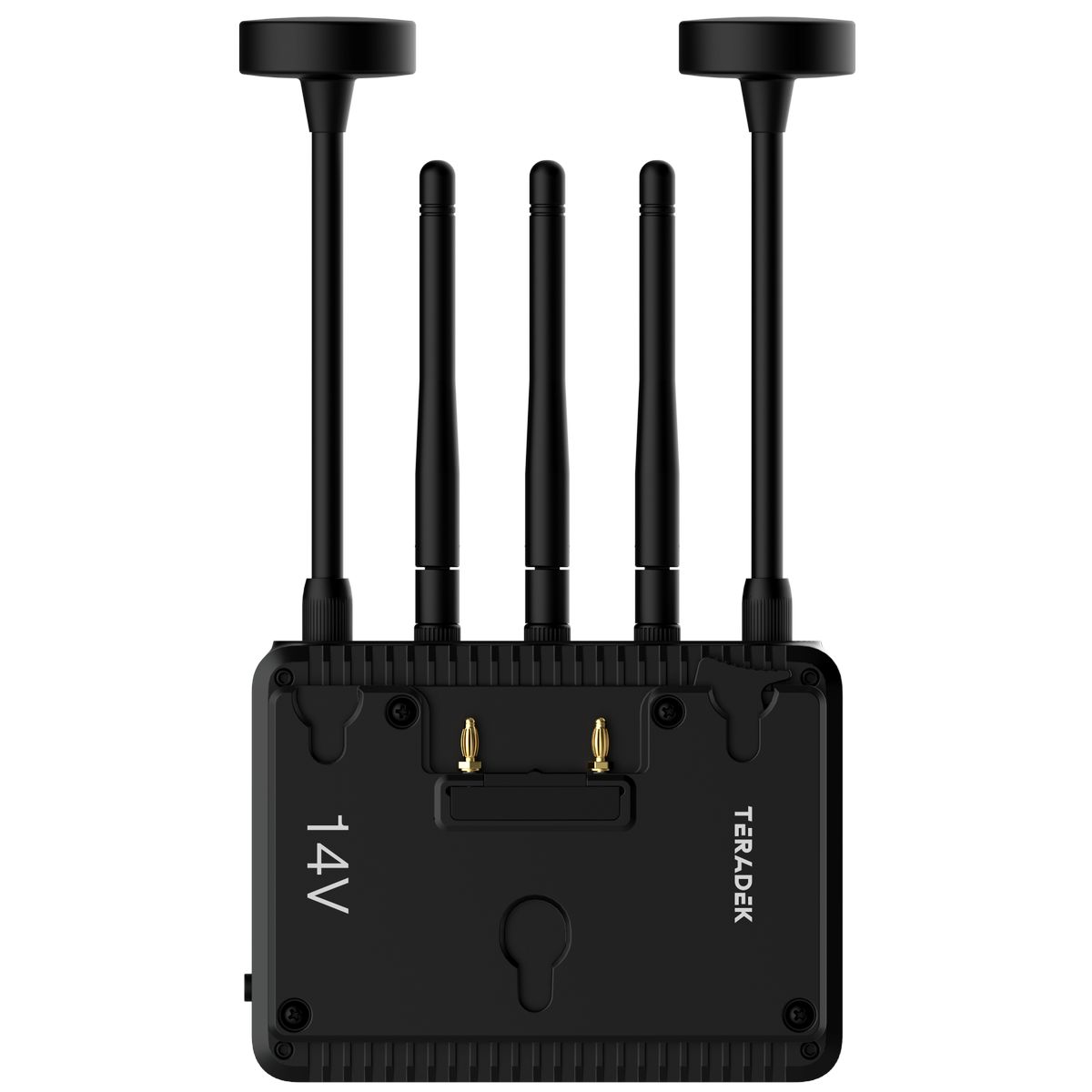

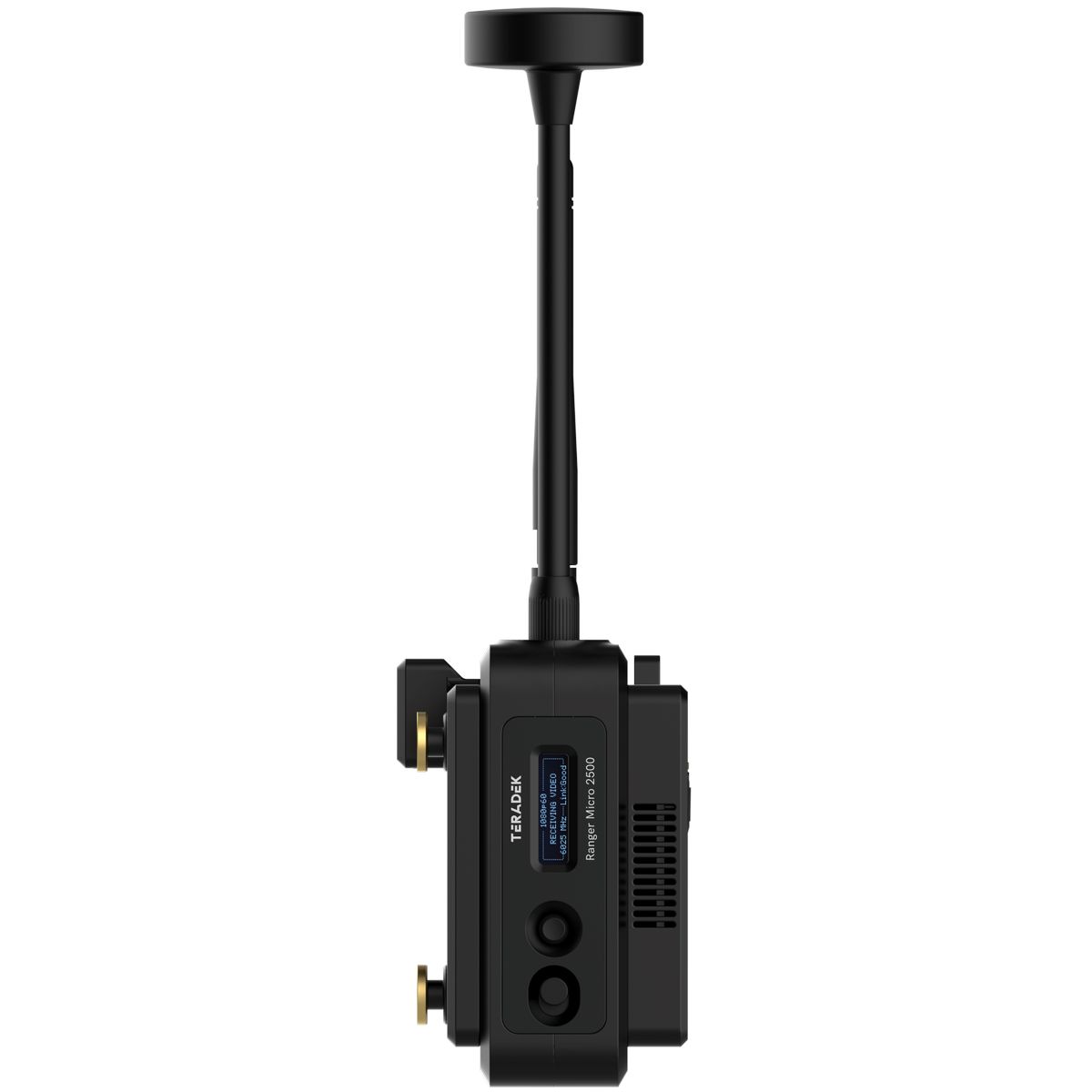

Teradek Ranger Micro Wireless RX 5000 (3G-SDI/HDMI) (Gold-Mount)

The Teradek Ranger Micro 5000 RX Gold-Mount (10-2557-G) is a wireless receiver for professional HD video transmission with a range of up to 5,000 ft / approximately 1,524 m in line of sight. It receives video up to 1080p60 in 10-bit HDR across the 4.9–6.4 GHz bands and outputs it via 3G-SDI and HDMI.

Five external antennas, AES-256 encryption, and virtually zero latency support broadcast, sports production, drones, and handheld camera setups. An integrated Gold-Mount plate and 2-pin DC input allow for flexible power supply; the receiver can be paired with Ranger transmitters, with the resulting range determined by the weaker link in the pair. Before ordering, verify the compatible TX unit, the frequency band used, and the power supply configuration.

Teradek Ranger Micro 5000 · RX · Gold-Mount

HD reception for live production

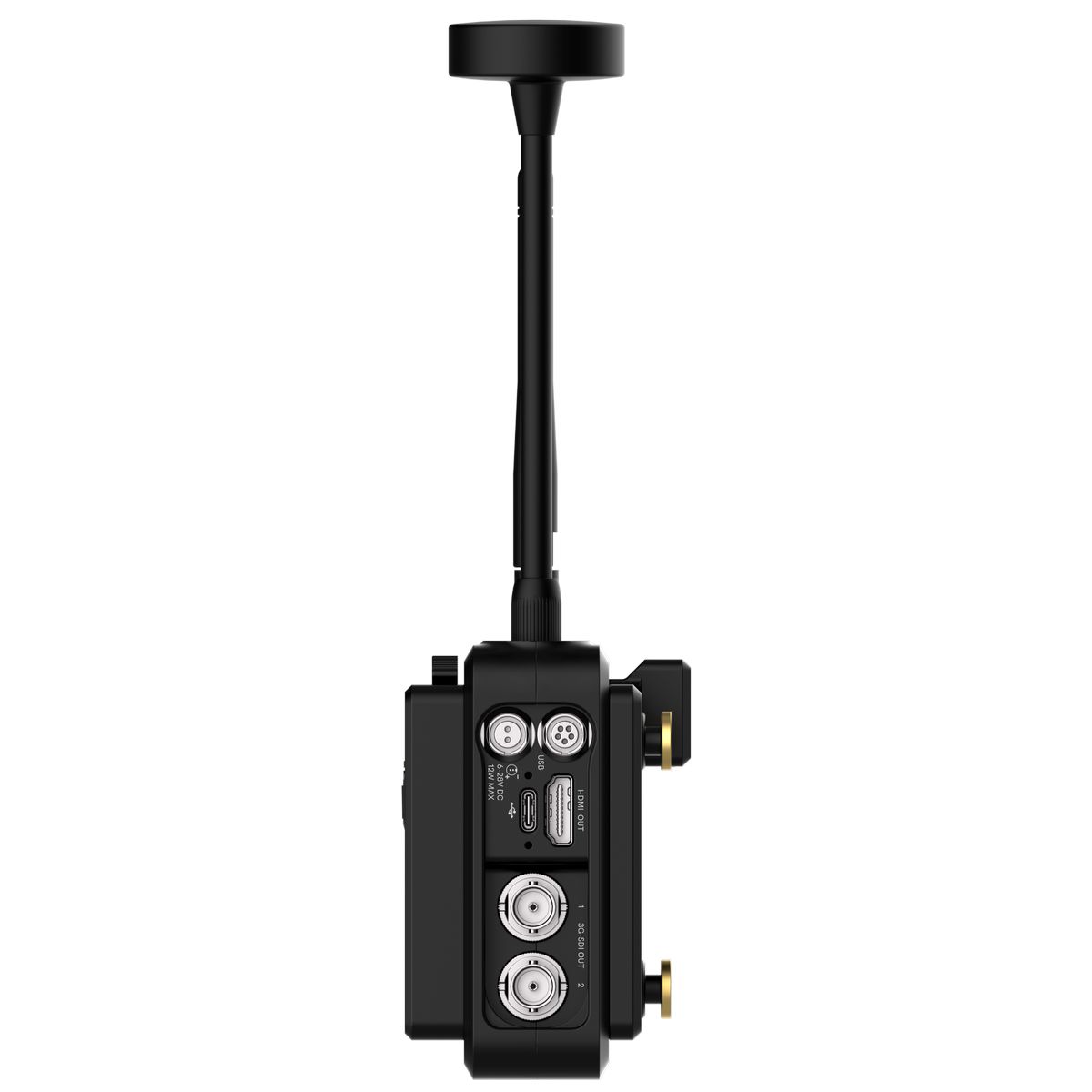

Add a dedicated receiver to a Ranger wireless-video workflow. This RX sends the received HD feed to a monitor or switcher through two 3G-SDI outputs and HDMI, while its Gold-Mount plate supports battery-powered placement away from mains power.

Low-delay, protected signal

The Ranger link supports video up to 1080p60, sub-1 ms TX-to-RX delay without format conversion, and AES-256 encryption. Five vertical antennas support reception across the permitted 4.9–6.425 GHz channels.

Flexible monitoring point

Use the integrated Gold-Mount plate or the locking 2-pin 7–28 V DC input. Ranger Manager provides pairing and RF monitoring; this separately sold receiver requires a compatible Ranger transmitter.

The quoted maximum 5,000 ft / 1,524 m line-of-sight range requires the appropriate panel antenna and a capable paired transmitter. Available frequencies depend on local rules, region and firmware.
