Teradek Bolt 7 1500 12G-SDI/HDMI Wireless TX/RX Set

Teradek Bolt 7 1500 TX/RX Set is a complete near-zero-delay 4K HDR wireless video system with up to 450 m of range. It combines a transmitter and receiver with 12G-SDI and HDMI and a dedicated 900 MHz channel for camera and monitor control, Ethernet transport, and colour-management workflows. Full-color OLED displays, streamlined pairing and the Bolt App make…

More information

10 369 € with VAT 8 569.42 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Teradek Bolt 7 1500 TX/RX Set is a complete near-zero-delay 4K HDR wireless video system with up to 450 m of range. It combines a transmitter and receiver with 12G-SDI and HDMI and a dedicated 900 MHz channel for camera and monitor control, Ethernet transport, and colour-management workflows. Full-color OLED displays, streamlined pairing and the Bolt App make connection setup and RF checks easier on set. The system integrates with compatible Bolt 4K, Bolt 6 and RF-X equipment.

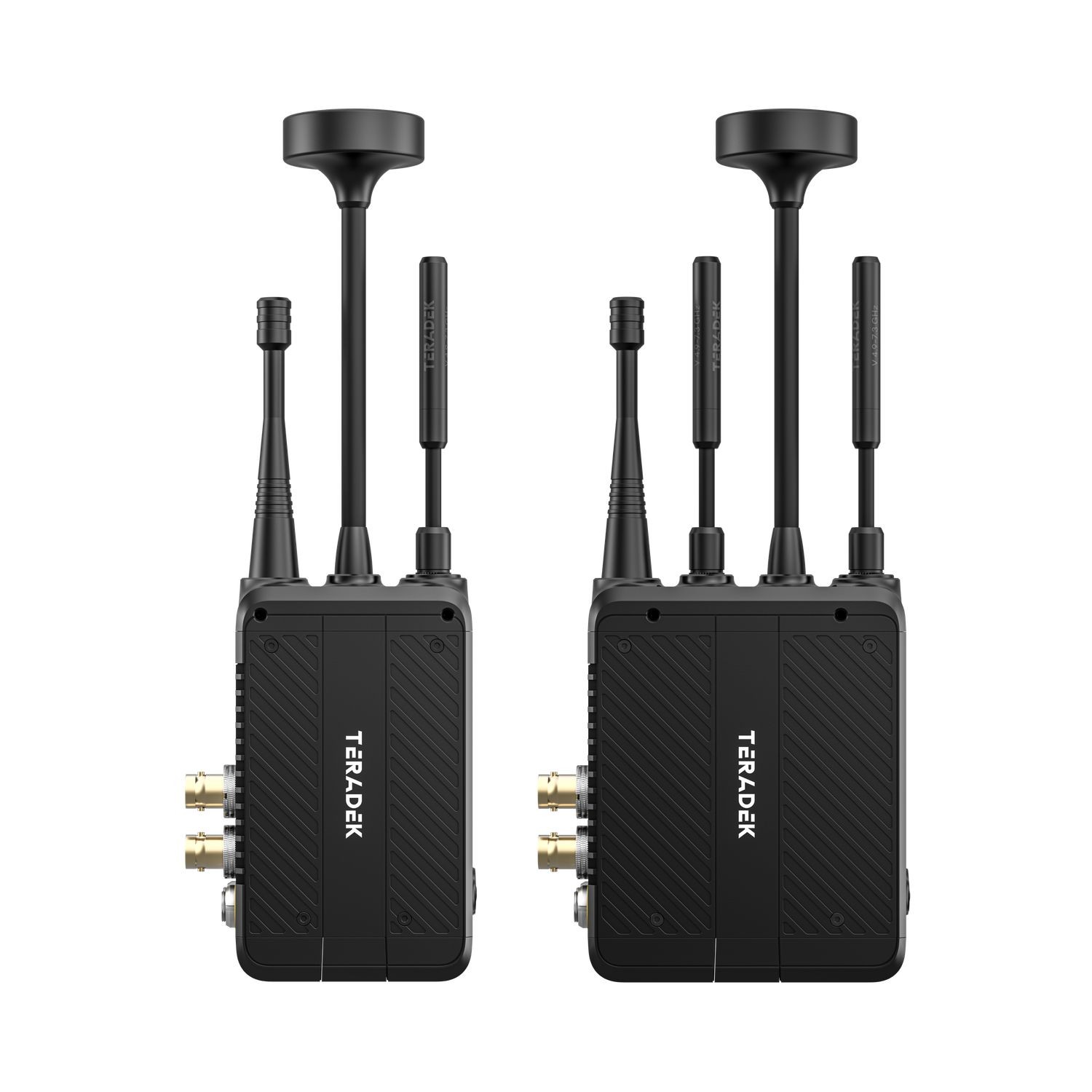

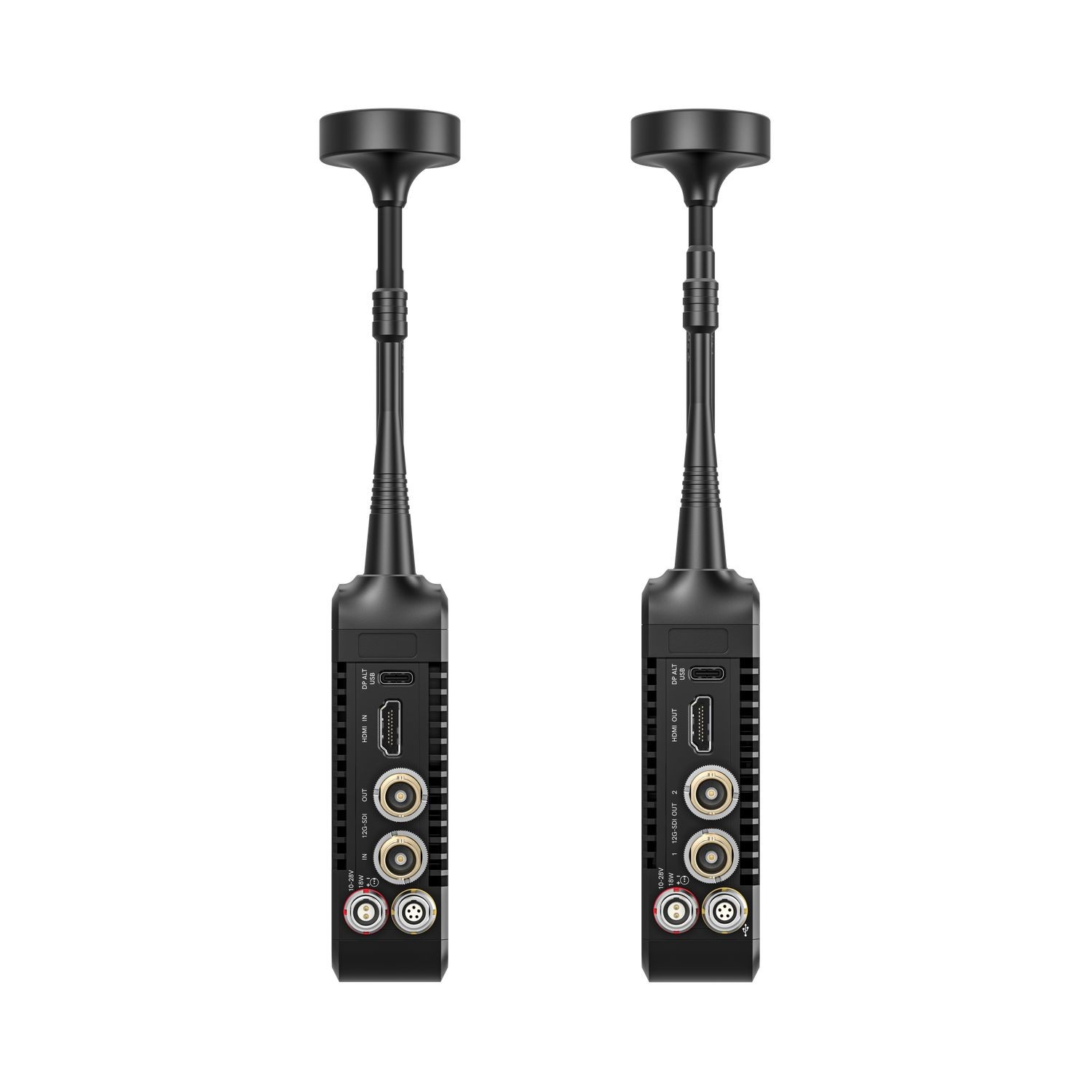

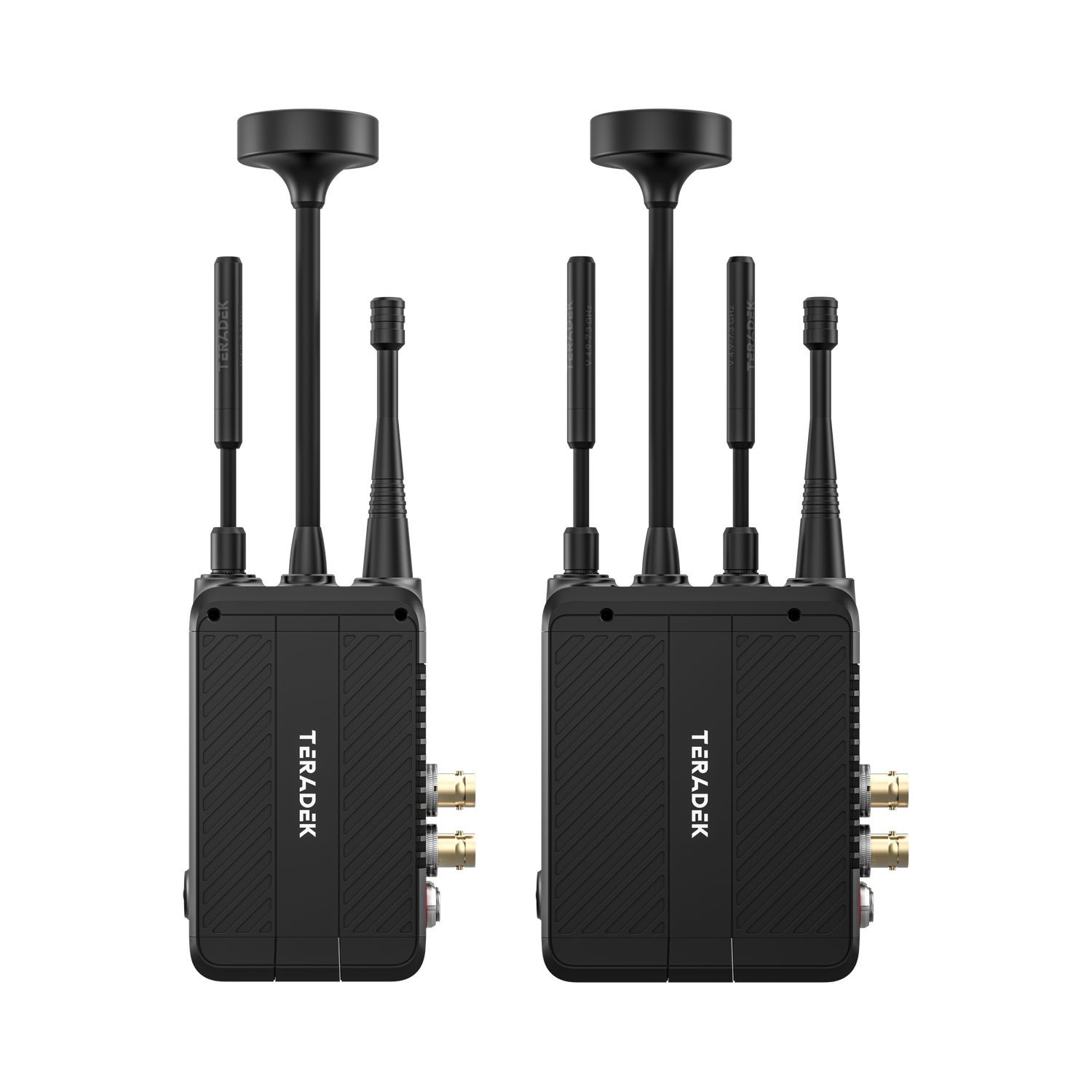

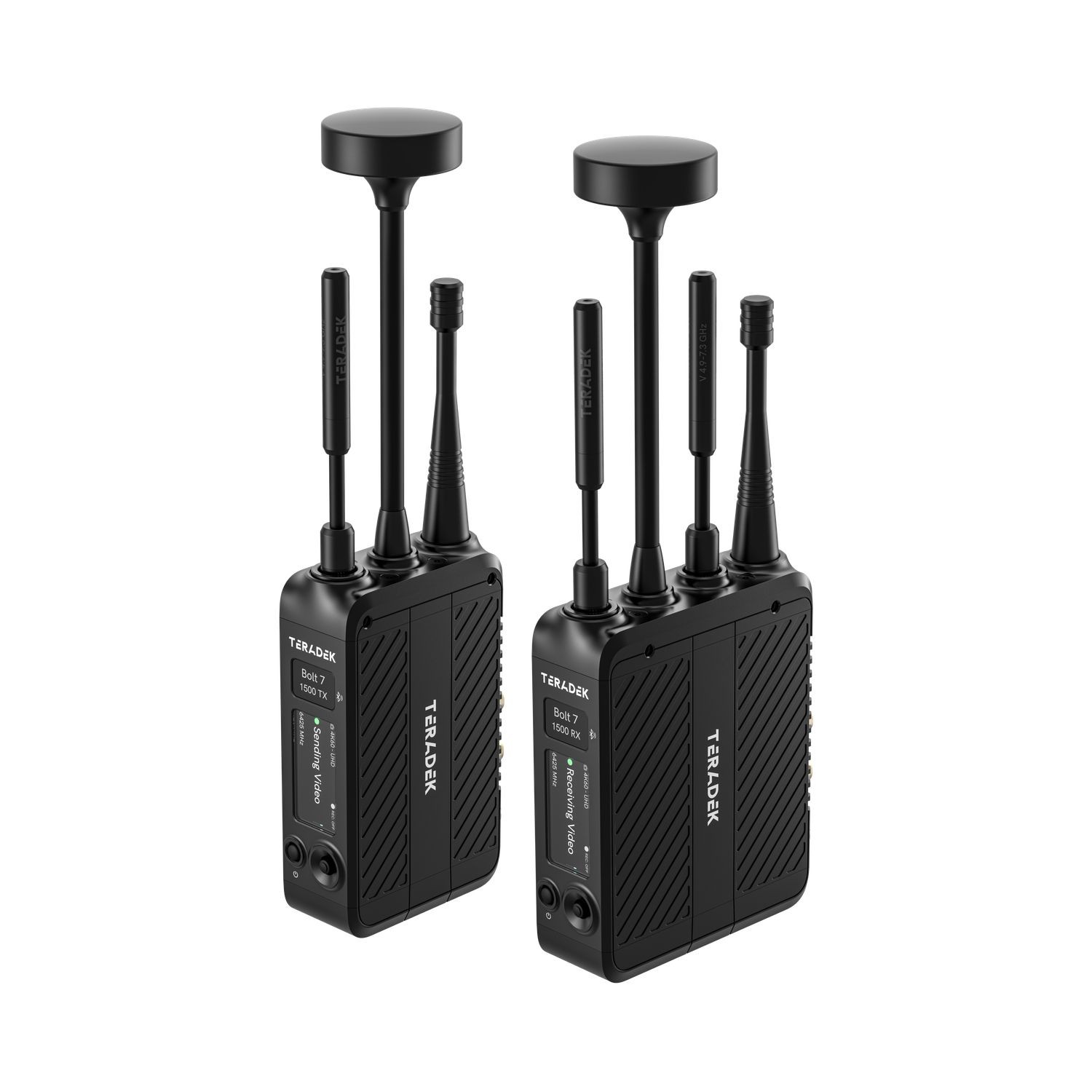

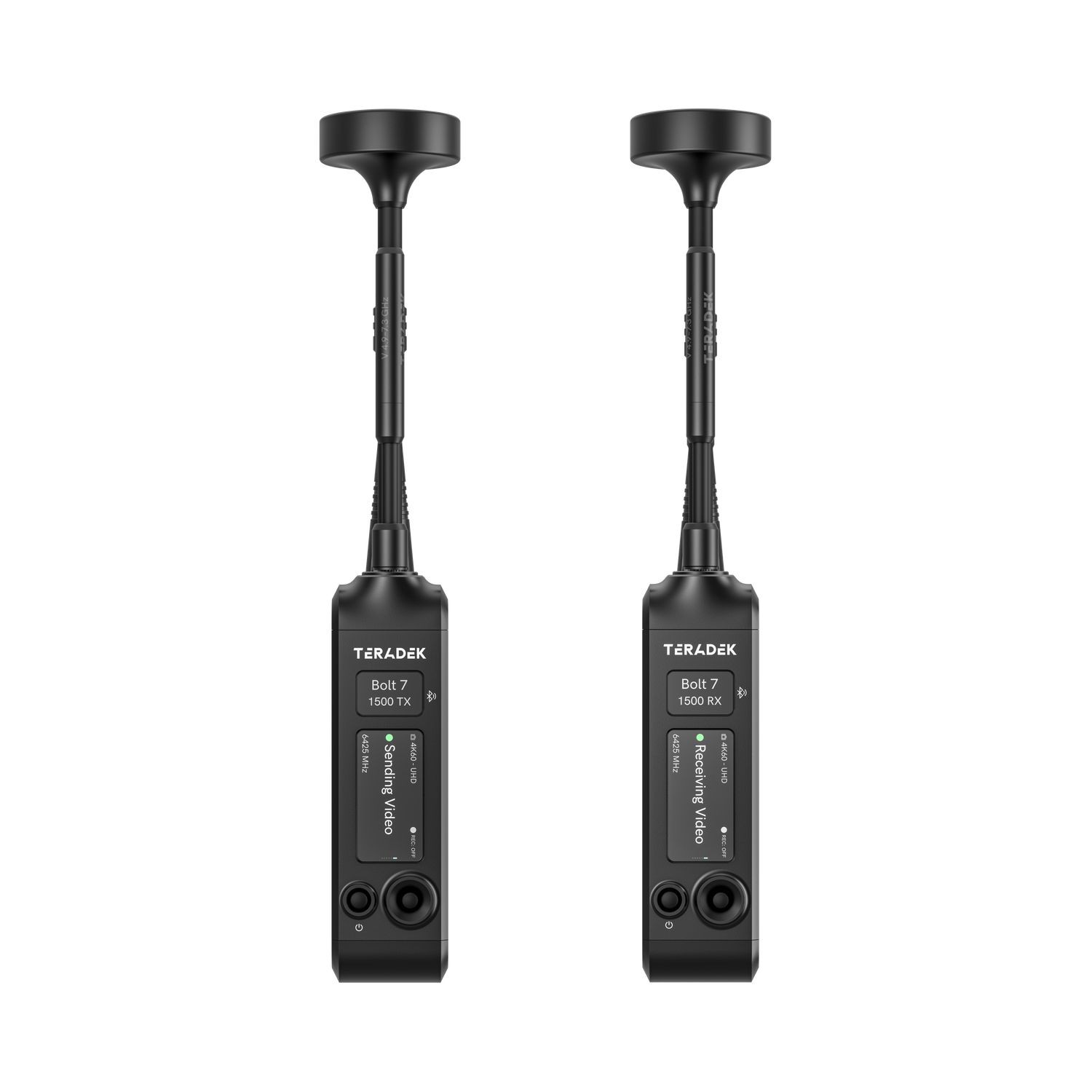

Teradek Bolt 7 1500 TX/RX
BOLT 7 · 1500 · TX/RX

4K HDR up to 1,500 ft

Bolt 7 1500 TX/RX Set combines a transmitter and receiver for professional wireless video over long distances. Near-zero-delay 4K HDR transmission is designed for cinema, broadcast, and live production.

12G-SDI, HDMI, AND 900 MHZ DATA

The set works through 12G-SDI or HDMI. A dedicated 900 MHz channel operates alongside video transport for camera and monitor control, Ethernet transport, and colour-management workflows.

FAST DEPLOYMENT

OLED displays, fast pairing, and the Bolt App simplify deployment and RF monitoring. The set is backward-compatible with Bolt 4K, Bolt 6, and RF-X systems.

Packed for location work

The official 10-2710 kit photograph shows the transmitter and receiver in their protective case with cables and accessories. Battery cradles are not included with this standard configuration.

Teradek Bolt 7 1500 set case

PACKAGE CONTENT

  • 1× Bolt 7 1500 transmitter
  • 1× Bolt 7 1500 receiver
  • 3× 2 dBi Flex V 4.9–7.3 GHz RP-SMA antenna
  • 2× 2 dBi Flexible H Mushroom 4.9–7.3 GHz RP-SMA antenna
  • 2× 865–926 MHz SMA antenna
  • 2× 12G-SDI BNC–BNC cable, 18 in
  • 1× USB-C–USB-C DP Alt Mode cable, 36 in
  • 2× 2-pin-to-PowerTap cable, 18 in
  • 1× 36 W AC power supply with 2-pin connector
  • 1× 5-pin Lemo-to-USB-C cable, 36 in
  • 1× Wooden Camera Universal Ultra Arm Mini
  • 1× Teradek Bolt 7 protective case

SPECIFICATIONS

  • Model: 10-2710
  • Configuration: transmitter + receiver
  • Maximum range: up to 1,500 ft / 450 m
  • Video: up to 4096 × 2160p60 via 12G-SDI / HDMI
  • Data channel: 900 MHz
  • Video bands: 5 / 6 GHz
  • Pairing: wireless over 900 MHz or direct cable
  • Display: 2″ full-color OLED
  • Compatibility: Bolt 4K, Bolt 6, RF-X
  • Battery cradles: not included
Parameters

Parameters

Manufacturer: Teradek
Category: Wireless video transmission

Main parameters

LatencyZero delay
InputHDMI · SDI
