Teradek BIT-798 Bond Dual V-Mount Batt plate 14.4V Cable (Approx 27cm)

+2
  • New
SKU: TE-BIT798

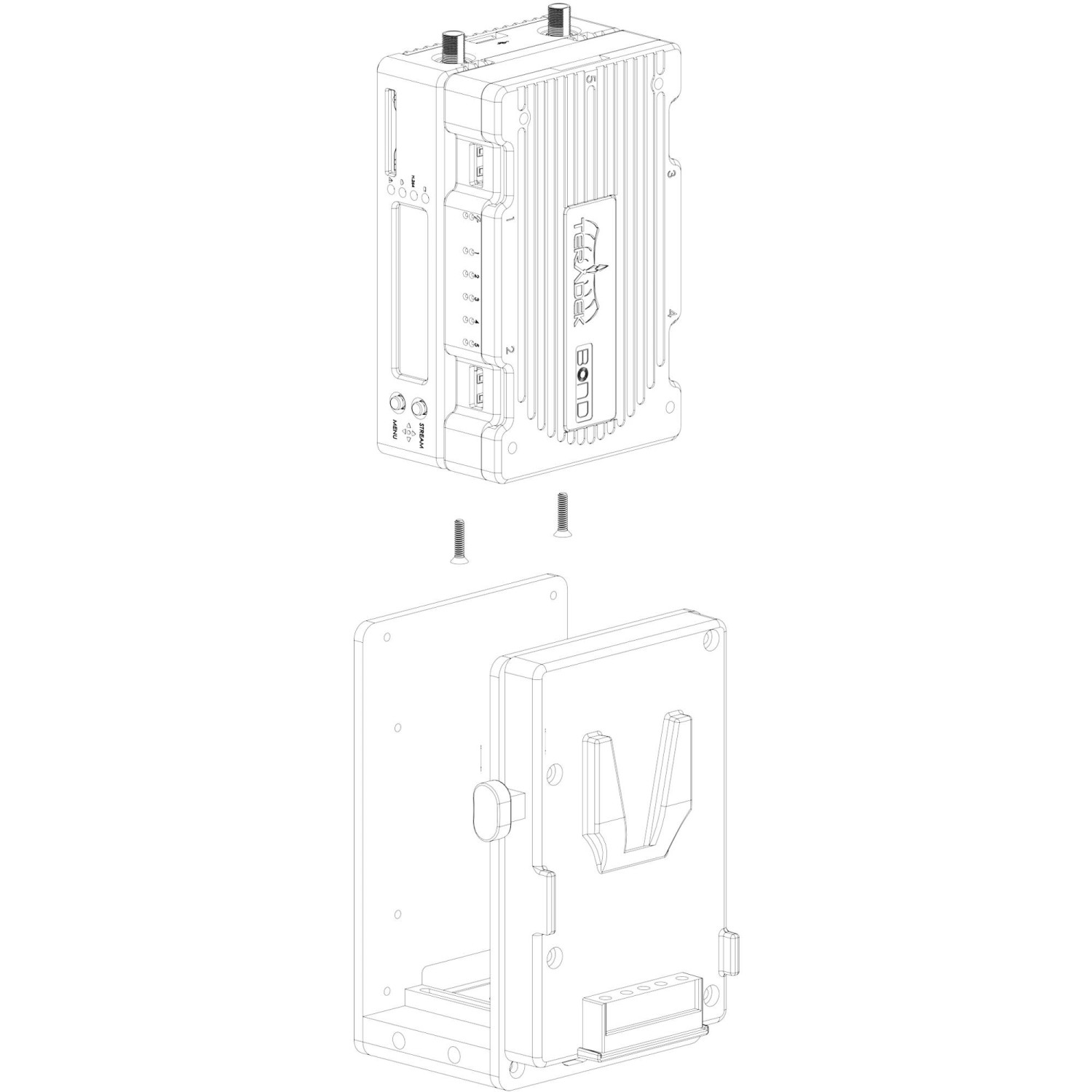

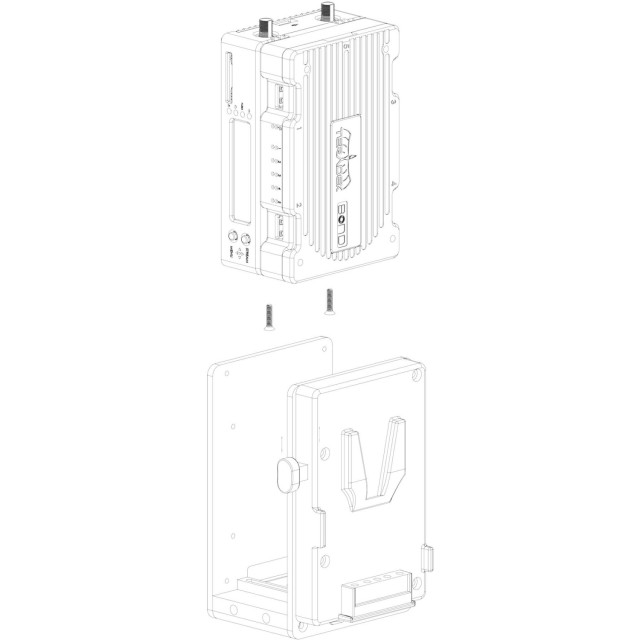

The Teradek BIT‑798 / 11‑0798 is a dual-pass-through V‑Mount plate for powering Teradek Bond and Cube 600/700 units from two 14.4V batteries. It allows you to place the unit between a camera or monitor and two V-Mount batteries; the side D-Tap output provides up to 50 W.

More information

469 € with VAT 387.6 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TE-BIT798
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Teradek BIT‑798 / 11‑0798 is a dual-pass-through V‑Mount plate for powering Teradek Bond and Cube 600/700 units from two 14.4V batteries. It allows you to place the unit between a camera or monitor and two V-Mount batteries; the side D-Tap output provides up to 50 W.

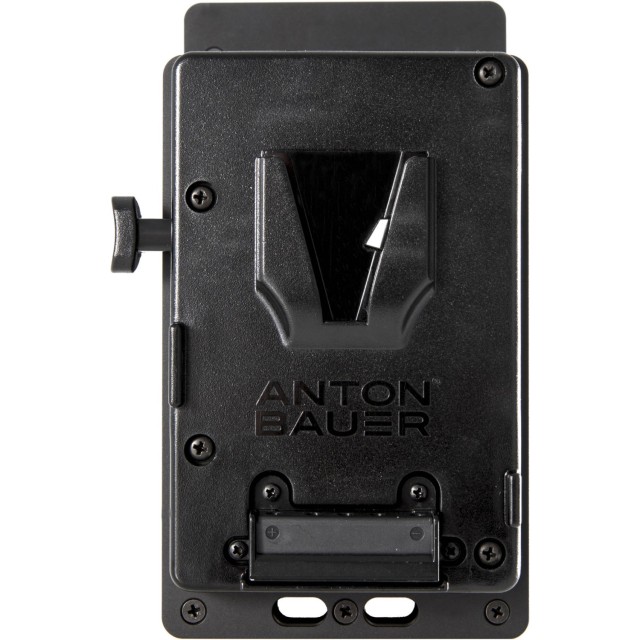

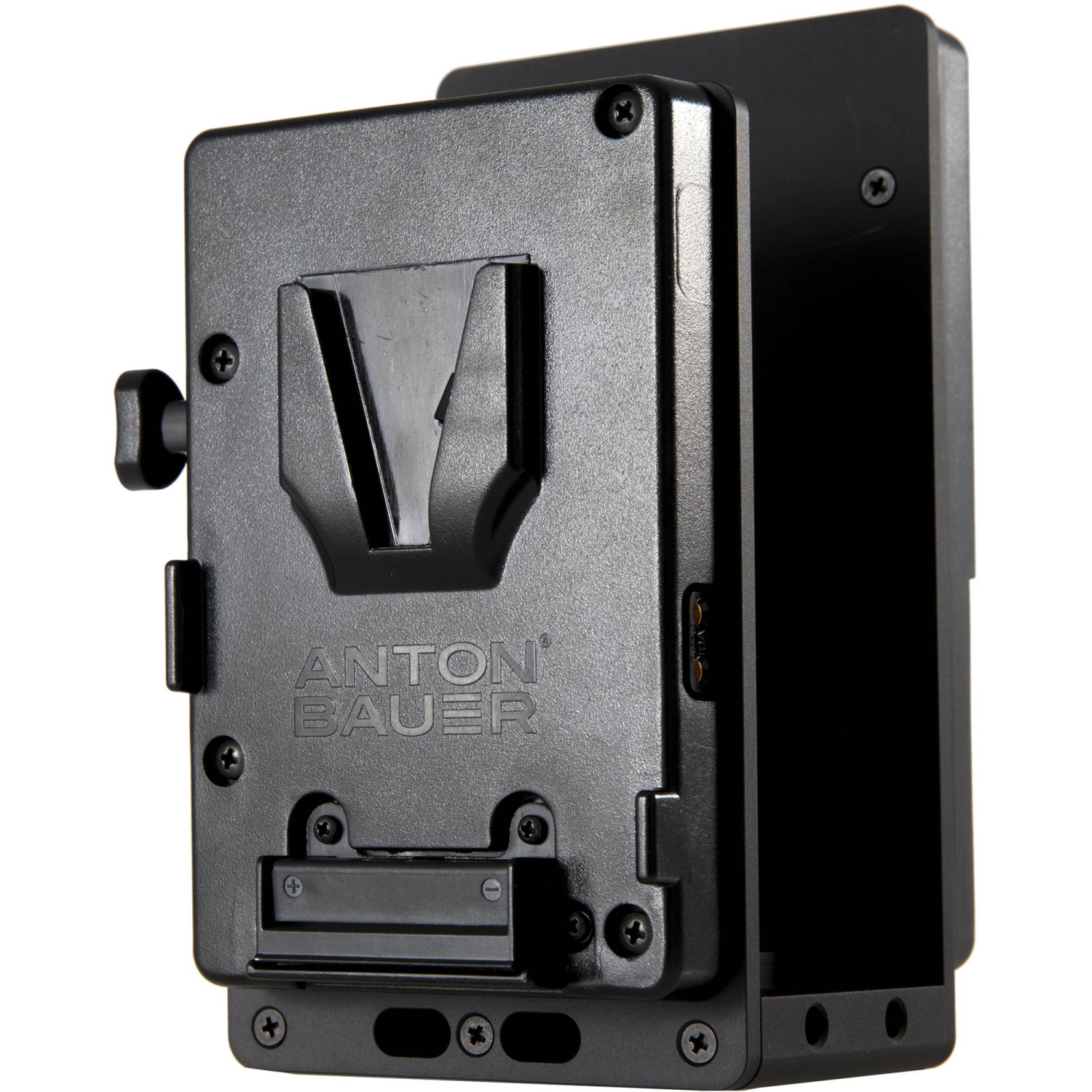

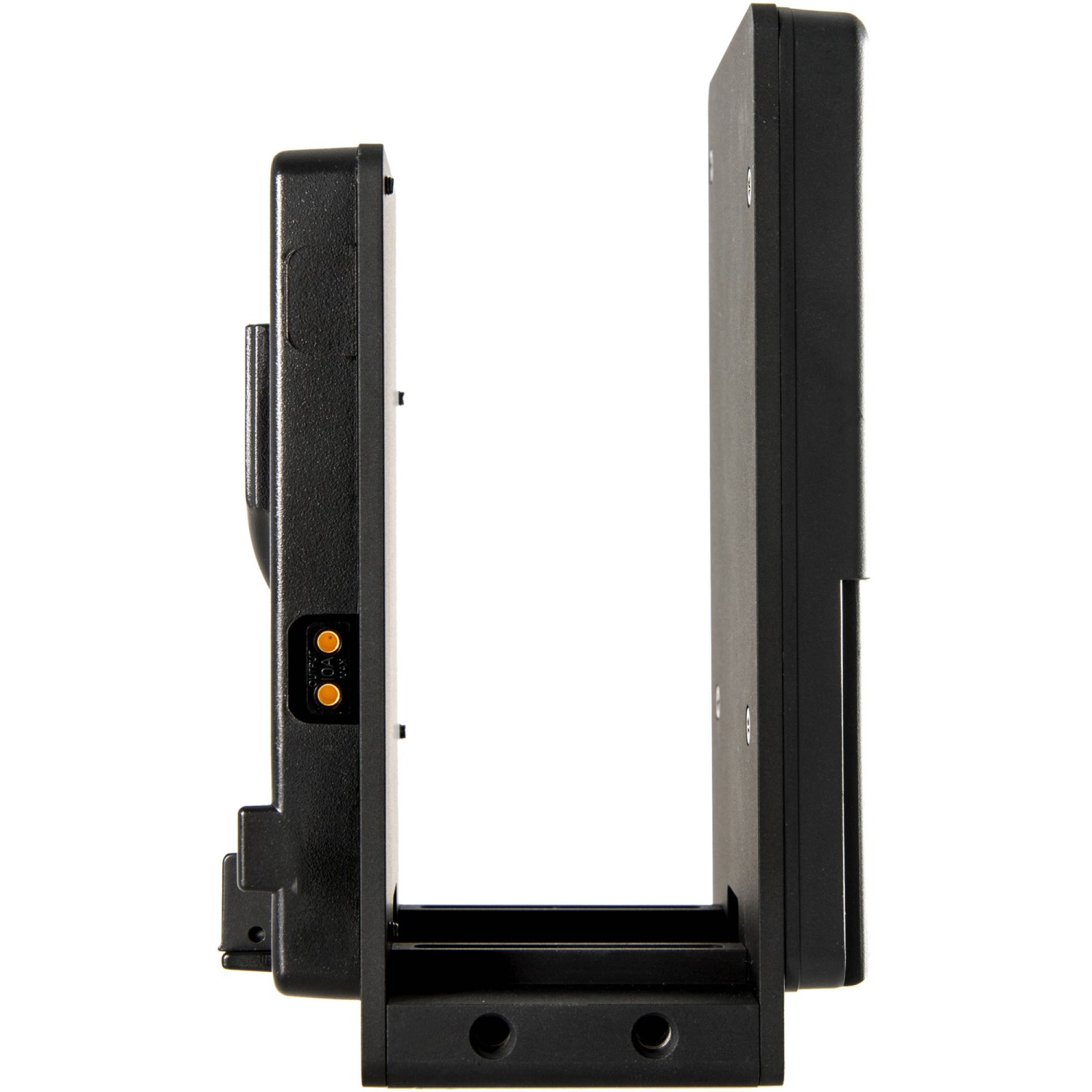

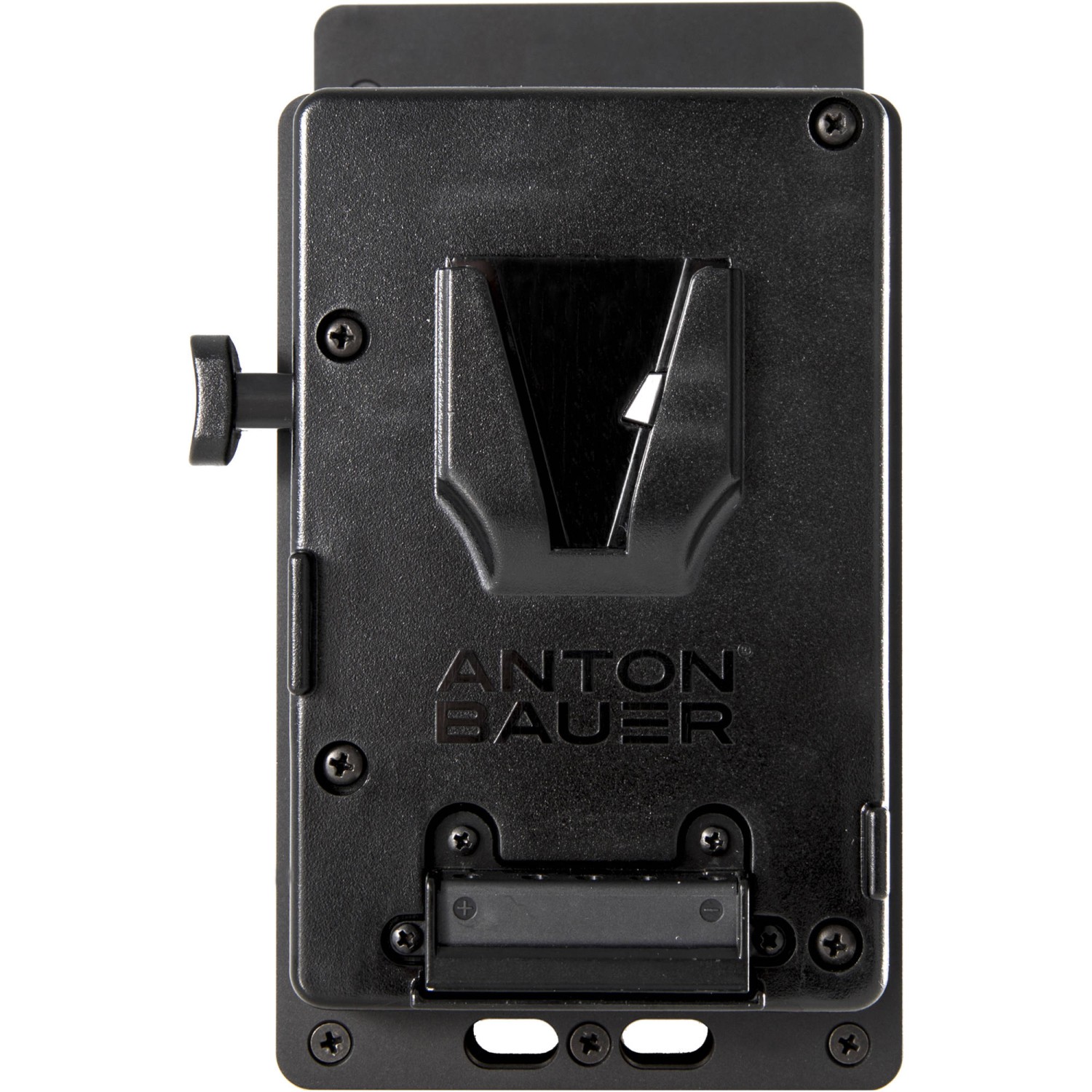

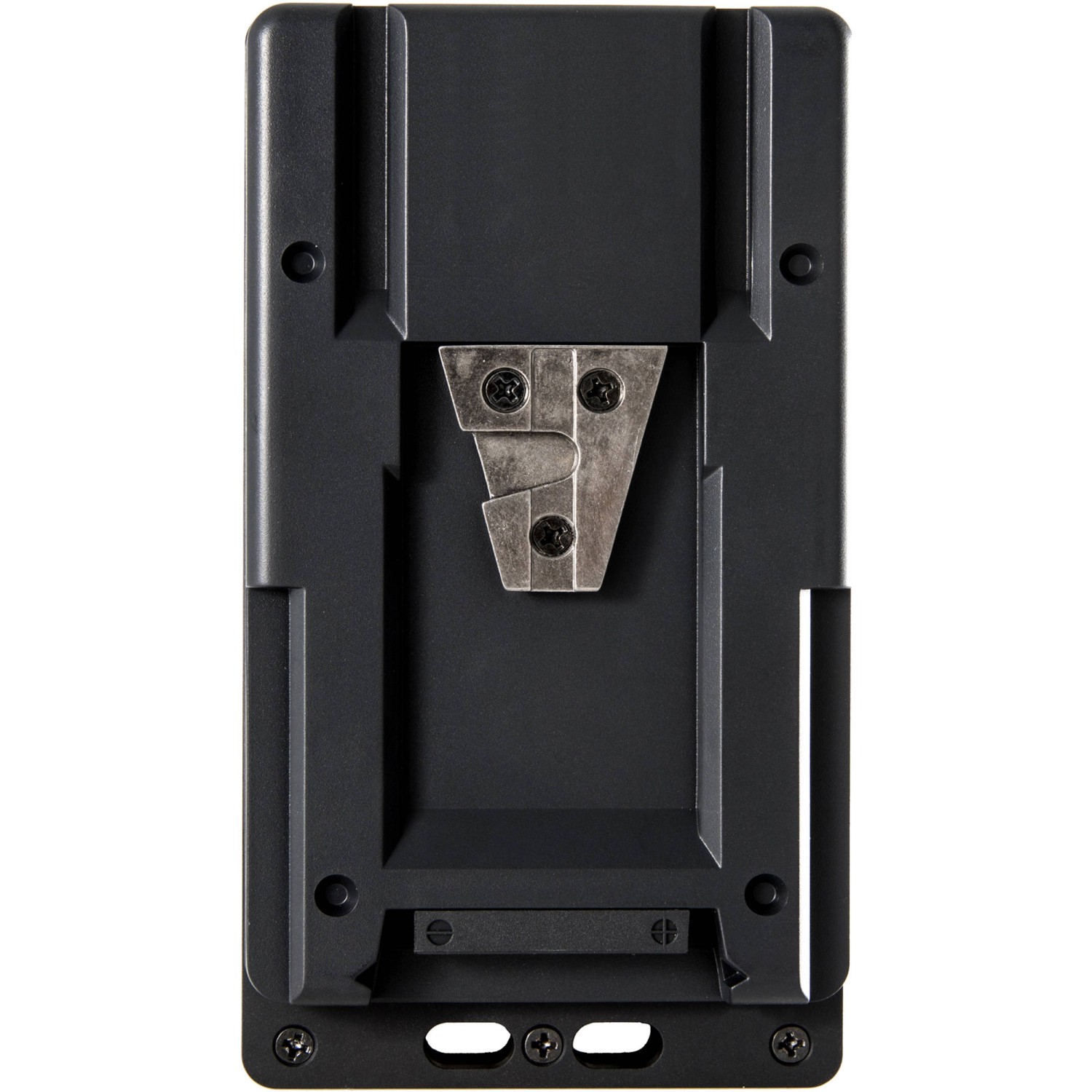

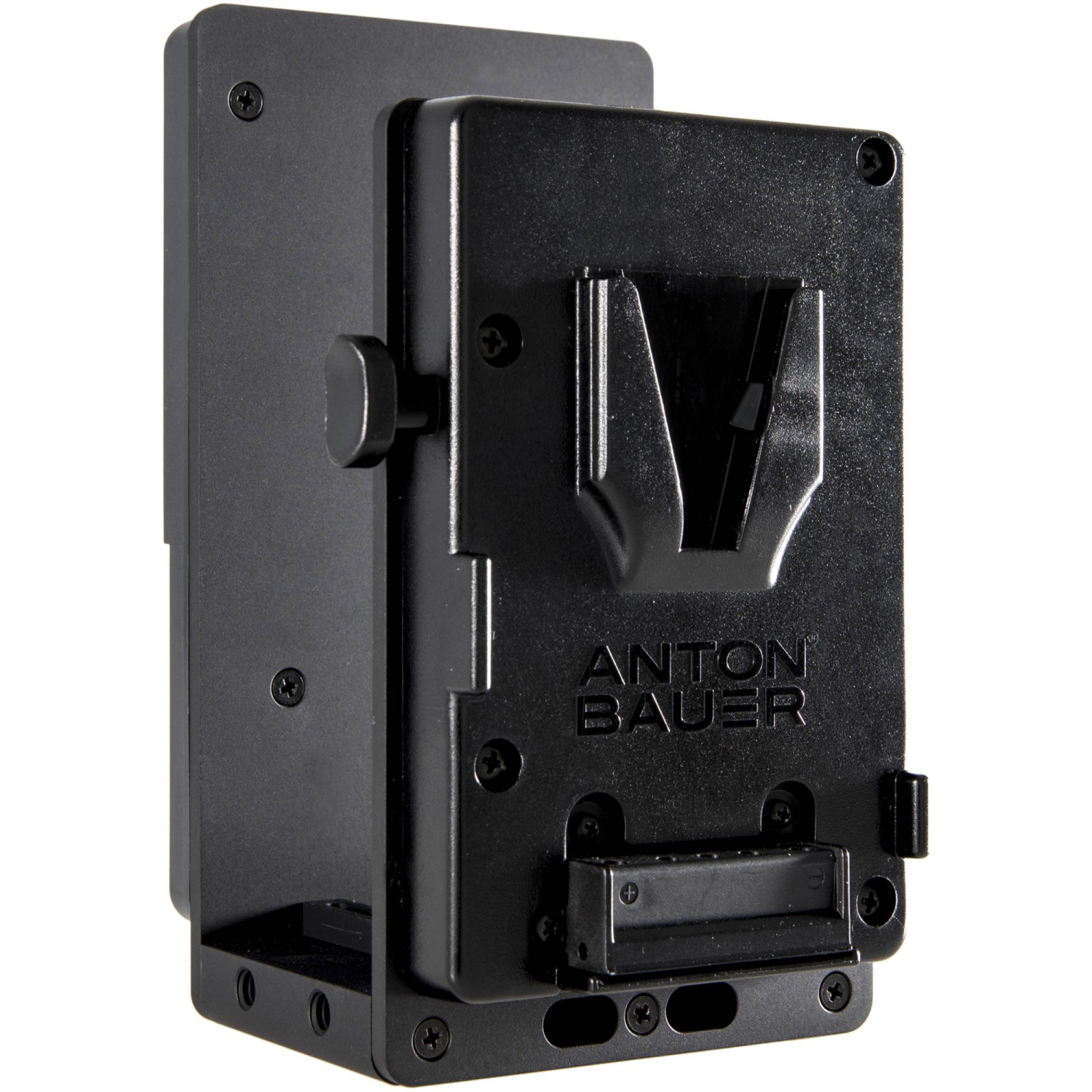

The plate features one male and one female V-Mount on opposite sides, three 1/4″-20 mounting points, and two 1/4″-20 through-mounting slots. It is made of 6061-T6 aluminum; the cable is 27 cm long; its dimensions are 8.5 × 15.7 × 7.8 cm; and it weighs 433.7 g.

DUAL V-MOUNT POWER SUPPLY FOR BOND AND CUBE

The BIT-798 creates a pass-through power interface between the rig and two V-Mount batteries. In addition to powering the Bond or Cube 600/700, it provides one D-Tap output with a maximum of 50 W for accessories.

The 6061-T6 aluminum construction features both male and female V-Mount connectors, three 1/4″-20 mounting points, and two through-slots. The 27 cm cable provides a convenient margin of length during installation.

PACKAGE CONTENT

  • Teradek Dual 14.4V V-Mount Battery Plate 11-0798 ×1

SPECIFICATIONS

  • Compatibility: Teradek Bond; Cube 600/700 Series
  • Batteries: 2× V-Mount, 14.4 V
  • Power Output: 1× D-Tap, max. 50 W
  • V-Mount: 1× male and 1× female on opposite sides
  • Mounting: 3× 1/4″‑20; 2× 1/4″‑20 through-holes
  • Material: 6061-T6 aluminum
  • Cable length: 27 cm
  • Dimensions: 8.5 × 15.7 × 7.8 cm
  • Weight: 433.7 g
Parameters

Parameters

Manufacturer: Teradek
Category: Power battery plates
