SWIT PL-E90P+PB-R290S+*2 IP54 Light KIT

The SWIT PL-E90P + PB-R290S ×2 IP54 Light Kit is a professional bi-color LED lighting kit designed for studio and field video production. It includes the PL-E90P LED panel with 480 SMD LEDs, a wide 70° beam angle, 2700–6500K color temperature, and flicker-free dimming, paired with two 290Wh PB-R290S V-Mount batteries for extended runtime. The kit is rugged, IP54-rated, and ideal for high-output, portable lighting setups.

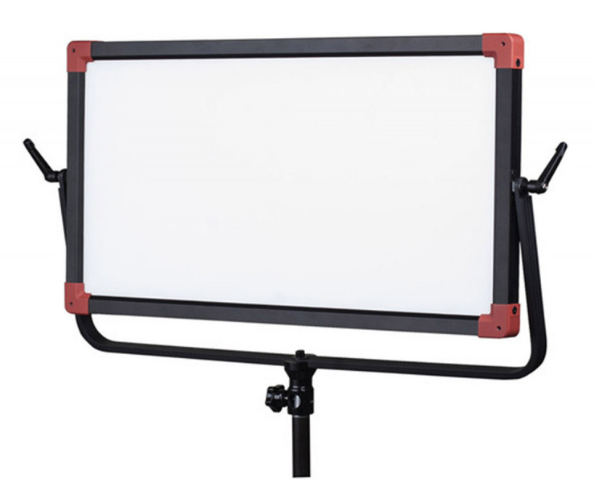

The SWIT PL-E90P + PB-R290S ×2 IP54 Light Kit is a high-performance, portable lighting solution for film, ENG, and broadcast productions. The PL-E90P LED panel features 480 edge-mounted SMD LEDs with SWIT’s unique 90° light guide technology, producing a soft, evenly spread light with a wide 70° beam angle. Its color temperature is continuously adjustable from 2700K to 6500K, with a high CRI of 98 and TLCI of 99 for accurate color rendering. The panel offers 0–100% flicker-free dimming, AC multi-voltage operation, and optional V-Mount battery power, making it versatile for both studio and location shoots.

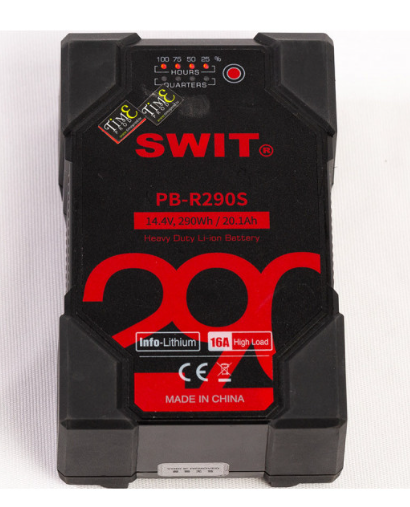

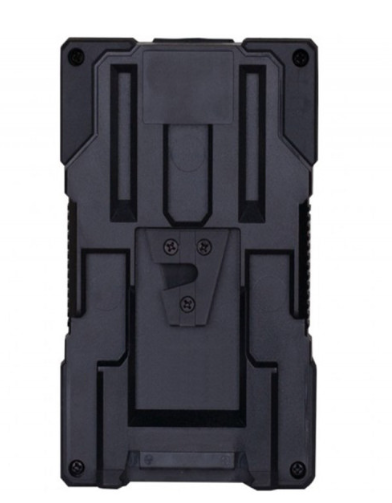

The kit comes with two PB-R290S V-Mount batteries, each providing 290Wh capacity (20.1Ah) and high-output 200W/16A power via the main ports, with a 10A D-Tap output for powering additional equipment. The batteries feature dual-casing shockproof design, fast 6A charging, and 8-LED digital indicators that display remaining runtime and capacity, compatible with Sony and RED camera systems. Together, the PL-E90P and PB-R290S batteries deliver reliable, portable lighting for extended shoots, even in challenging field conditions.

Key Features

• PL-E90P LED panel: 480 SMD LEDs, 70° beam angle, 2700–6500K adjustable
• High color accuracy: CRI 98, TLCI 99
• Flicker-free 0–100% dimming
• Silent, passively cooled metal housing
• V-Mount battery compatible for field use
• PB-R290S batteries: 290Wh capacity, high-output 200W/16A, 10A D-Tap
• Fast 6A charging with SWIT chargers
• Rugged IP54 design for professional field applications

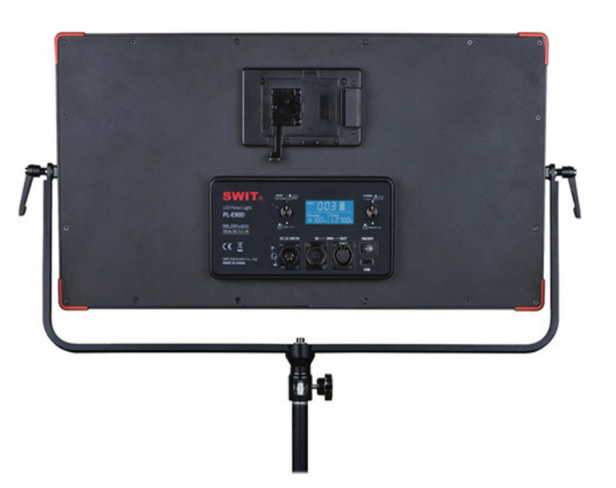

• LCD display for dimmer, color temperature, and battery information
• Four-way shutters for precise beam control
