SWIT PL-E60D | 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light, ultra slim, SWIT patent

The SWIT PL-E60D 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light is an ultra-slim, professional bi-color LED panel designed for studio and field production. Featuring a wide 70° beam angle, adjustable 2700–6500K color temperature, CRI 98, TLCI 99, and flicker-free 0–100% dimming, this V-Mount compatible panel delivers accurate color reproduction and silent operation in a durable metal housing with DMX control support.

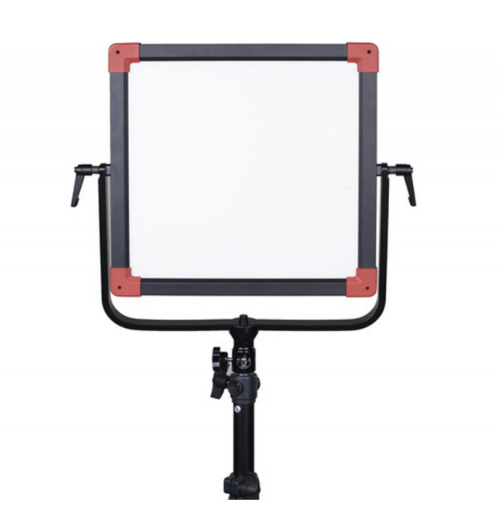

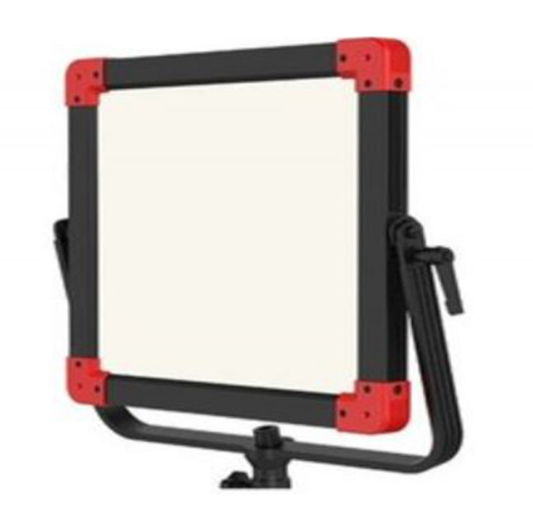

The SWIT PL-E60D 3rd Generation Natural-Born-Soft 60W LED Panel is a high-performance, ultra-slim lighting solution built for broadcast, film, and content creation professionals. With a low-profile 1.8" slim design and a 10.12 x 10.12" illuminated panel area, it delivers soft, even light through its integrated diffuser and wide 70° beam angle, making it ideal for interviews, studio shoots, and on-location productions.

Built around 320 high-efficiency surface-mount LEDs, the PL-E60D offers exceptional color accuracy with CRI 98 and TLCI 99 ratings, ensuring true-to-life skin tones and consistent color reproduction. The continuously adjustable 2700K to 6500K color temperature range allows seamless matching to ambient lighting or creative requirements without the need for gels. Brightness is adjustable from 0–100% with completely flicker-free dimming.

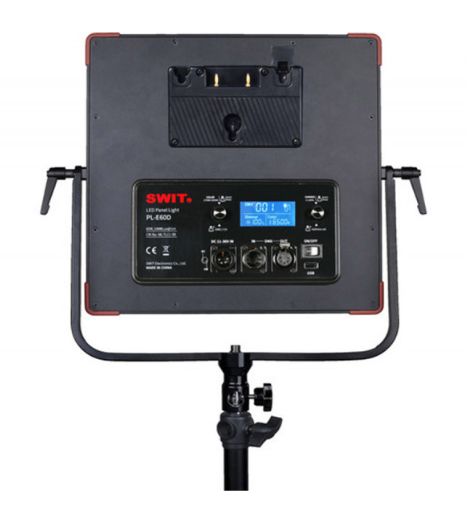

Designed with a durable metal chassis and passive convection cooling, the panel operates silently, making it perfectly suited for audio-sensitive environments. Settings can be controlled locally using intuitive onboard controls and displayed on the rear LCD screen, or remotely via 5-pin XLR DMX input/output for integration into DMX512 lighting networks. The fixture supports both AC multi-voltage power via the included adapter and DC operation through a 4-pin XLR (11–36V DC) or optional V-Mount batteries for portable setups.

Additional professional features include quick adjustment mode for rapid dimming or 10% increment changes, preset color temperature shortcuts (2700K, 3200K, 4500K, 5600K, 6500K), integrated 4-way barn doors for beam shaping, and a robust yoke mount with 5/8" receiver compatibility.

Key Features

• 3rd Generation Natural-Born-Soft LED technology

• 60W ultra-slim LED panel (1.8" profile)

• 2700K–6500K bi-color adjustable output

• CRI 98, TLCI 99 for professional color accuracy

• 0–100% flicker-free dimming

• 70° wide beam angle with integrated diffuser

• 320 high-efficiency SMD LEDs

• Silent passive cooling system

• Rear LCD display for brightness and CCT

• 5-pin XLR DMX input/output (DMX512 compatible)

• AC multi-voltage adapter included

• 4-pin XLR DC input (11–36V)

• V-Mount battery plate for optional battery operation

• 4-way barn doors for light shaping

• Durable metal construction
