SWIT FLOW500 SDI/HDMI bezdrôtový set

Transmitter and receiver set for wireless transmission of up to 1080p60 3G-SDI/HDMI video (plus 2 audio channels) over a distance of approx. 150 m (line-of-sight) in the 5.1 - 5.9 GHz band including DFS support.

More information

Promotion: 1 123.17 € ends in: 11d: 03h: 32m
1 390.29 € 1 123.17 € with VAT 928.24 € without VAT
-+
Personal pickup: 23. 04. from 09:00
Shipment day: 23. 04.
In stock 2 pcs
Praha 2 pcs
Product description

Product description

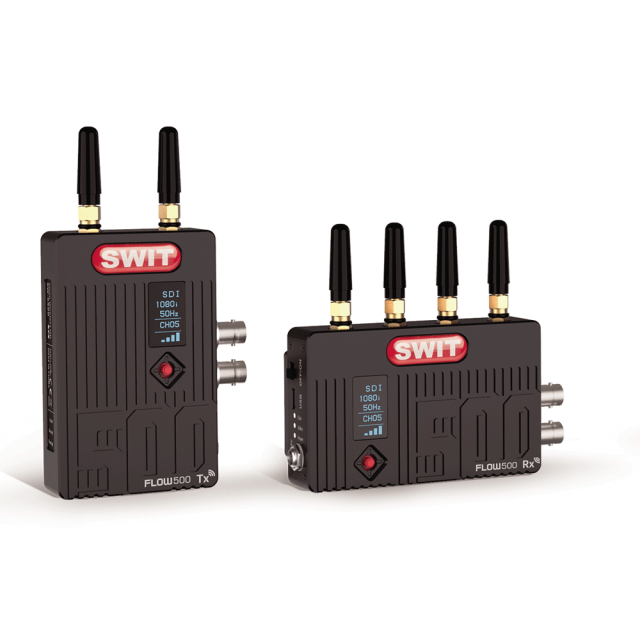

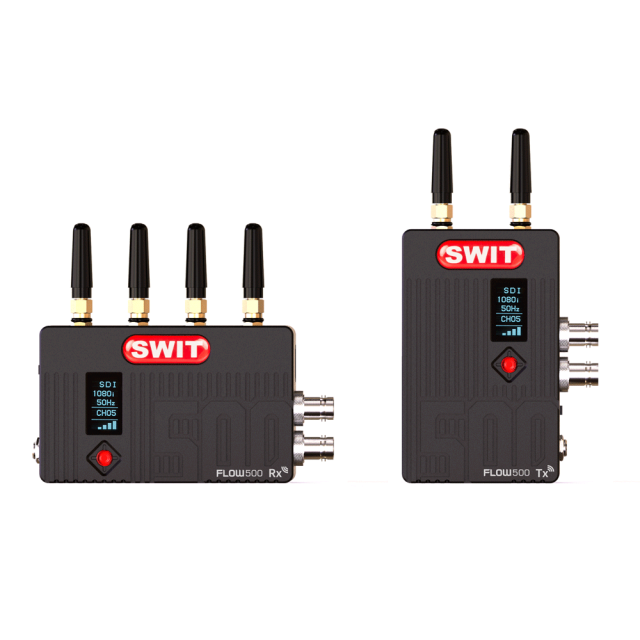

Transmitter and receiver set for wireless transmission of up to 1080p60 3G-SDI/HDMI video (plus 2 audio channels) over a distance of approx. 150 m (line-of-sight) in the 5.1 - 5.9 GHz band including DFS support.

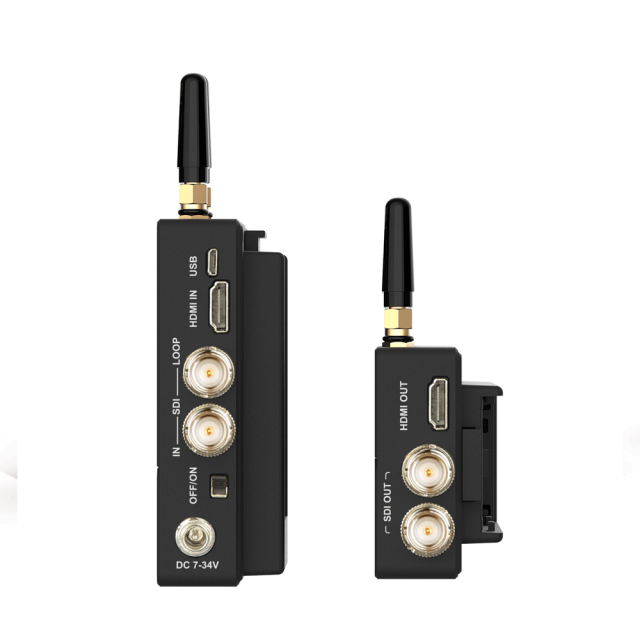

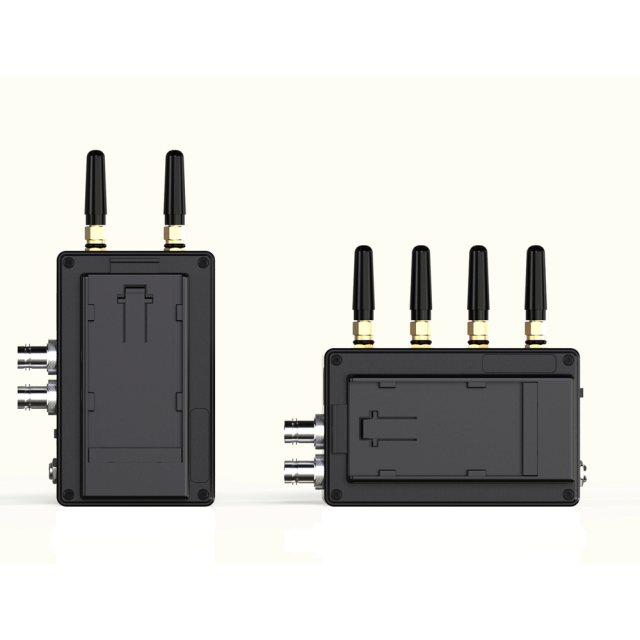

The transmitter is equipped with 1x 3G/HD-SDI and 1x HDMI 1.3 inputs, 1x 3G/HD-SDI output, receiver 2x 3G/HD-SDI and 1x HDMI 1.3 outputs. The whole system supports coexistence of 3-4 pairs on one workstation and also multicasting for reception by up to four receivers from a single transmitter. Of course, there is a perfectly readable OLED status display, AES128 encryption, FW update via Micro USB interface, or power supply using (optional) NP-F batteries or 7-34V= external power supplies (consumption less than 8 W; power supply included).

  • Frequency bands: 5.17-5.69 GHz and 5.75-5.83 GHz
  • Modulation: OFDM 16QAM, 64QAM, QPSK, BPSK
  • Transmit power: 128 mW
  • Range: 150 m (line-of-sight)
  • Supported SDI and HDMI formats: 1080p60, 1080p59.94, 1080p50; 1080p23.98, 1080p24; 1080p25,
  • 1080p29.97, 1080p30; 1080psf23.98, 1080psf24; 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50
  • Dimensions: (without antennas): 66x106.5x24.7 mm (Tx), 106.5x66x24.7 mm (Rx)
  • Weight: 236 g (Tx), 245 g (Rx)
  • Operating temperature range: 0° - +40°C
  • Package Contents (1xTX+1xRX set): FLOW500 1x Tx, 1x Rx, power adapter, mounting arm flash socket/1/4", D-tap - pole-tap cable, carrying case

Parameters

Parameters

Manufacturer: Swit
Category: Wireless video transmission
