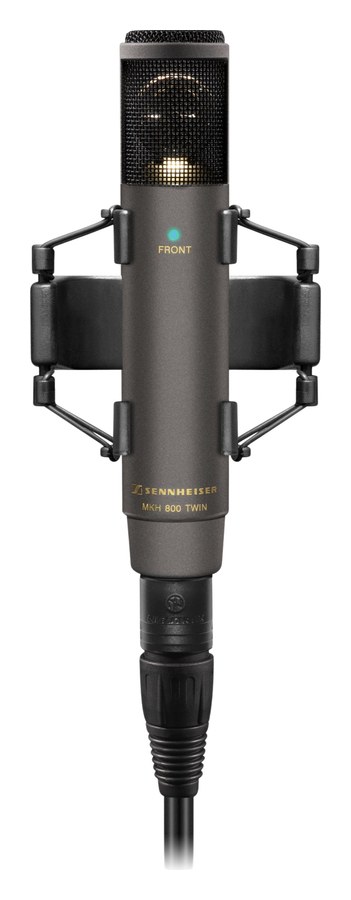

Sennheiser MKH 800 TWIN NX studio condenser microphone

  • Free transport
SKU: MKH 800 TWIN NX

The Sennheiser MKH 800 TWIN NX is a universal studio condenser microphone of exceptional quality in a grey Nextel finish. Its dual capsule with two symmetrical push-pull transducers outputs both signals separately, so the pattern from omni to figure-8 is set in the mix – even afterwards. The frequency response extends to 50 kHz.

More information

3 599 € with VAT 2 974.38 € without VAT
Add to Compare Price history
Availability
on request
SKU:
MKH 800 TWIN NX
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser MKH 800 TWIN NX is a universal studio condenser microphone of exceptional quality in a grey Nextel finish. Its dual capsule with two symmetrical push-pull transducers outputs both signals separately, so the pattern from omni to figure-8 is set in the mix – even afterwards. The frequency response extends to 50 kHz.

Choose the pattern after the recording

It is a side-fire microphone: the two cardioid patterns of the transducers face back to back across the microphone axis. The signals are not combined inside the microphone but come out as two channels that can be mixed freely at the console – from omni to figure-8 with infinite intermediate stages.

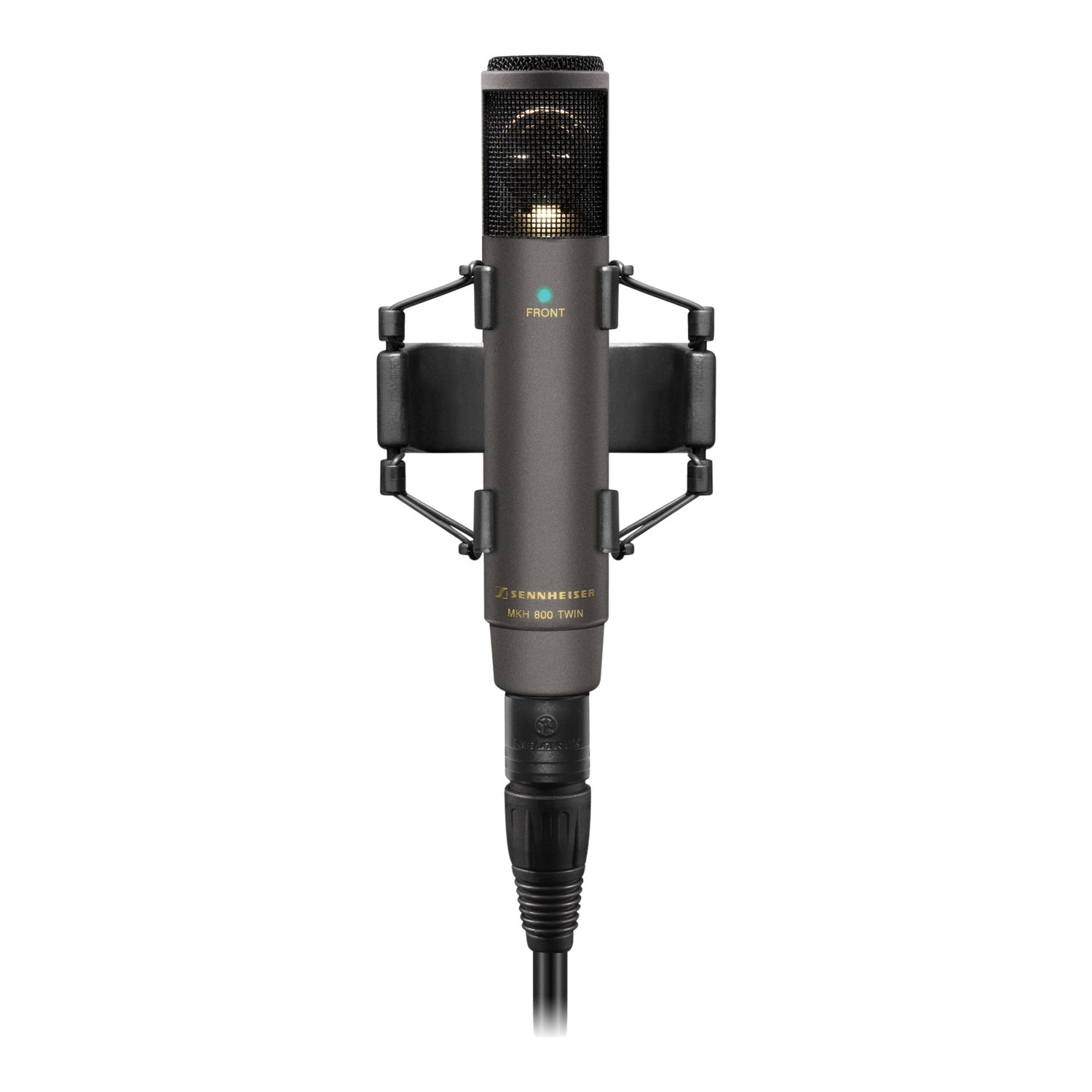

Sennheiser MKH 800 TWIN NX studio condenser microphone
2× cardioid30 – 50,000 Hz12 dB(A)XLR-5MP48

One microphone, any pattern

Remote adjustability and variable patterns make the MKH 800 TWIN a universal main, soloist or supporting microphone. Patterns can be optimised while monitoring, and two-channel recording allows further mixes later on.

50 kHz

The 30 Hz to 50 kHz frequency response improves the resolution of complex acoustic detail.

12 dB(A)

Very low self-noise does not mask fine sound structures or the depth of the room.

40 mV/Pa

High sensitivity gives a strong signal, so preamp noise matters less.

Stereo and surround

A wide range of stereo and surround mixes can be made from the two channels in parallel.

PACKAGE CONTENT

  • 1× MKH 800 TWIN NX studio microphone
  • 1× MZQ 80 microphone clamp
  • 1× MZS 80 shock mount
  • 1× AC 20 adaptor cable (XLR-5 socket to 2× XLR-3 connector)
  • 1× transport case
  • 1× quick guide
  • 1× safety guide

SPECIFICATIONS

  • Transducer principle: condenser, 2 symmetrical push-pull transducers
  • Pick-up pattern: 2× cardioid (back to back), resulting omni to figure-8
  • Frequency response: 30 – 50,000 Hz
  • Sensitivity (1 kHz): 40 mV/Pa ±1 dB
  • Nominal impedance: 100 Ω
  • Min. terminating impedance: 2 kΩ
  • Max. SPL: 136 dB
  • Max. output voltage: 4 V
  • Equivalent noise level: 12 dB(A), 20 dB (CCIR)
  • Dynamic range: 122 dB(A), 114 dB (CCIR)
  • Power supply: P48 (48 V ±4 V)
  • Current consumption: 2× 3.1 mA
  • Dimensions: Ø 27 × 136 mm
  • Weight: 172 g
  • Connector: XLR-5M
  • Colour: grey (Nextel)
  • Manufacturer article no.: 502083
Parameters

Parameters

Manufacturer: Sennheiser
Category: Studio Microphones

Main parameters

Microphone typeCondenser microphone
TypeCondenser
Microphone connectionXLR
Polar patternPřepínatelná
Microphone power48V Phantom
Frequency range30x50000Hz
Output impedance100Ω
Maximum SPL136dB SPL
ColourGrey
Weight172g
