Sony ECM-77LM
SKU: ECM-77LM
Sony ECM-77LM (ECM77LM) Miniature omni-directional electret condenser microphone
429 € with VAT
354.55 € without VAT
Availability
on request
Top accessories for Sony ECM-77LM
Rycote Lavalier Windjammer Black
Designed for use with Lavalier microphones worn on the outside of clothing, the Lavalier
39 €
In stock > 5 pcs
Sony SAD-W77B (6pack)
This set of 6 Sony microphones clips are designed for the ECM77B lavalier microphones.
246 €
To be sent 1 pcs
Sony SAD-V77B (10pack)
The Sony Vertical Clip for ECM-77 Microphone SAD-V77B (10 Pack) is a clip designed
317 €
on request
Sony SAD-H77B
The Sony 10 Pack Single Horizontal Lavalier Tie Clip SAD-H77B is a pack of (10) lavalier
340 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

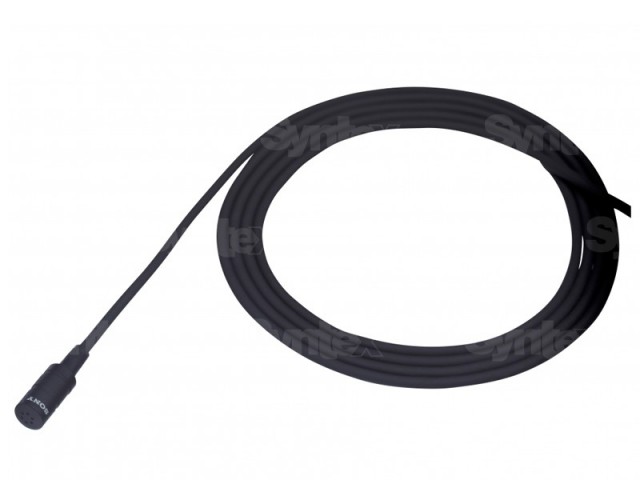

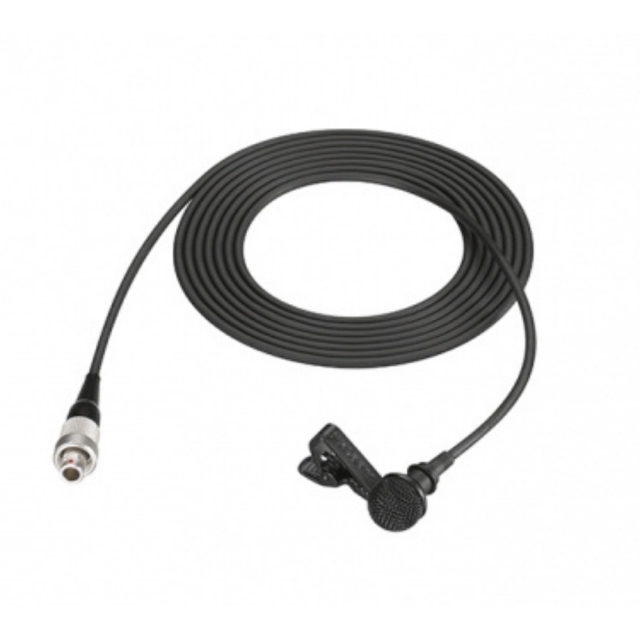

Sony ECM-77LM (ECM77LM) Miniature omni-directional electret condenser microphone
Lavalier mic with excellent sound quality, ideal for use with DWT-B03R wireless transmitter
The Sony ECM-77 miniature lavalier microphone is seen in daily use on TV shows around the world, and is an equally familiar sight in both studio-based productions and on location.
A discreet 'hands-free' alternative to handheld microphones, its popularity is due to a combination of excellent sound quality, robust construction and an attractive cosmetic design. The miniature design of the ECM-77 makes it easy to conceal in a stage performer's costume.
The electret condenser microphone's omni-directional capsule is optimised for clear speech pick-up, with an extended frequency response, impressive sensitivity and low handling noise.
Featuring a 3-pin Lemo connector, this ECM-77LM version is an ideal partner for use with the DWT-B03R DWX Series digital wireless microphone bodypack transmitter.
PACKAGE CONTENT
- Sony ECM-77LM lavalier microphone
- Tie clip (single, horizontal)
- Metal-mesh windscreen
SPECIFICATIONS
Audio section
| Capsule type | electret condenser |
|---|---|
| Frequency response | 40 Hz to 20 kHz |
| Directivity | omni-directional |
| Sensitivity | −39.0 dBV/Pa |
| Output impedance | 6.3 kΩ ±30 %, unbalanced |
| Dynamic range | 95 dB or more |
| Signal-to-noise ratio | 64 dB (typical) |
| Inherent noise | 32 dB SPL or less |
| Induced noise from external magnetic field | 5 dB SPL or less |
| Wind noise | 40 dB SPL or less (with windscreen) |
| Maximum input sound pressure level | 127 dB SPL |
General
| Connector | small 3-pin connector |
|---|---|
| Microphone cable | 1.6 m |
| Power requirements | 3.0 V to 10.0 V DC |
| Power consumption | 0.4 mA or less |
| Dimensions | ø5.6 × 12.5 mm (mic head) |
| Mass | approx. 1.5 g (without cable) |
Parameters
Parameters
| Manufacturer: | SONY |
| Category: | Lapel microphones |
Main parameters
| Type | Kondenzátorový |
| Characteristics | Omnidirectional |
| Frequency range | 40Hz |
| Sensitivity | -39dBV |
