SmallRig Top Handle Extension Rig 4067

This product is no longer offered. Please select from the alternatives below.
Product description

Product description

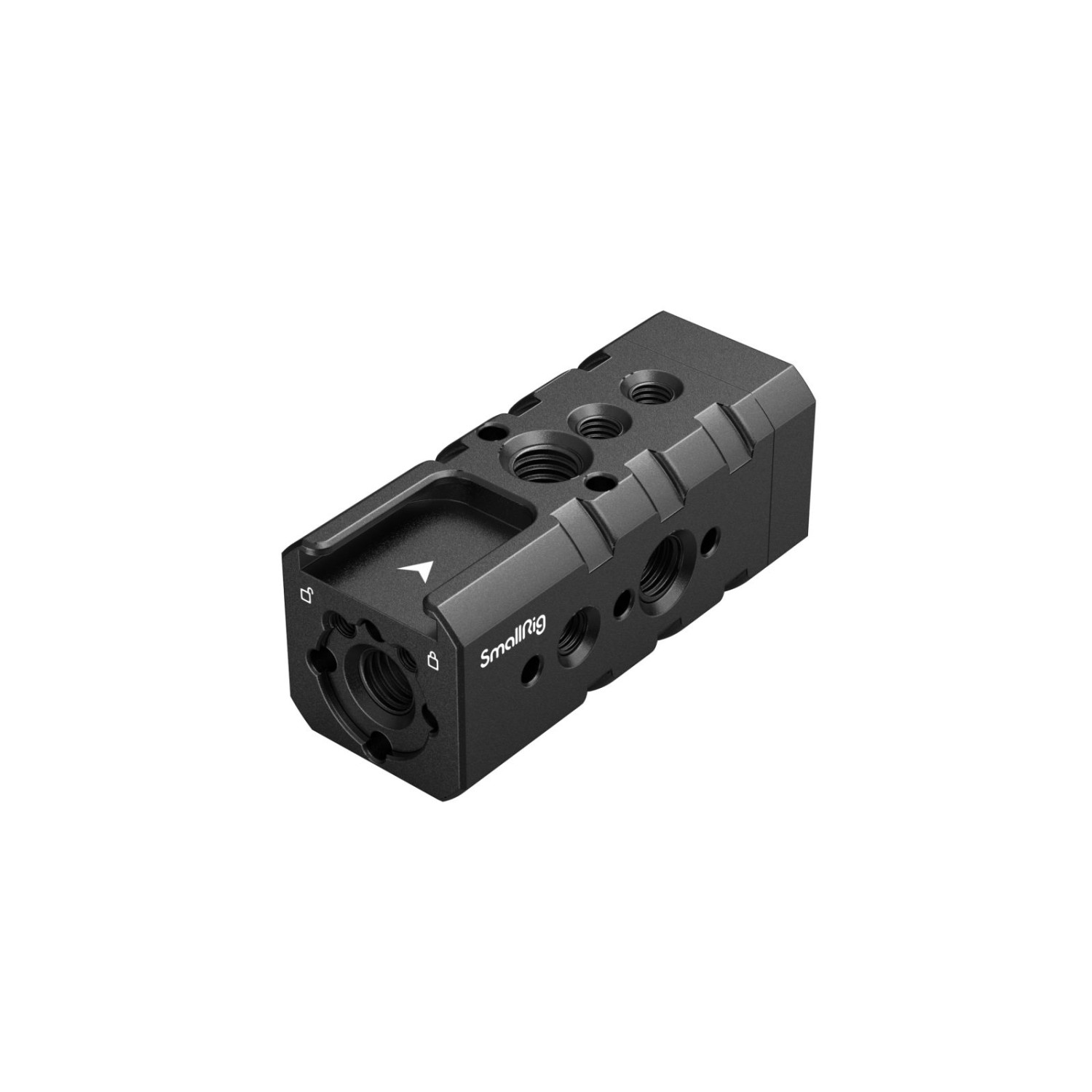

SmallRig Top Handle Extension Rig 4067 is designed especially for Top Handle 1955 & 1984 to add grip space and accessory mount. It secures the front of the handle through an ARRI locating screw tightened by the built-in spanner. Among its mounting points, the three ARRI 3/8"-16 locating holes support Monitor Mount 2903B and Magic Arm 2115 for the monitor; the two M4 threaded holes at the front connect 15mm Rod Clamp 1995 for monitor, viewfinder; the top cold shoe fits Monitor Mount 2905B, microphone and LED light; 1/4"-20 threaded holes and 1/4"-20 locating holes are suited to Magic Arm 2070B & 3873 for monitor, etc.

1. Dedicated extension rig for Top Handle 1955 & 1984.
2. 68mm long for added space for grip and accessory attachment.
3. Cold shoe  mount, ARRI 3/8"-16 locating holes,  and 1/4"-20 threaded holes for the microphone, LED light, monitor mount, magic arm, etc.

Note: Attaching this item to handles other than Top Handle 1955 & 1984 may cause unevenness and tilt.

Work With
Top Handle 1955 & 1984

Packing List
1 x Extension

Technical Data
Product Dimensions: 68 × 25 × 25 mm
Package Dimensions: 105 × 96 × 33 mm
Product Weight: 82g ± 5g
Package Weight: 112g ± 5g
Material(s): Aluminum Alloy, Stainless Steel

Parameters

Parameters

Manufacturer: SmallRig
Category: Handles
