SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II

Name: SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II
Brand: SmallRig
SKU: 4702
Price: 82 EUR
Availability: InStock

SKU: 4702

SmallRig 4702 rotating plate kit for the Panasonic LUMIX S5 II, S5 IIX and G9 II. Unlock the knob, turn the camera 90° to portrait and the lens optical axis stays put. The quick-release plate fits Arca-Swiss and Manfrotto RC2.

More information

82 € with VAT 67.77 € without VAT

Price history

Personal pickup within 90 minutes
Shipment day: Tomorrow

In stock > 5 pcs
Praha > 5 pcs

SKU:
4702

Price history

DESCRIPTION AND PARAMETERS
To this product 15

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

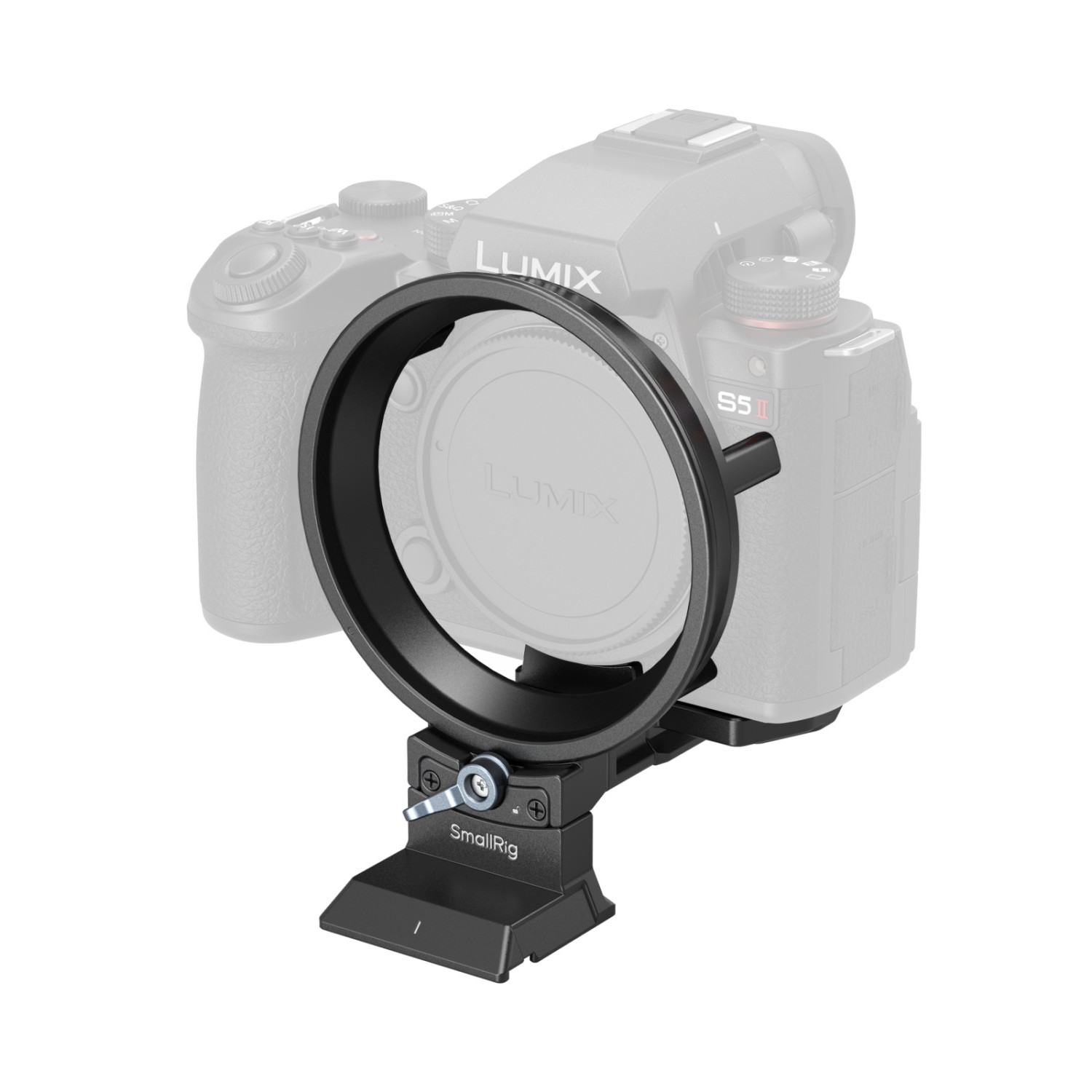

Rotatable plate for LUMIX S5 II / S5 IIX / G9 II

SmallRig 4702 rotating plate kit for the Panasonic LUMIX S5 II, S5 IIX and G9 II.

Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II

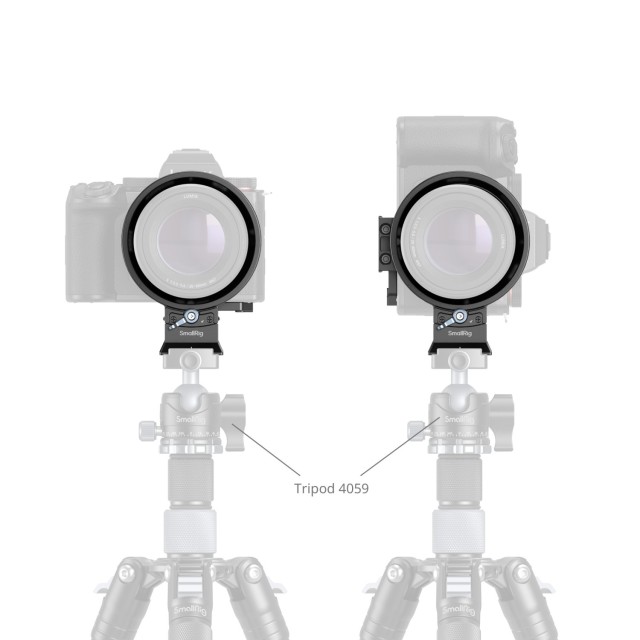

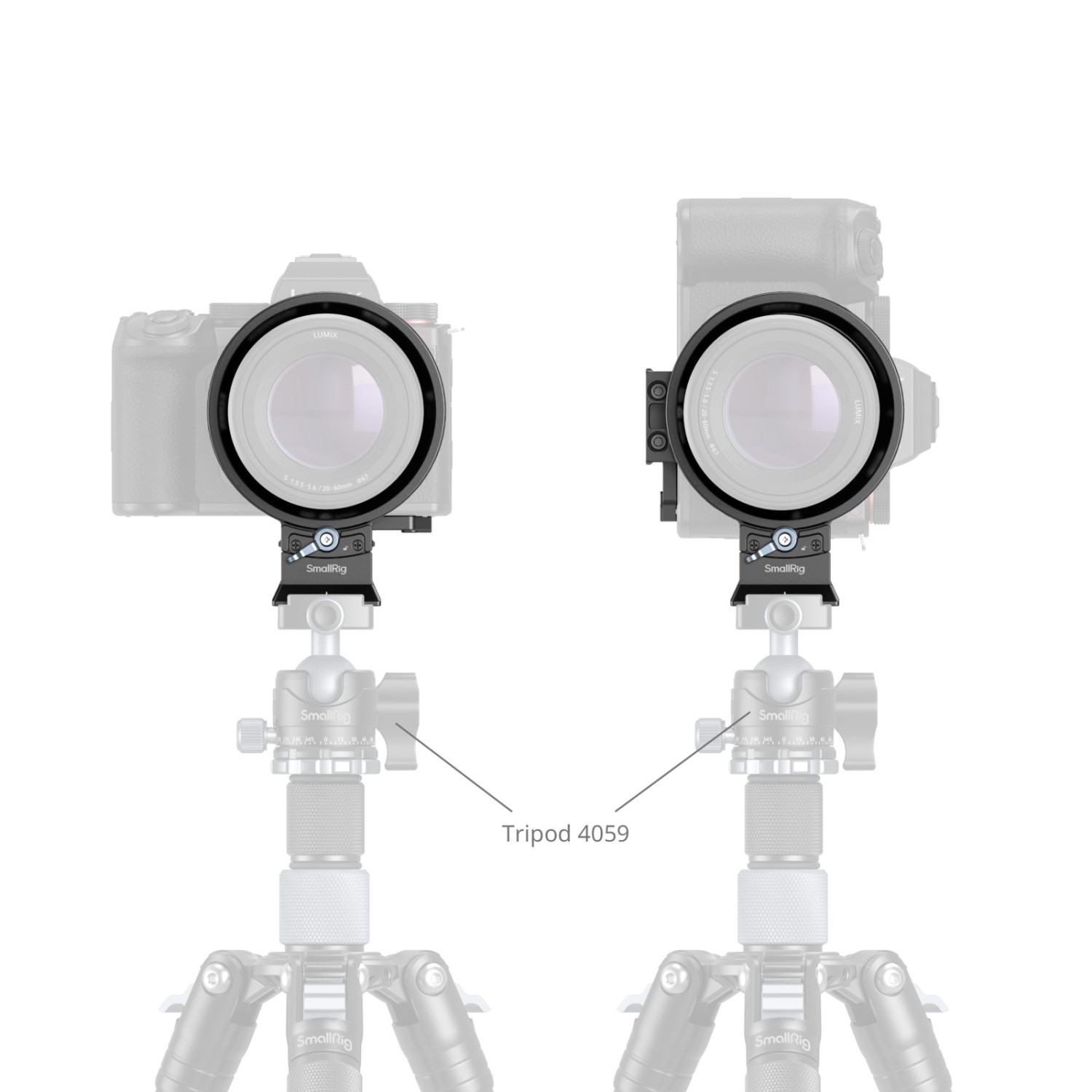

Optical axis stays put

Unlock the knob, turn the plate 90° and the camera switches to portrait with the lens optical axis unchanged. The screen and ports stay clear.

Arca-Swiss / RC2

The quick-release plate fits Arca-Swiss and Manfrotto RC2.

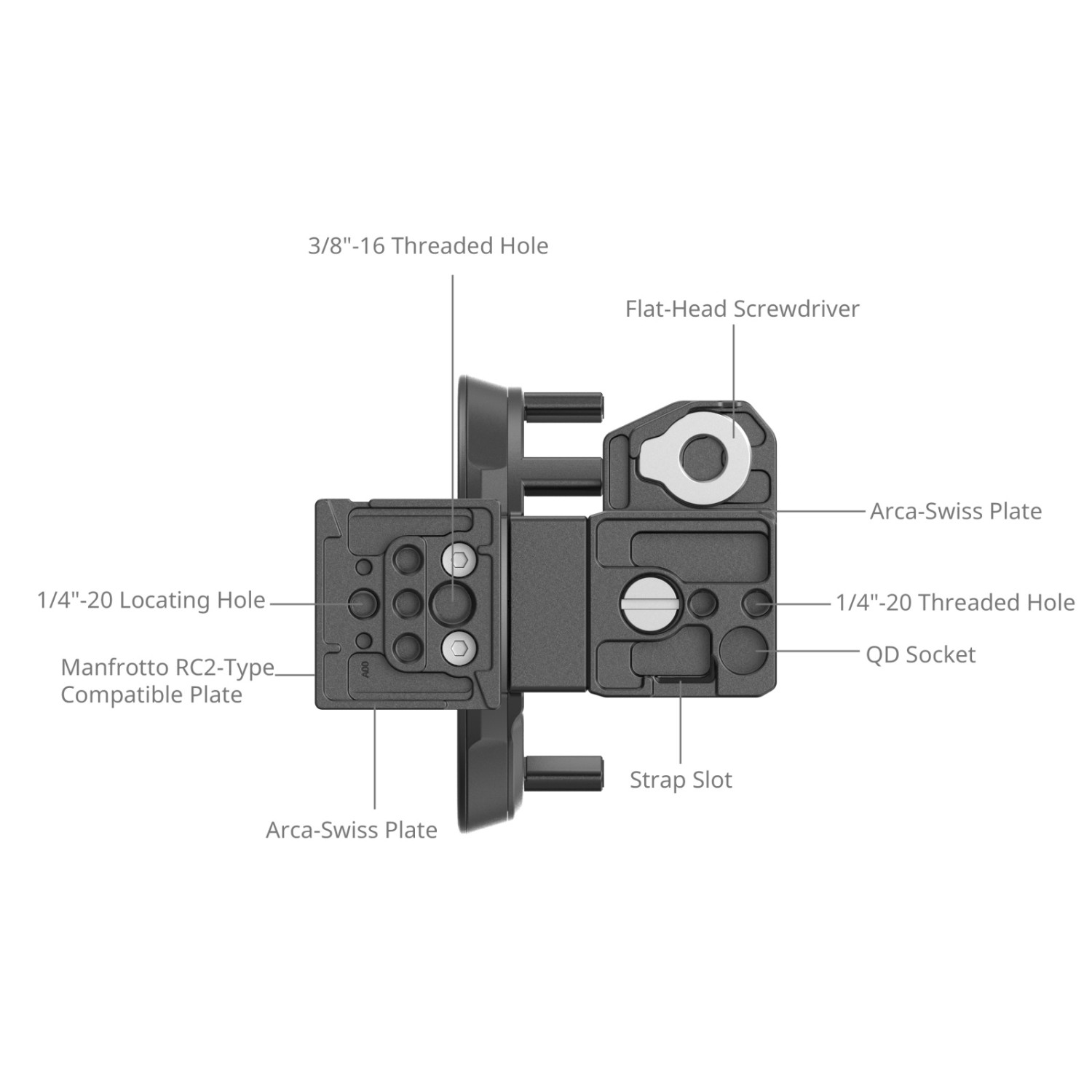

Threads underneath

1/4"-20 and 3/8"-16 threads for a side handle or other plates.

More mounting points

A QD socket, a strap hole and a 1/4"-20 locating hole.

Silicone pads

Built-in pads prevent scratches and twisting.

1. Quickly switches between horizontal and vertical modes without adjusting the lens's optical axis.
2. Gives full access to buttons and ports (LCD flip screen, battery door, card slot).
3. Multi-scene switching: Compatible with Arca-Swiss / Manfrotto RC2 tripods.
4. Features multiple mounting points, such as 1/4"-20 threaded holes, 1/4"-20 locating hole，3/8"-16 threaded hole, strap slot, QD mount, for handle, magic arm, plate, wrist strap, etc.

SmallRig Rotatable Horizontal-to-Vertical Mount Plate Kit for Panasonic LUMIX S5 II / S5 IIX / G9 II 4702 is designed to quickly switch between horizontal and vertical shooting without adjusting the lens optical axis. It maintains full access to LCD flip screens and ports and features built-in pads that prevent scratches and twists. The rotatable mount plate can rotate by 90 degrees by merely unlocking a knob to switch between horizontal and vertical shooting. Quick-release plate with support ring is compatible with Arca-type / Manfrotto RC2 tripod, its bottom 1/4"-20 and 3/8"-16 threaded holes can be used to expand the side handle or other quick-release plates. In the baseplate, there are QD mount, a strap hole for Wrist Strap 3848, and a magnetic dual-head wrench for easy installation and release.

Note:

1. Please remove the lens before installation/removal.
2. It is not recommended to use this product with lenses with Lens Support Collar.
3. This product is compatible with LUMIX S series lenses, if the lens has AF/MF, POWER O.I.S, and other buttons on the lens, this product will with affect the use of the buttons.

4. This product is compatible with Panasonic LUMIX G / LEICA DG series lenses except the following two lenses, if there are buttons on the lens such as electronic POWER ZOOM, AF/MF, POWER O.I.S, etc., this product will be with the use of the affected buttons.

LEICA DG VARIO-ELMAR 100-400mm / F4.0-6.3 II ASPH. / POWER O.I.S.
LEICA DG VARIO-ELMAR 100-400mm / F4.0-6.3 ASPH. / POWER O.I.S.

Compatible With
Panasonic LUMIX S5 II
Panasonic LUMIX S5 IIX
Panasonic LUMIX G9 II

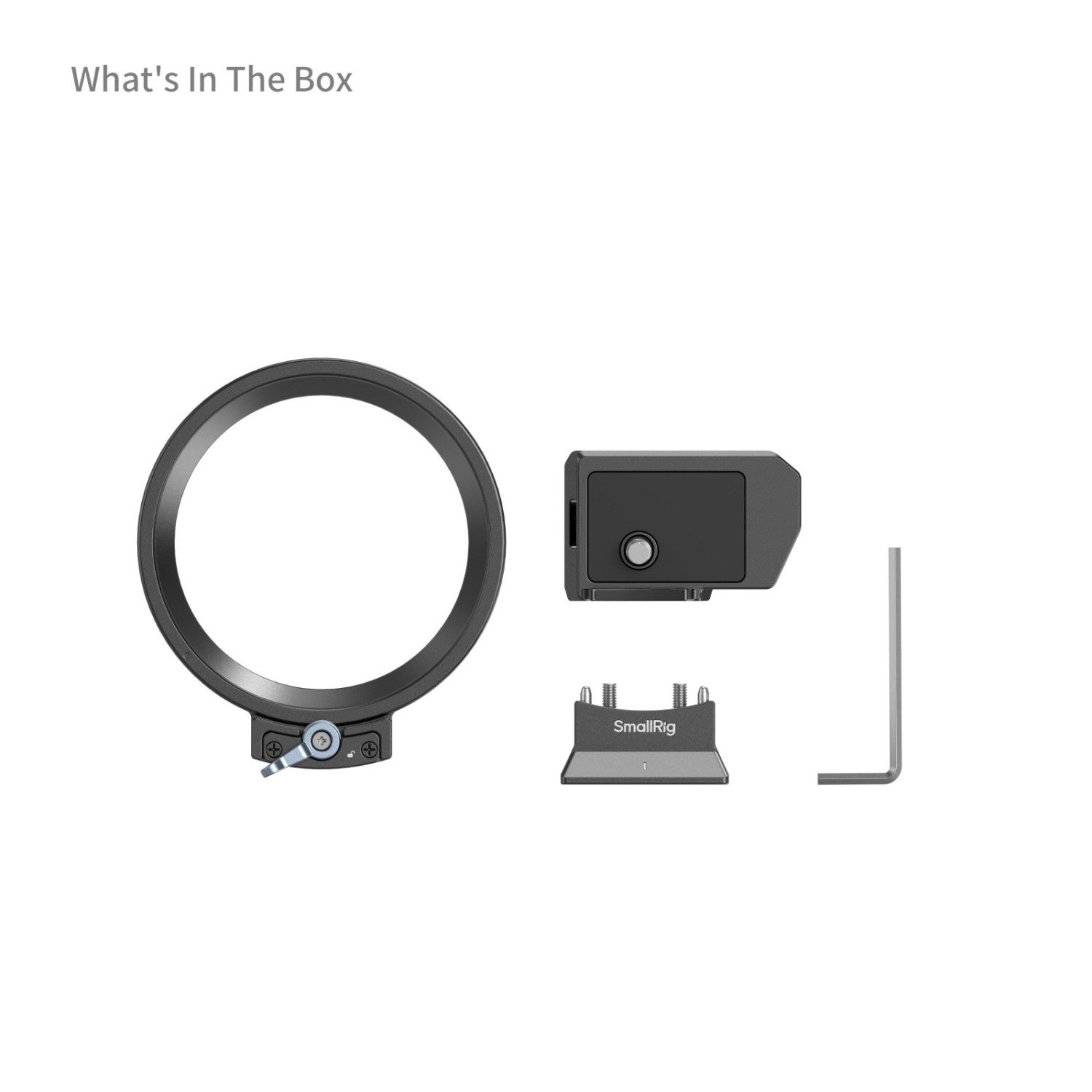

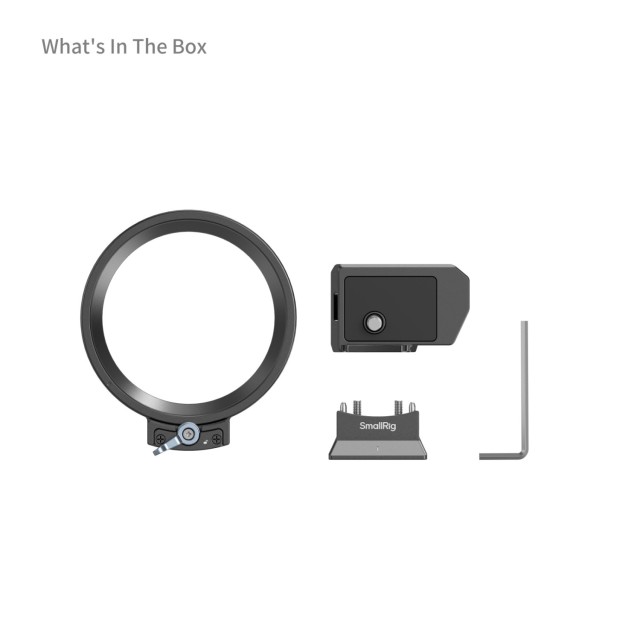

PACKAGE CONTENT

1× Rotatable Horizontal-to-Vertical Support Ring
1× Rotatable Horizontal-to-Vertical Support Ring Quick Release Plate
1× Baseplate
1× Allen Wrench
2× M4 Screws
1× Operating Introduction
1× Guarantee Card

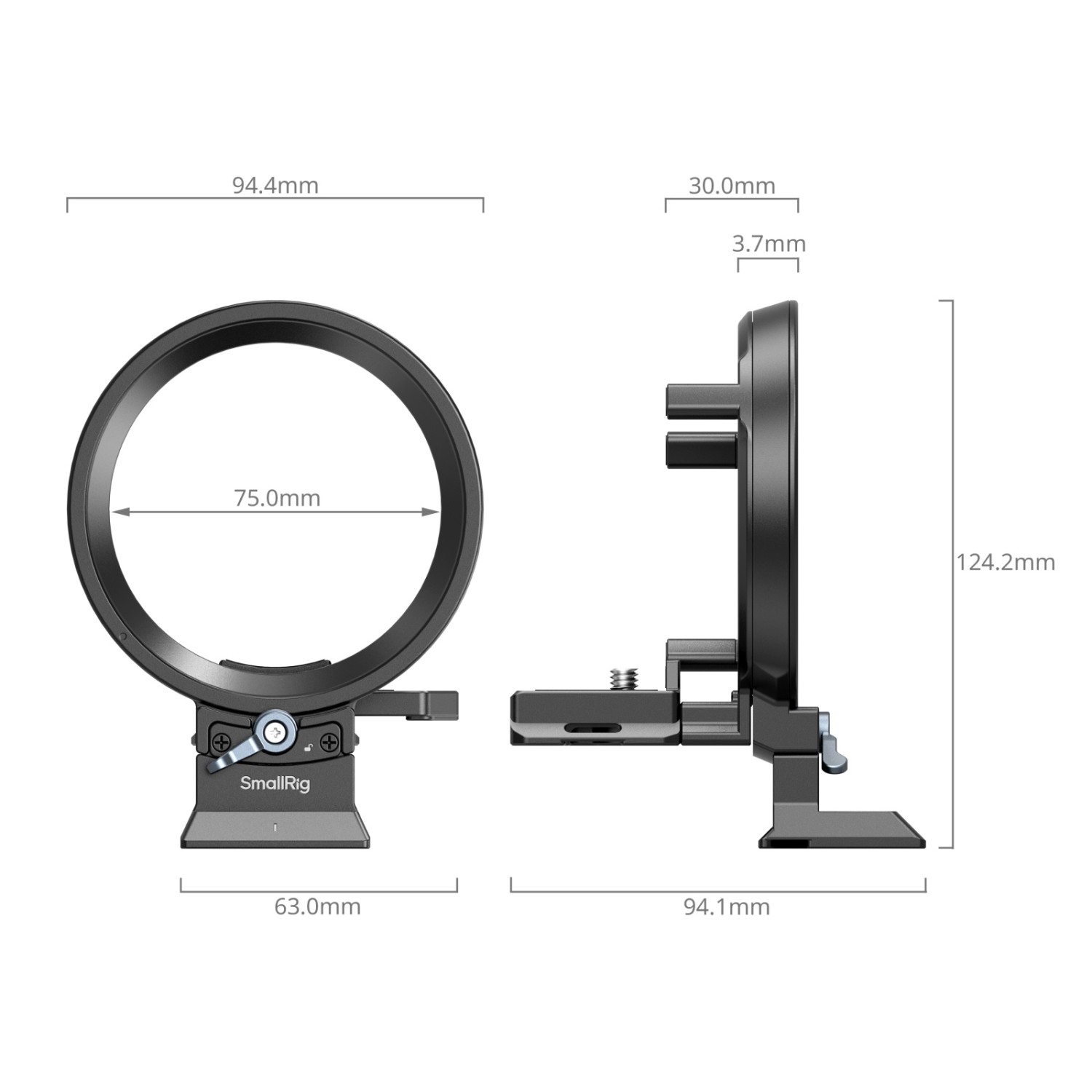

SPECIFICATIONS

Product Dimensions: 124.0 × 94.4 × 94.1 mm
Package Dimensions: 136.0 × 102.5 × 51.0 mm
Product Weight: 157.0±5.0 g
Package Weight: 210.0±5.0 g
Material(s): Aluminum Alloy, Stainless Steel, Silicone

Parameters
