SmallRig Monitor Cage Kit for Atomos Ninja TX 5708

SmallRig Monitor Cage Kit for Atomos Ninja TX 5708 is designed to provide robust protection and versatile mounting options for the device. The integrated sun hood significantly improves screen visibility in bright shooting environments.

More information

118 € with VAT 97.52 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

SmallRig Monitor Cage Kit for Atomos Ninja TX 5708 is designed to provide robust protection and versatile mounting options for the device. The integrated sun hood significantly improves screen visibility in bright shooting environments.

Cage with sun hood for Atomos Ninja TX

SmallRig Monitor Cage Kit for Atomos Ninja TX 5708 is designed to provide robust protection and versatile mounting options for the device.

Monitor Cage Kit for Atomos Ninja TX

Built-in sun hood

Sun hood VH2269 improves screen visibility in bright light. The kit also protects the monitor and offers many mounting points for accessories.

HawkLock rail

The built-in H21 NATO rail works with support 4888 and monitor mount 2906B.

Threads and holes

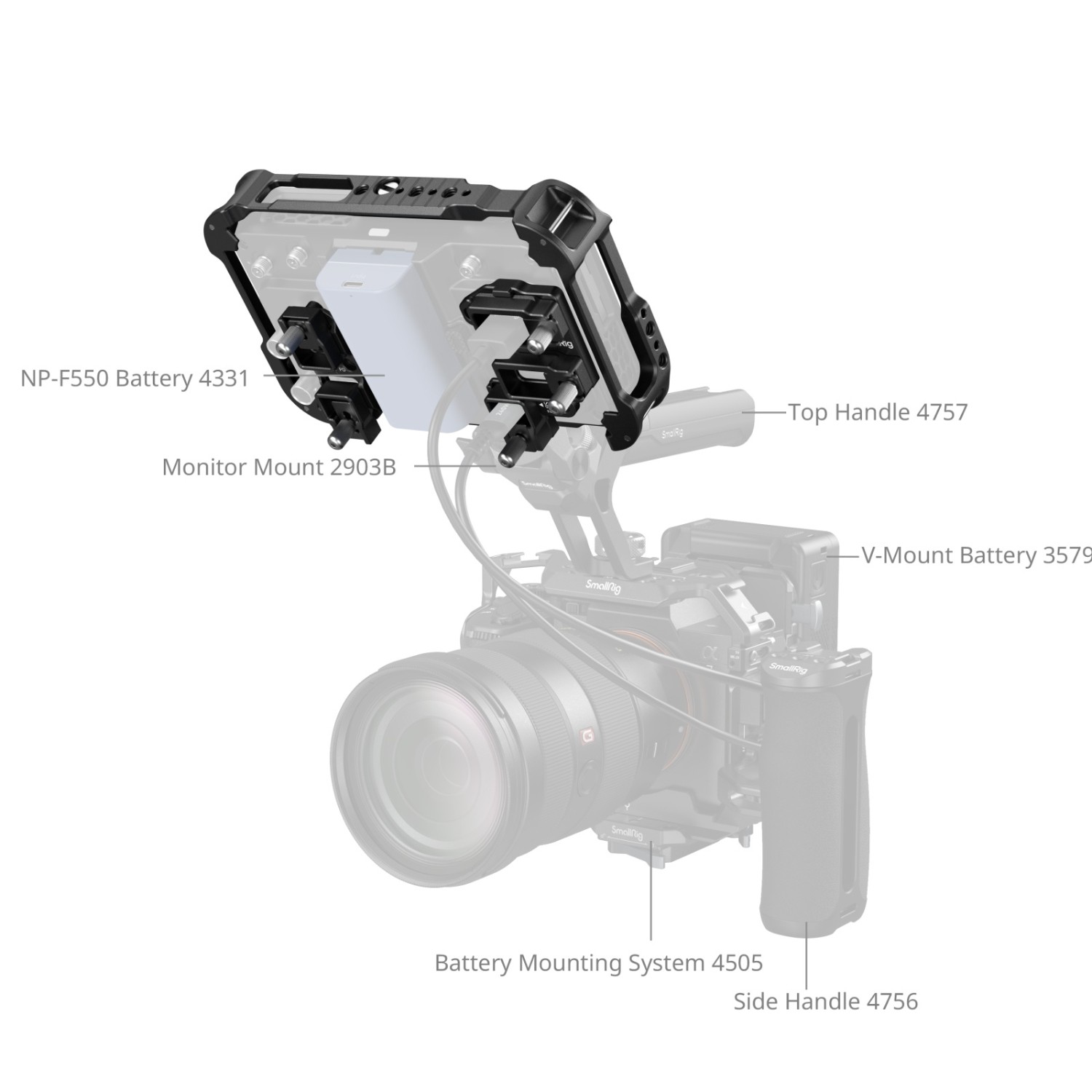

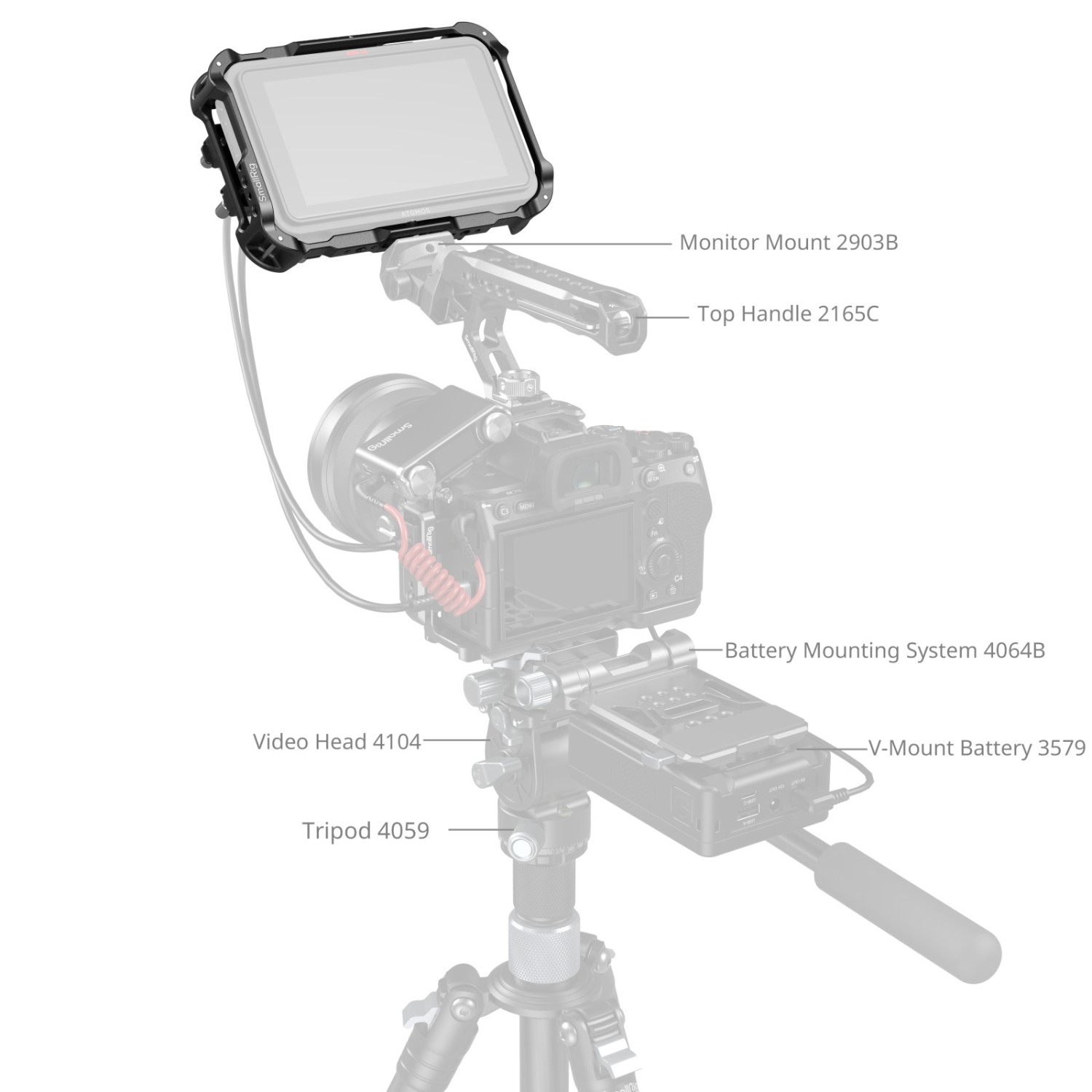

1/4"-20 threads for mount 2903B and arm 3873, ARRI 3/8"-16 holes for arm 4900.

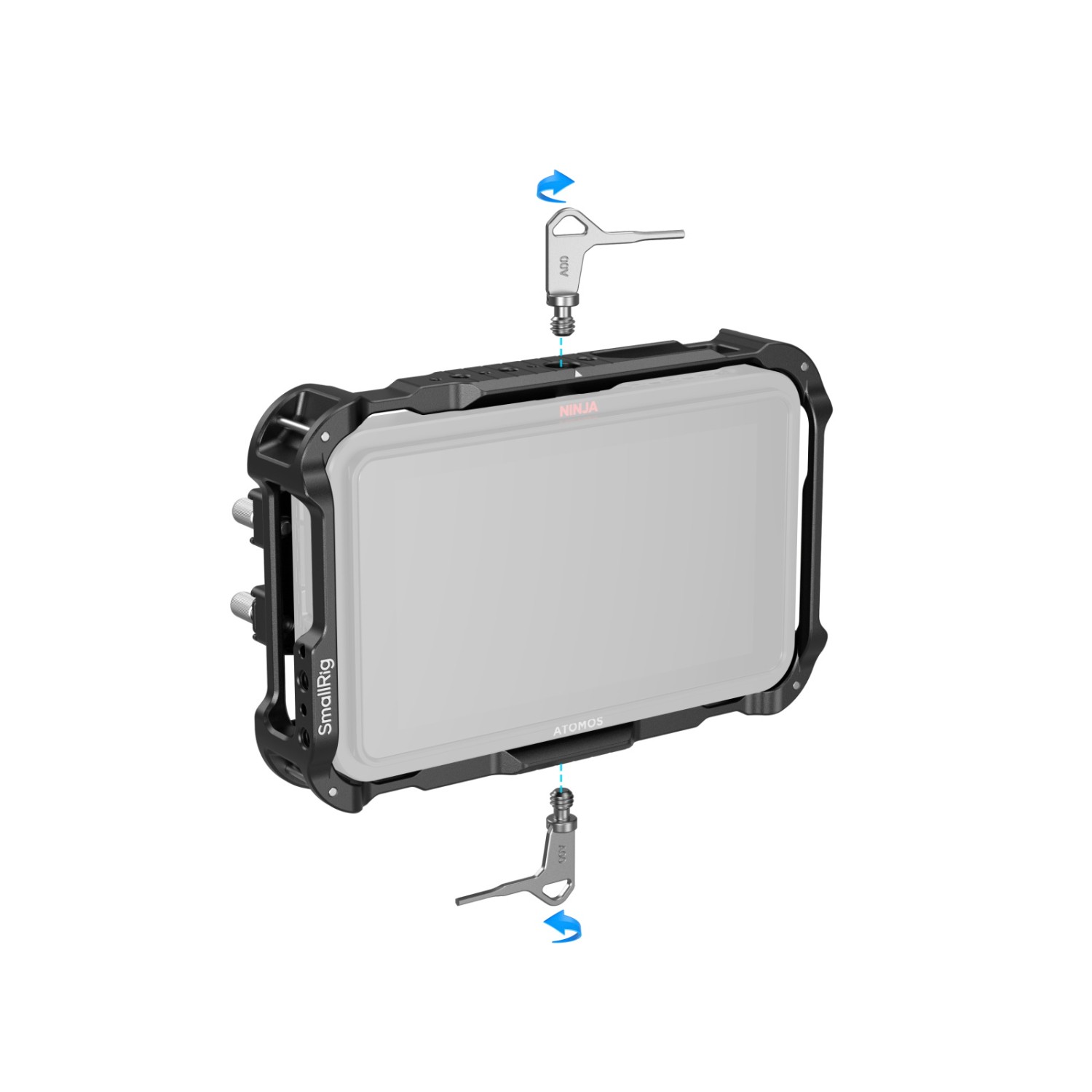

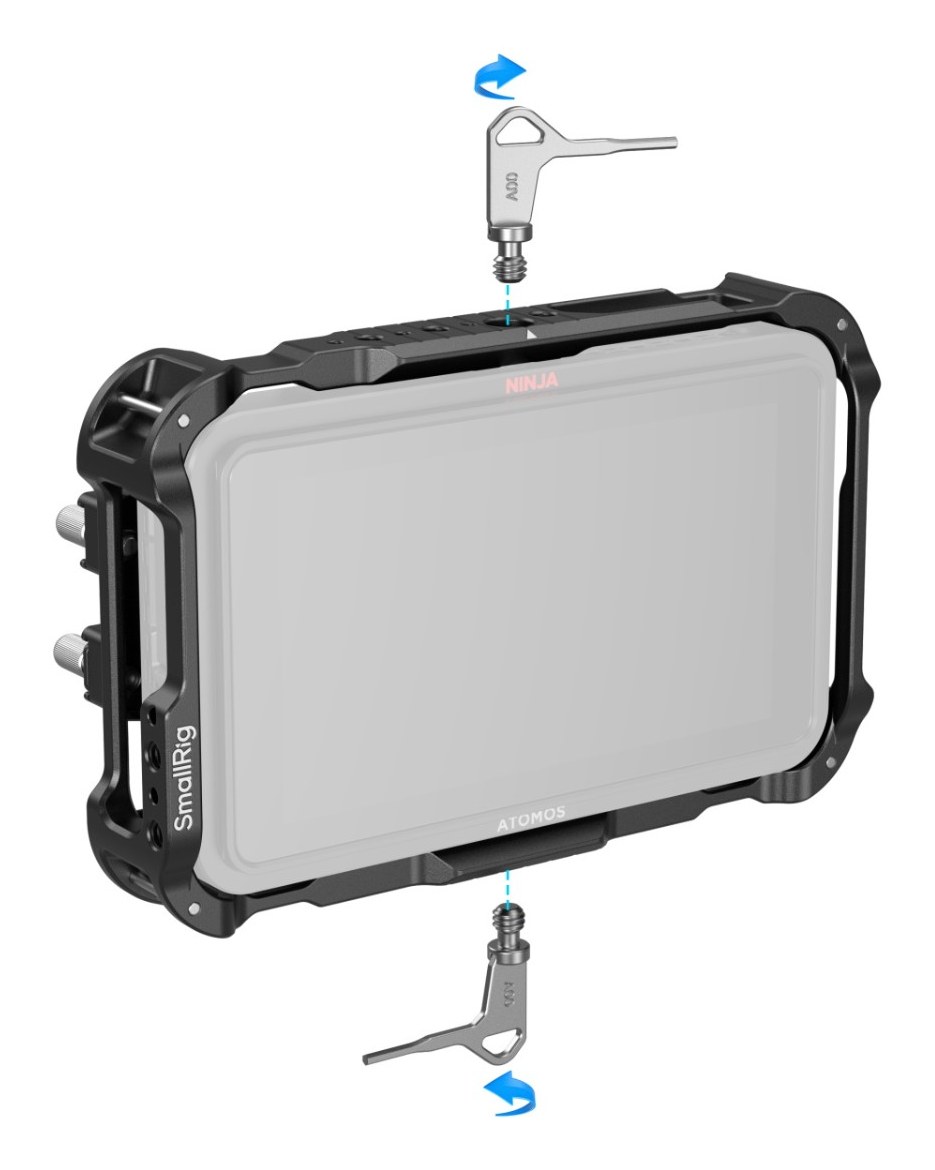

Two-point lock

Minimizes monitor shake during operation.

Cable clamps

Hold HDMI and USB-C connectors, compatible with original Atomos cables.

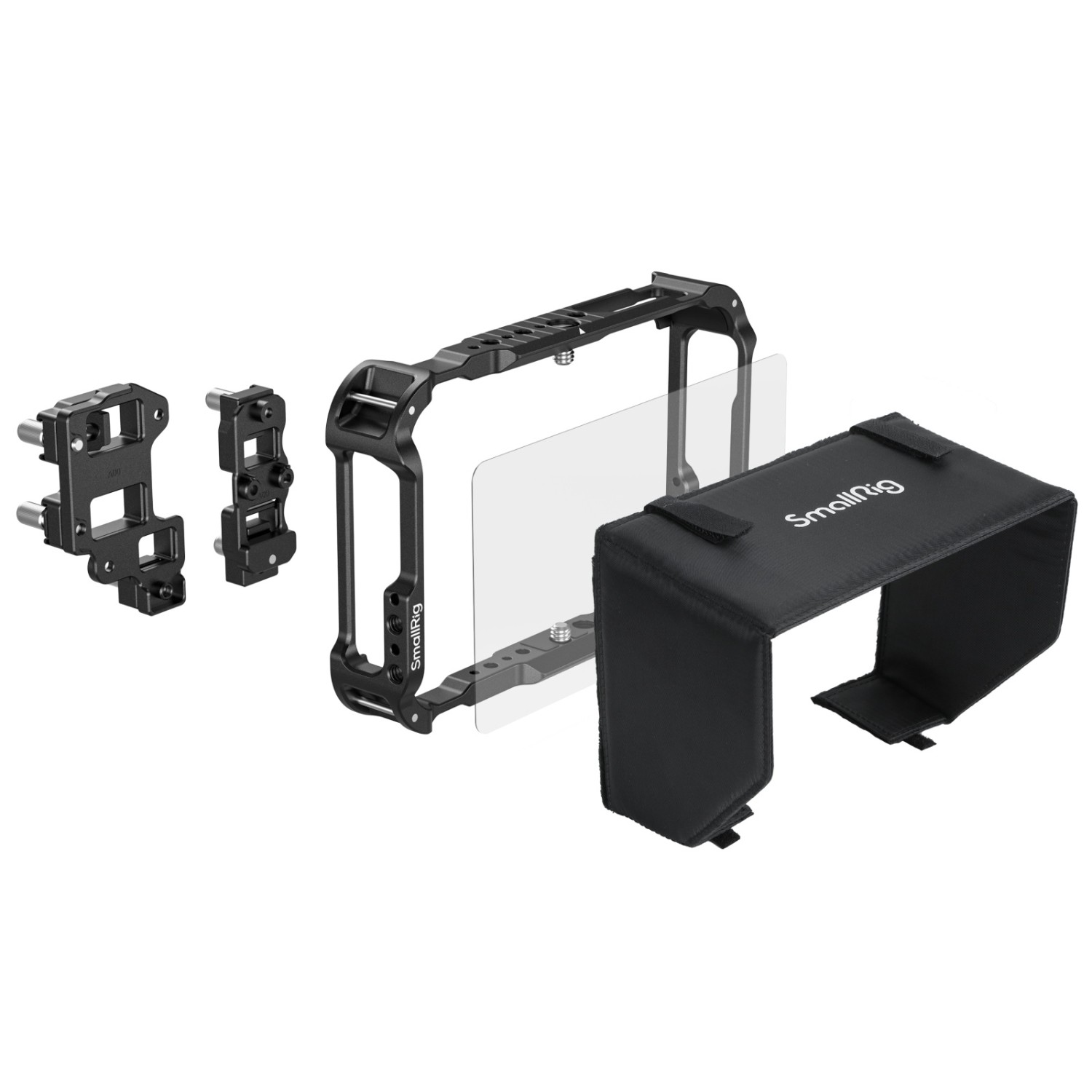

SmallRig Monitor Cage Kit for Atomos Ninja TX 5708 is designed to provide robust protection and versatile mounting options for the device. The kit includes a cage, a sun hood (ID VH2269), an HDMI & USB-C cable clamp, a dedicated USB-C cable clamp, and a screen protector. The integrated sun hood significantly improves screen visibility in bright shooting environments.

Monitor Cage Kit for Atomos Ninja TX
Monitor Cage Kit for Atomos Ninja TX

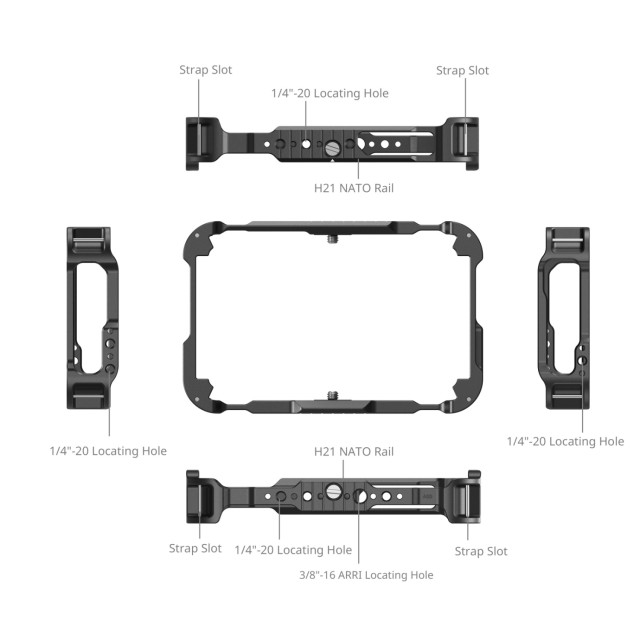

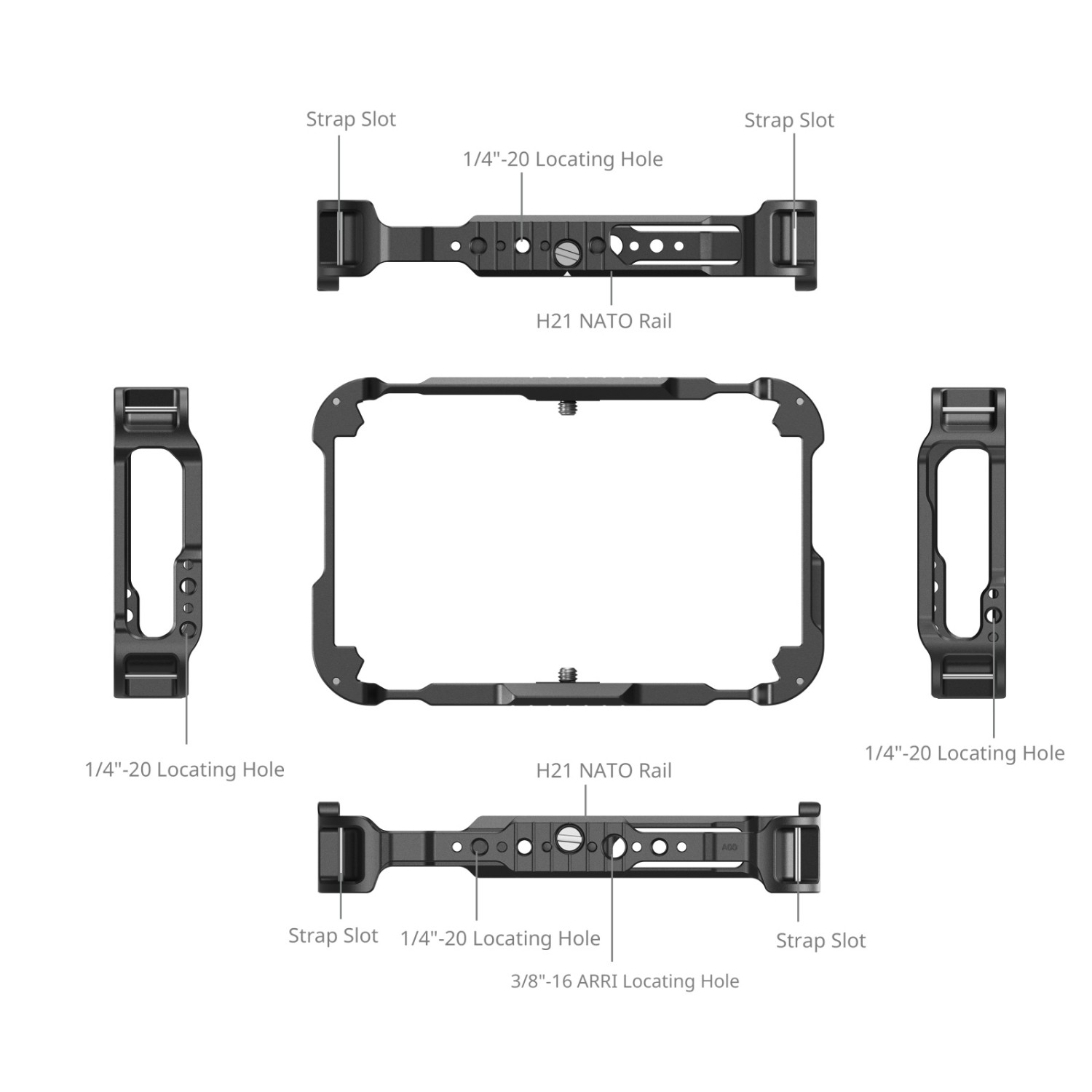

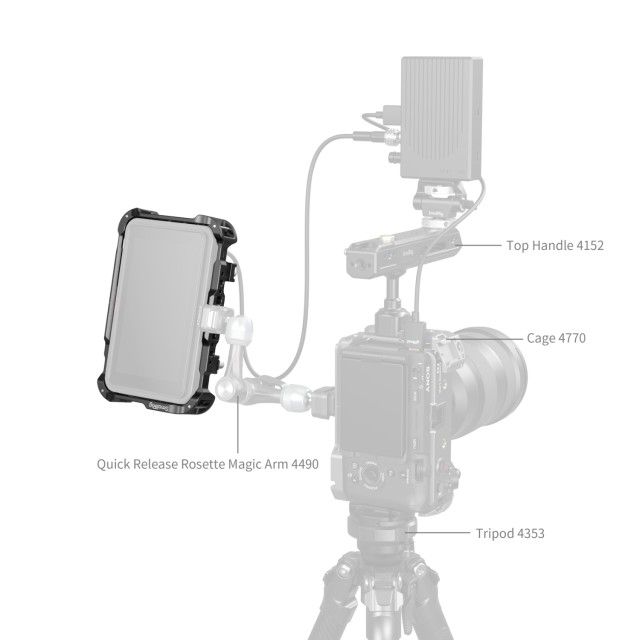

The cage features a built-in "HawkLock" H21 NATO rail, compatible with the "HawkLock" Monitor Support (ID 4888) and the Swivel and Tilt Adjustable Monitor Mount (ID 2906B), enabling quick attachment and detachment. It is equipped with multiple 1/4"-20 threaded holes for attaching accessories such as the Monitor Mount (ID 2903B) and Magic Arm (ID 3873), along with ARRI 3/8"-16 locating holes for mounting the Magic Arm (ID 4900). Strap holes at the top and bottom enable convenient shoulder strap attachment. Engineered for durability and stability, the cage features a two-point locking system that minimizes shake during operation.

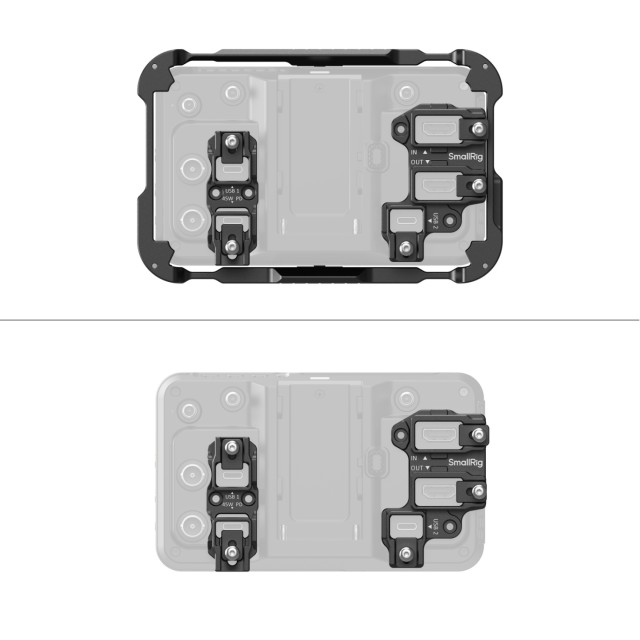

The included cable clamps securely fasten both HDMI and USB-C connectors and are compatible with original Atomos cables. They can be mounted directly onto the monitor or attached to the cage, preventing accidental disconnections for stable data transmission. Additionally, the sun hood and screen protector work together to enhance visibility in high-glare conditions while safeguarding the screen from scratches.

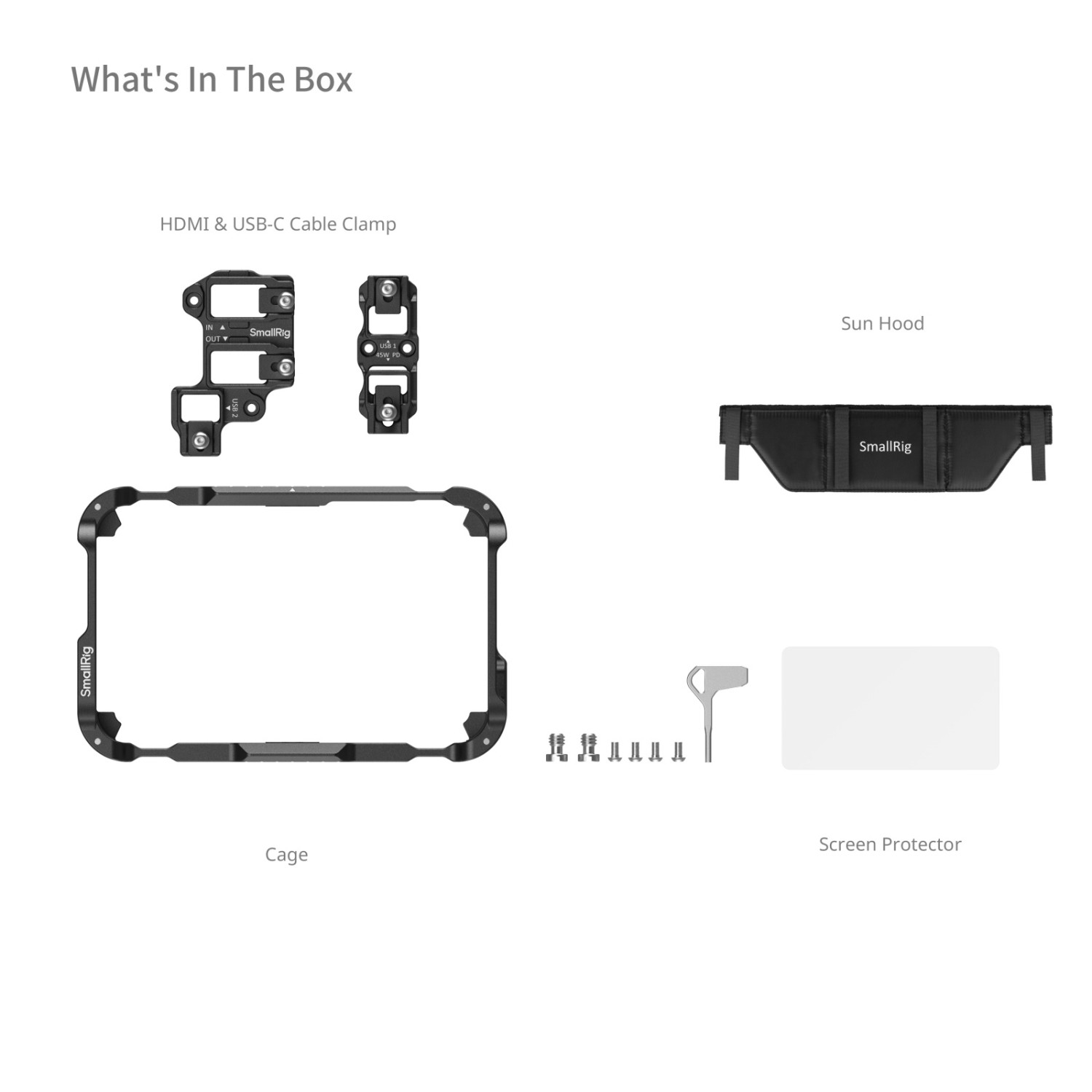

PACKAGE CONTENT

1× Cage
1× Sun Hood
1× Screen Protector
1× HDMI & USB-C Cable Clamp
1× USB-C Cable Clamp
2× 1/4"-20 Screws
4× M3 Screws
1× Cleaning Tool
1× Double Head Wrench
1× User Manual

SPECIFICATIONS

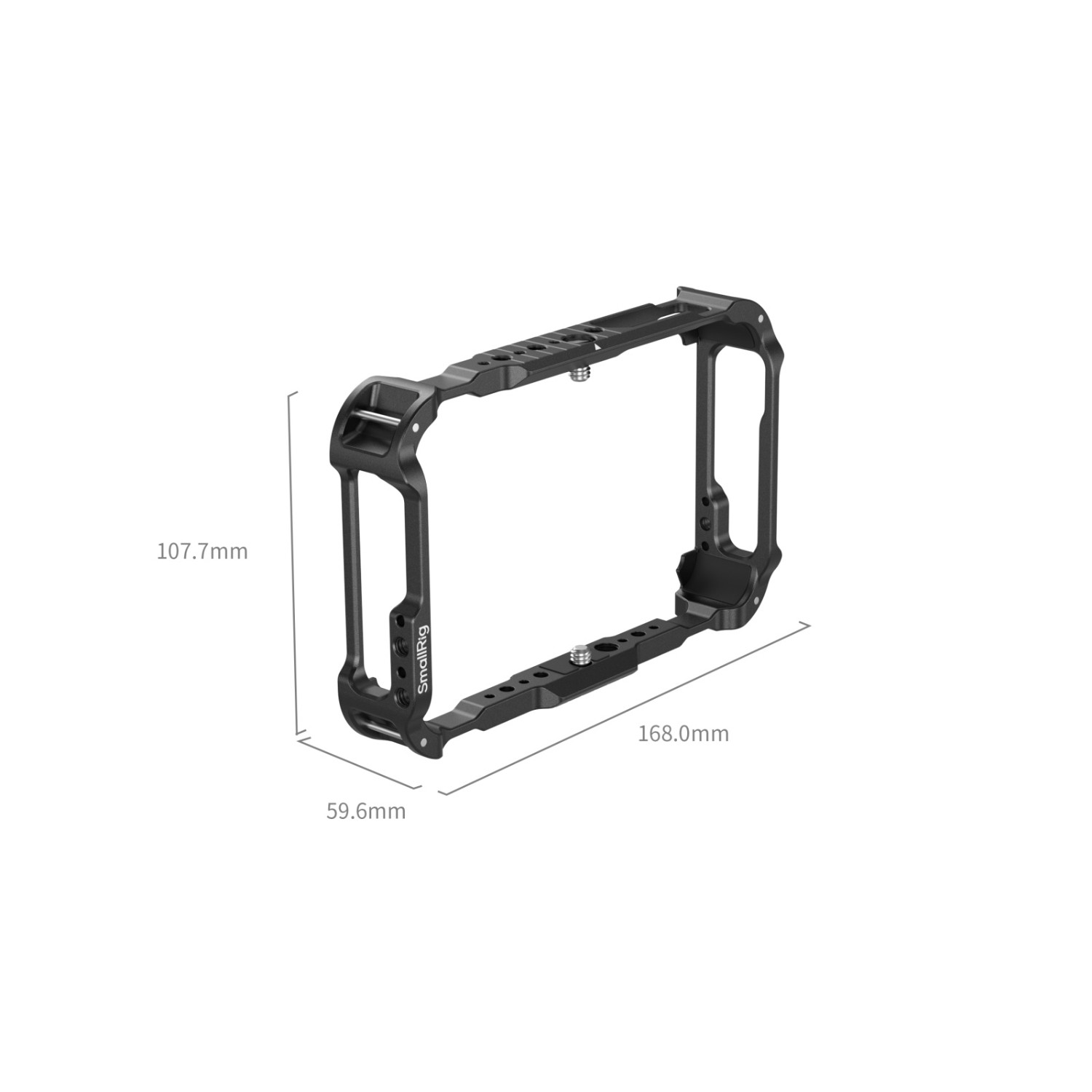

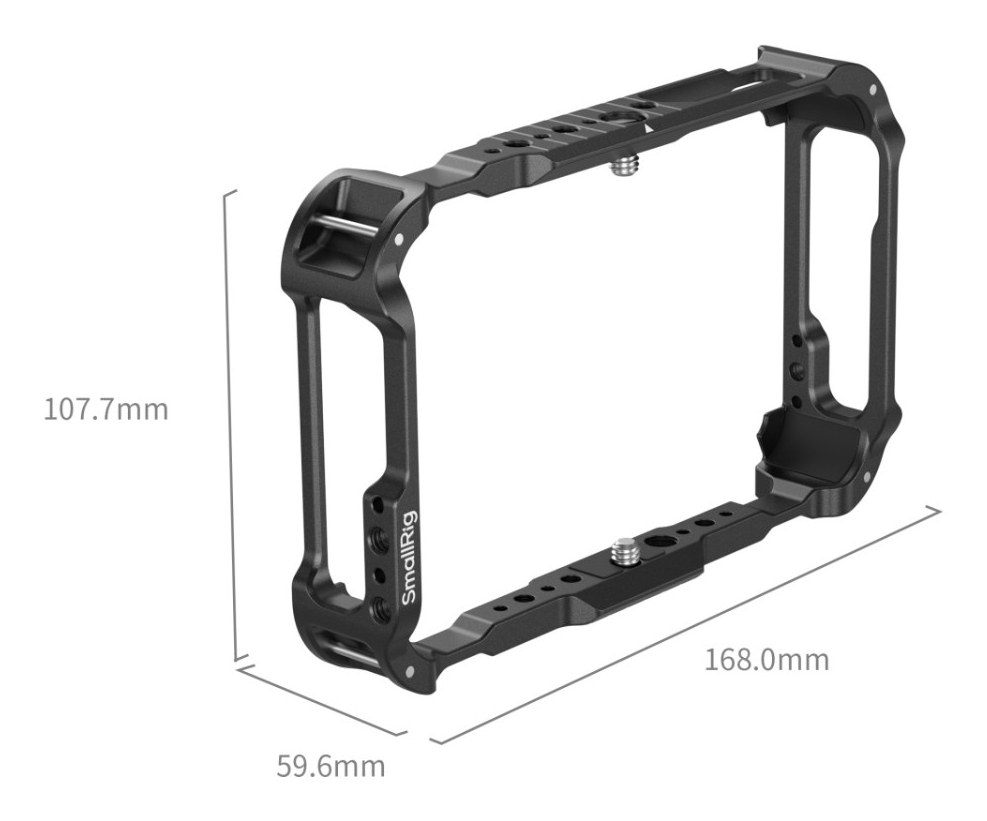

Product Dimensions: 168.0 × 107.7 × 149.8 mm / 6.6 × 4.2 × 5.9in
Package Dimensions: 180.0 × 129.5 × 75.0 mm / 7.1 × 5.1 × 3.0in
Product Weight: 255.8 ± 5.0 g / 9.0 ± 0.2oz
Package Weight: 375.8 ± 5.0 g / 13.3 ± 0.2oz
Material(s): Aluminum Alloy, Nylon
Parameters

Parameters

Manufacturer: SmallRig
Category: Cages

Main parameters

ColourBlack
MaterialAluminium alloy
VersionCage kit
Mounting Interface1/4"-20 · 3/8"-16 · ARRI 3/8"-16 · NATO · Strap holes
MaterialNylon
Product Weight255.8g
Dimensions167.6x149.9x106.7mm
