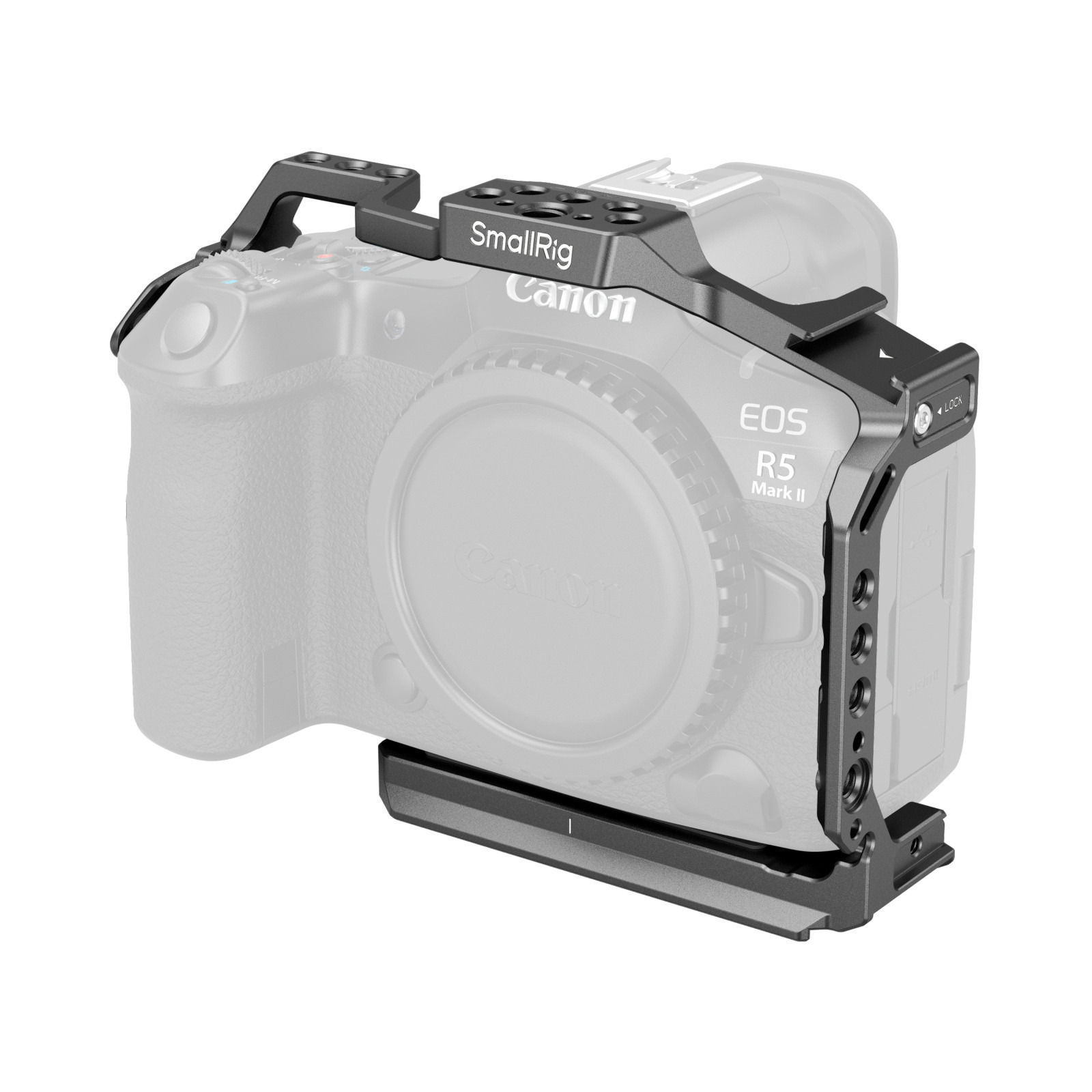

SmallRig Cage for Canon EOS R5 Mark II 4978B

Exact product

SmallRig Cage for Canon EOS R5 Mark II 4978B

Designed for the intended workflow

1. One-piece design for seamless camera protection without obstructing interfaces.
2. Incorporates a three-point locking system for stability and precision, utilizing a 1/4"-20 screw at the base and two locating blocks on the sides.

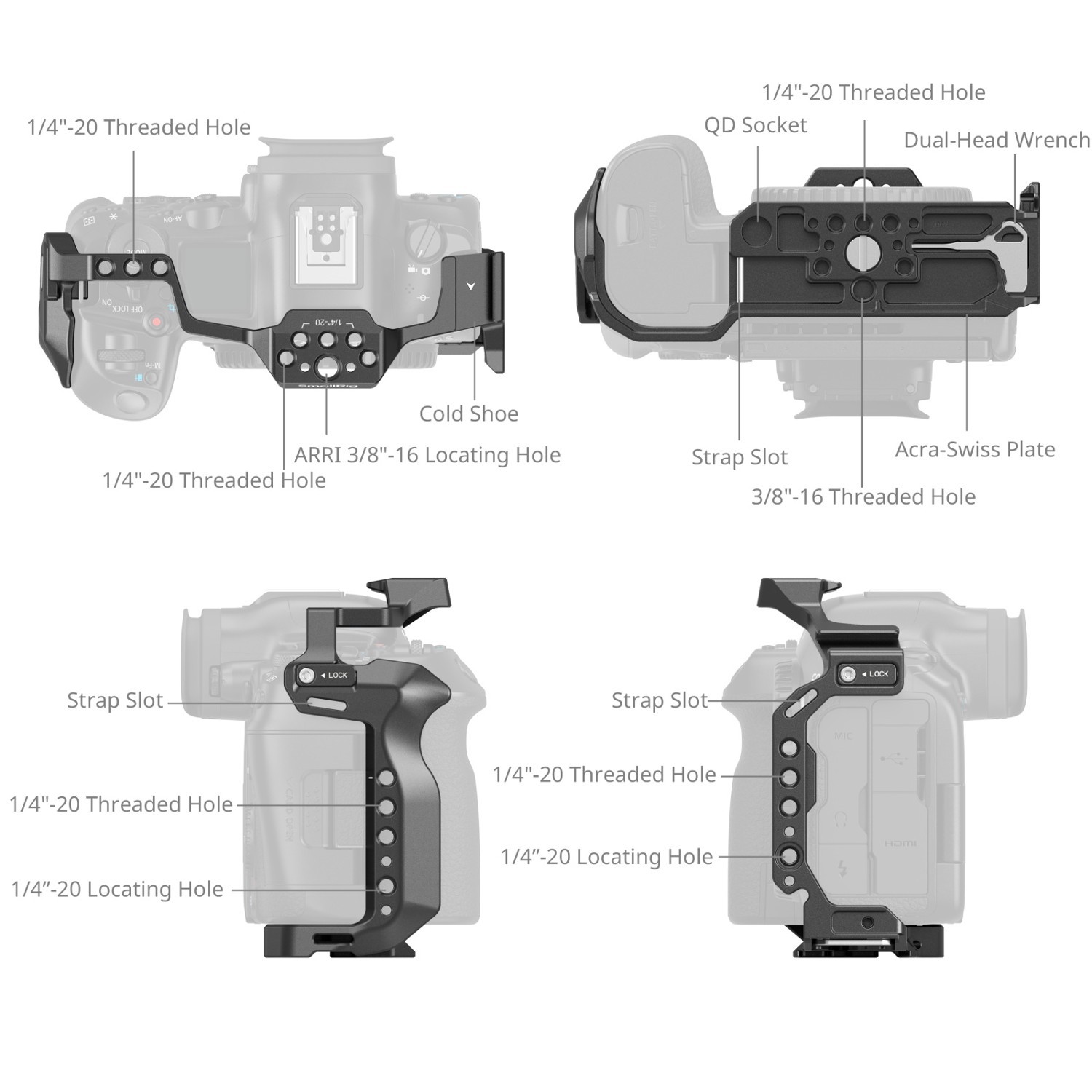

3. Multiple expansion interfaces, including 1/4"-20 threaded holes, 1/4"-20 locating holes, 3/8"-16 threaded holes, ARRI 3/8"-16 locating holes, cold shoe mounts, QD interfaces, and strap slots for diverse shooting scenarios.
4. The incorporated Arca-Swiss quick-release baseplate is compatible with Arca-type tripods and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro stabilizers.
5. Includes durable scratch-resistant 9H hardness tempered glass screen protector, featuring  IK03 impact resistance test rating.

SmallRig Cage for Canon EOS R5 Mark II 4978B is meticulously crafted to provide comprehensive protection and a multitude of expansion interfaces for your camera. The cage features a secure locking mechanism with a bottom 1/4"-20 screw and two side locating blocks, along with integrated silicone pads to prevent scratches on your camera. Designed with precision, the cage does not obstruct access to the camera's buttons, interfaces, dials, flip screen, battery compartment, or card slot.

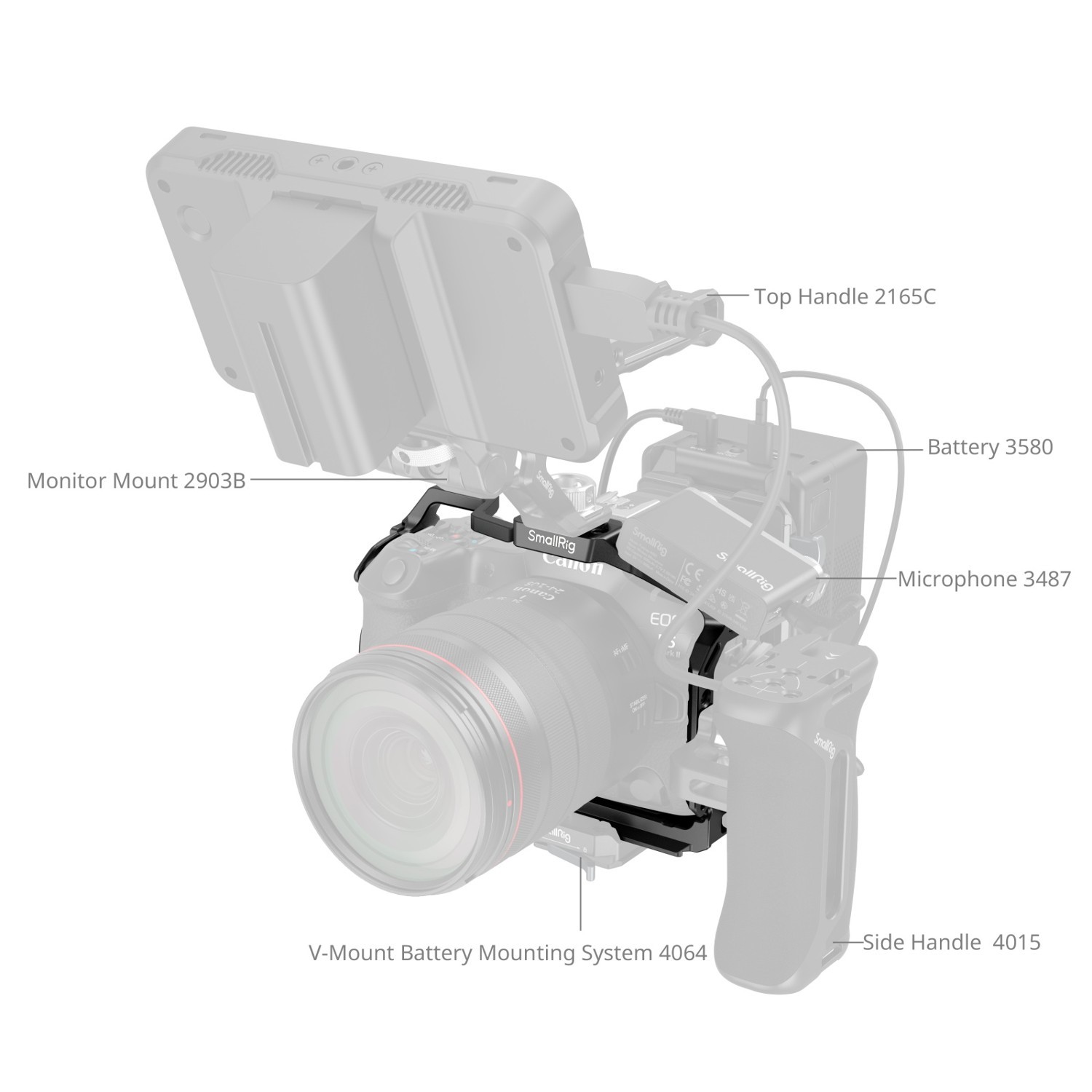

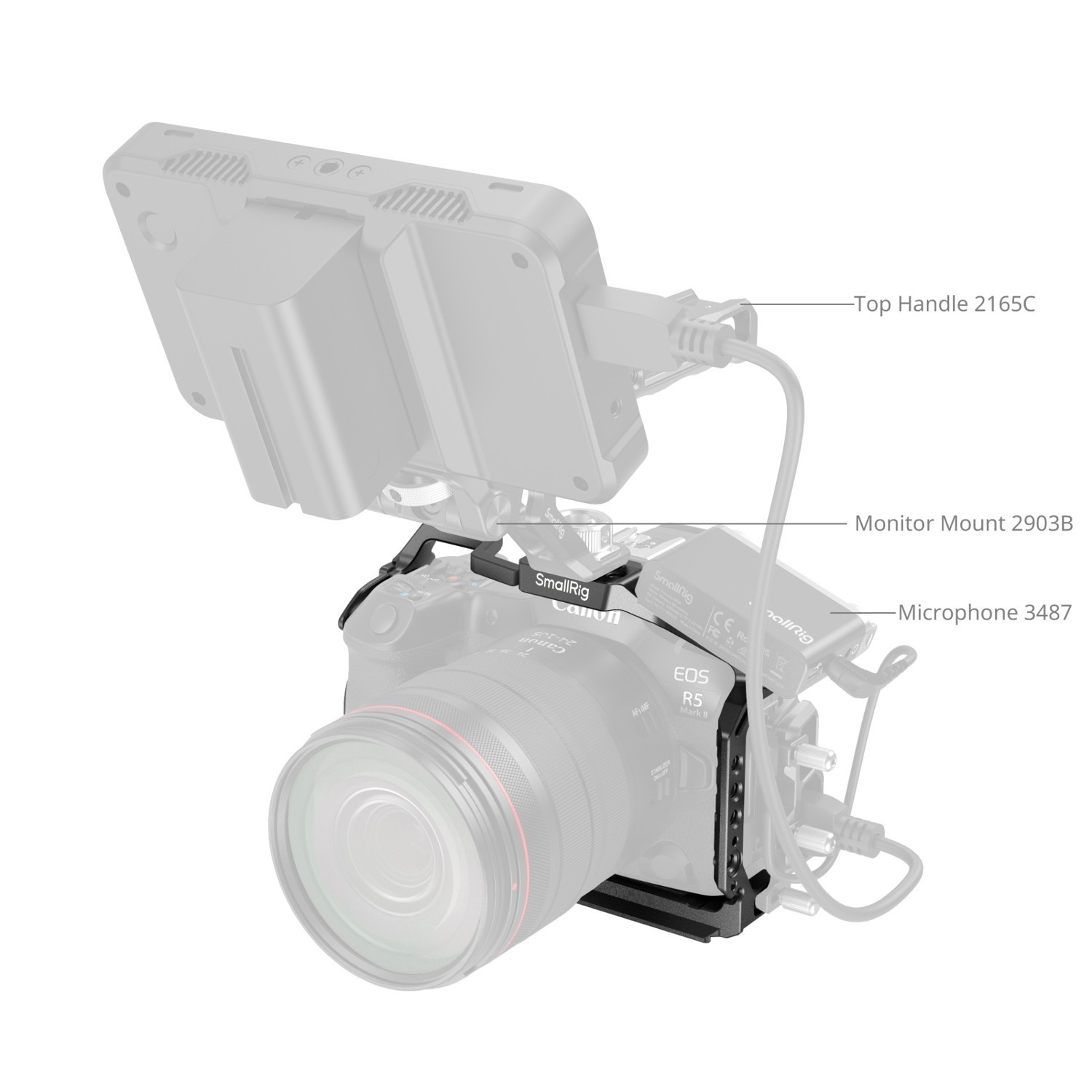

The cage features multiple 1/4"-20 threaded holes and 1/4"-20 locating holes for compatibility with auxiliary accessories like side handles (ID 2093, 4346), magic arms (ID 3874, 3875), monitor mounts (ID 2904B), Manfrotto baseplates (ID 1280), and L-shaped mount plate kits (ID MD4360). It also incorporates a cold shoe mount for attaching microphones and lighting accessories.

The cage features ordinary strap slots compatible with wrist straps (ID 3848), an innovative strap slot for downward hanging for extra lens protection, and a QD interface compatible with QD quick-release shoulder straps (ID 4118).

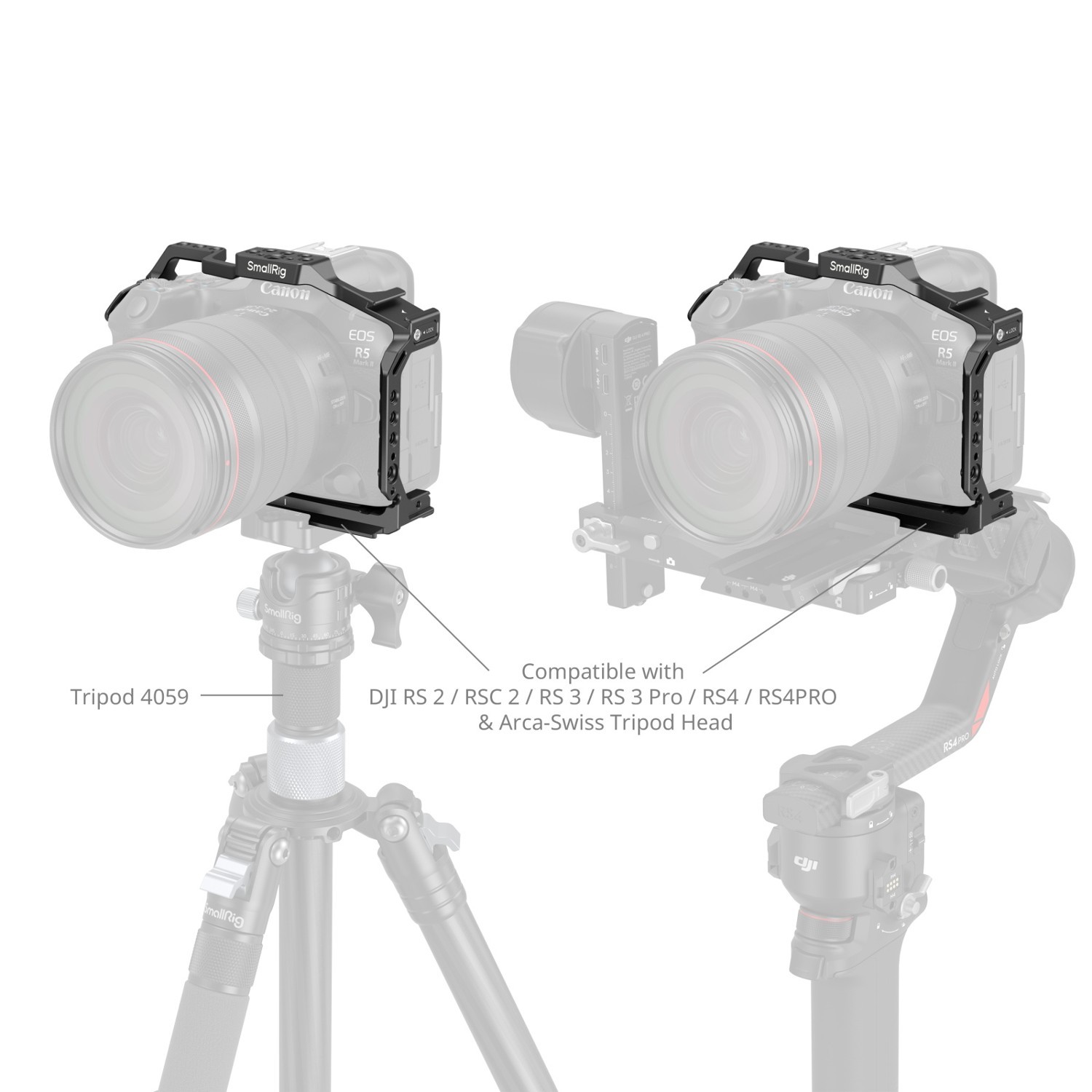

The Arca-Swiss quick-release baseplate allows for direct mounting on Arca-type tripods (ID 4060, 4353) and DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro stabilizers, enabling swift transitions between stabilizer, handheld, and tripod setups. Moreover, the cage incorporates a magnetic dual head wrench at the bottom for easy assembly and disassembly.

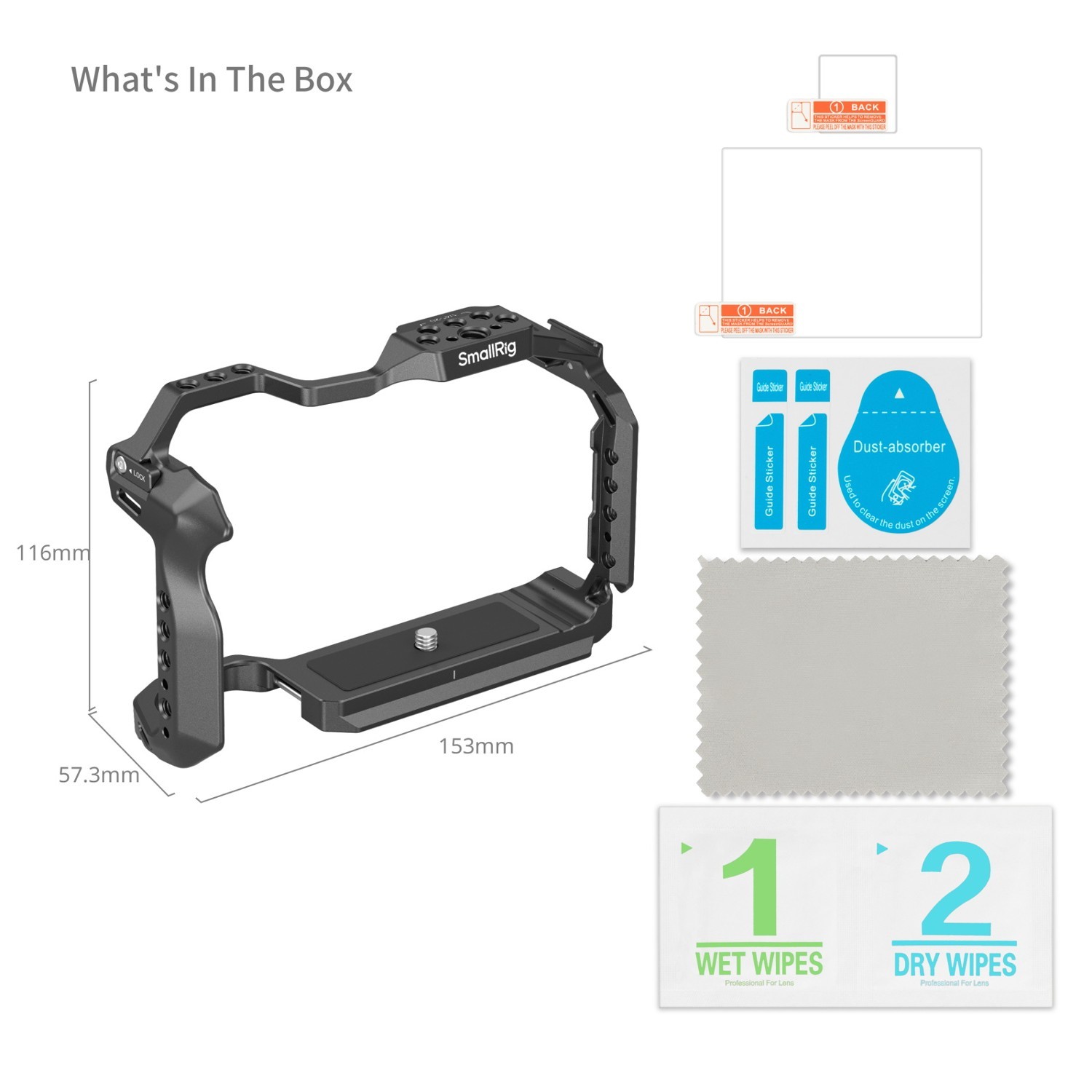

The cage comes with a durable scratch-resistant tempered glass screen protector with a surface hardness of 9H and an IK03 impact resistance test rating.

Note:

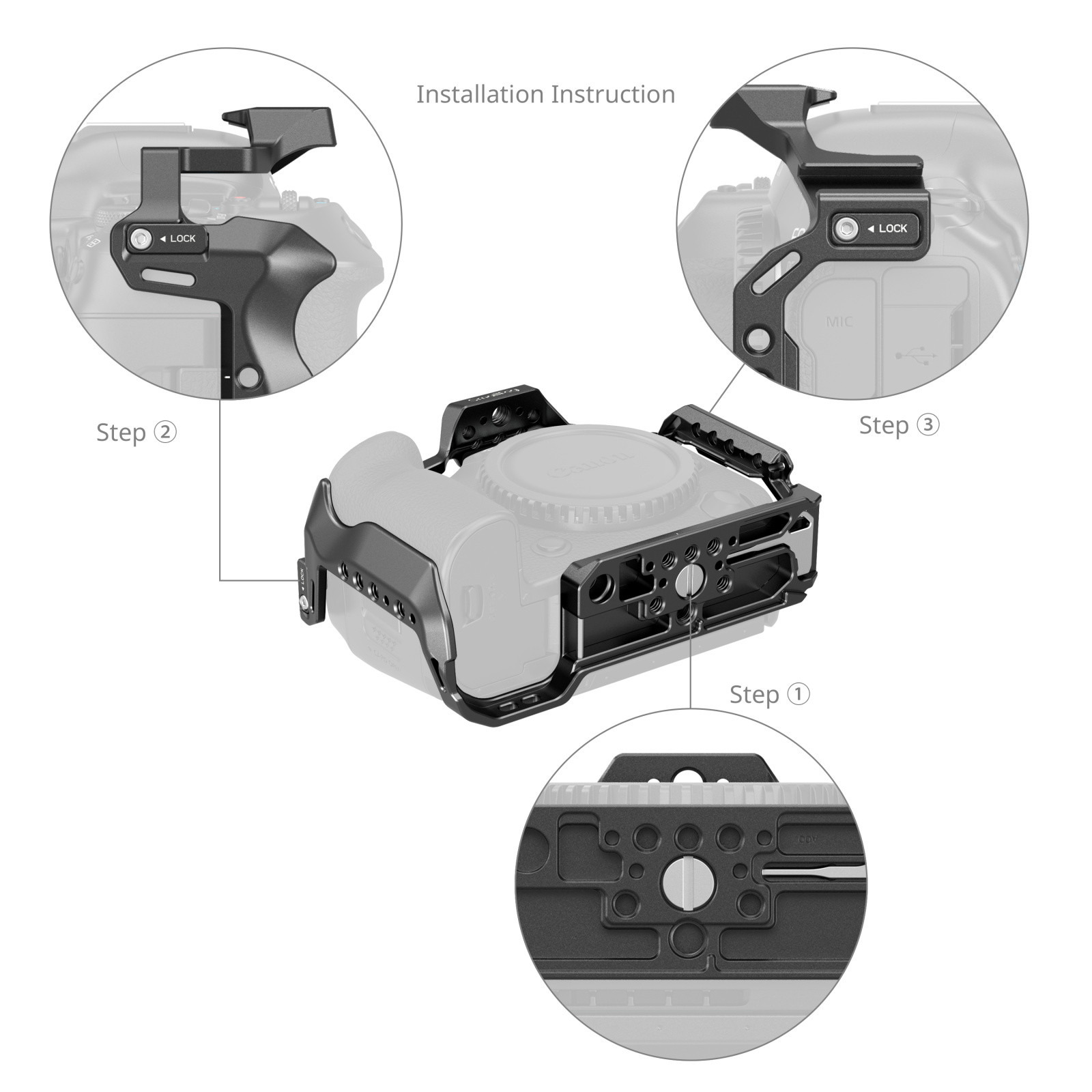

1. Remove the side locating blocks on both sides of the cage before mounting.
2. The tempered glass screen protector is intentionally designed to be slightly smaller than the screen edges to prevent dust from entering through larger gaps, constituting a normal design feature.

Construction details

A closer view highlights the product’s important functional elements.

Built for practical use

An additional view helps assess mounting, handling and integration into the setup.
