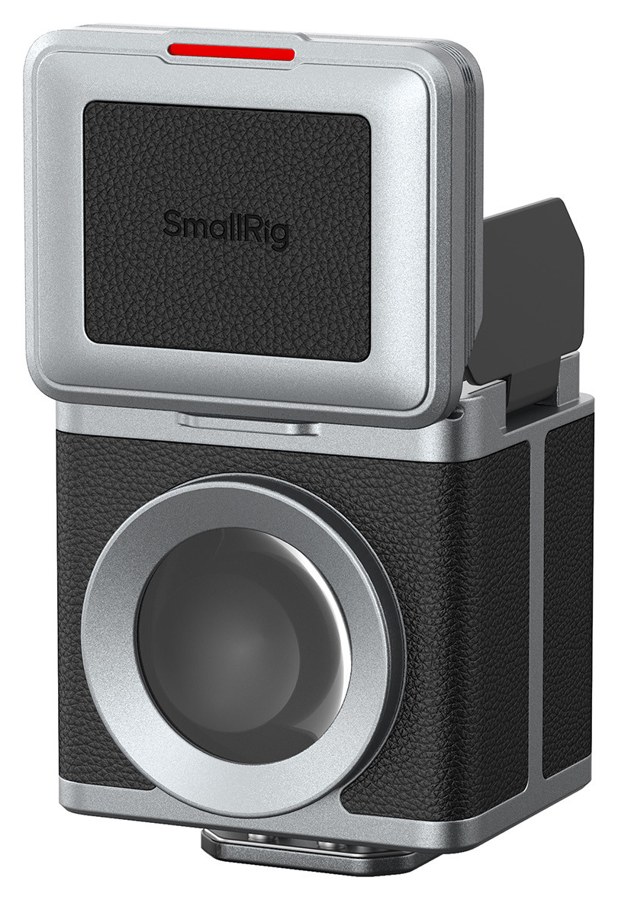

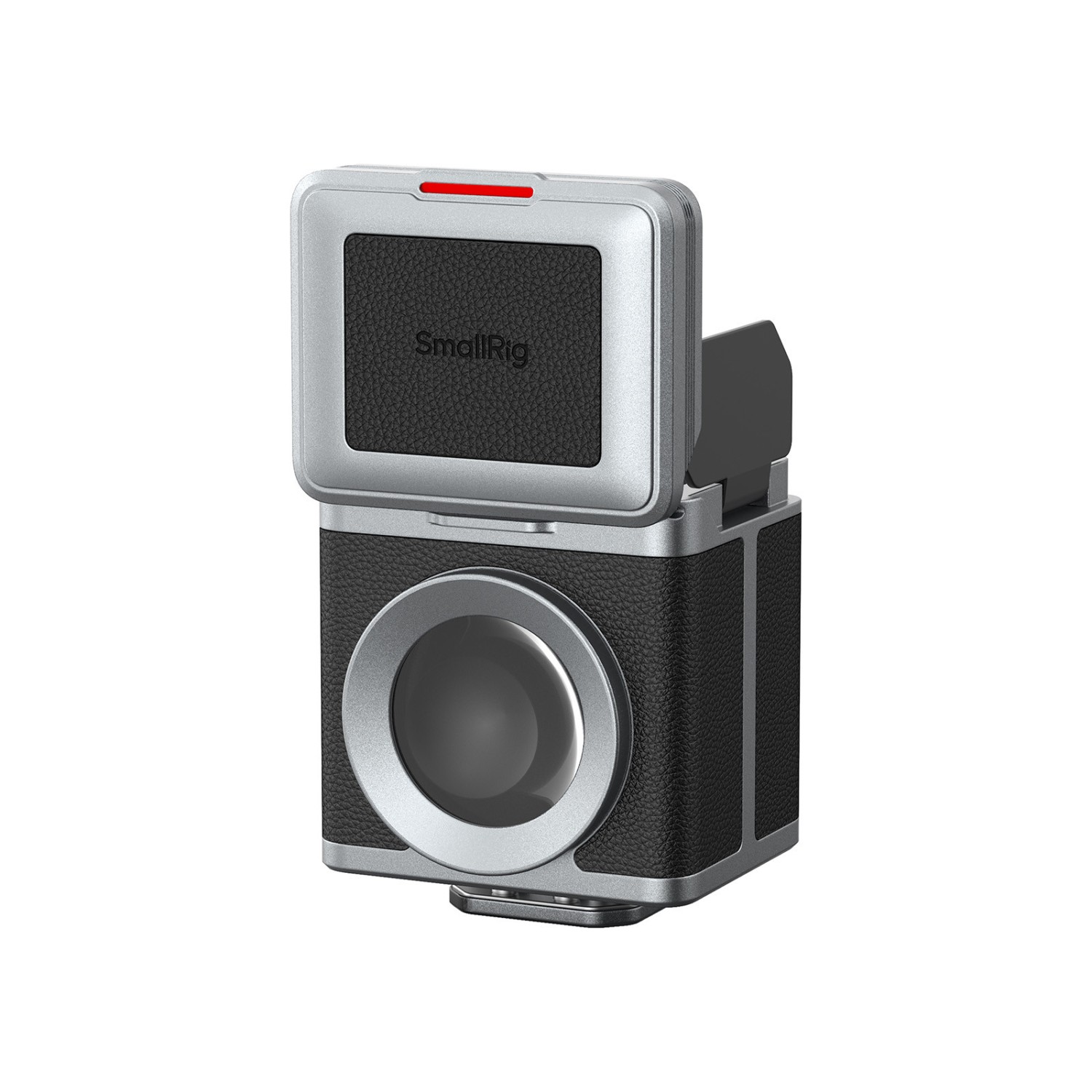

SmallRig 28mm Waist-Level External Optical Viewfinder 6127
SKU: 6127
The SmallRig 6127 waist-level optical viewfinder offers a 28mm full-frame-equivalent field of view with 35mm and 50mm frame lines. Its magnetic cover doubles as a sun hood, and a spring-loaded foot holds it securely in the camera's shoe.
69 € with VAT
57.02 € without VAT
Availability
on request
Top accessories for SmallRig 28mm Waist-Level External Optical Viewfinder 6127
SmallRig 35mm External Optical Viewfinder 6172
The SmallRig 6172 external optical viewfinder slides into the hot shoe and lets you
55 €
Backordered 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The SmallRig 6127 waist-level optical viewfinder offers a 28mm full-frame-equivalent field of view with 35mm and 50mm frame lines. Its magnetic cover doubles as a sun hood, and a spring-loaded foot holds it securely in the camera's shoe.

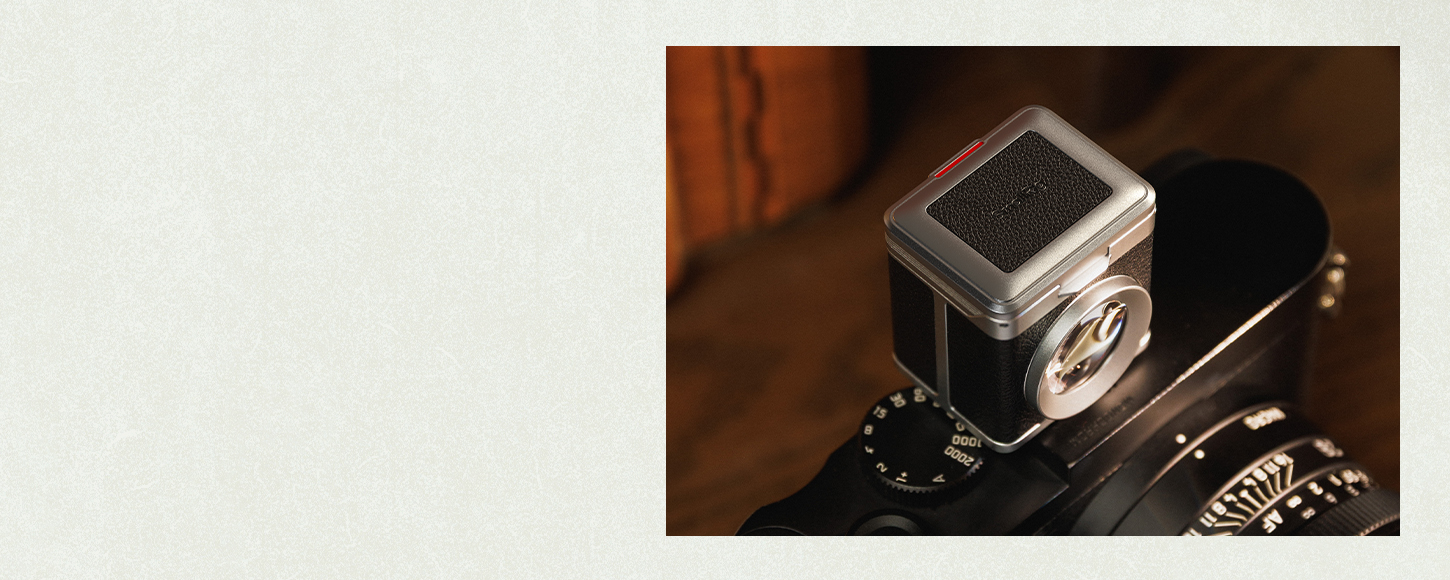

28mm optical viewfinder for waist-level viewing
The viewfinder slides into the camera's shoe and moves composition from eye level down to waist level. The top-down view is discreet and suits street and documentary photography as well as low-angle shots.
28mm field of view (FF)35mm and 50mm frame linesUp to 85% transmittanceMagnetic coverSpring-loaded foot62 g
The classic top-down view
Looking down into the viewfinder recalls working with Hasselblad and Rolleiflex cameras. Framing becomes more deliberate and draws less attention from your subjects.
4-element optics
A Fresnel lens and multi-layer nano AR coating give a bright view without color fringing.
One-touch hood
The magnetic cover opens in one motion and also blocks stray light.
35mm and 50mm frames
Besides the full 28mm view, built-in frame lines mark 35mm and 50mm.
Aluminum and leather
Anodized aluminum alloy with vintage leather-style trim weighs 62 g.

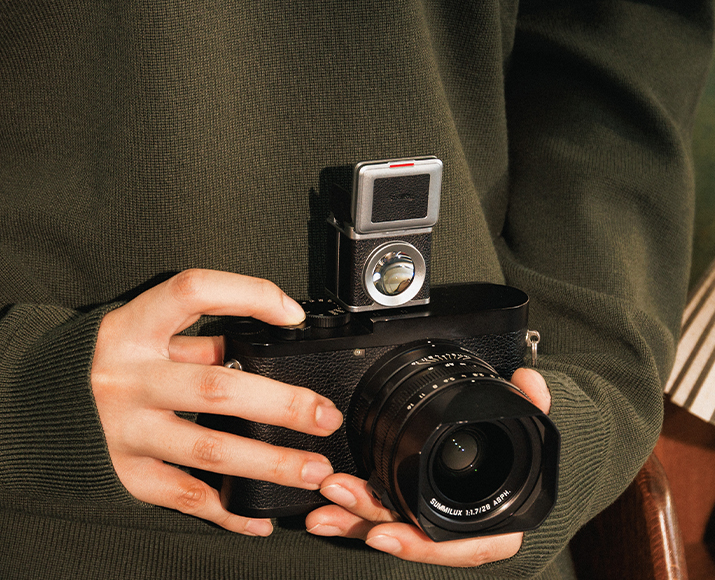

Waist-level composition
The viewfinder combines vintage leather-style detailing with a high-transmittance optical system to bring a classic waist-level viewing experience to modern cameras. Composition moves from eye level to waist level, which makes shooting more discreet and deliberate.
Effortless framing with 28mm lenses
The field of view matches a 28mm lens on full frame, and built-in bright frame lines for 35mm and 50mm cover the focal lengths most commonly used in street and documentary photography.

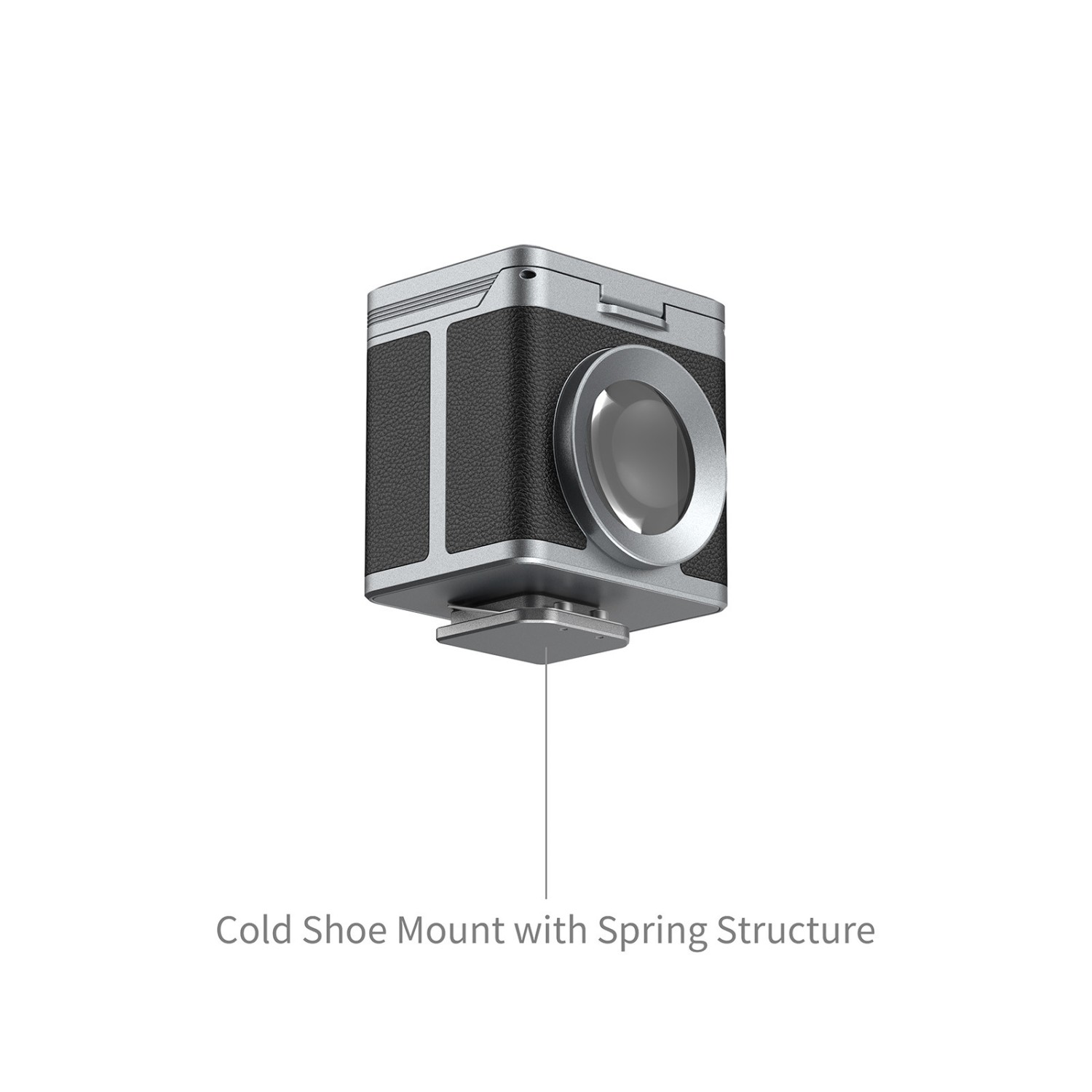

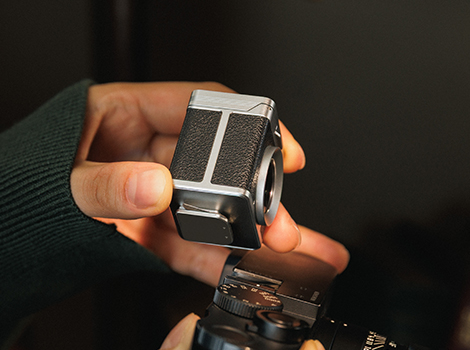

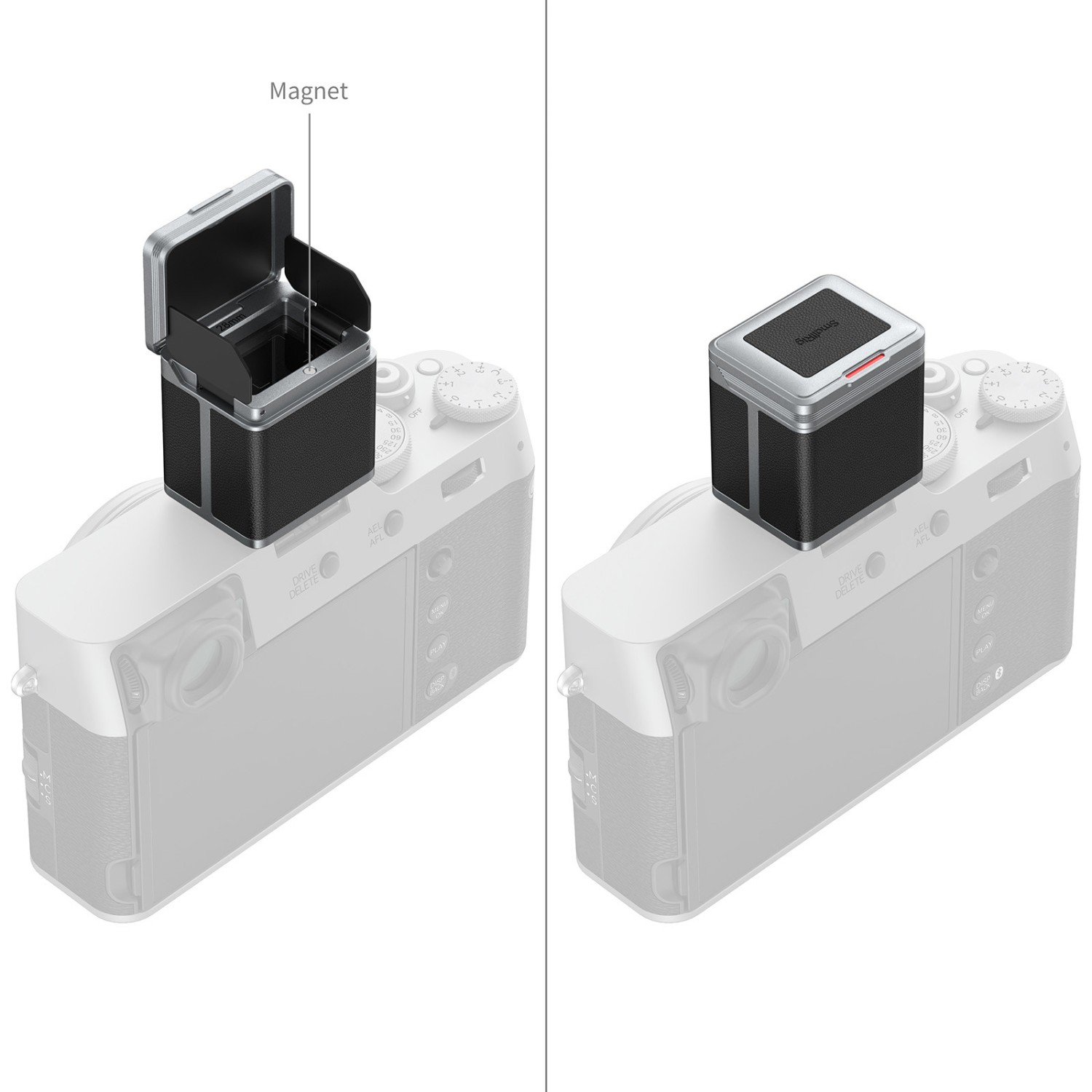

One-touch hood and shoe mount
The magnetic hood combines the protective cover and sun hood in a single structure. It opens in one quick motion with a crisp click, suppresses stray light in bright conditions and protects the optics in storage. A standard spring-loaded foot sits securely in the hot shoe.

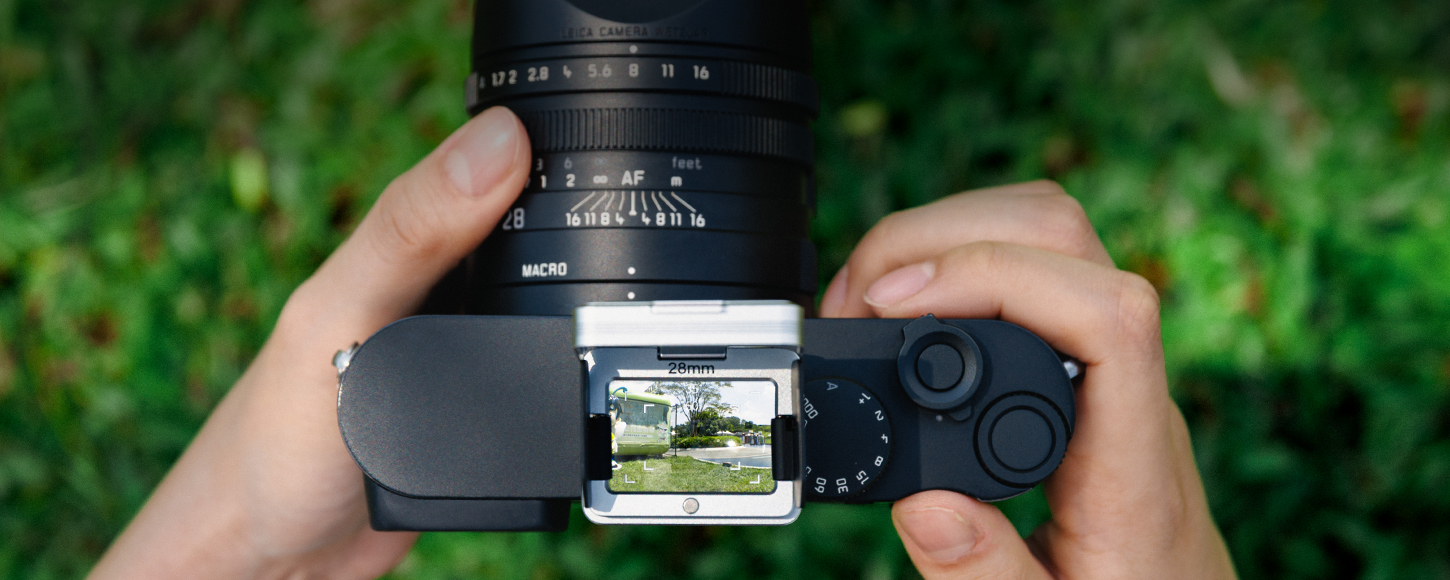

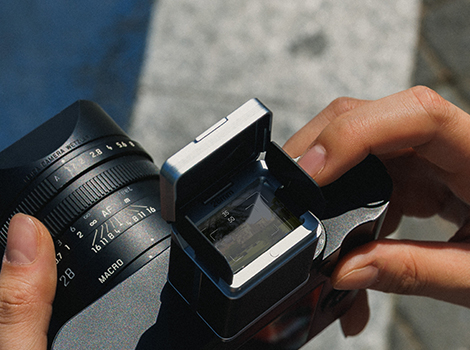

Low-angle shots
Simply look down into the viewfinder to find your shot. Whether you work on the street or compose from a low angle, framing becomes more relaxed and draws less attention from the subject, much like the classic Hasselblad and Rolleiflex cameras.
Clear optical view
A precision 4-element optical design, paired with a Fresnel lens and multi-layer nano AR coating, delivers total light transmittance of up to 85%. Distortion is controlled within ±15%, giving a bright, clear view with no visible color fringing.

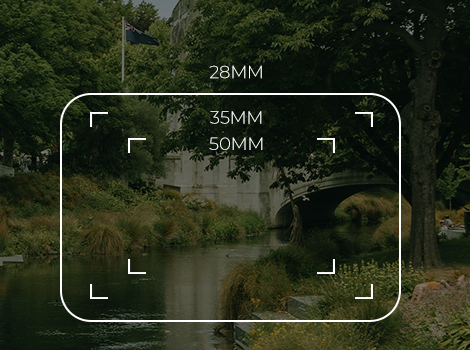

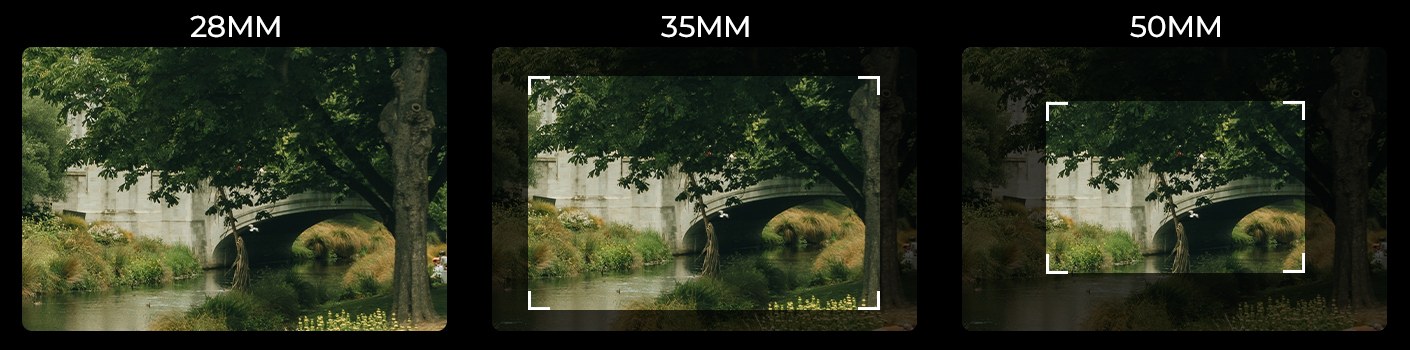

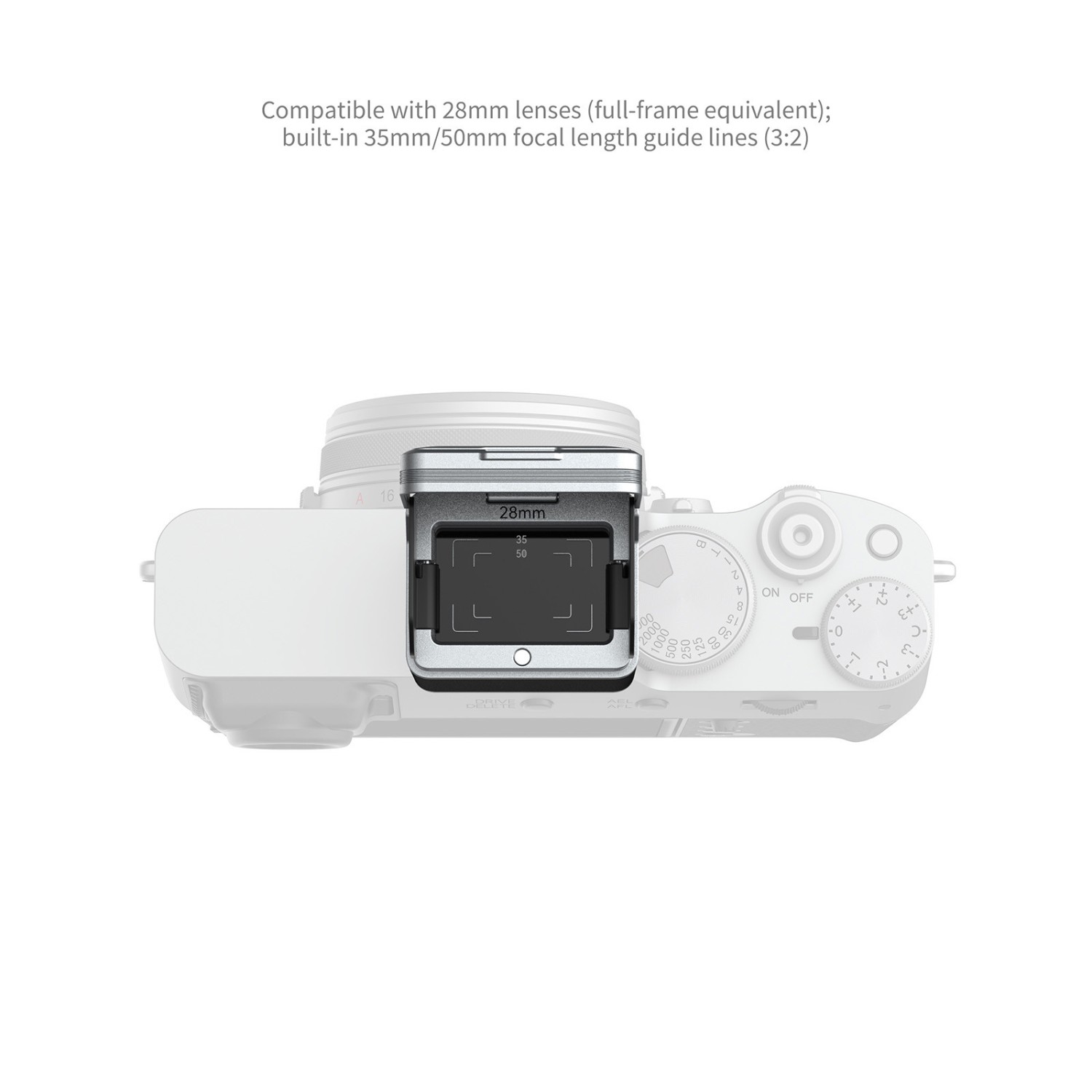

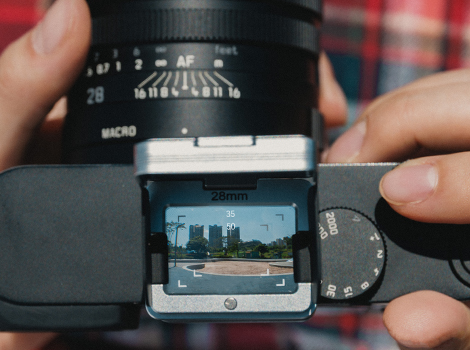

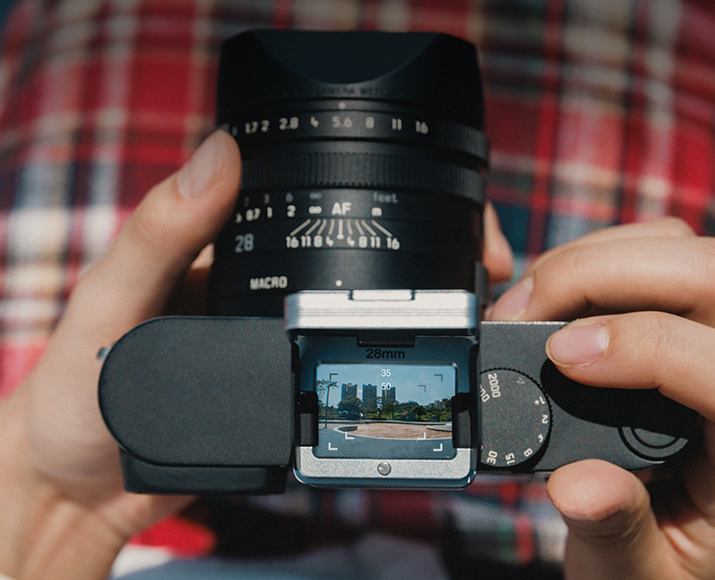

Full 28mm view with 35mm and 50mm frame lines
The viewfinder shows the full 28mm field together with built-in guide frames for 35mm and 50mm. At 28mm even a slight tilt becomes noticeable, so keep the camera level to reduce perspective distortion.

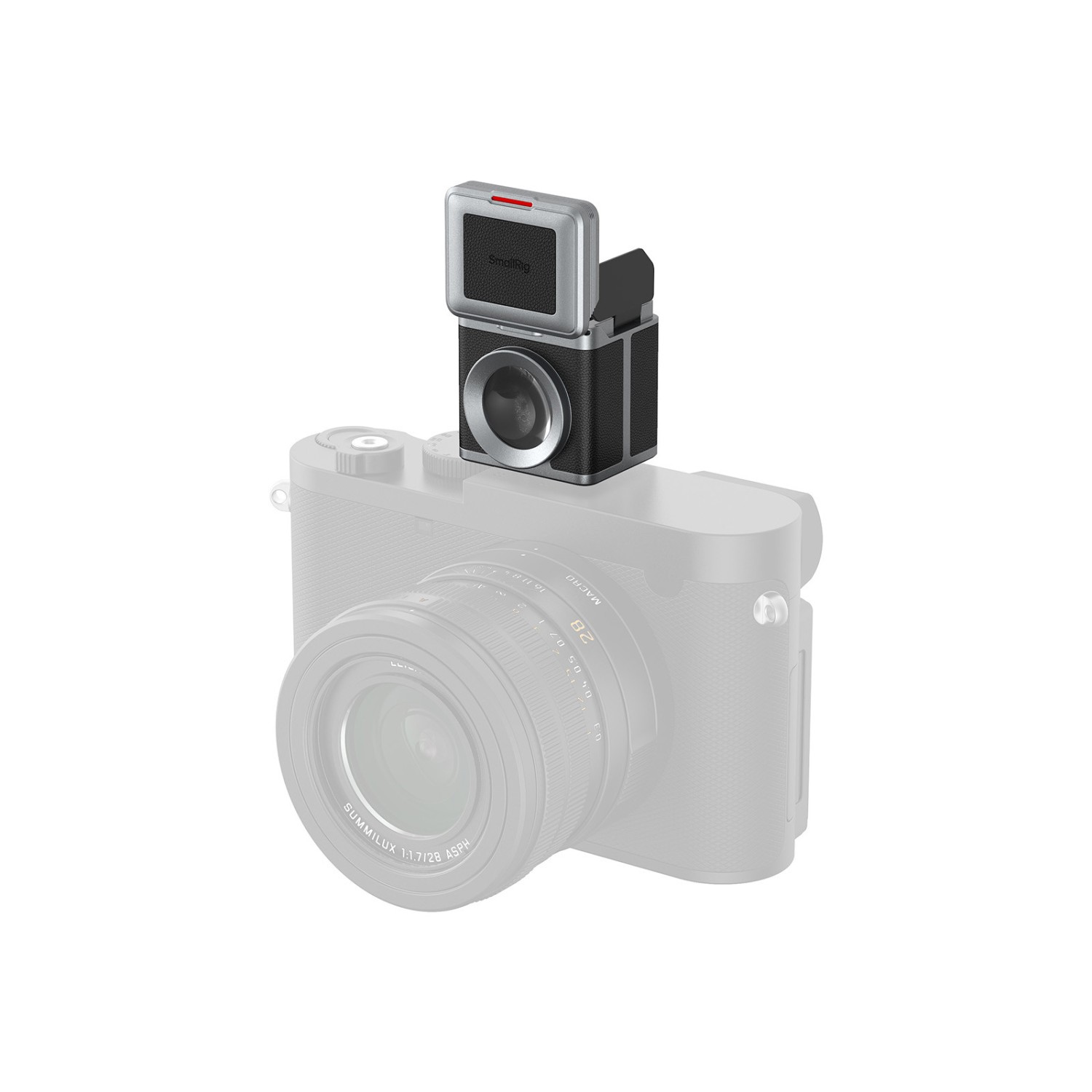

Universal shoe fit

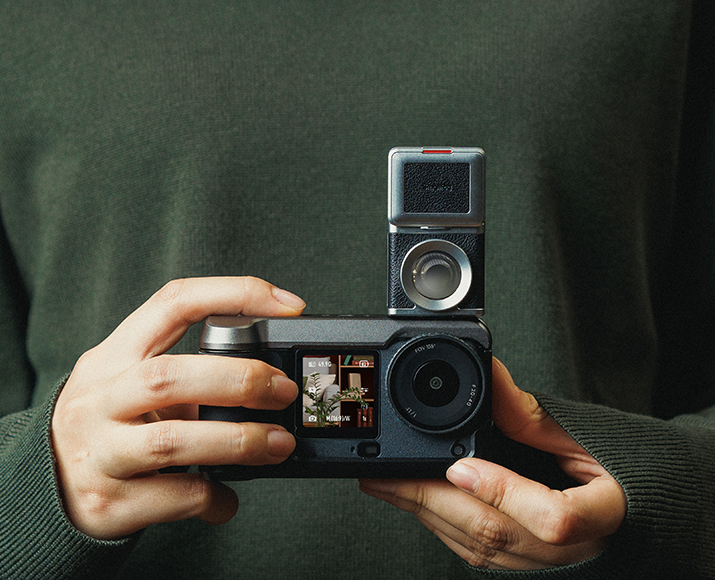

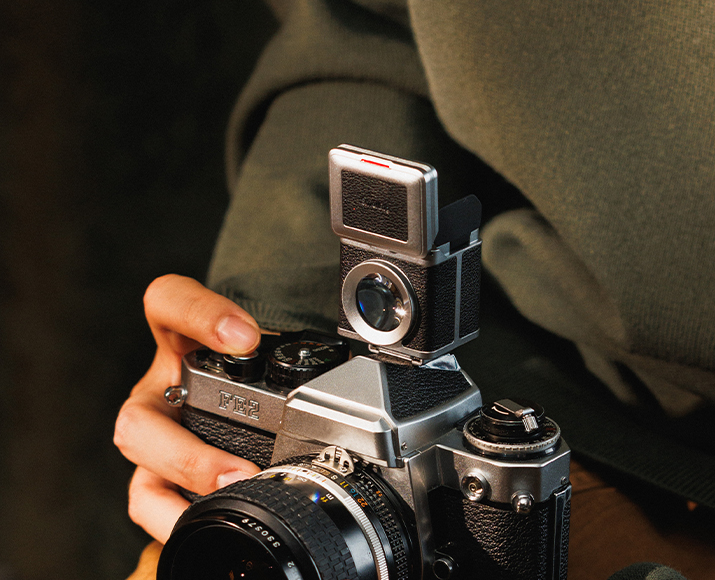

A standard spring-loaded foot provides secure attachment and broad compatibility with cameras from Fujifilm, Leica, Nikon and other brands. The manufacturer also shows the viewfinder on cages for action cameras and on film cameras.
Inspired by the classics
An aerospace-grade aluminum alloy body with an anodized finish is paired with vintage leather-style trim in a classic black-and-silver scheme. The viewfinder complements the materials and finishes of mainstream camera bodies and weighs only 62 g.

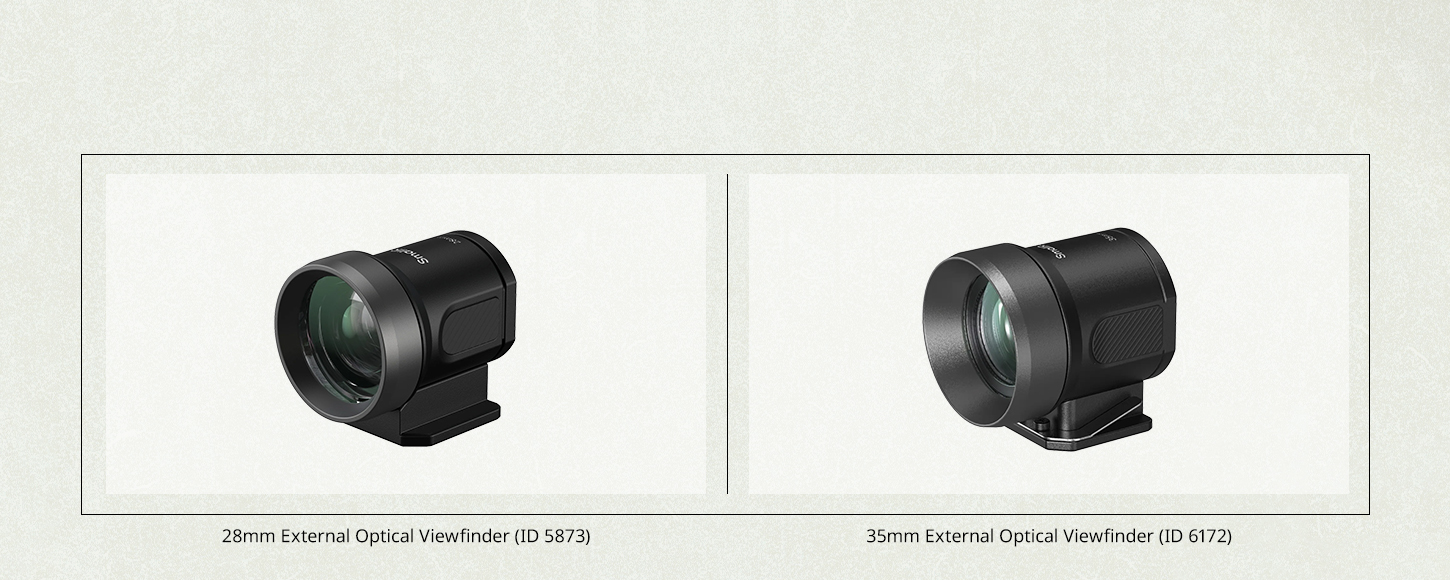

Find your perfect view
SmallRig also offers the 28mm (5873) and 35mm (6172) external optical viewfinders in a classic eye-level design.
More information
Notes for use
Close-range parallax: the minimum viewing distance is 0.5 m. Within 2.0 m the captured image appears slightly lower than the framed view, so compose slightly higher to compensate.
Viewing distance: more than 0.4 m is recommended. If you wear glasses, keep your eye as close as possible to the eyepiece to minimize edge vignetting.
Optical characteristics: the viewfinder shows approximately 12% barrel distortion, a normal physical characteristic of an ultra-wide optical design.
Care: the optical surfaces have a nano coating; do not wipe them dry or with rough cloths. Do not point the eyepiece at strong sunlight for long periods, as concentrated heat may damage the device.

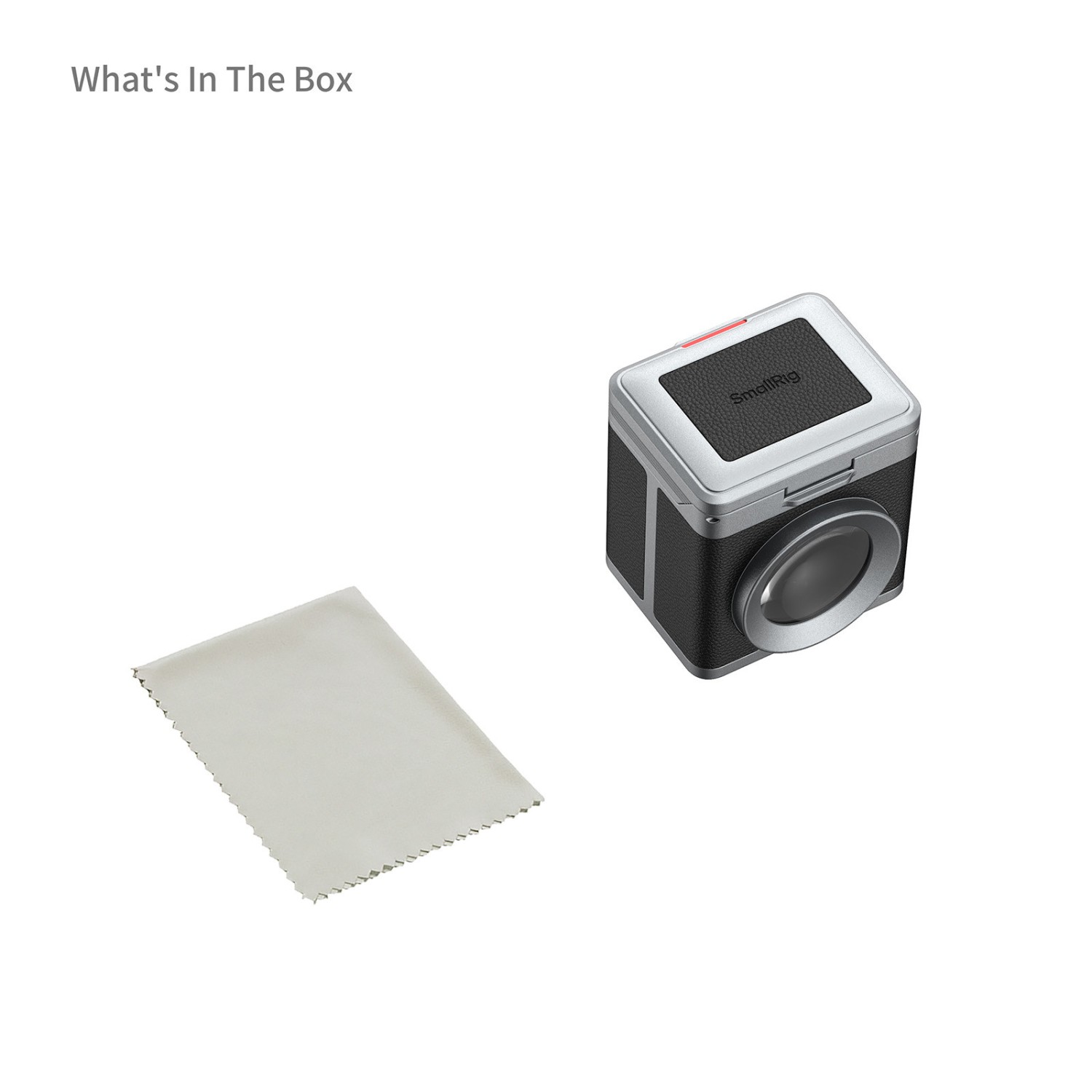

PACKAGE CONTENT
- Viewfinder × 1
- Lens cloth × 1
SPECIFICATIONS
- Material: optical glass, aluminum alloy, PU leather
- Product dimensions: 36.1 × 31.8 × 43.6 mm
- Weight: 62 ± 5 g
- Field of view: 28mm (full-frame equivalent), 35mm and 50mm frame lines
- Optics: 4 elements, Fresnel lens, multi-layer nano AR coating
- Light transmittance: up to 85%
- Mount: spring-loaded hot shoe / cold shoe foot
- Compatibility: Fujifilm X-Pro3, X-E4, X-E5, X half, X-M5, X100VI, X100V, X-S20, X-T30, X-T30 III, X-T4, X-T5, X-H2S, X-T50; Nikon Z30, Z50 II, Z fc, Z f; Canon R50, R50 V, PowerShot V1, M6, M6 II, M50; Sony A7C II, ZV-E10 II, ZV-1F, A7C, ZV-E10, A6600, A6700; Ricoh GR III, GR III HDF, GR IIIx, GR IIIx HDF, GR IV, GR IV HDF, GR IV Monochrome; Leica Q3, M11 series
Parameters
Parameters
| Manufacturer: | SmallRig |
| Category: | EVF (Electronic View Finder) |
