SKAARHOJ T-Block Left w/Blue Pill Inside - Slim Enclosure Black

The SKAARHOJ T-Block Left with Blue Pill Inside (Slim Enclosure) is a professional programmable control surface designed for live production switching. Featuring a left-side T-bar, OLED displays, and configurable NKK and 4-way buttons, it delivers precise, customizable control with PoE support in a compact, modular design.

The SKAARHOJ T-Block Left with Blue Pill Inside (Slim Enclosure) is a versatile programmable control surface engineered for demanding live production environments. Built with integrated Blue Pill Inside technology, it embeds the processing platform directly into the hardware, enabling deep customization, scalable workflows, and seamless integration with a wide range of broadcast systems without the need for external control units.

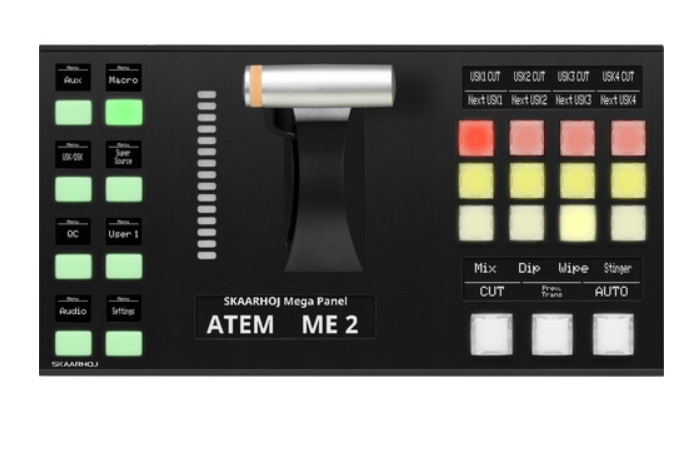

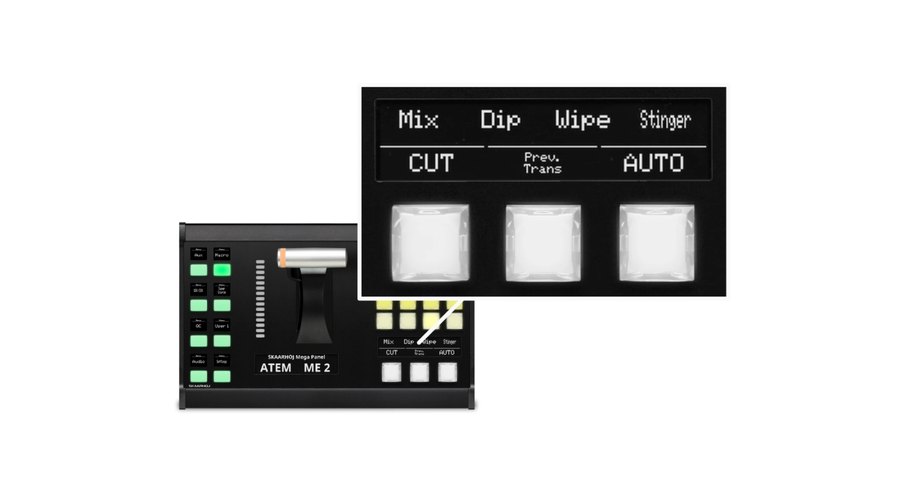

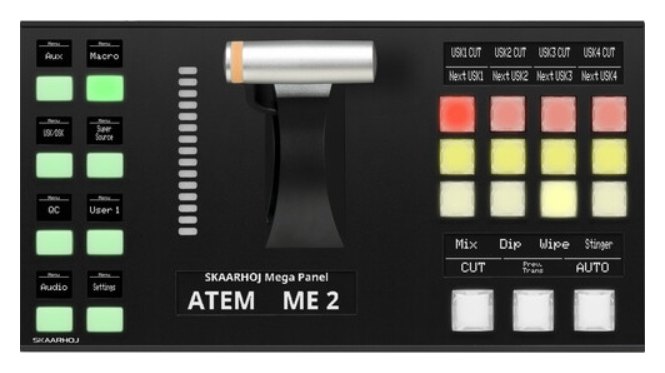

Designed specifically for live switching applications, the T-Block Left features a left-side offset T-bar with an RGB LED bar for intuitive transition control. Operators can assign and program eight 4-way buttons and 15 high-quality NKK buttons, each supported by large, high-contrast OLED displays that provide real-time function labeling and feedback. Additionally, each four-way button includes its own OLED display for enhanced clarity and workflow efficiency.

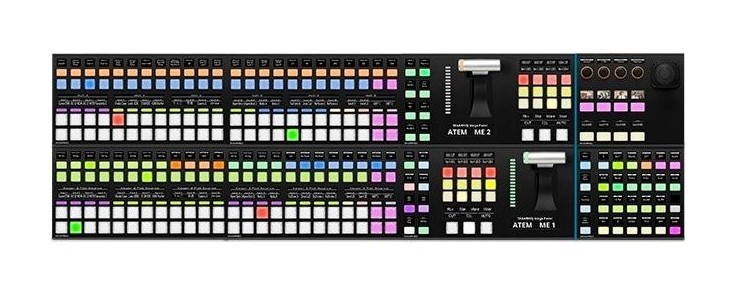

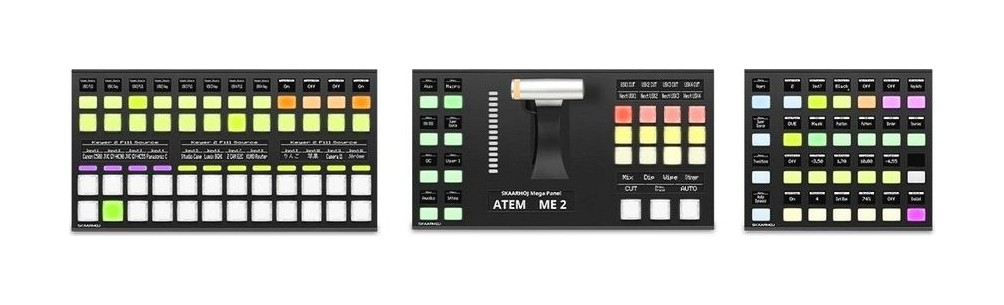

The controller also includes four encoders for extended parameter control, making it adaptable to complex production setups. Its modular multi-surface design allows it to integrate seamlessly with other SKAARHOJ panels, expanding control capabilities as needed. It is fully compatible with leading production systems such as vMix, TriCaster, Blackmagic Design ATEM, Sony XVS-G1, and Panasonic Kairos.

Running on the skaarOS platform, the T-Block Left supports Power-over-Ethernet (PoE) for simplified installation, or can be powered via a standard 12V DC input using the included power supply. Its slim enclosure ensures it fits easily into OB vans, control rooms, and modular production desks.

Key Features:

• Programmable control surface for live production switching
• Integrated Blue Pill Inside technology (skaarOS platform)
• Left-side offset T-bar with RGB LED feedback
• 15 NKK buttons with large OLED displays
• 8 programmable four-way buttons with individual OLEDs
• 4 encoders for additional control flexibility
• Designed for broadcast switching workflows
• Modular multi-surface system compatibility
• Works with vMix, TriCaster, ATEM, Sony XVS-G1, Panasonic Kairos
• PoE (IEEE 802.3af) and 12V DC power support
• Slim enclosure for compact installations
