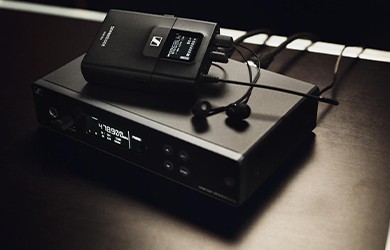

Sennheiser XSw IEM A

The XSw IEM wireless eavesdropper is a reliable, versatile system with simple operation. It is designed for beginning musicians, allowing them to quickly and easily set up a wireless connection in the professional UHF range. Despite its inclusion in the basic category, it provides all the full professional performance of a Sennheiser wireless system.

Features:

• Complete IEM system of the entry-level professional range
• Fast and reliable connection in the professional UHF range
• Adjustable audio modes
• Custom signal mixing capability
• Additional functions - equalizer, limiter
• Simple tuning and detailed manual adjustment
• Infrared information transfer between receiver and transmitter

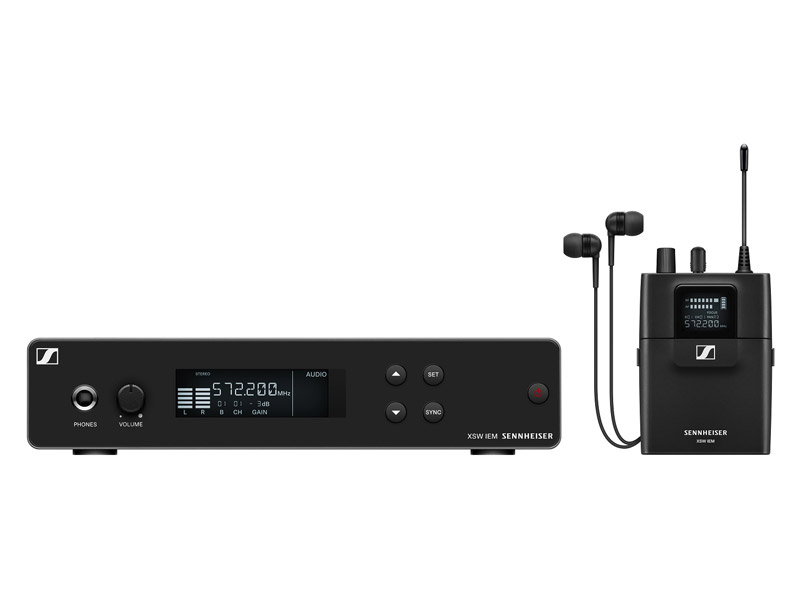

Package contents:

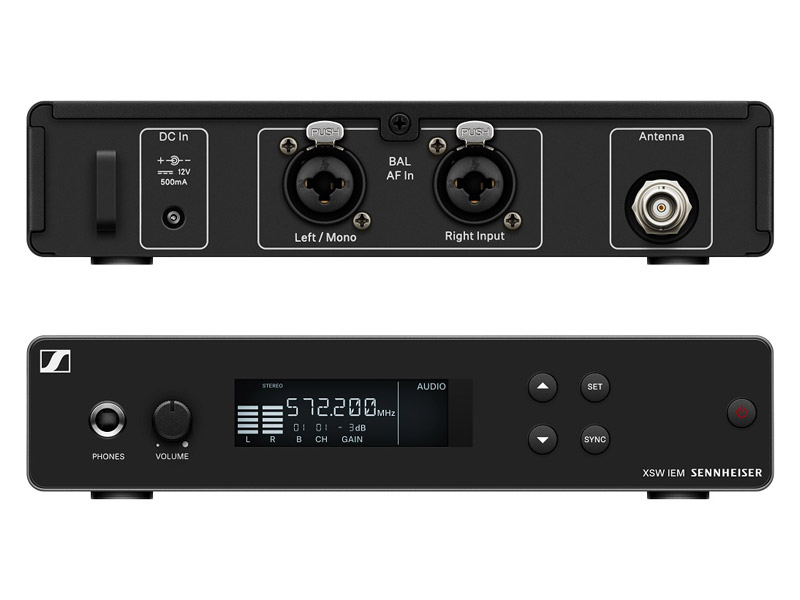

• 1 rack-mount SR-XSw IEM transmitter

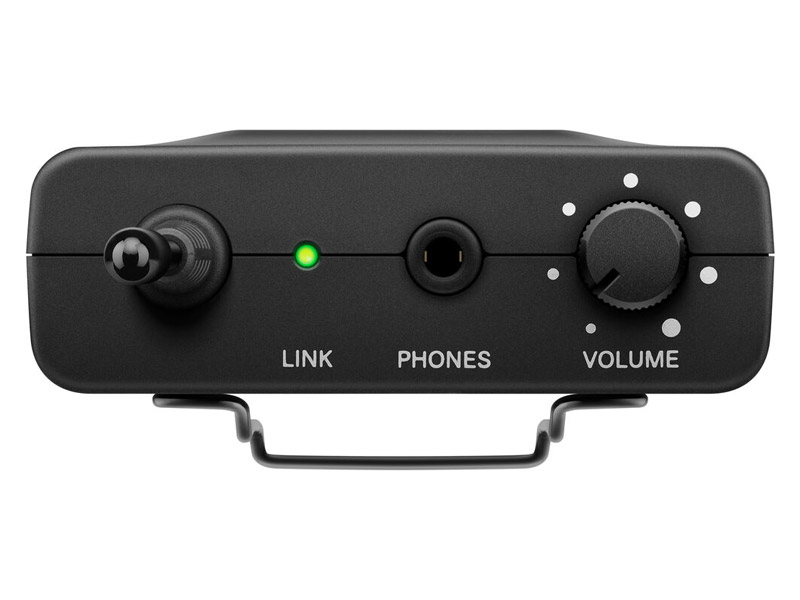

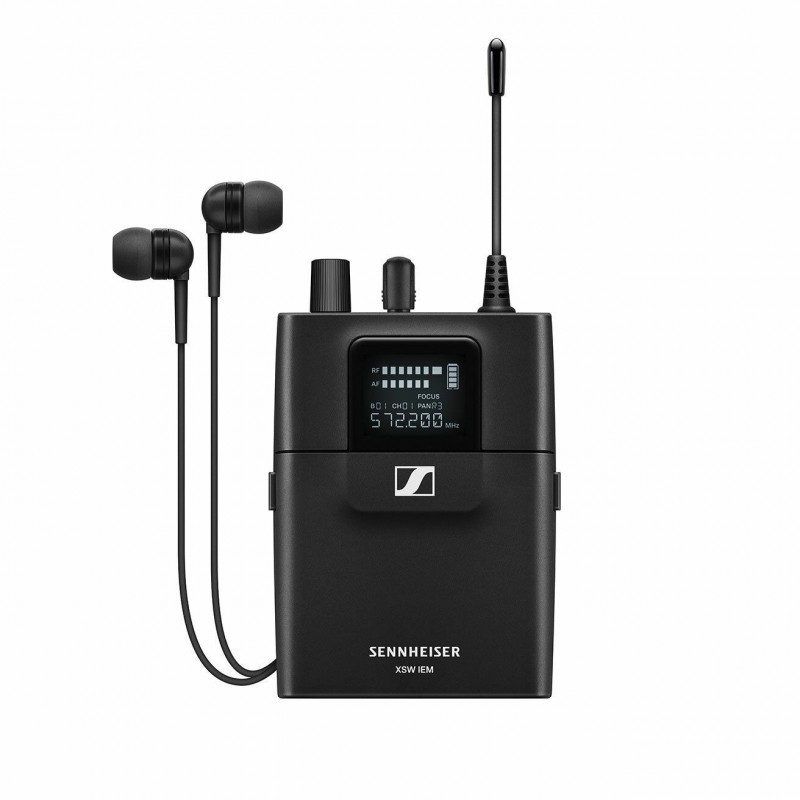

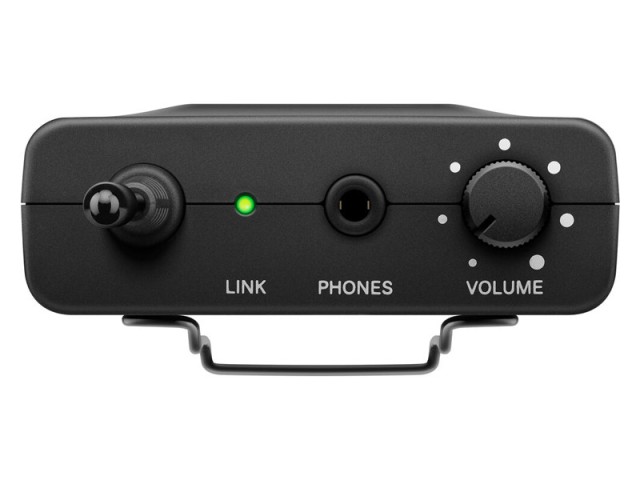

• 1 EK-XSw IEM handheld receiver

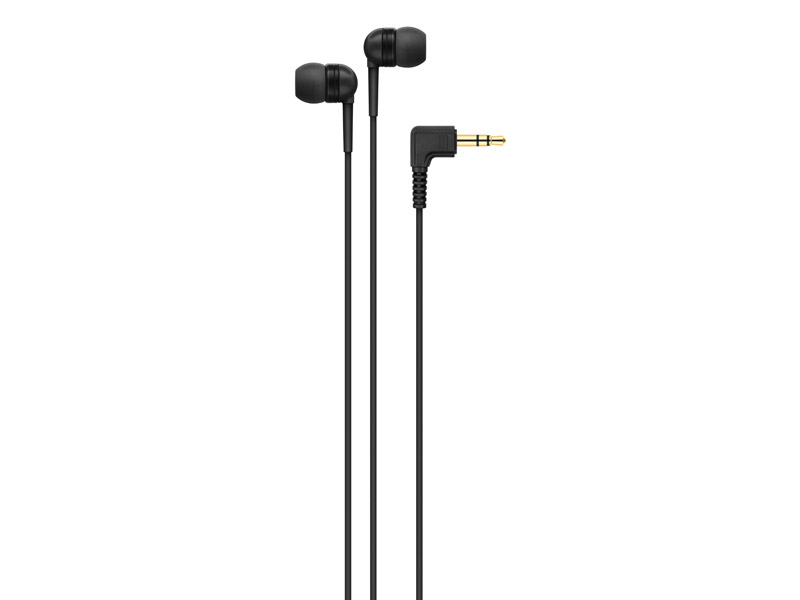

• 1 IE 4 headset
• 1 rack installation kit
• 1 transmitting antenna
• 1 power supply NT 12-5 CW
• 2x AA batteries
• Instructions for use

Technical data

System

• RF bandwidth: 24 MHz
• RF frequency range: 476-500 MHz
• Signal to Noise Ratio: > 88 dB
• Harmonic Distortion (THD): < 0.9%
• Frequency range: 45 ... 15,000 Hz

Transmitter

• RF transmit power: 30 mW
• NF input sensitivity: -21 ... 0 dB
• NF connectors: 2x XLR3-F/jack 6.3 mm
• Antennas: 1x BNC, rod antenna

Receiver

• Output level (headphones): 2x 1.25 V/16 Ohm

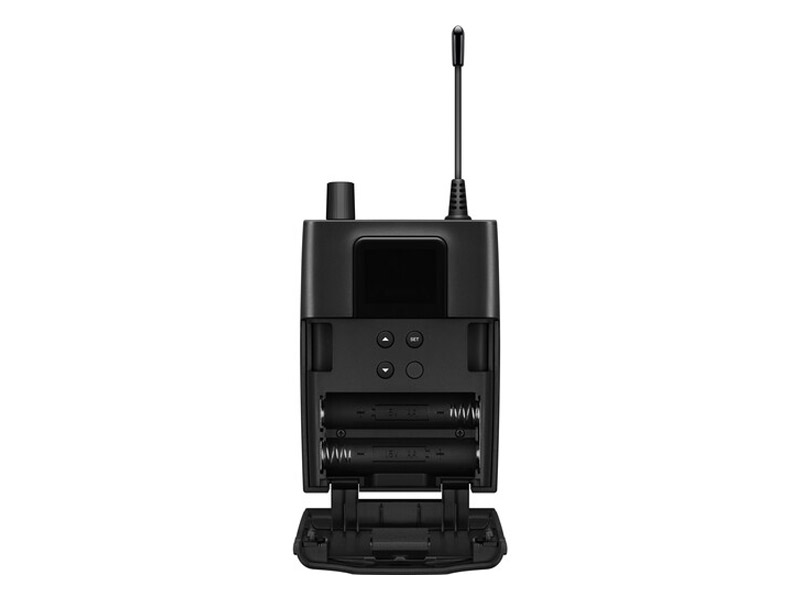

• Power supply: 2x AA batteries
• Battery life: up to 6 hours
• Weight: 110 g
