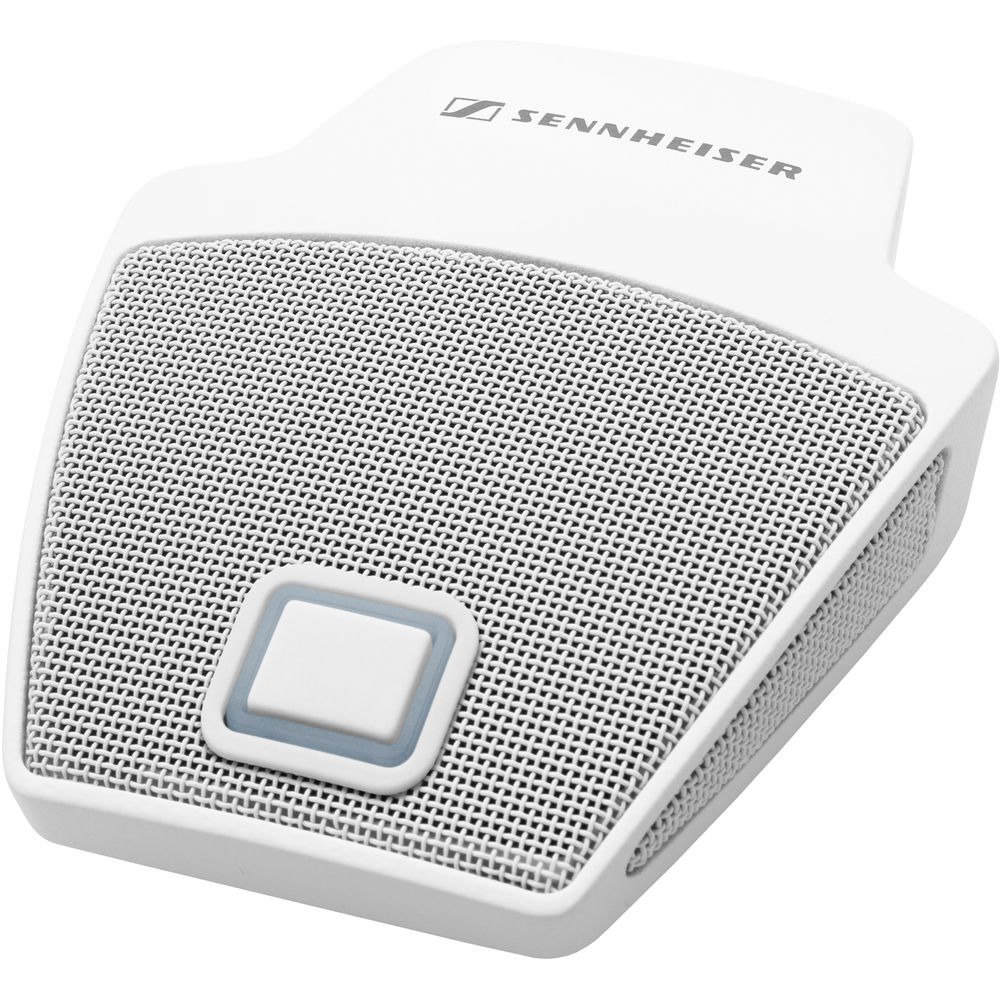

Sennheiser MEB 114-S Cardioid Boundary Microphone (White)

Styled in white, the Sennheiser MEB 114-S is a wired boundary microphone useful for capturing audio in applications such as conferences, teleconferences, presentations in boardrooms, lecture halls, school auditoriums, and other similar scenarios. This mic is designed to maintain speech intelligibility, so it's suited for vocals. It sits atop tables, lecterns, and the like, making installation a breeze.

More information

314.29 € with VAT 259.74 € without VAT
-+
Availability
Prague 1 pcs
Manufacturer
Free transport When purchasing this product
SKU:
MEB114S-W
Add to Compare
Product description

Product description

Styled in white, the Sennheiser MEB 114-S is a wired boundary microphone useful for capturing audio in applications such as conferences, teleconferences, presentations in boardrooms, lecture halls, school auditoriums, and other similar scenarios. This mic is designed to maintain speech intelligibility, so it's suited for vocals. It sits atop tables, lecterns, and the like, making installation a breeze.

The MEB 144-S offers a programmable button on the enclosure, which can be set to push-to-talk, push-to-mute, On/Off, or permanent On. Under the boundary mic is a TTL logic output that can be utilized to activate camera or media control systems. For audio connections, the mic employs a mini XLR termination. The mic operates in a cardioid polar pattern and ships with a 9.8' cable.

  • A cardioid pattern has a wide directional characteristic. Sound hitting the rear of the microphone is filtered out completely
  • Programmable modes for On, On/Off, PTT, PTM modes
  • TTL logic out for media/camera control systems
  • 48V phantom powered
  • Offers immunity from RF interference

PACKAGE CONTENT

  • Sennheiser MEB 114-S Cardioid Boundary Microphone (Black)
  • 9.8' Mini XLR to 3-Pin XLR Cable

SPECIFICATIONS

  • Form Factor Boundary/Surface Mount
  • Sound Field Mono
  • Capsule Condenser
  • Polar Pattern Cardioid
  • Orientation End Address
  • High-Pass Filter None
  • Indicators 1 x Red/Green Single LED
  • On-Board Controls Mic Mute, Push-to-Talk, On/Off
  • Frequency Range 40 Hz to 20 kHz
  • Maximum SPL 140 dB SPL
  • Impedance 200 Ohms
  • Sensitivity 10 mV/Pa
  • Dynamic Range 111 dB A-Weighted
  • Equivalent Noise Level 29 dB A-Weighted
  • 39 dB CCIR
  • Output Connectors (Analog) 1 x XLR 3-Pin Male
  • Cable Length 9.8' / 2.99 m
  • Operating Voltage 48 V
  • Operating Current Consumption 5.3 mA
  • Color White
  • Mounting Tabletop
  • Operating Temperature 14 to 122°F / -10 to 50°C
  • Dimensions H: 3.94 x W: 3.35 x L: 0.98" / H: 100 x W: 85 x L: 25 mm
  • Weight 10.26 oz / 291 g
